The HJW Electronics Choccy Block Crystal Set Radio Kit Science Project

Solderless Choccy Block Terminal Strip Crystal Set Radio Kit of Electronic Parts

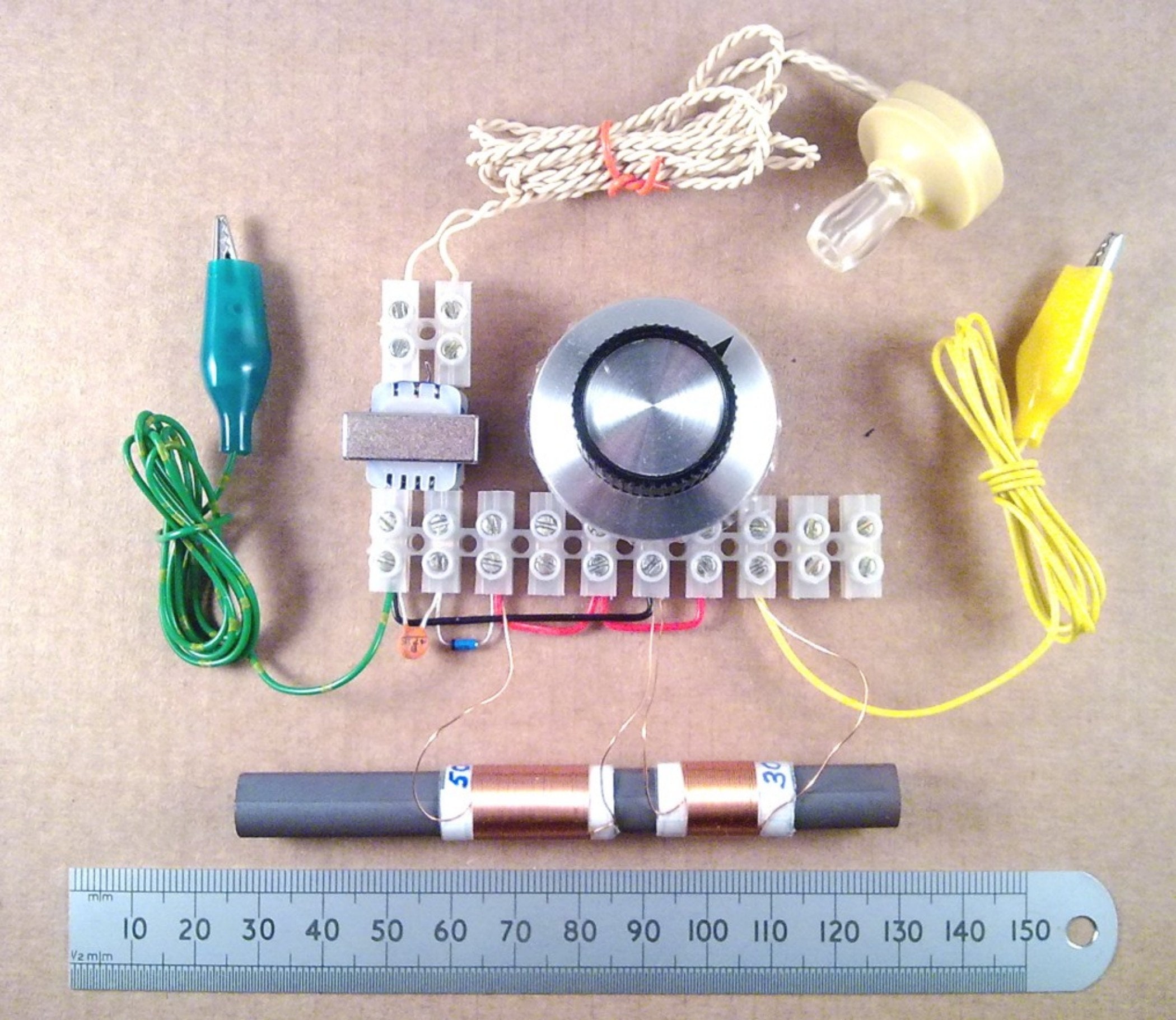

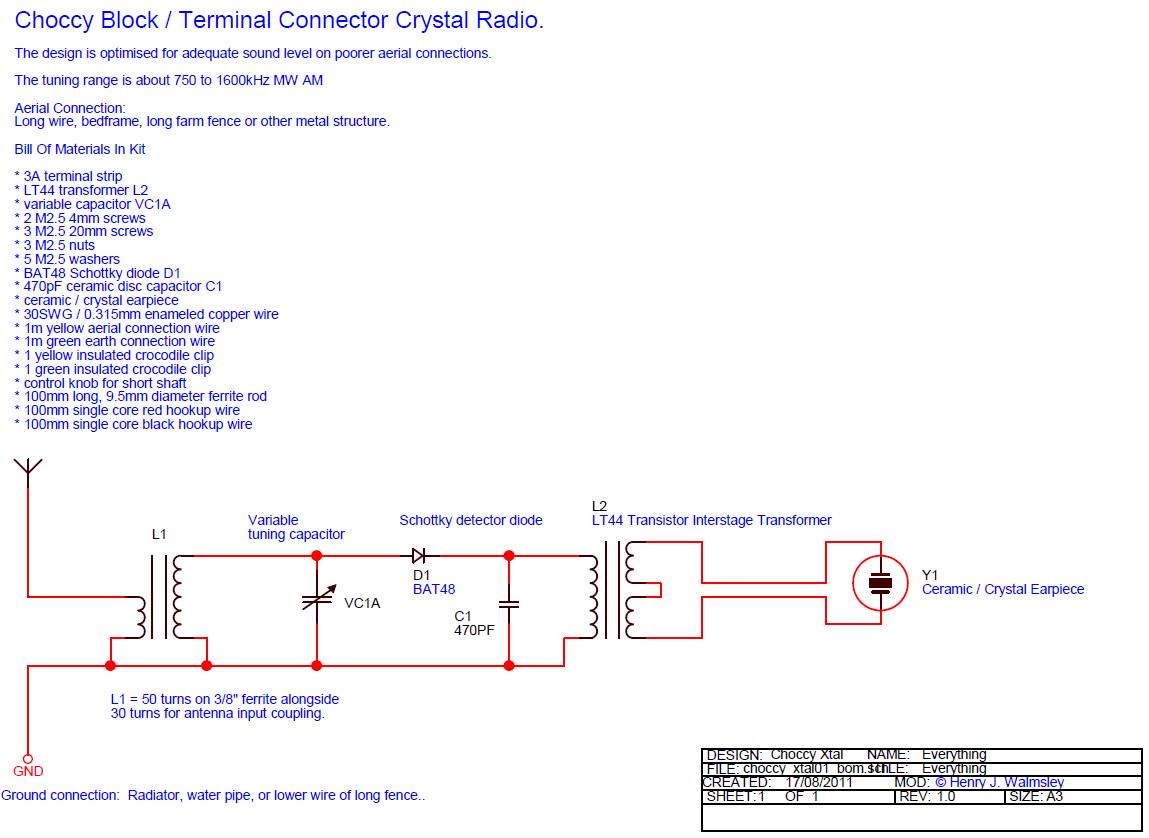

This is a kit of electronic parts which will allow you to build a good crystal set radio using modern parts as detailed in the full instructions provided online:

https://www.usefulcomponents.com/main_contents/projects/choccy_block_crystal_radio/choccy_block_crystal_radio.html, or try searching for "The HJW Electronics Choccy Block Crystal Set Radio Kit"

I have found it to be much better than the commercial plastic kits available thanks to the use of the output transformer and the use of an aerial input coupling coil. All the earphones are tested, something which you won't find elsewhere.

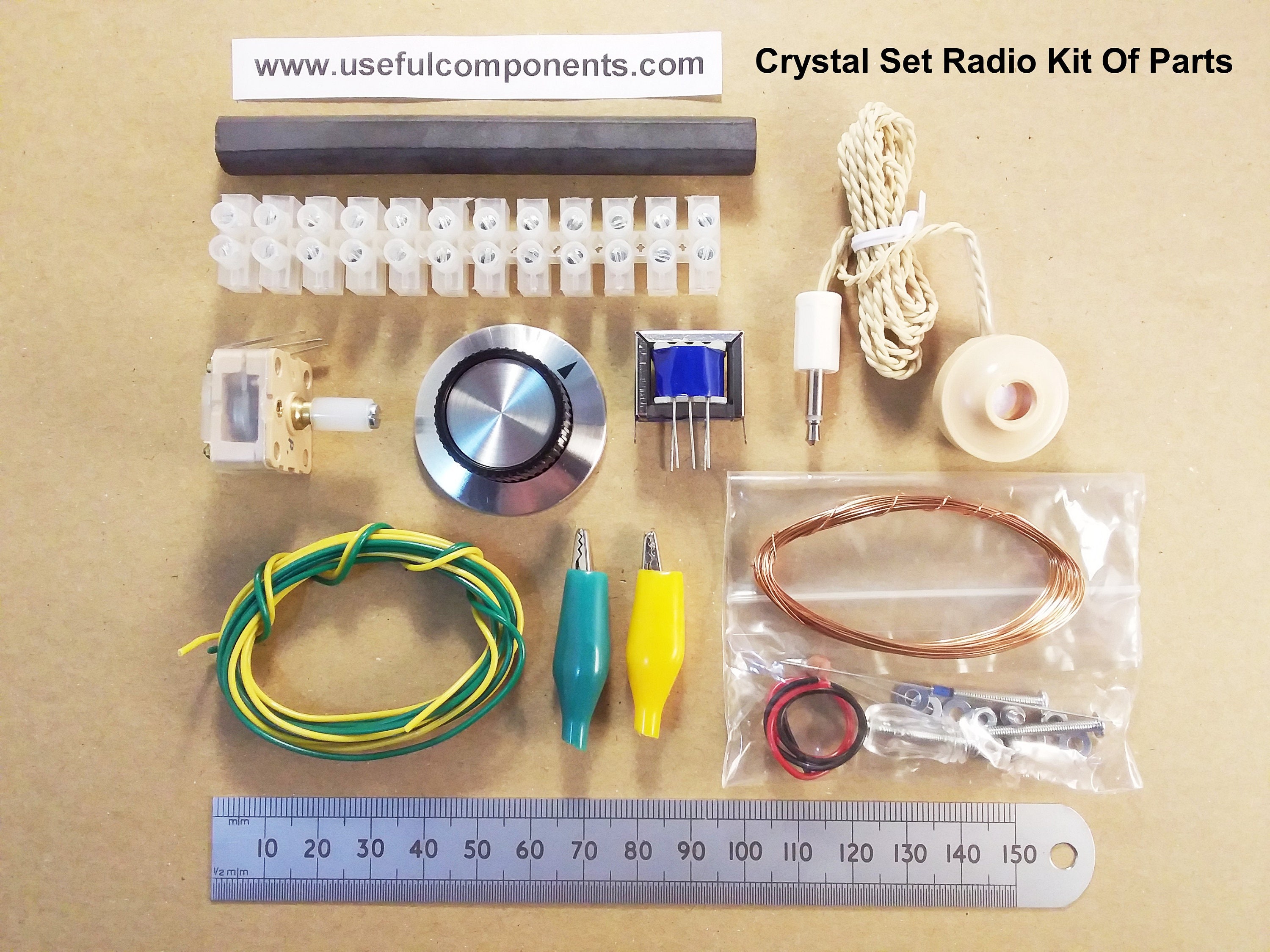

This is the Bill Of Materials:

* 3 Amp terminal strip
* LT44 transformer L2
* variable capacitor VC1
* 2 M2.5 4mm screws
* 3 M2.5 20mm screws
* 3 M2.5 nuts
* 5 M2.5 washers
* BAT48 schottky diode D1
* 470pF ceramic disc capacitor C1
* ceramic / crystal earpiece Y1
* 30SWG / 0.315mm enammeled copper wire 4m
* 1m yellow aerial connection wire
* 1m green earth connection wire
* 1 yellow insulated crocodile clip
* 1 green insulated crocodile clip
* control knob for short shaft
* 50mm long, 9.5mm diameter ferrite rod
* 100mm single core red hookup wire
* 100mm single core black hookup wire

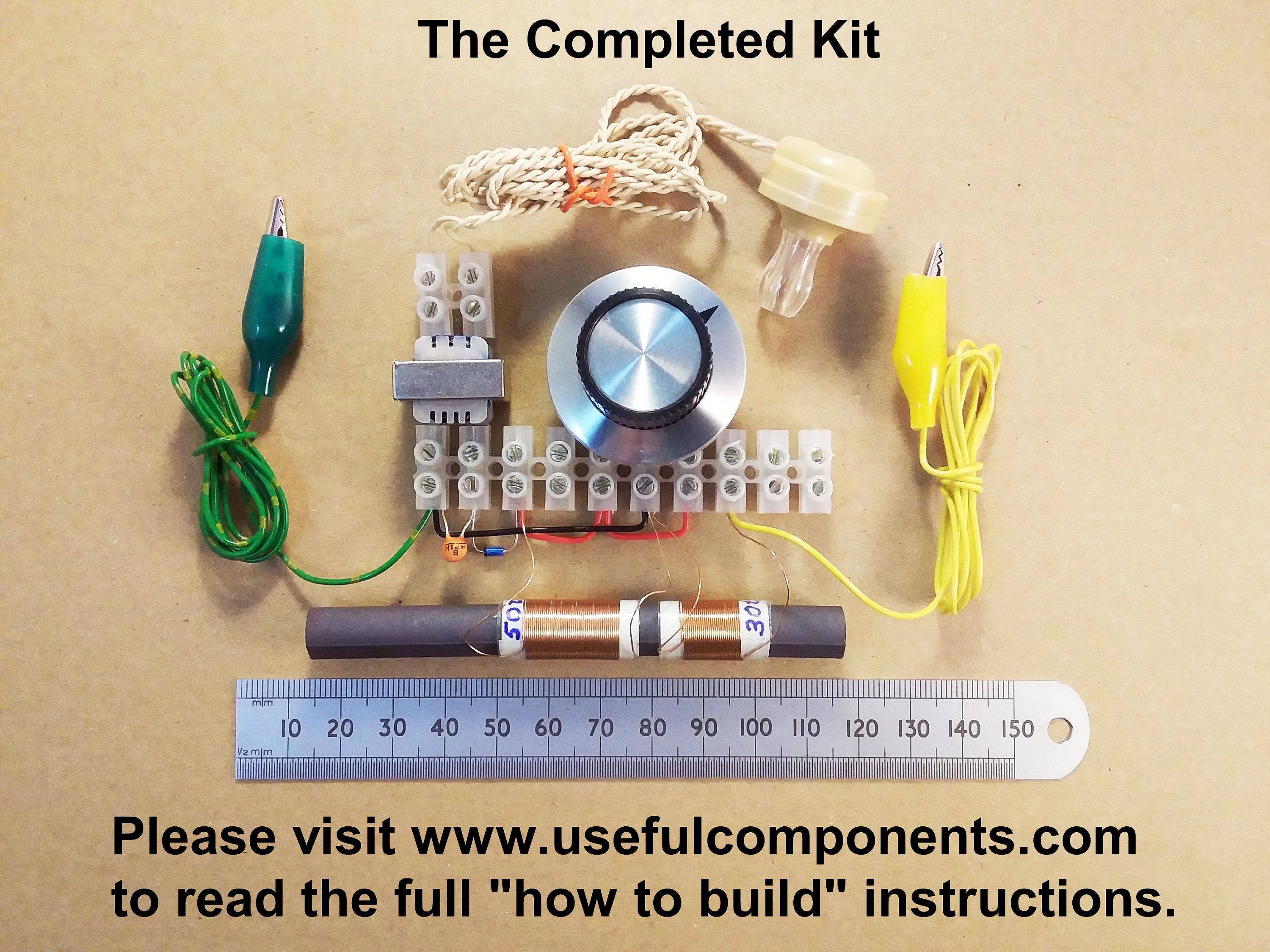

All the build information is provided online so that easy updates can be added. There is no paper documentation supplied. There is plenty of highly educational additional information there, with clear pcitures and explanations for each component. It makes a good school science project, where erecting a long wire aerial should be practical, and all part of the fun.

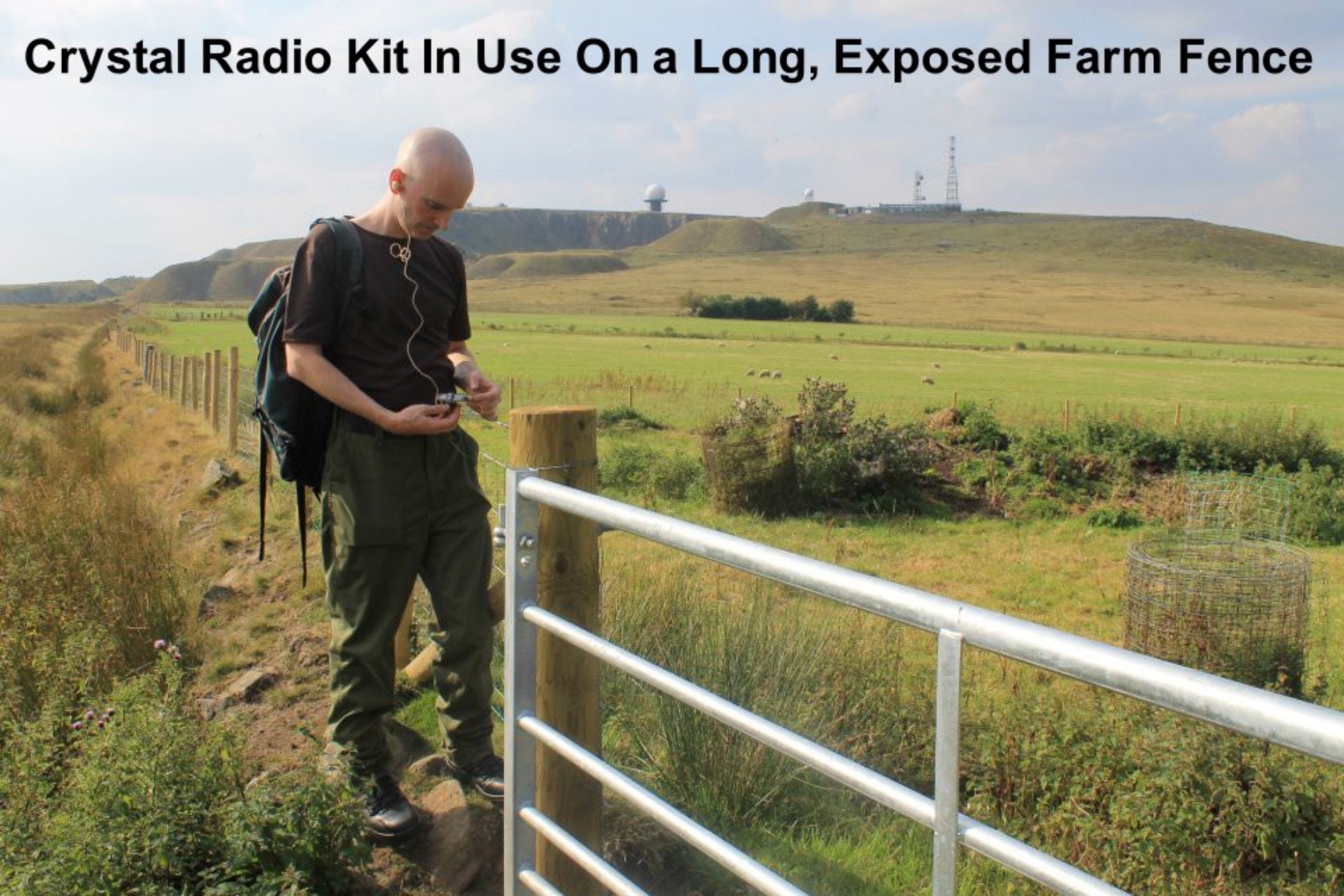

The particular thing that I like about my kit versus so many others, is that if you live in a flat and can't put up a decent long-wire aerial, you can always go on a walk and attach this portable version to two wires on a long farm fence to get a signal. This is a tried and tested design which has had much success over many years.
