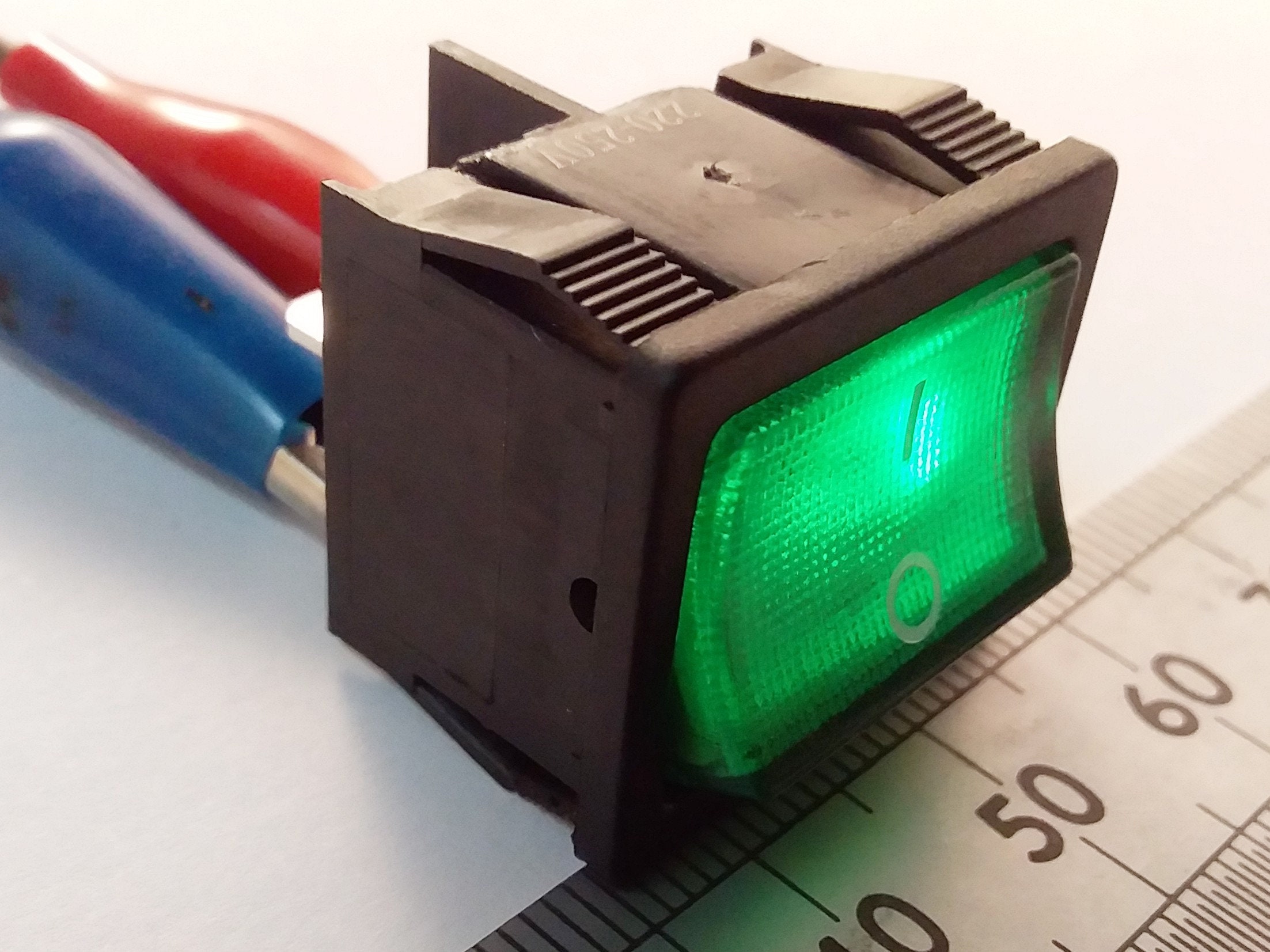

Rocker Switch Mains Power Neon Illuminated DPST 6A 250 VAC

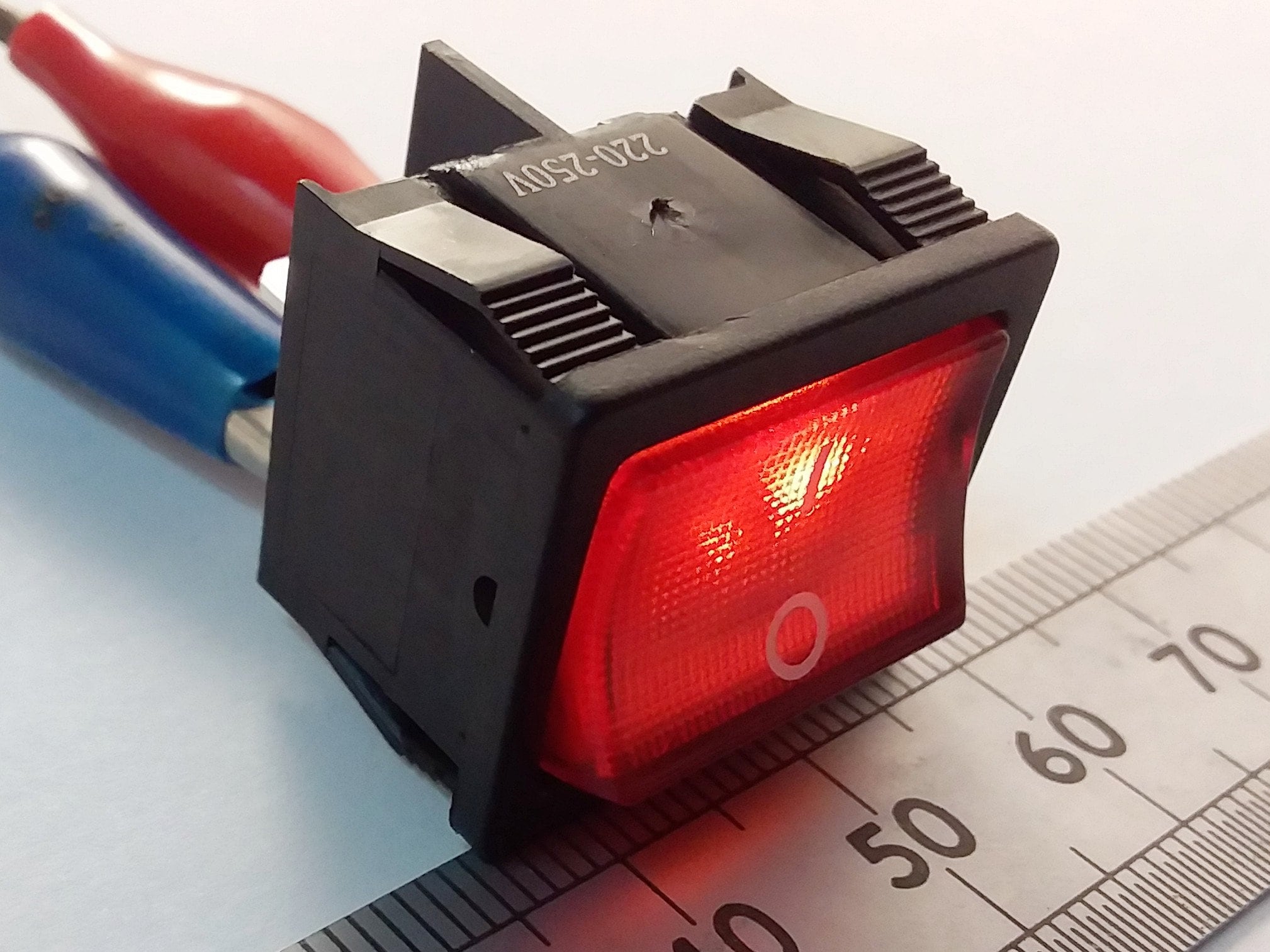

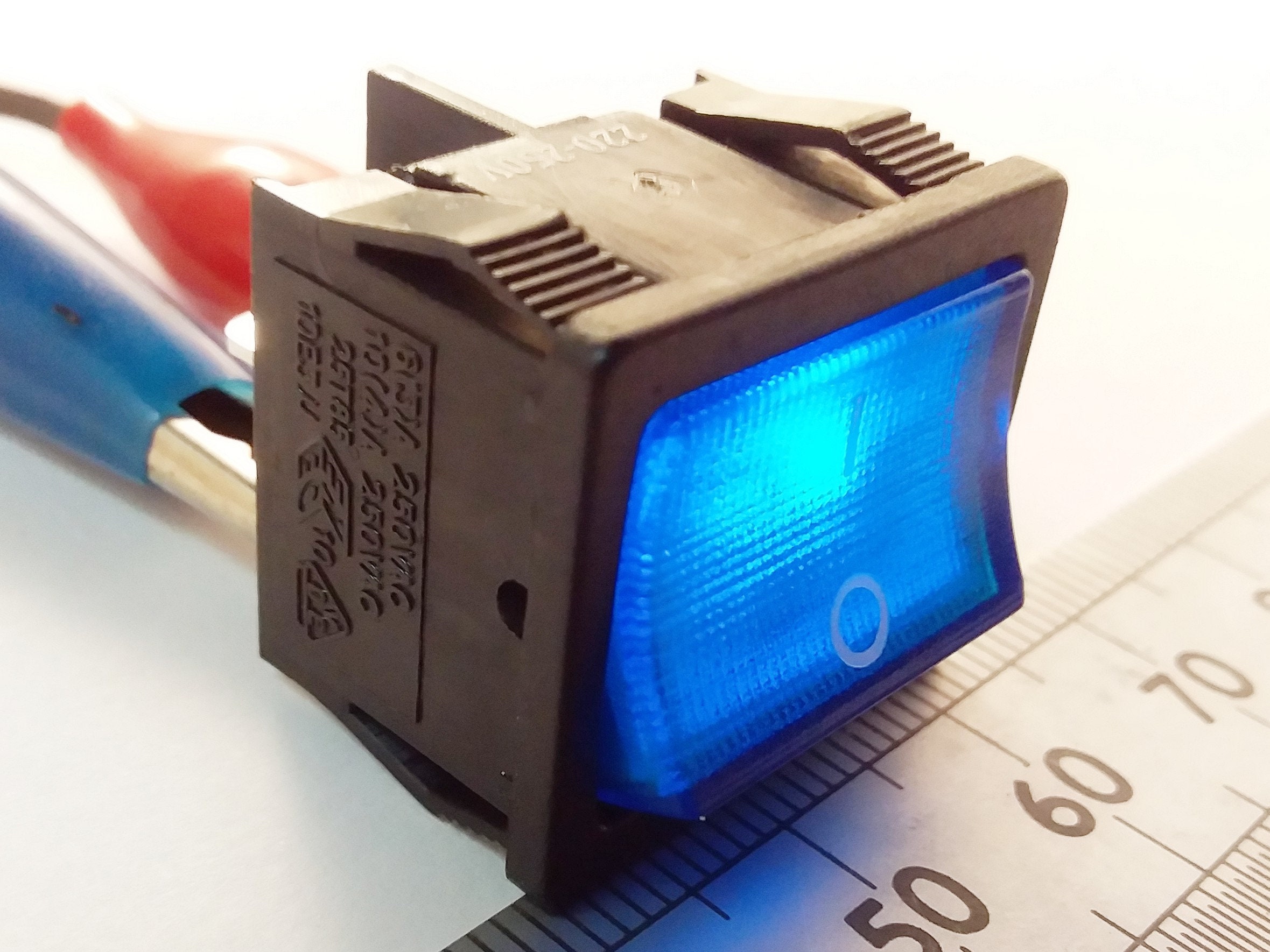

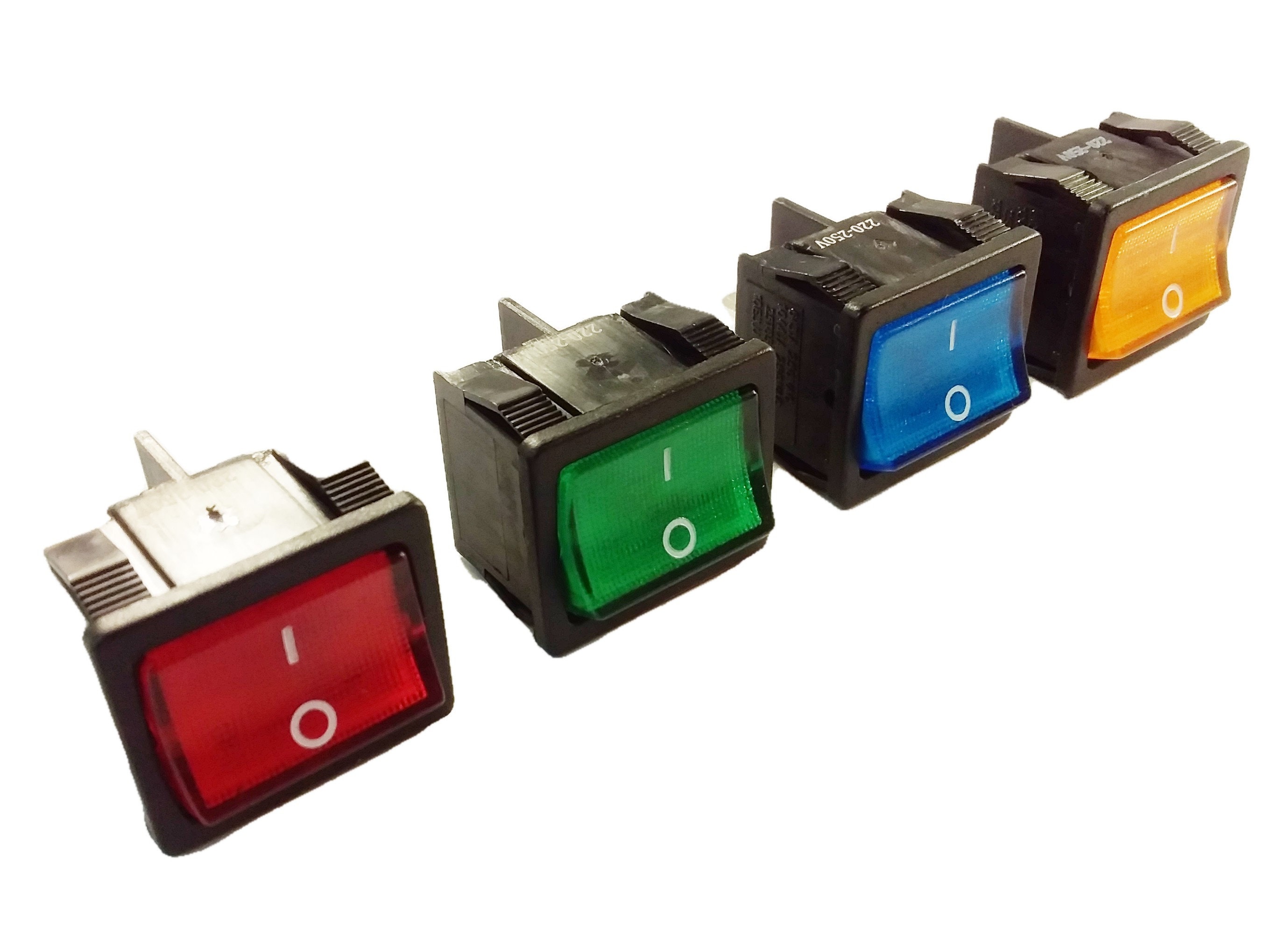

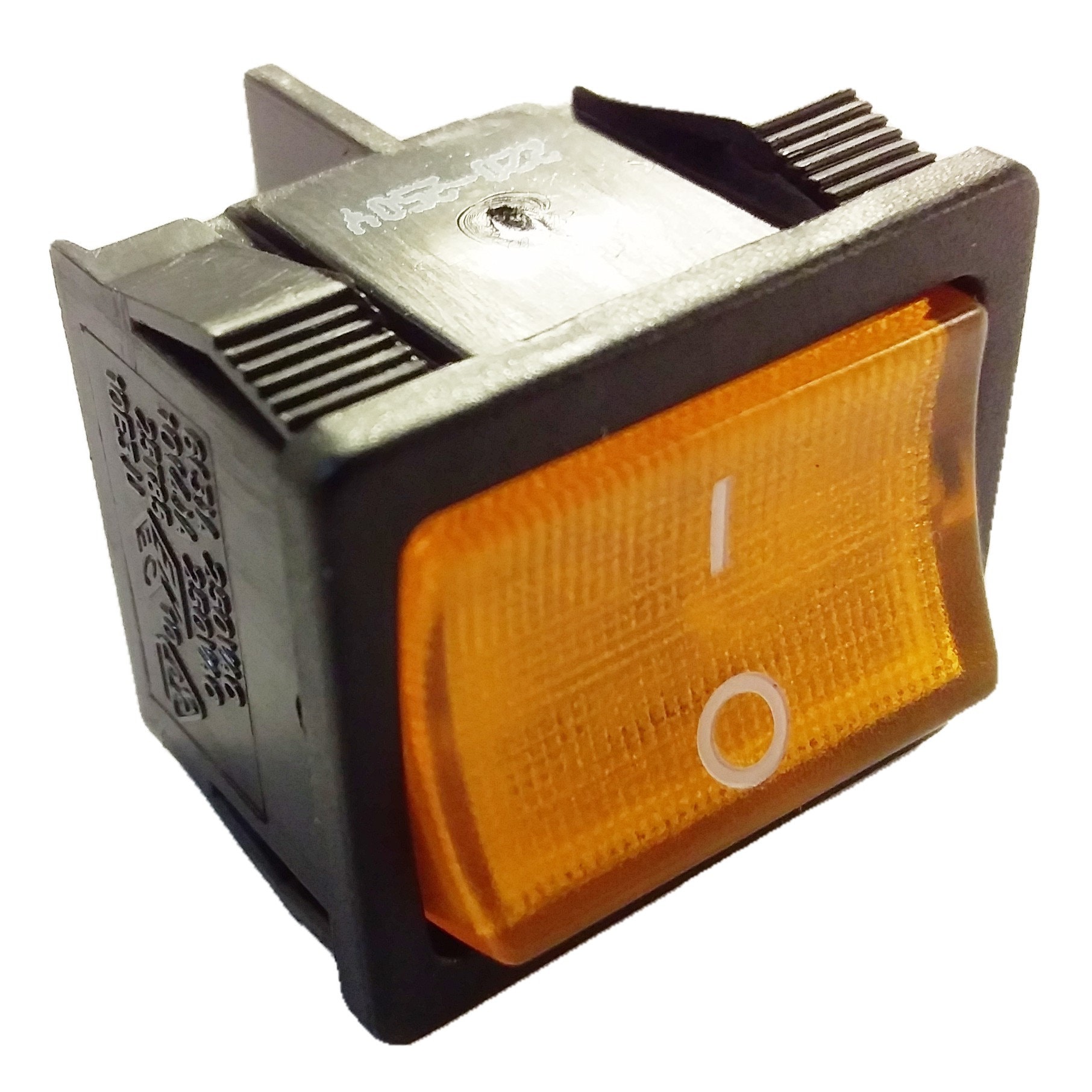

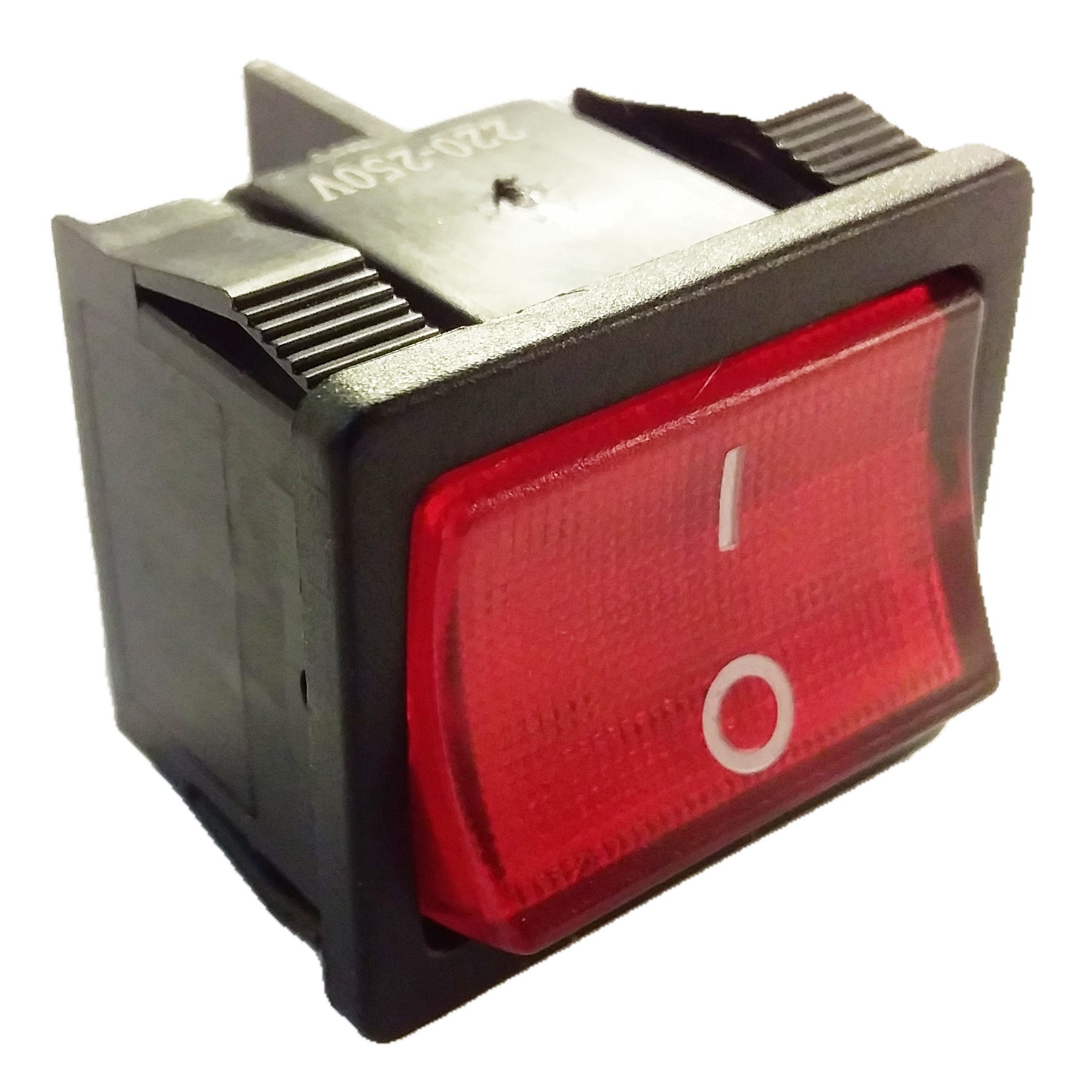

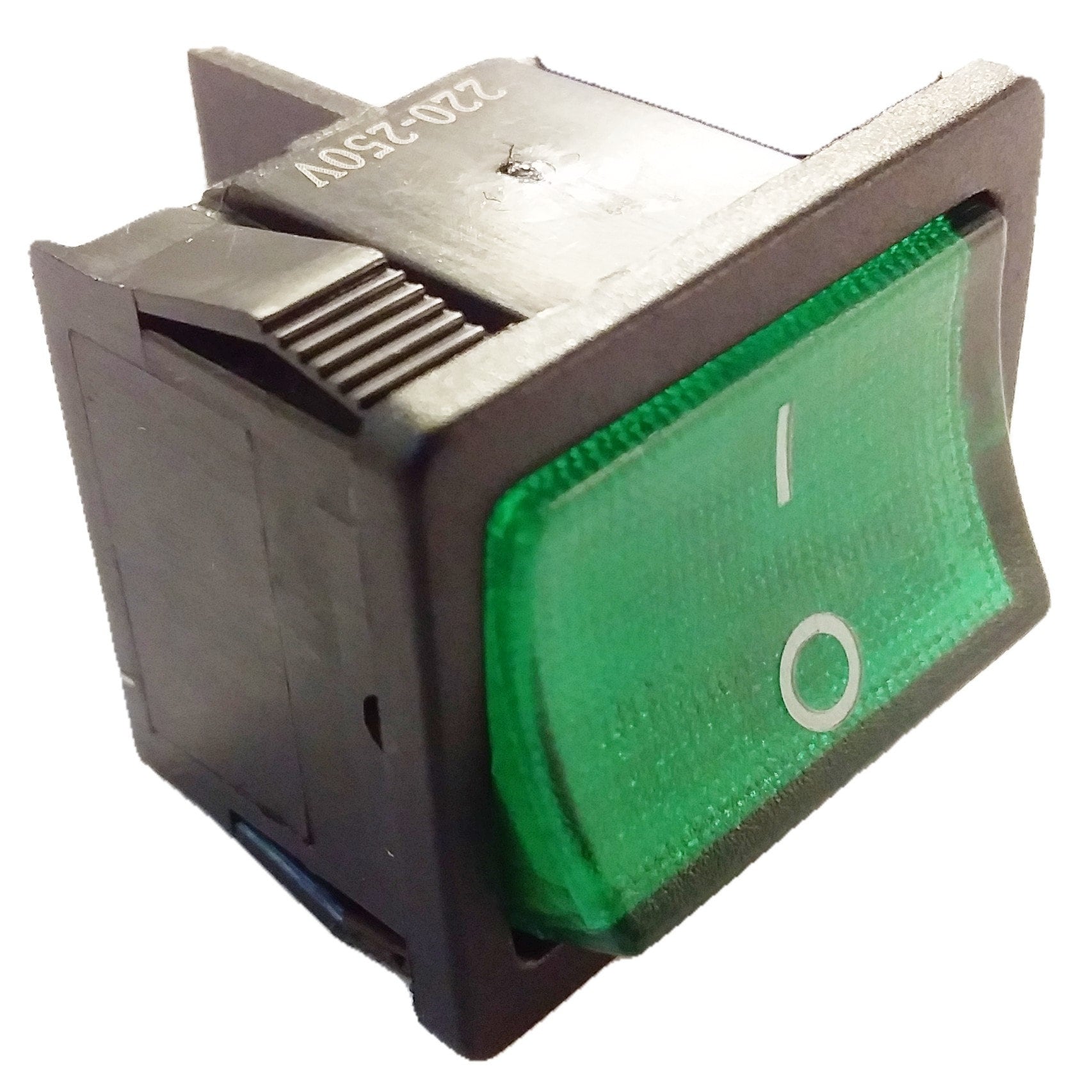

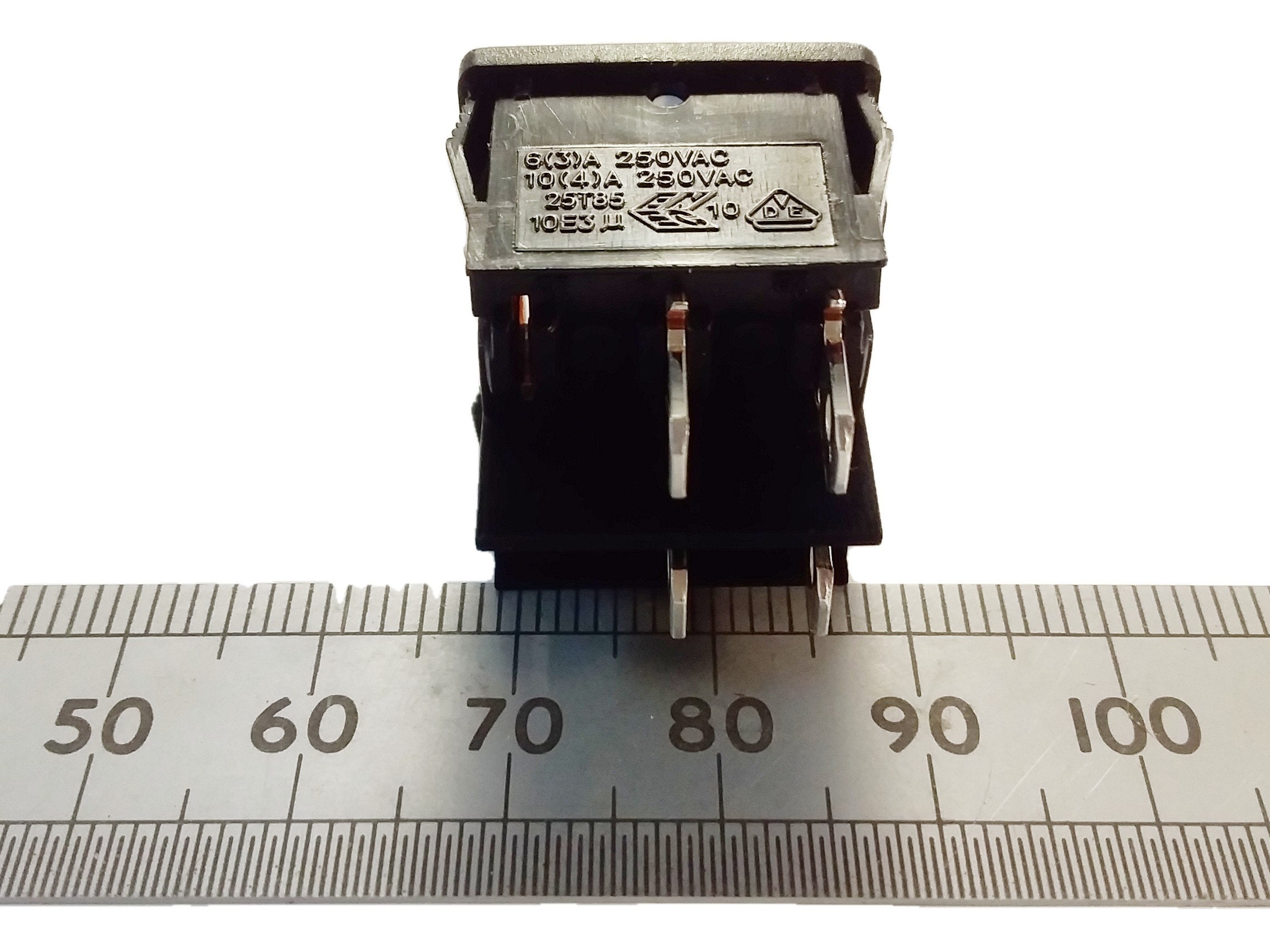

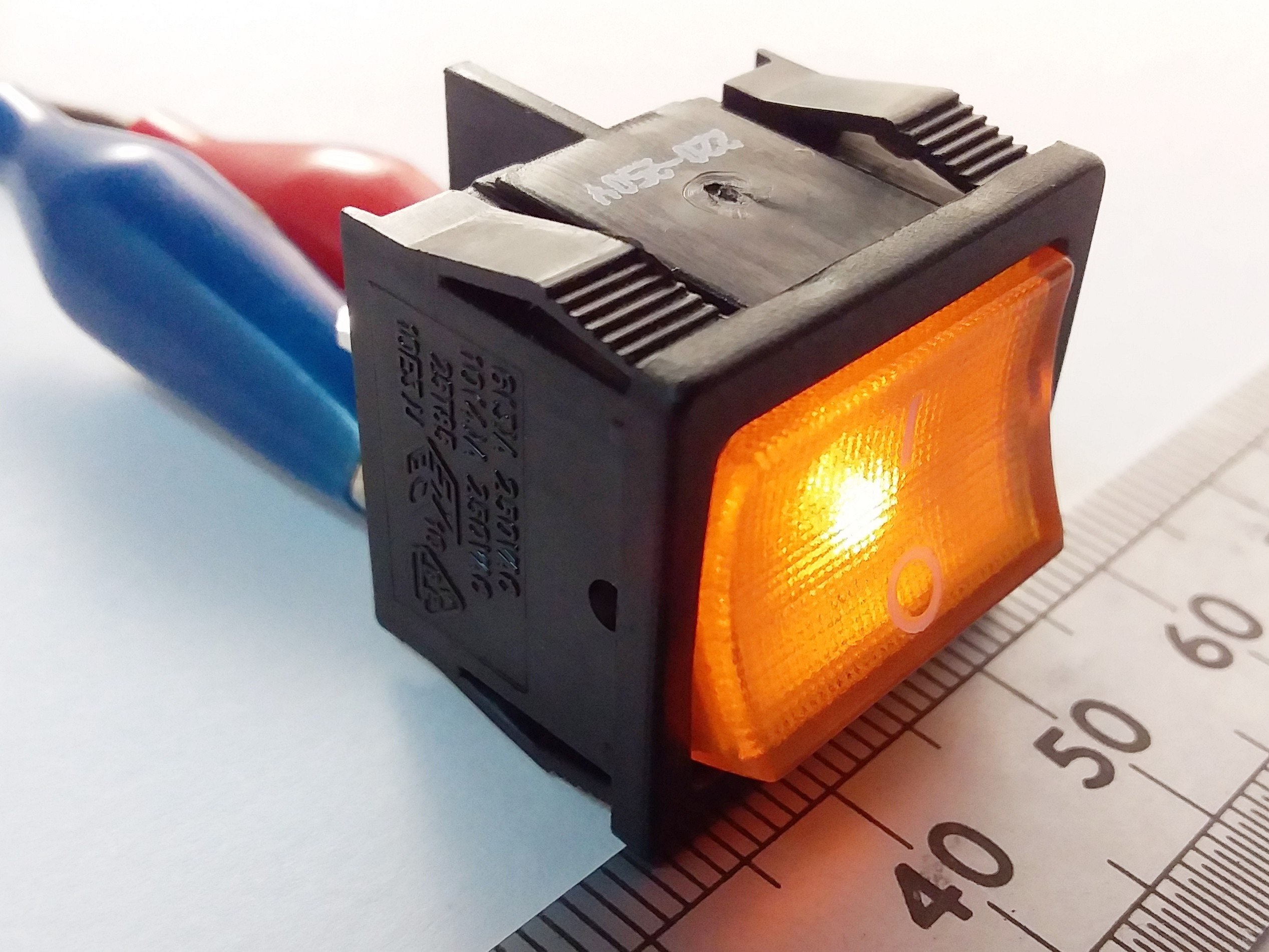

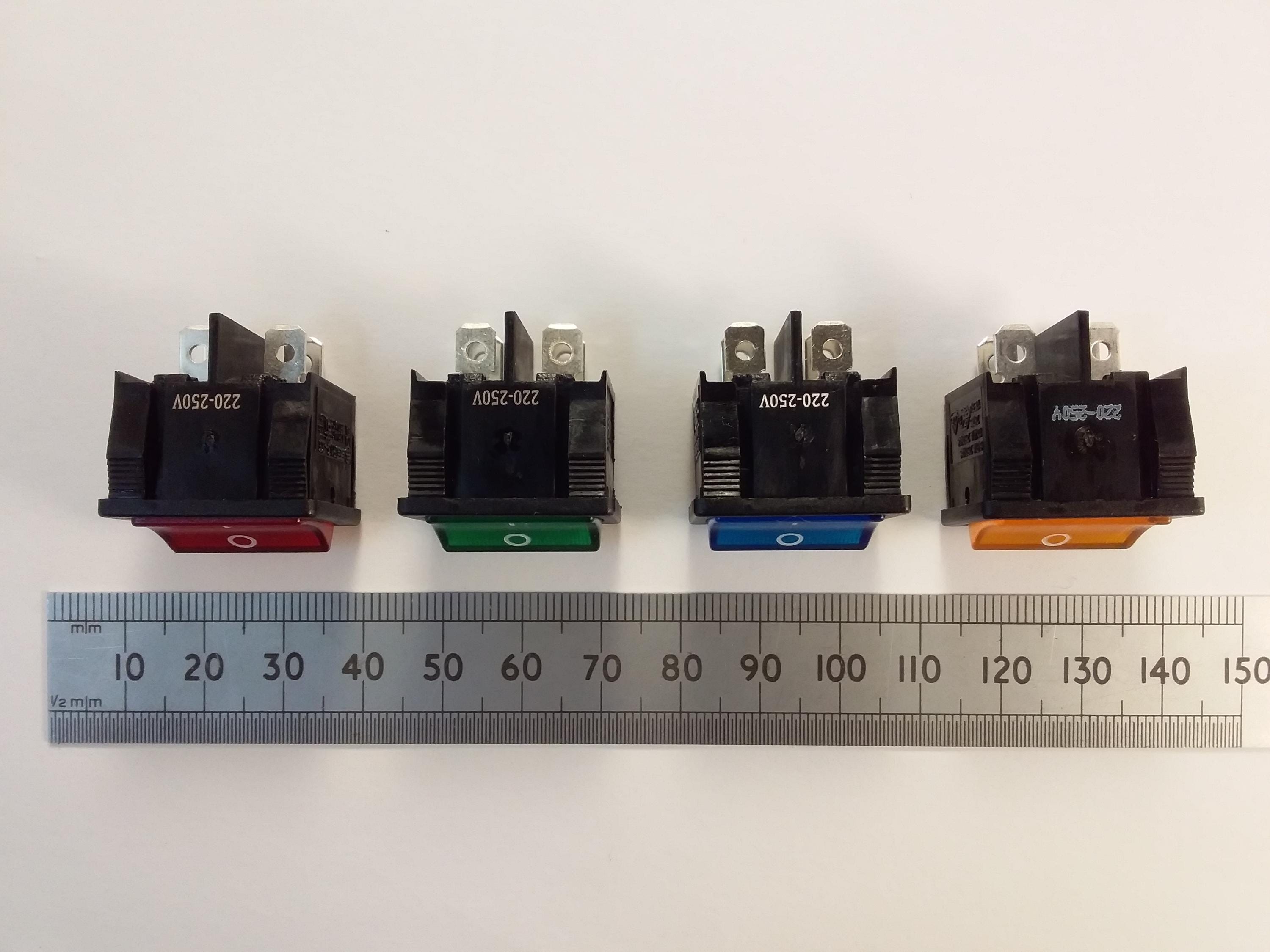

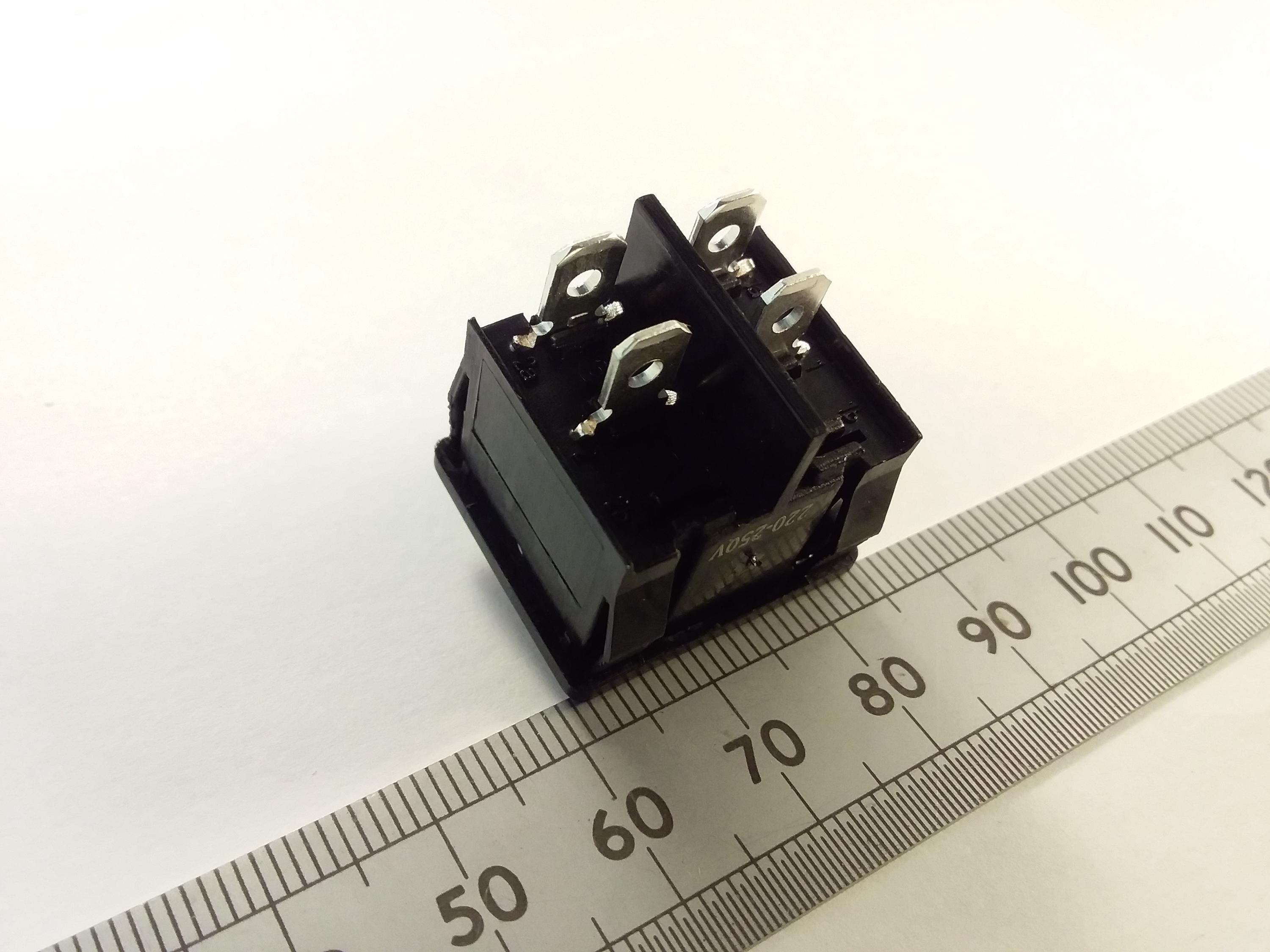

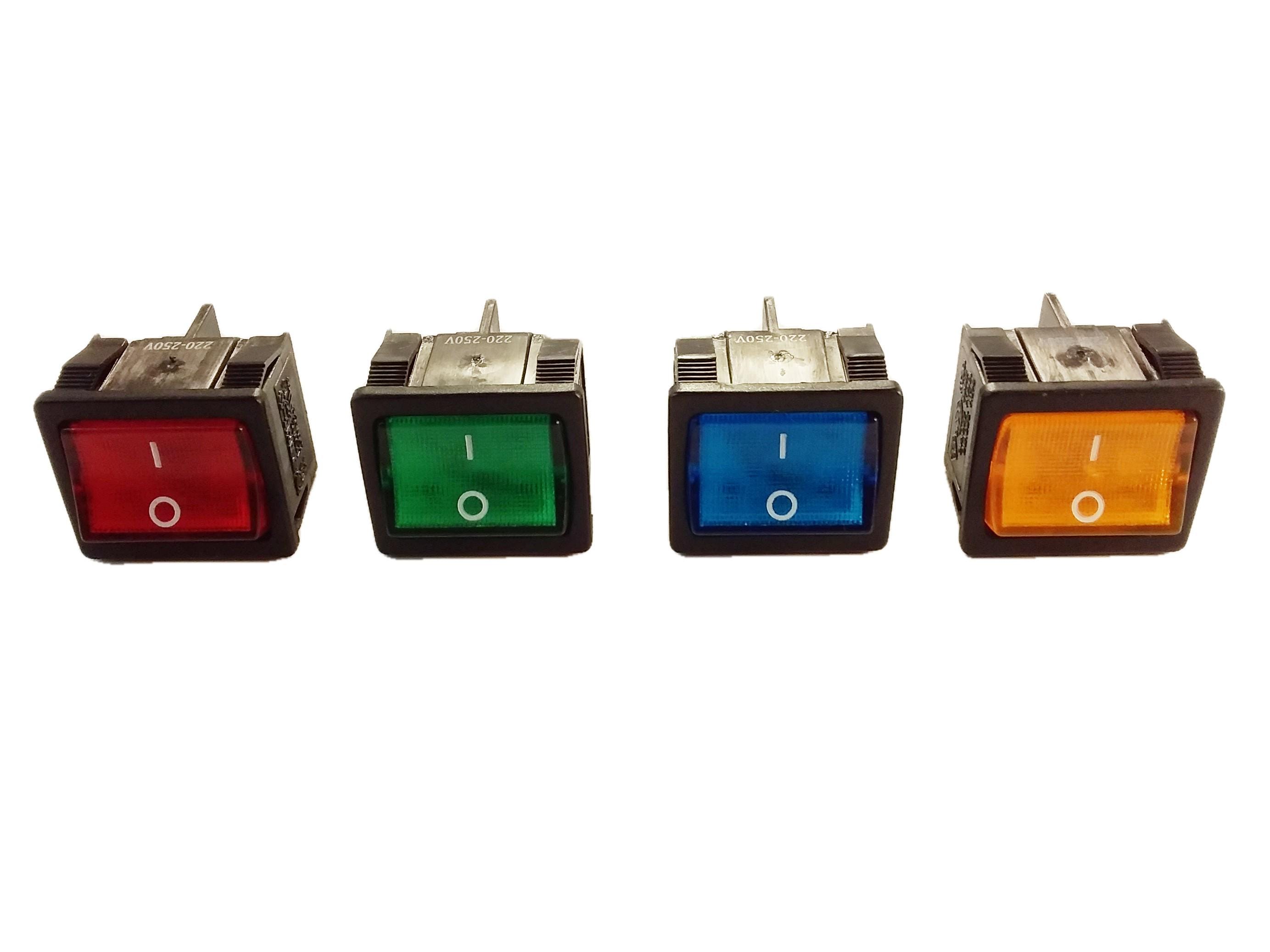

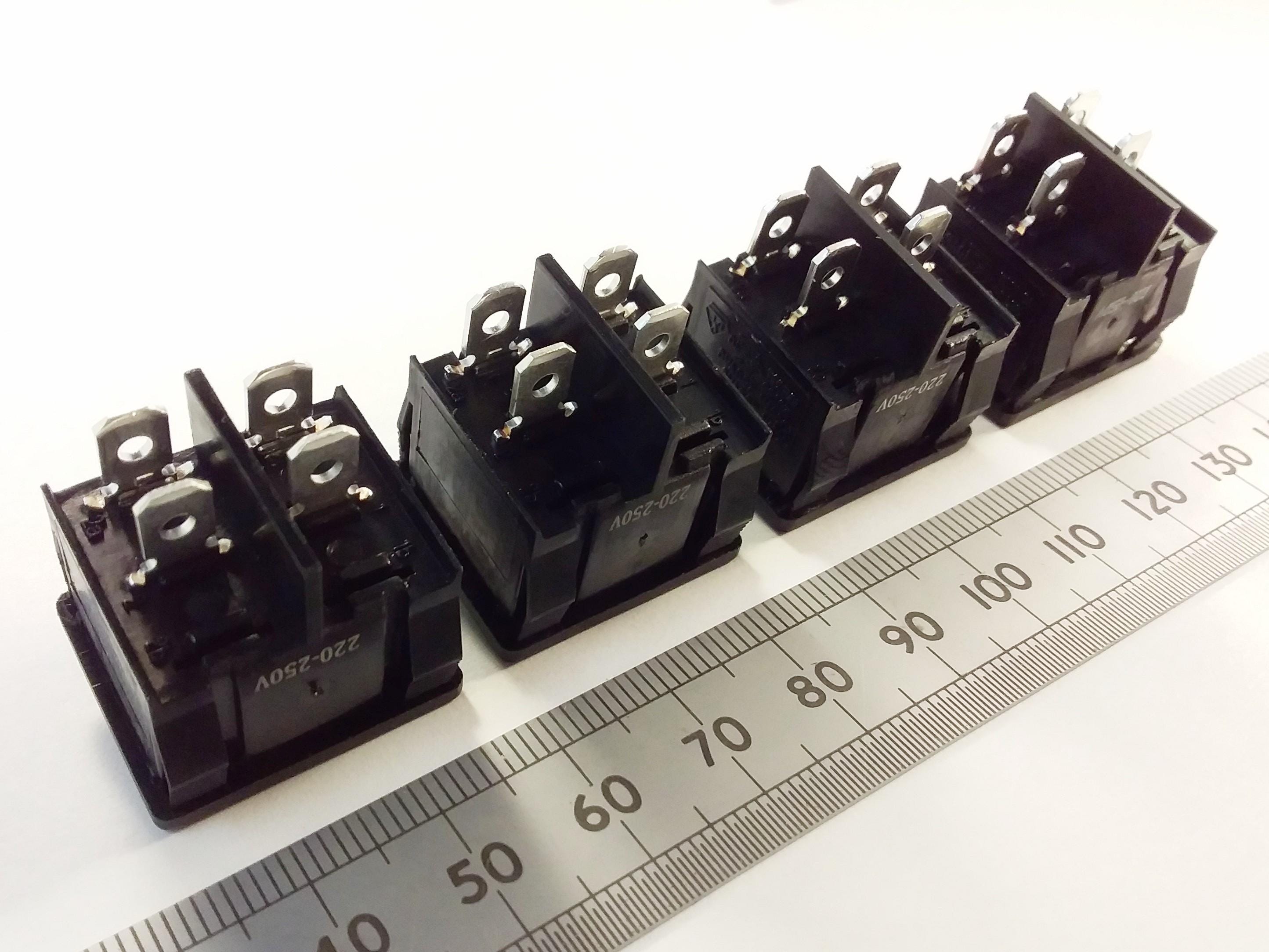

This is one item of new DPST mains power rocker switch with neon bulb illumination, available in four colours. The higher quantity options are cheaper per item. If you would like to mix the available colours in a pack of two or more, please select the MIX option and send me your requirements in a site message. The neon is connected to the lower two pins, so the mains input would usually be on the middle two pins and the load on the lower pins so that the neon illuminates when it is turned on. Here are the headline properties:

Type of switch
ROCKER DPST

Number of positions
2

AC contacts rating at resistive load
6A / 250V AC

Illumination
neon lamp

Illumination voltage
220 to 250 V.A.C.

Max. contact resistance:
50mΩ

Body colour
black

Body material
polyamide

Flammability rating
UL94V-2

Operating temperature
-20...85°C

Leads
4,8x0,8mm male spade connectors

Panel thickness
max. 3mm

Electrical life
6000 cycles

Mounting hole diameter
22x19.6mm

Button marking
O-I

Shape
rectangular

Manufacturer series
R13-33-AC
