Slide Switch 8PDT 8 Eight Pole Double Throw 8P2T PCB Mount
$2.74
Please read the details▼
HJW Electronics Pattern Listing

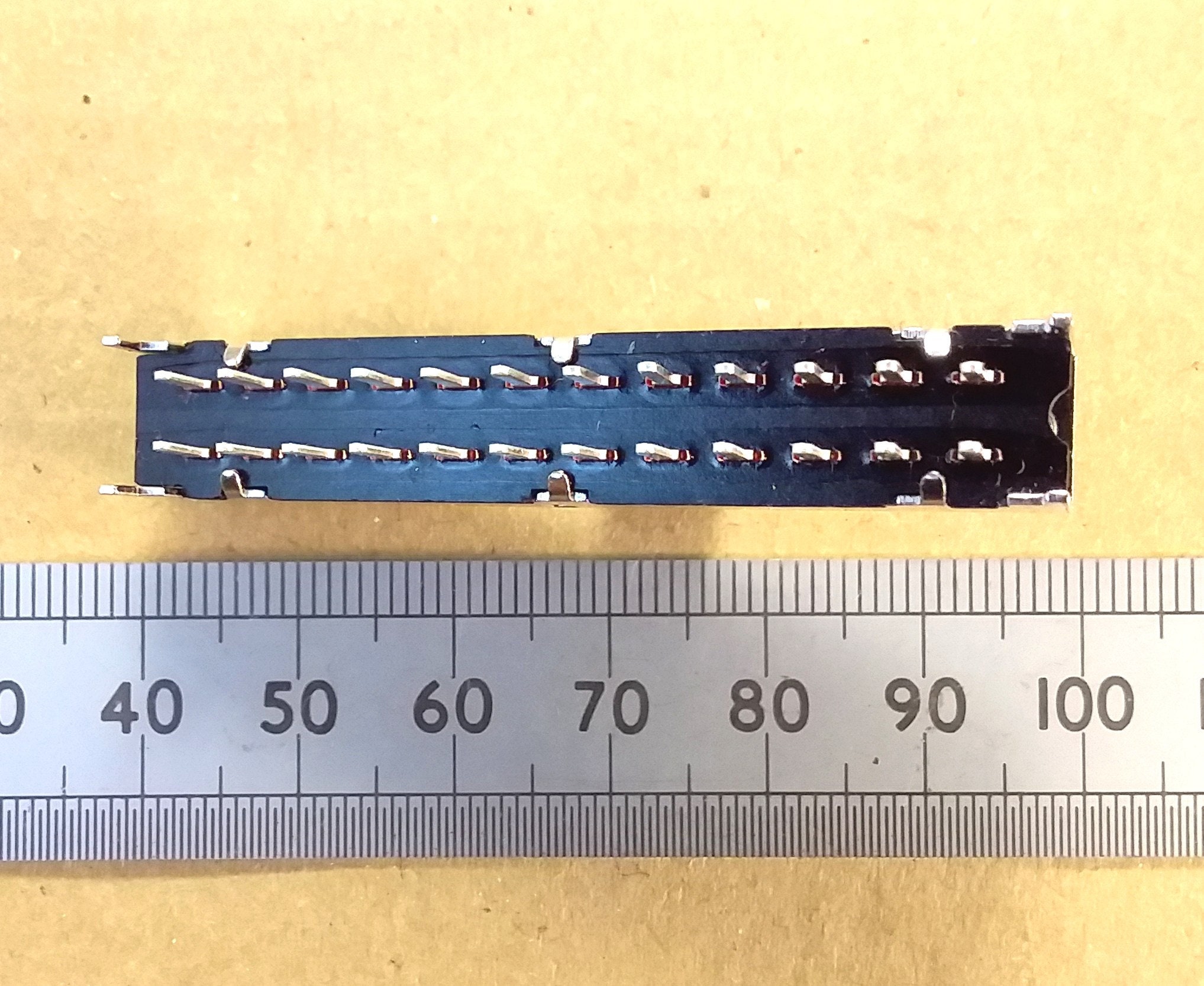

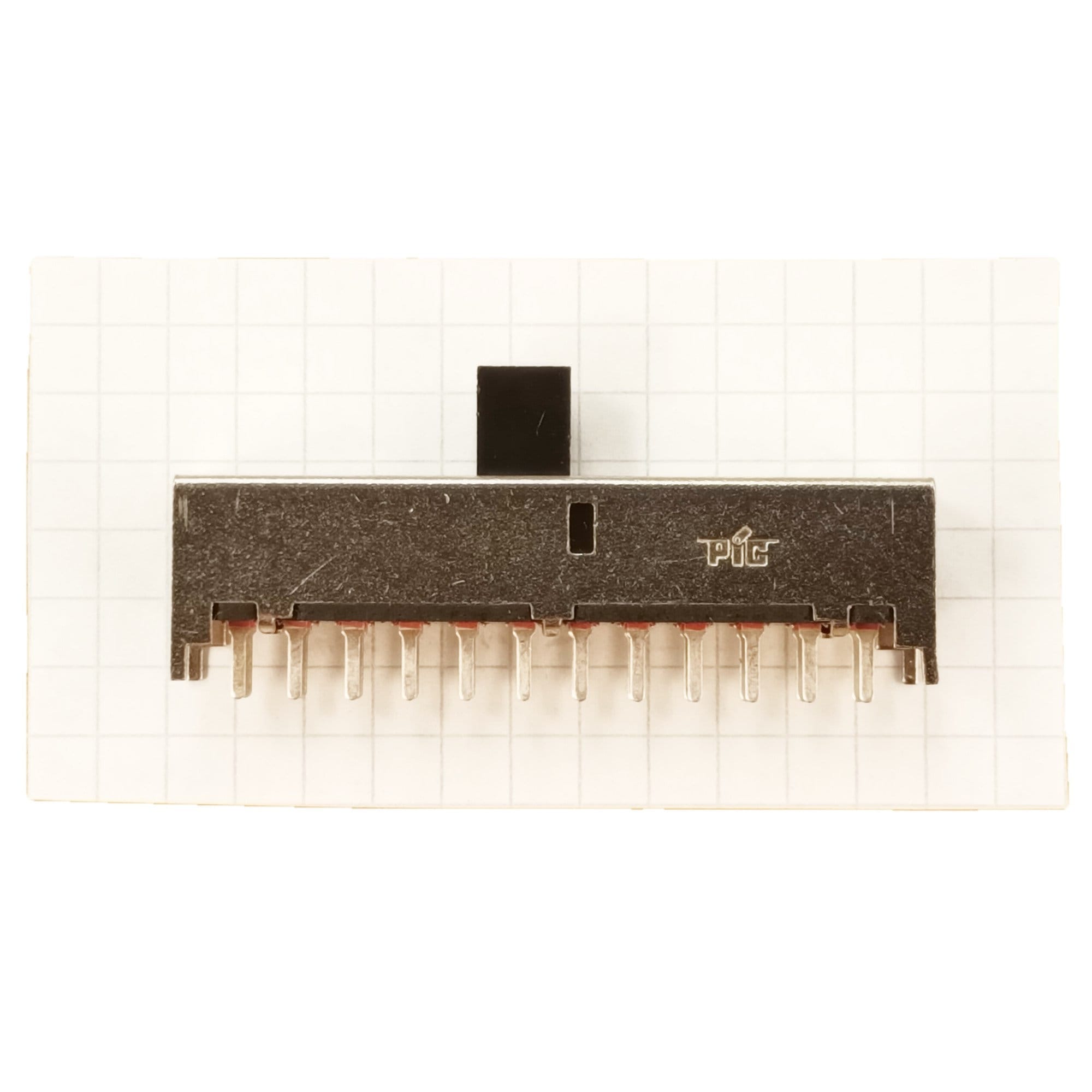

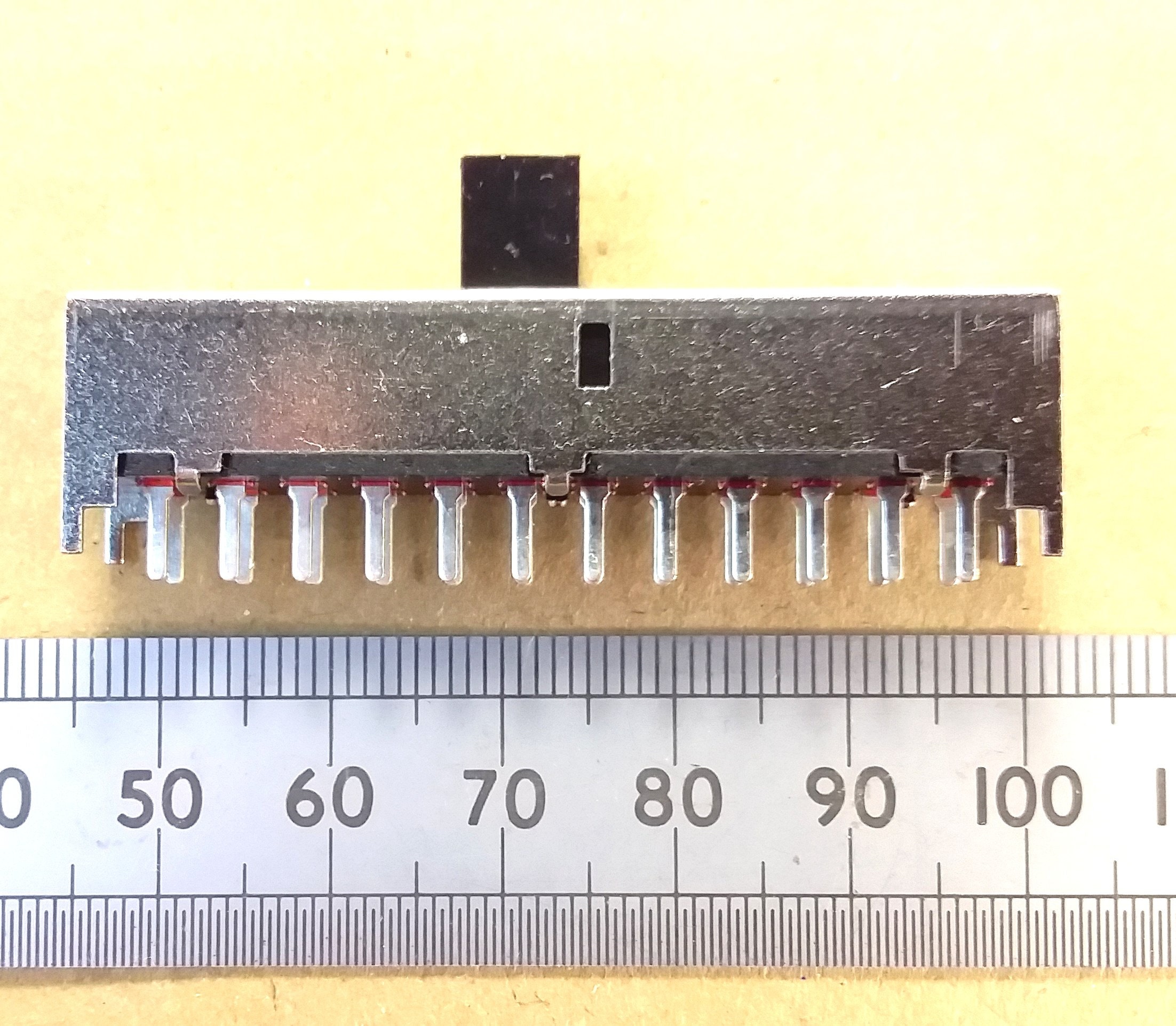

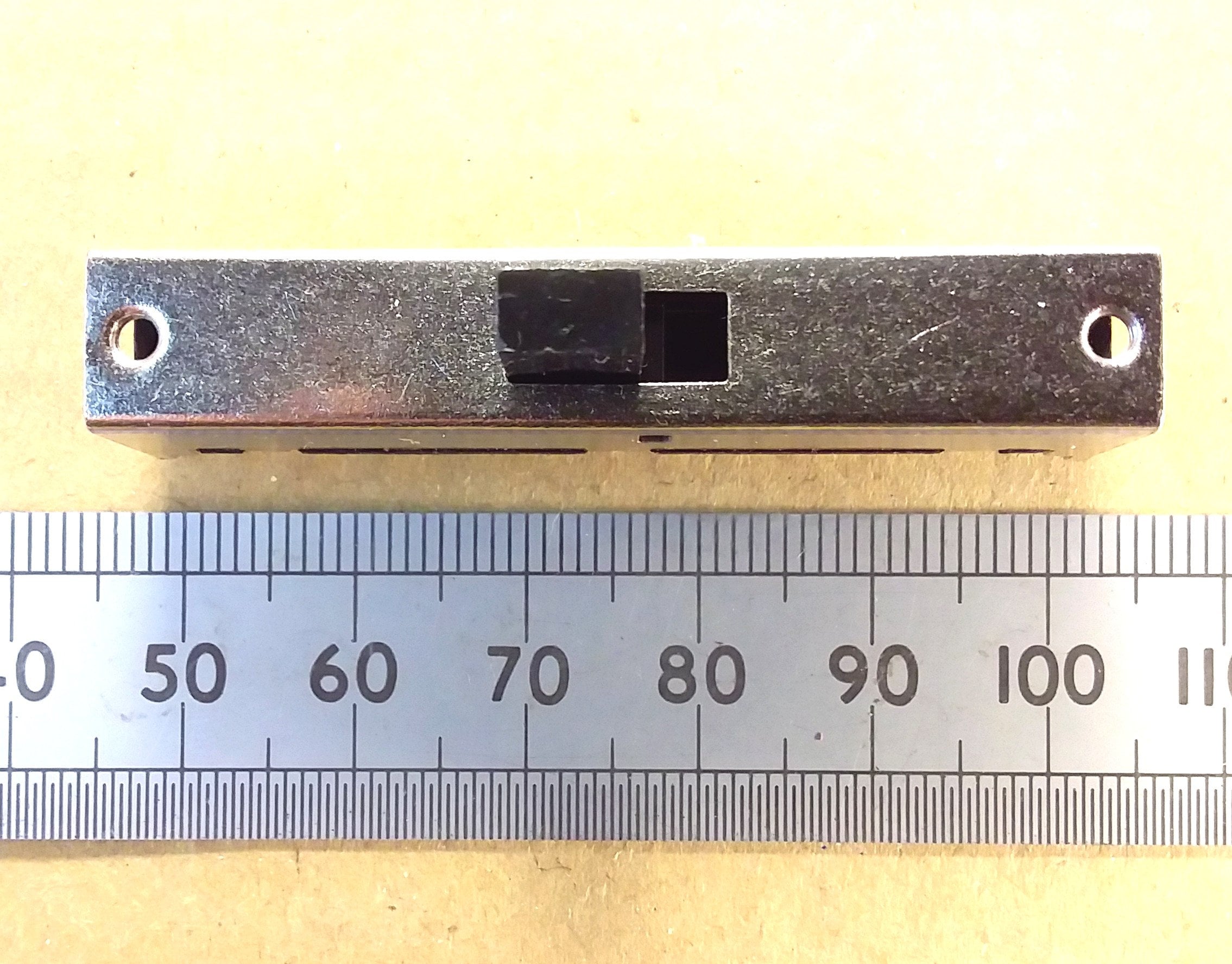

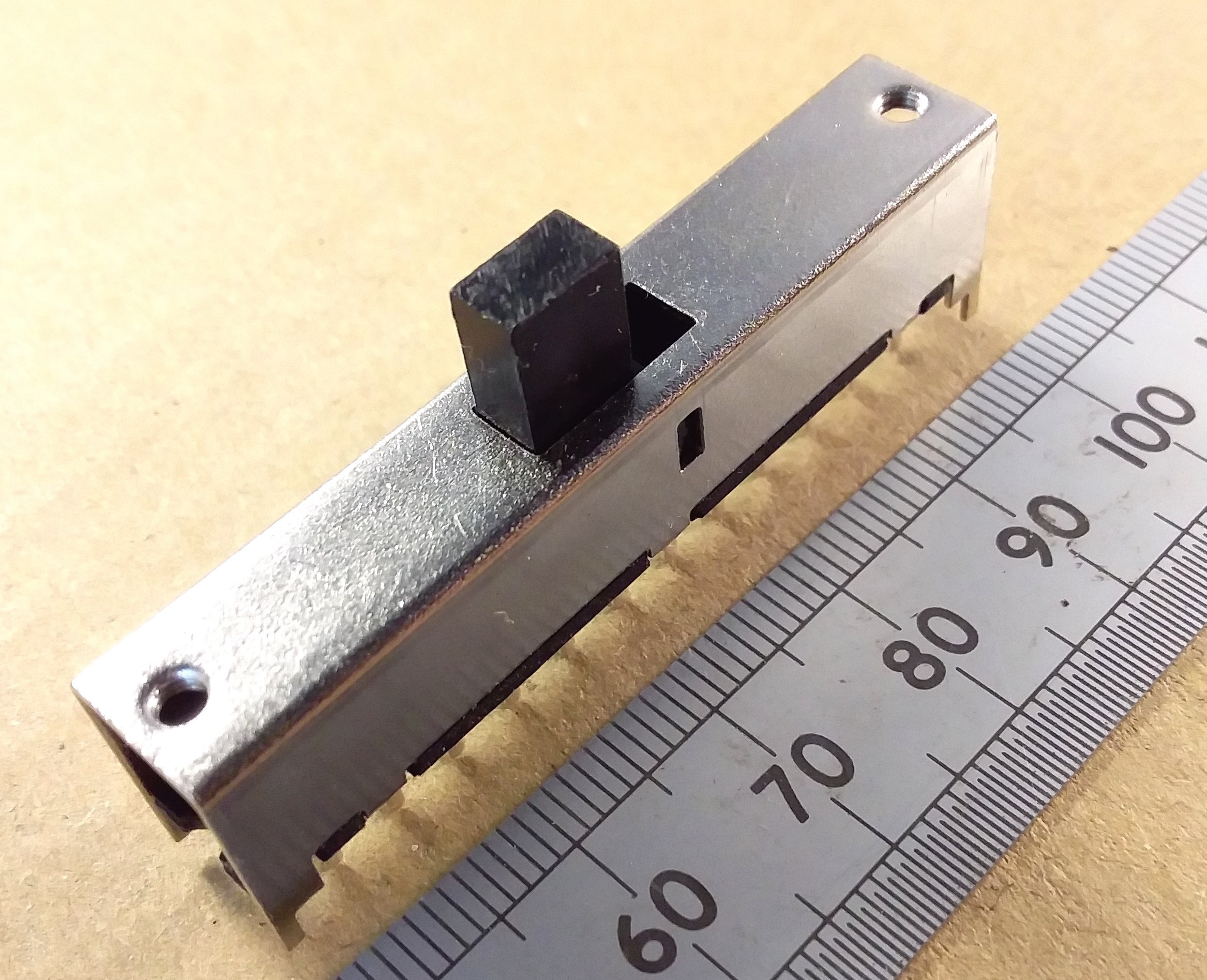

This is one item of new, eight pole double throw slide switch. Though intended for PCB mounting, the pins are separated by 4mm and are easy to solder wires onto. The pin width is 1mm by 0.5mm thickness. The mounting holes are M2.5 threaded size. The body dimensions are 53 X 9.3mm. Height above the PCB plane is 10mm with the height including the pins being 15.7mm. The switch baton extends 8mm above the switch body. The initial contact resistance is 30mOhm or less. The switch rating is 24V at 0.5A maximum.

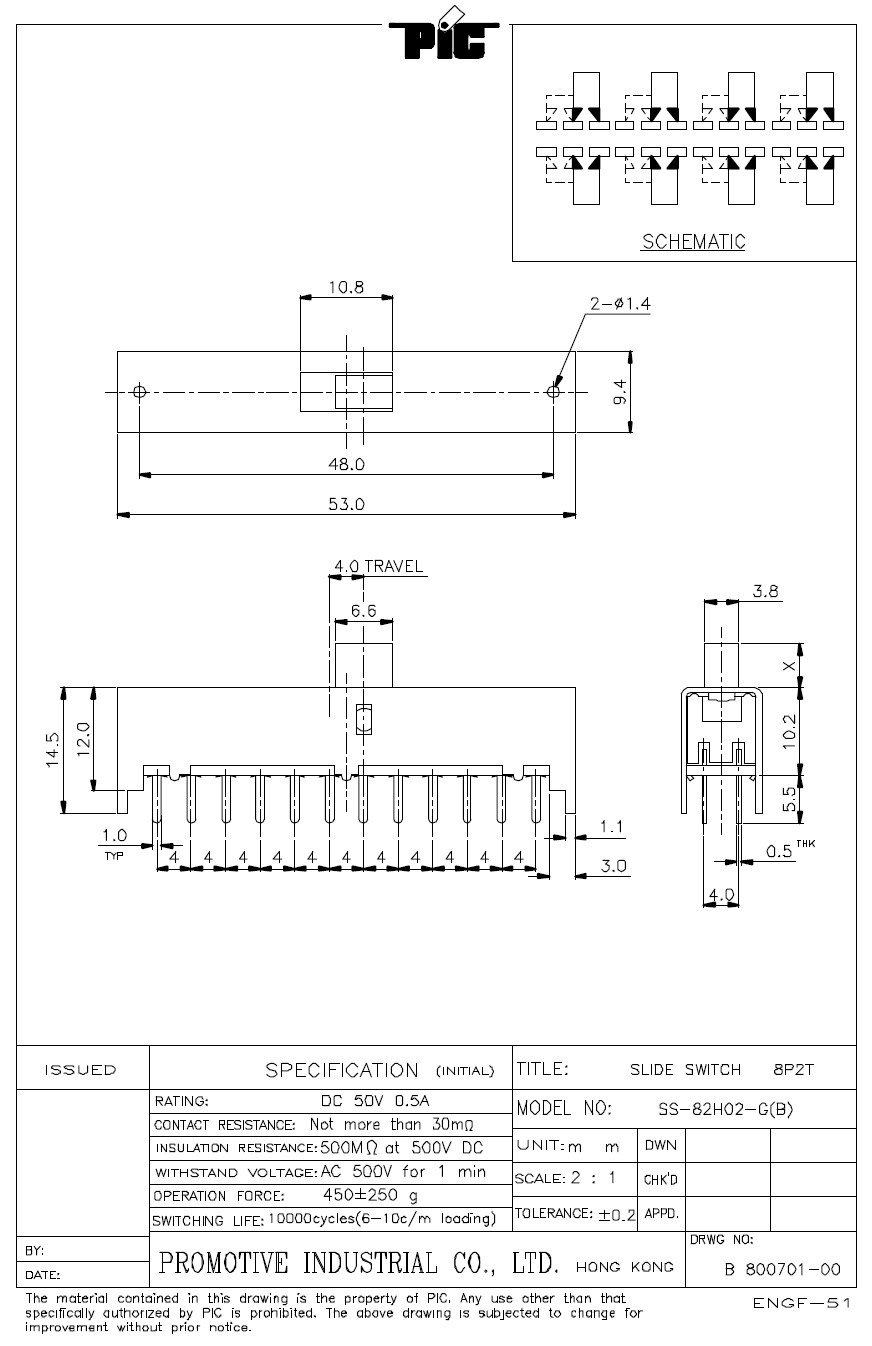

A data sheet and mechanical diagram is shown in the secondary pictures. Higher pack quantities are available.
The vast majority of small items will not usually attract any more postage charges. Please use the shopping cart and checkout everything altogether with any available promotion codes for the best deal.
If you would like to buy *any* additional item from my store, the standard promotion codes are as follows:
10% off when you buy 2 items use checkout code SAVE10
15% off when you buy 3 items use checkout code SAVE15
20% off when you buy 4 items use checkout code SAVE20
25% off when you buy 5 items use checkout code SAVE25
