50uA Moving Coil Meter with 0 to 6kV Scale 50 microamp sensitive Sangamo West
$20.57

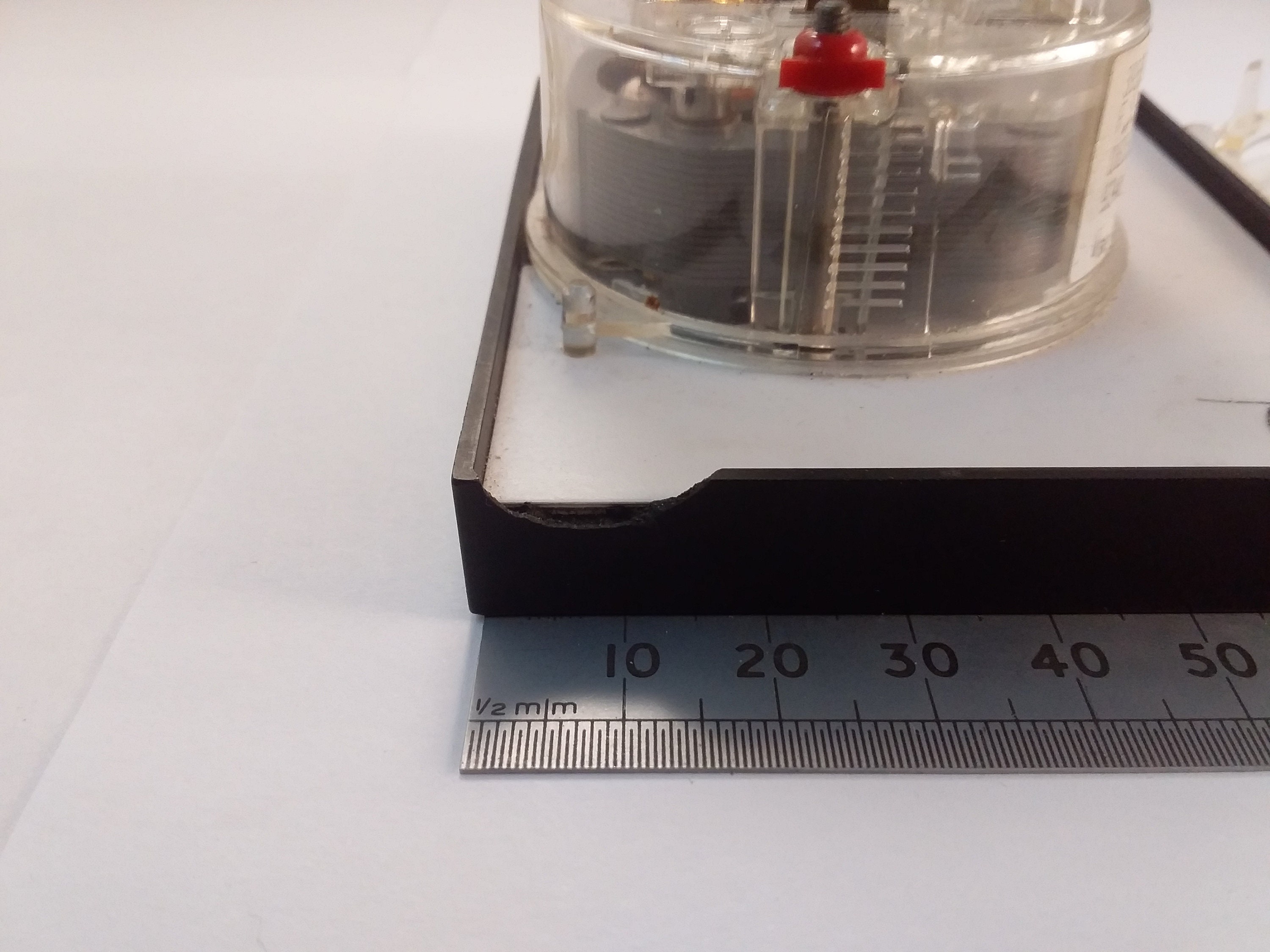

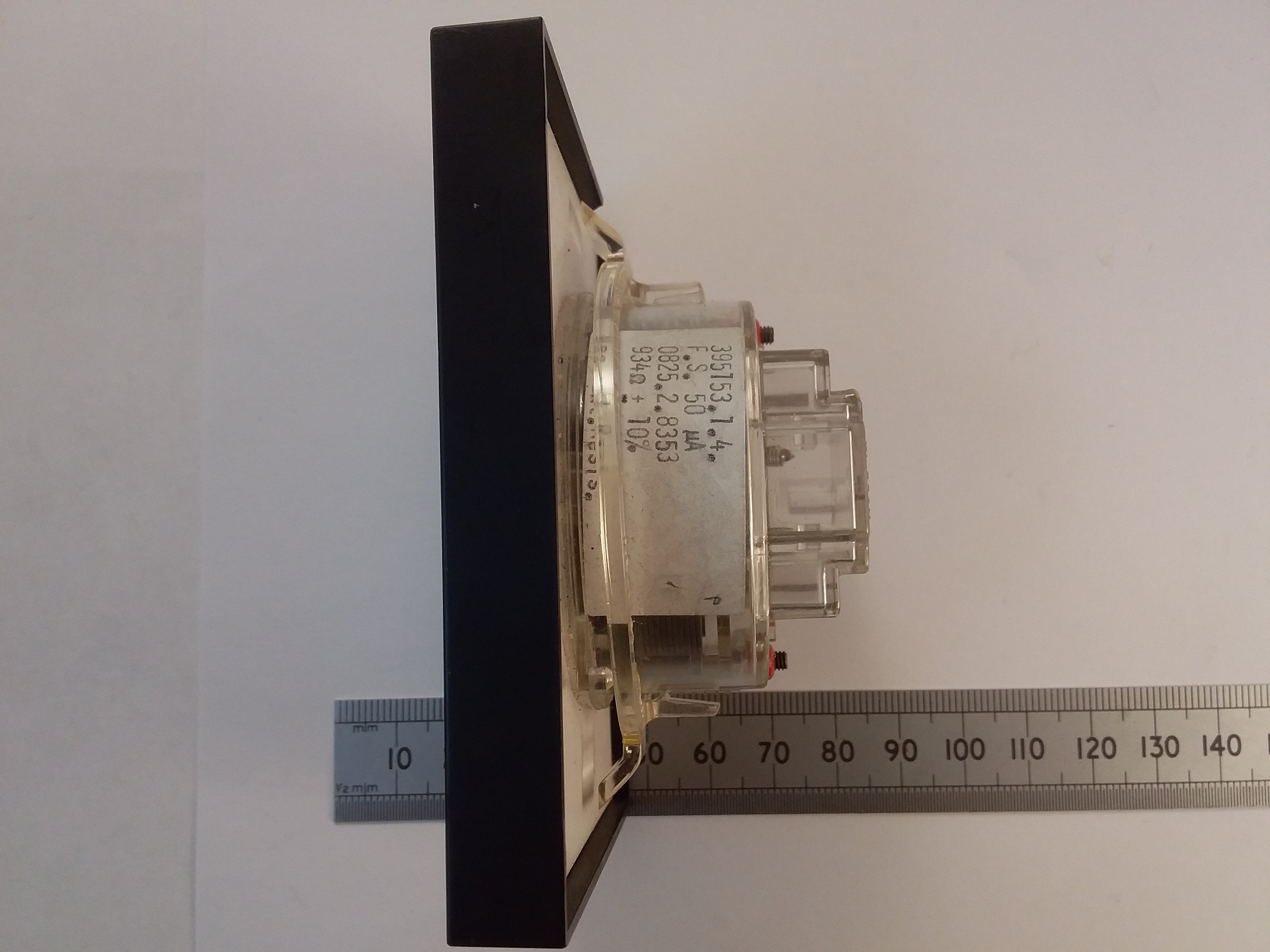

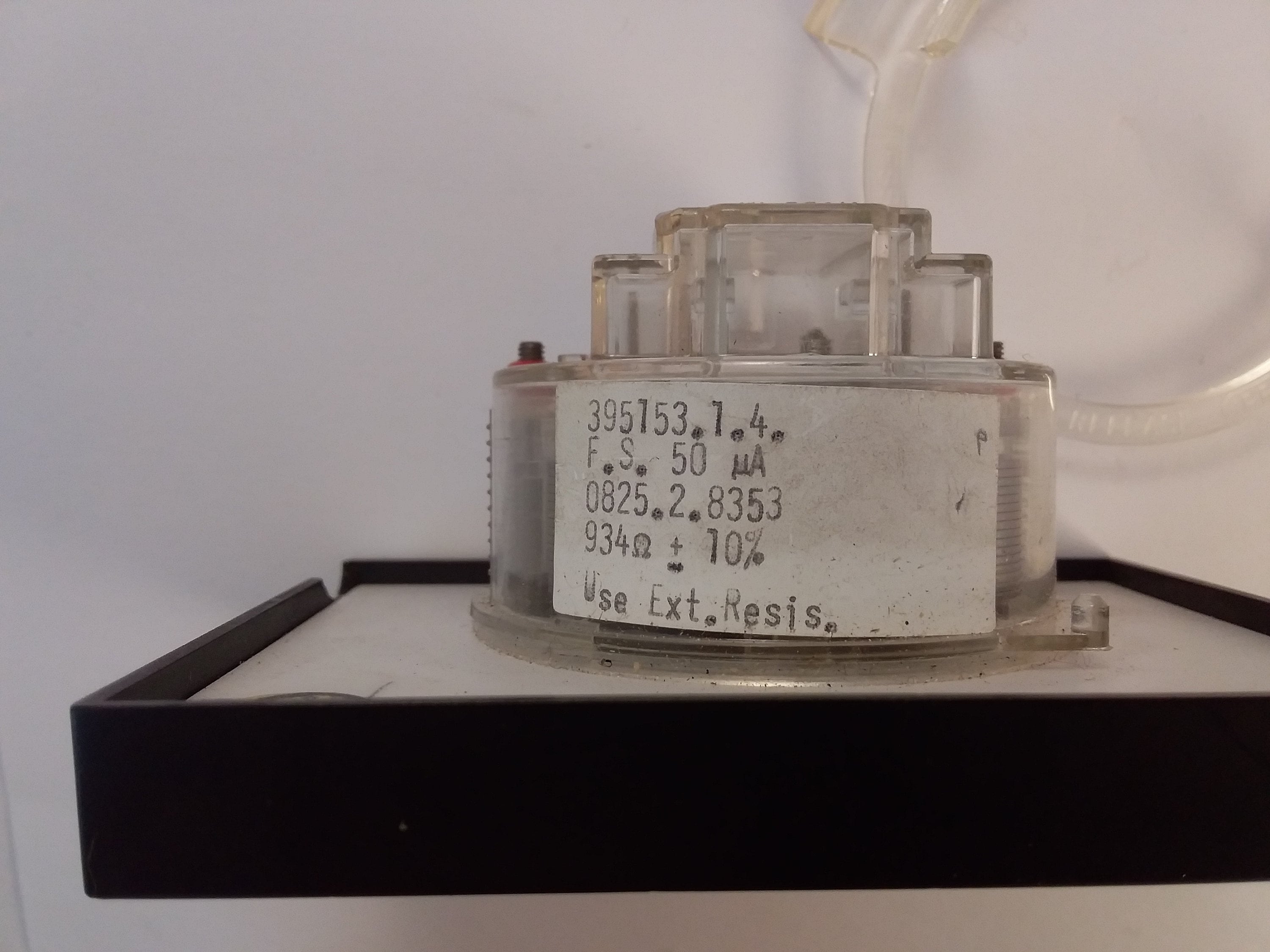

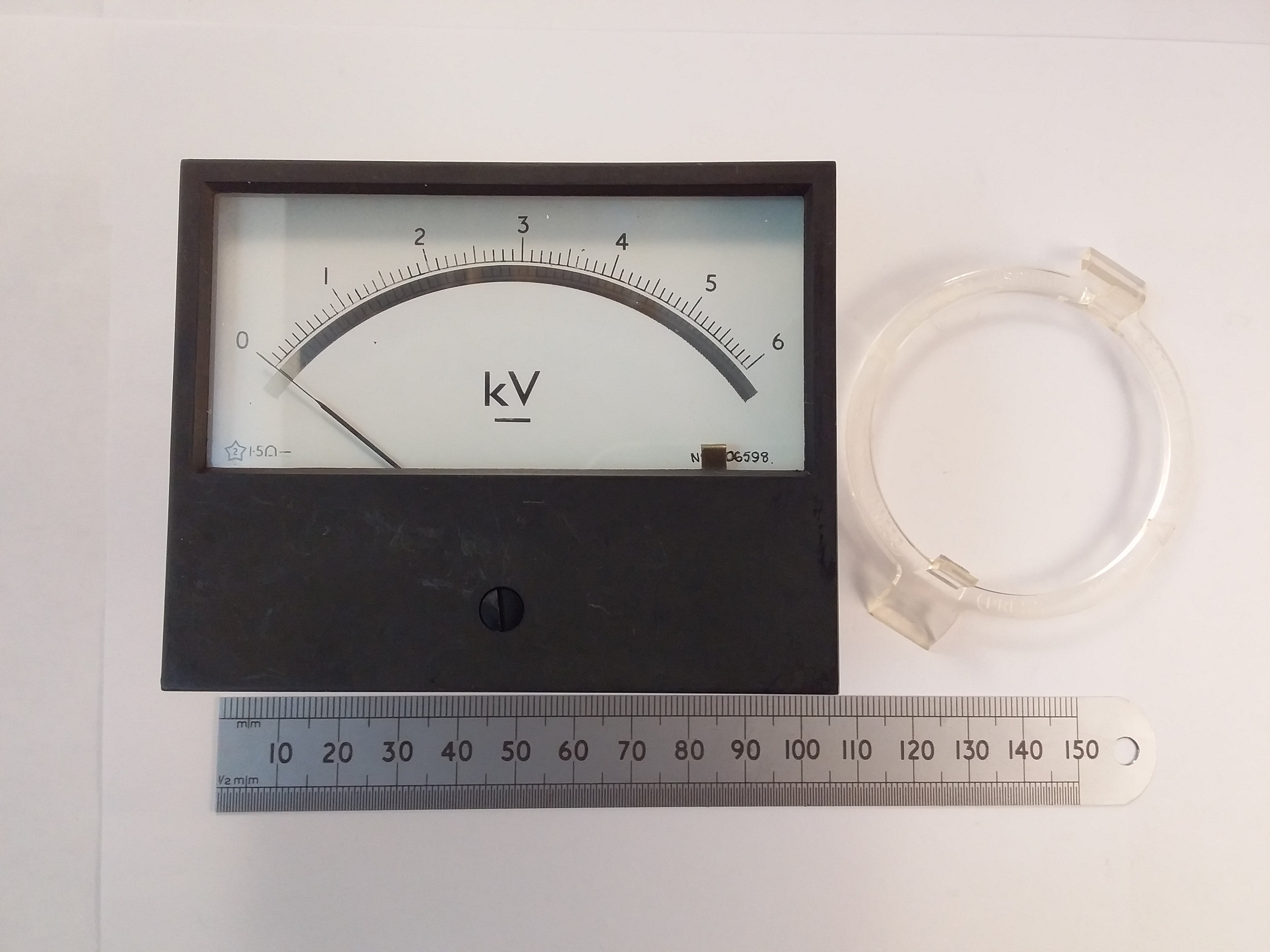

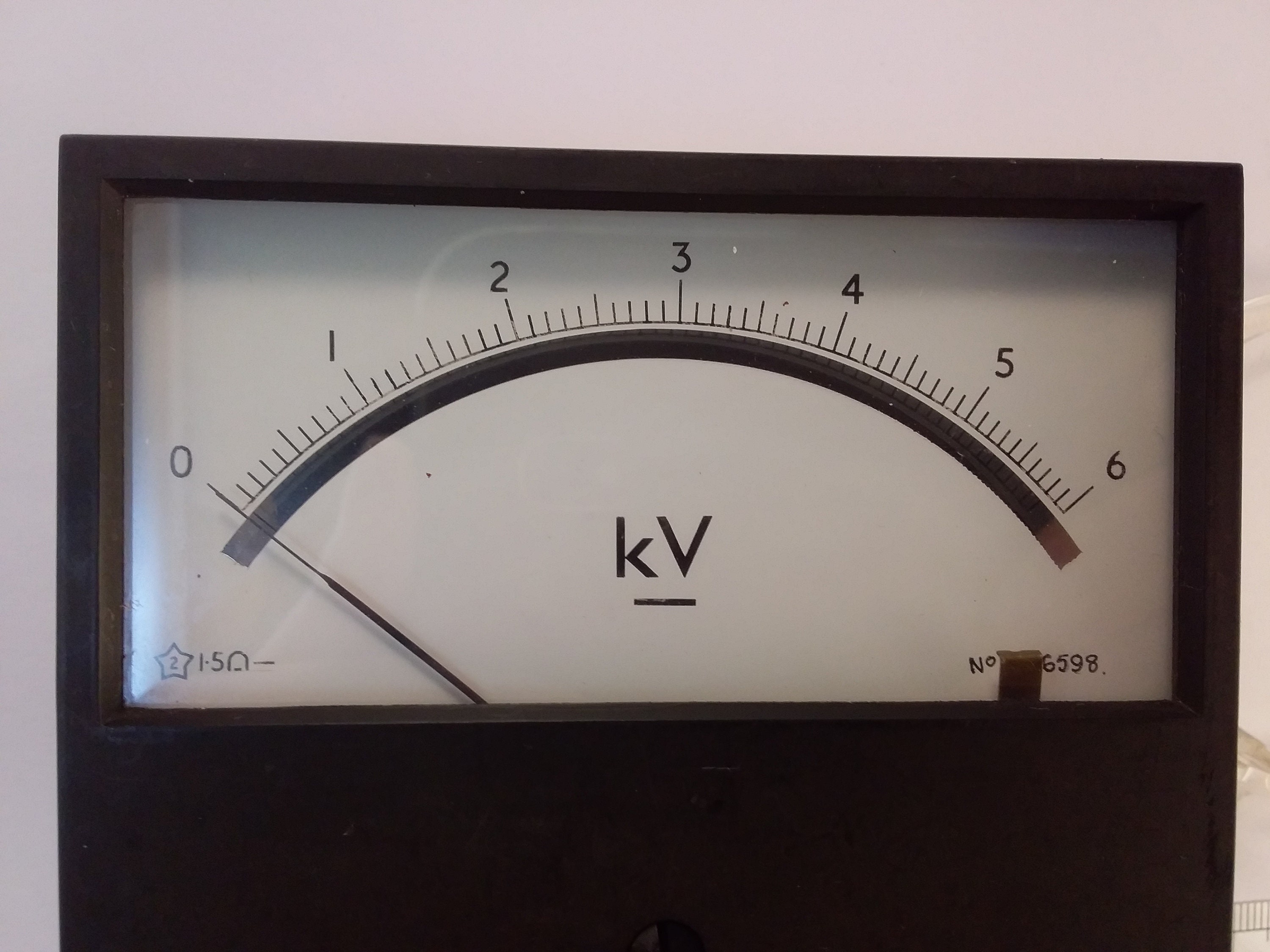

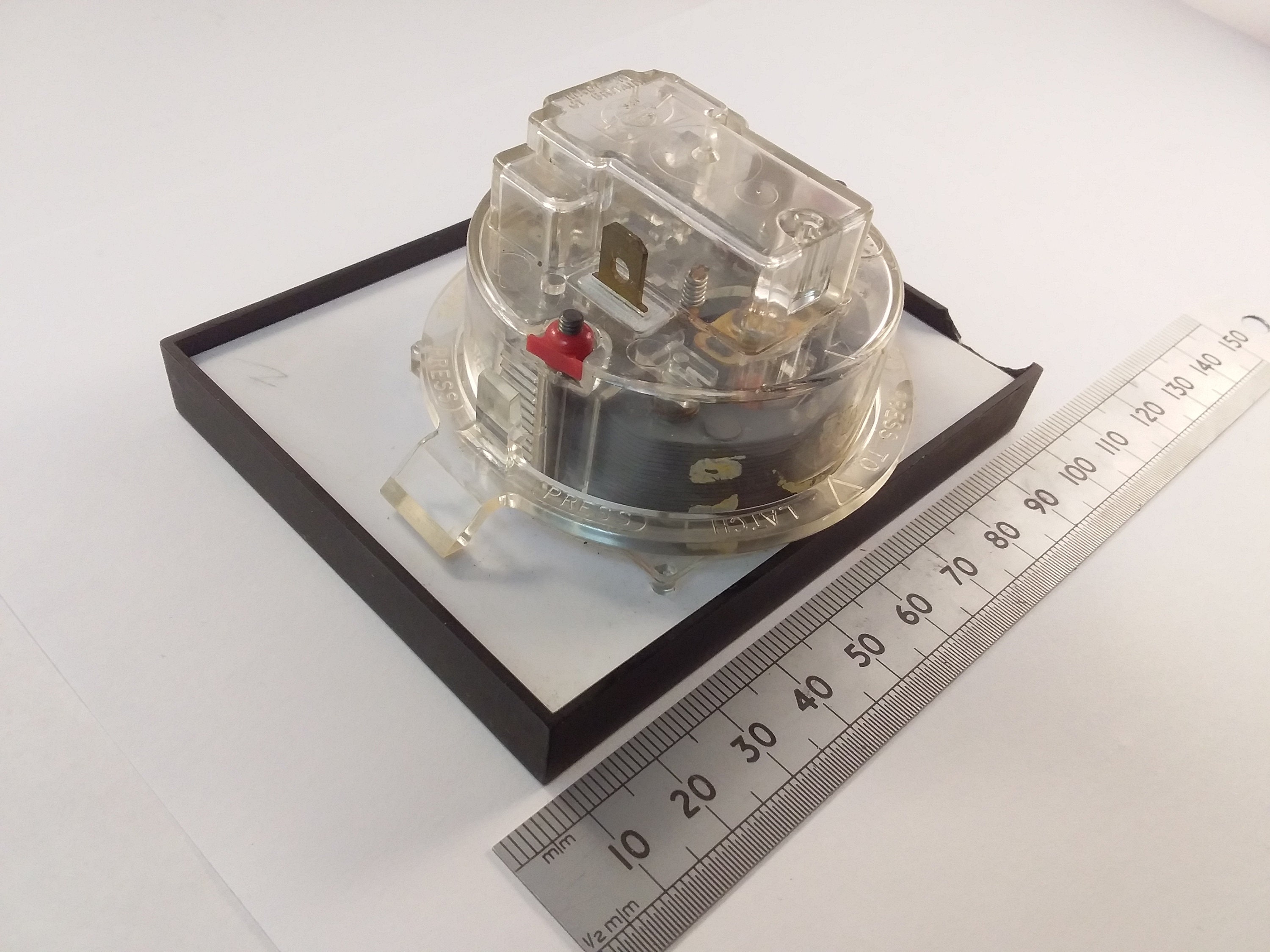

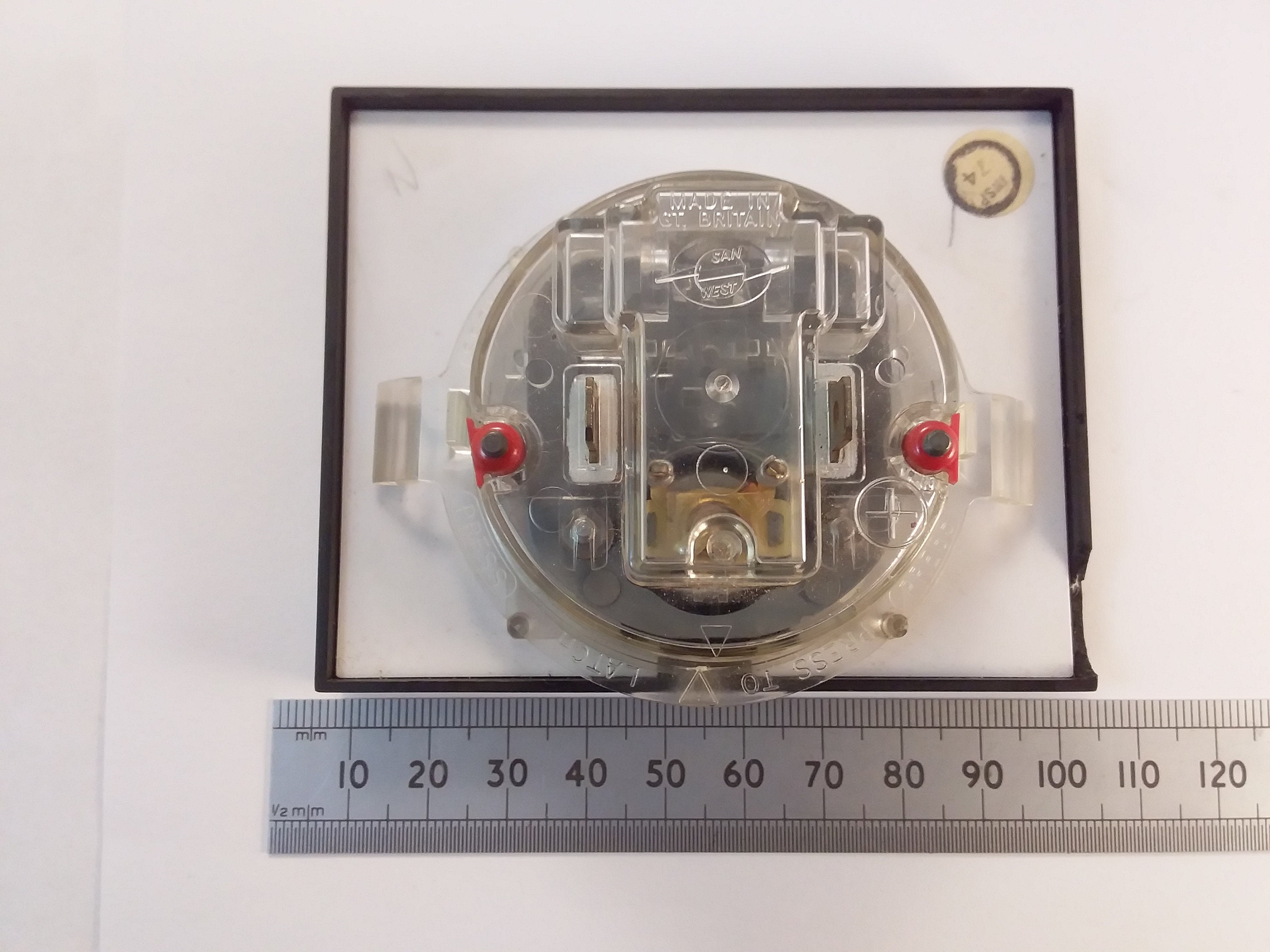

This is one item of 50uA full scale deflection microammeter with a scale that reads 0 to 6kV. It was made by Sangamo West. This would normally be part of equipment where a suitable series resistor was used to take off a tap from a lower voltage part of an E.H.T. generating system, i.e. you will Not be able to read 6kV supplies with any 10 Watt 10 MegOhm series resistor, which would be a non-existant part. The needle zeroes correctly and I have tested it for accurate reading at 50uA. The coil resistance is shown as 934 Ohms. There is a chip on the side of the fascia.
As seen in the video, you could use a 9V battery and normal skin resistance to move the needle, and it will certainly read the current generated by potato batteries, very small solar cells, photodiodes and phototransistors etc.
This item is only available on the Pattern website; Checkout is via the Etsy system. If you would like to buy *any* additional item in the shop, discount codes are available for use within shopping cart at the Etsy checkout. These are,
2 or more items, save 10% with promo code SAVE10 https://usefulcomponents.etsy.com?coupon=SAVE10
3 or more items, save 10% with promo code SAVE15 https://usefulcomponents.etsy.com?coupon=SAVE15
4 or more items, save 10% with promo code SAVE20 https://usefulcomponents.etsy.com?coupon=SAVE20
The vast majority of small items will not usually attract any more postage charges. Please use shopping cart and checkout everything altogether with the promotion code for the best deal.
