Transistor Small Signal Low Noise

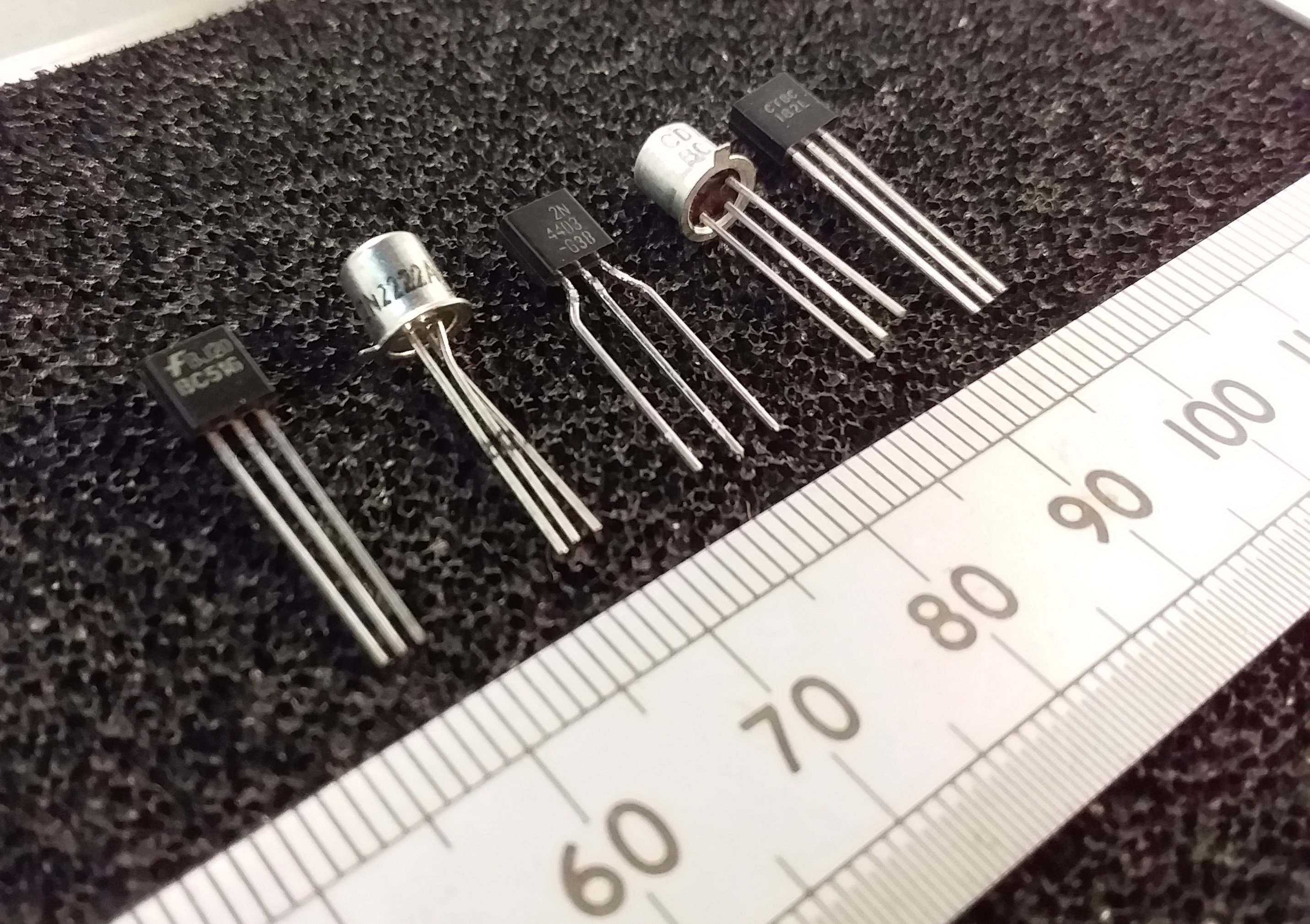

This is one item of new, small signal, bipolar silicon transistor as shown in the variations. Where available, the higher pack quantities are cheaper per item. If you would like to mix types in a pack of five or ten, please use the MIX option and send me a list of your requirements from the available types in a site message, or attach a note to the purchase.

Interesting Points

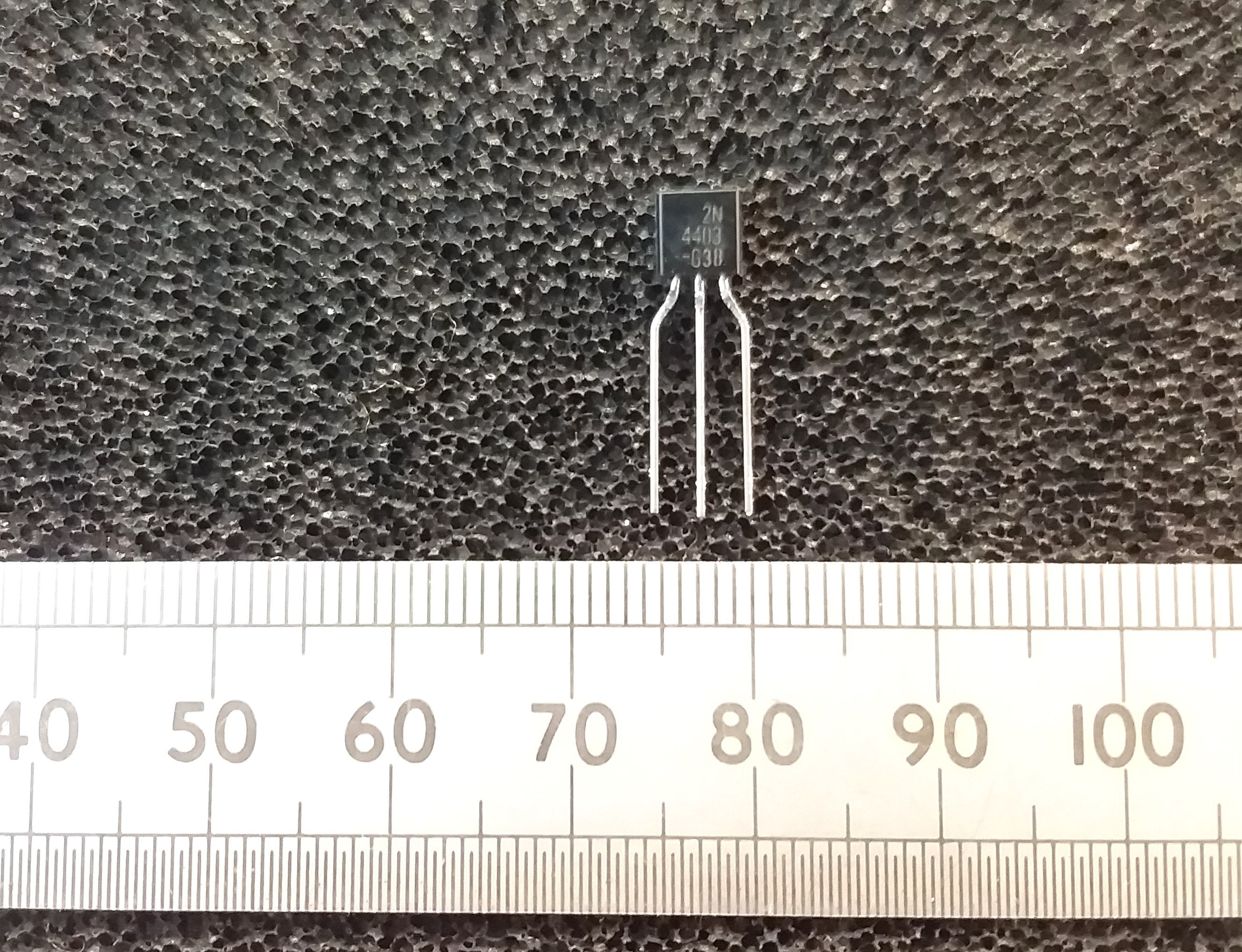

The 2N4403 is a modern PNP type which happens to have a very low base spreading resistance, making it good for low noise pre-amps as seen in the input stage schematic if you search for "Cheap Ambisonic Microphone and UHJ Encoder" on the Interesting Electronics site, or Douglas Self also uses them for low impedance moving coil record player phono cartridge pre-amps in his interesting book.

SS9012H is a PNP type which is mid-way between a low and medium power device. These are capable of more current than a standard TO92 BC560, for example. They are specifically intended for a 1 Watt class B output stage in small radios and are a better match for that application than an under-powered BC549/BC550 pair or an over-powered, more difficult to drive TO126 BD139/BD140.

SS9013H is the NPN complement to the SS9012H.

SS9014H is a standard NPN amplifier / driver that you'd generally use to drive the SS9012 / SS9013

SS9018H is an NPN VHF amplifier / mixer-oscillator that you would find in both the AM and FM RF sections of small radios.

The four types shown immediately above are all the transistors that you need to make small radios and are intended for exactly that application. You'll see them extensively in radios from the far East and may appear in schematics as "S9012," or just "9012."

Available Types

Type No. Manufacturer

2N2222 CDIL

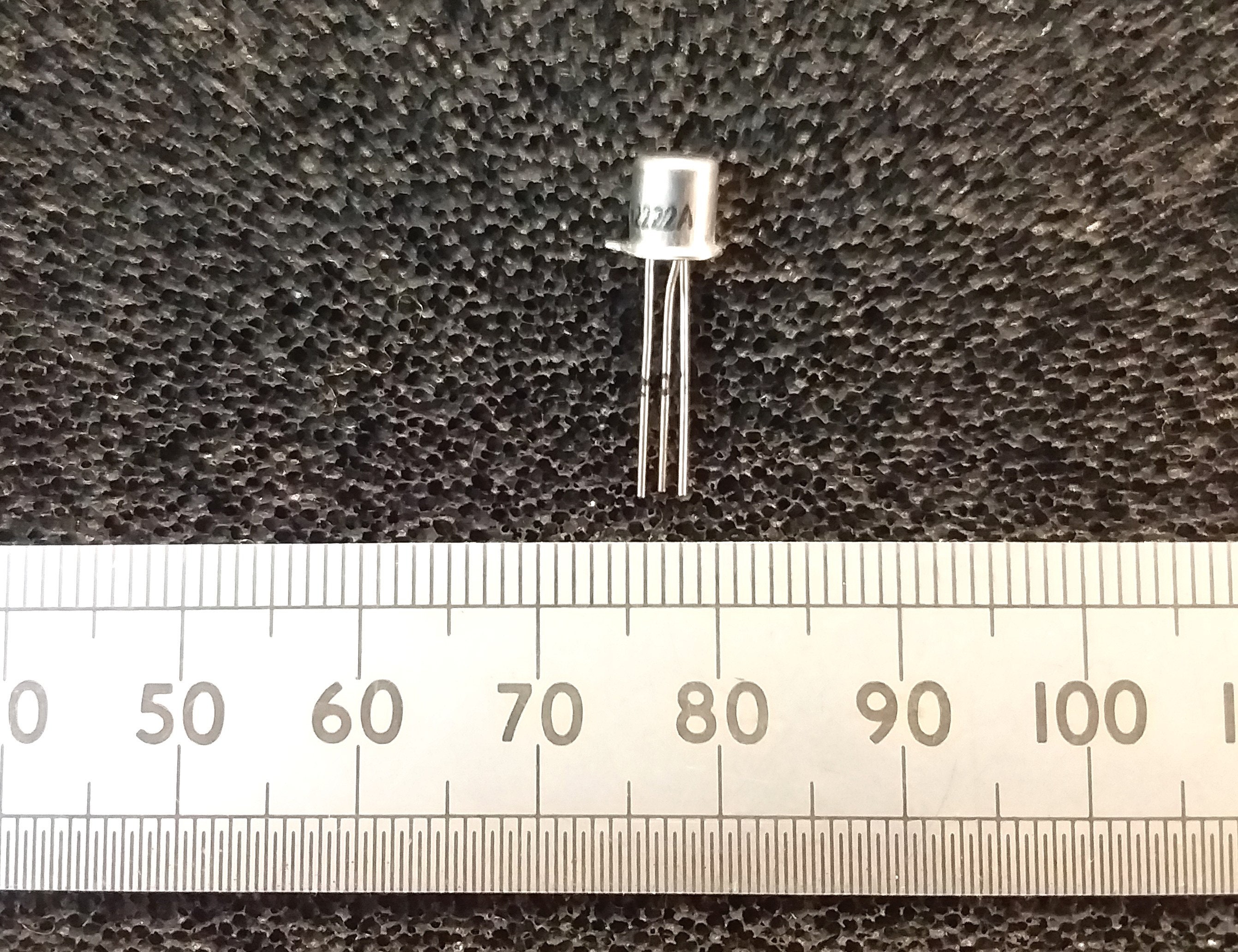

2N2222A generic
2N3702 Central Semiconductor
2N3707 Central Semiconductor
2N3904 generic
2N3906 Fairchild
2N4401G Fairchild
2N4403G Fairchild
2N5210 Fairchild
BC107 CDIL
BC107B CDIL
BC108C CDIL
BC109 generic
BC109C CDIL
BC179 CDIL

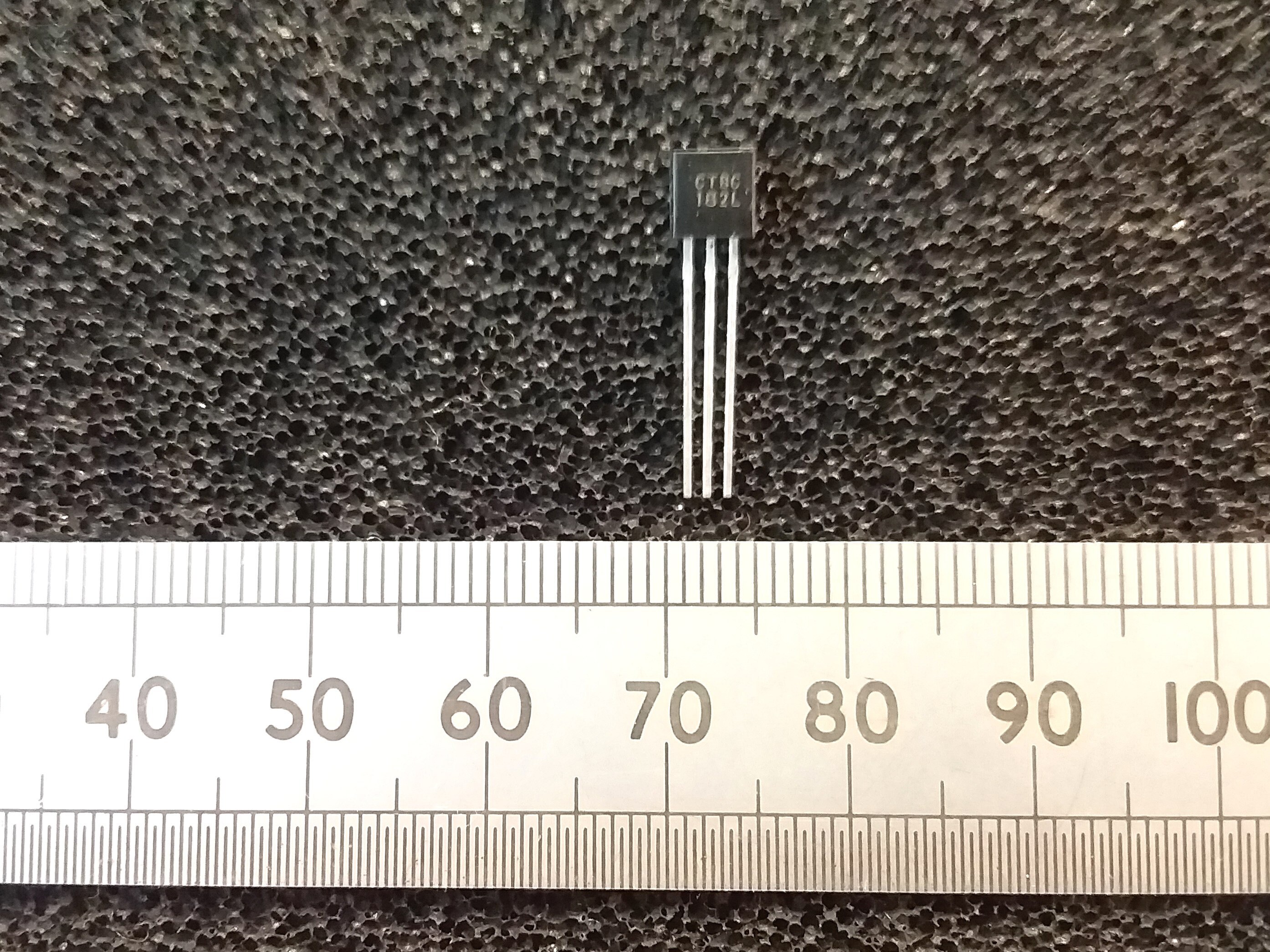

BC182L CDIL
BC183L CDIL
BC184L CDIL
BC212L CDIL
BC212B generic
BC214L generic
BC327-40 Fairchild
BC516 Fairchild
BC517 Fairchild
BC547C Fairchild
BC548B generic
BC549C Fairchild
BC550C Fairchild
BC559C Fairchild
BC560C Fairchild
BC636TA Fairchild
SS9012H generic
SS9013H generic
SS9014H generic
SS9018H generic
