Slider Potentiometer 60mm Travel Fader, Logarithmic Linear & Antilog A B C AL60

HJW Electronics Pattern Listing

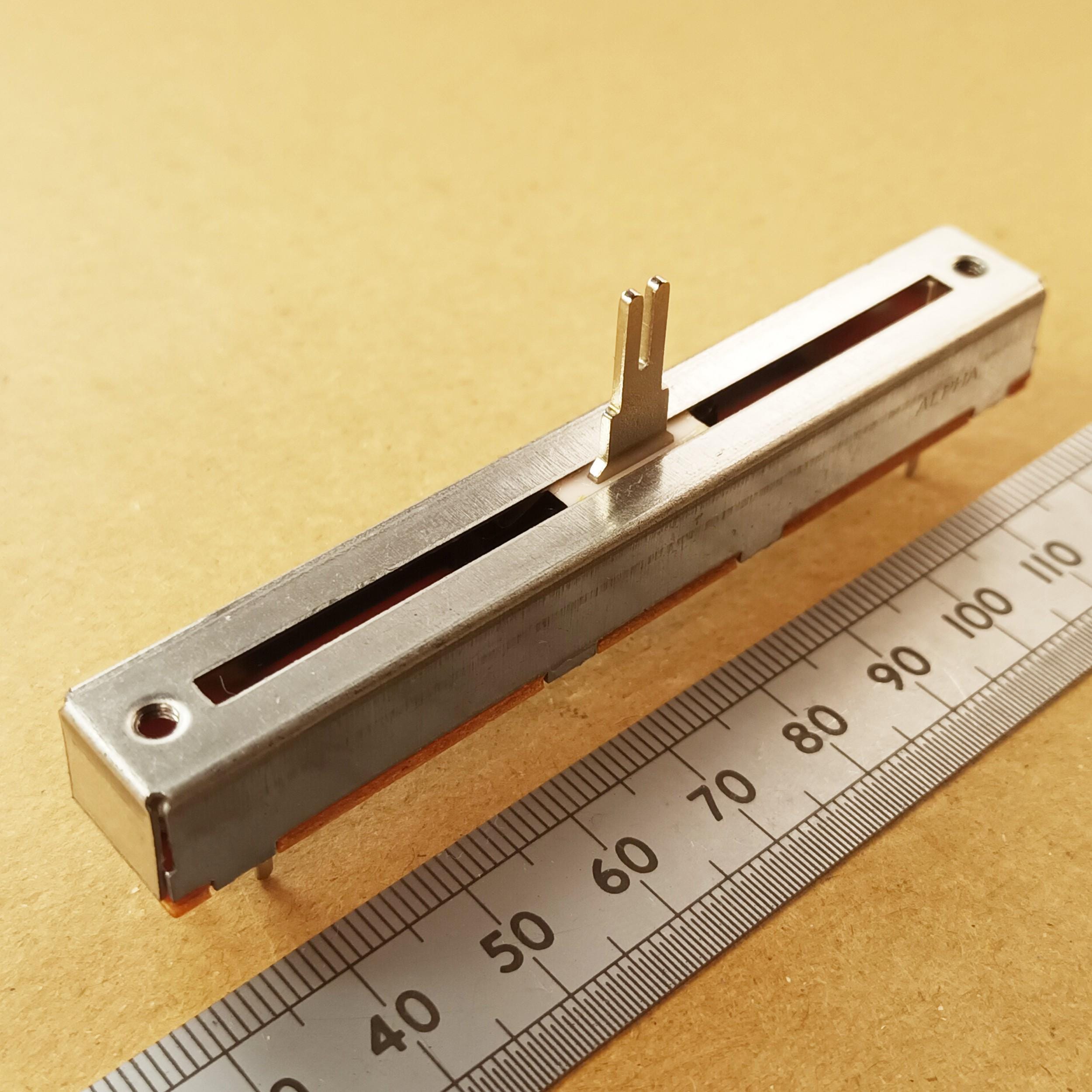

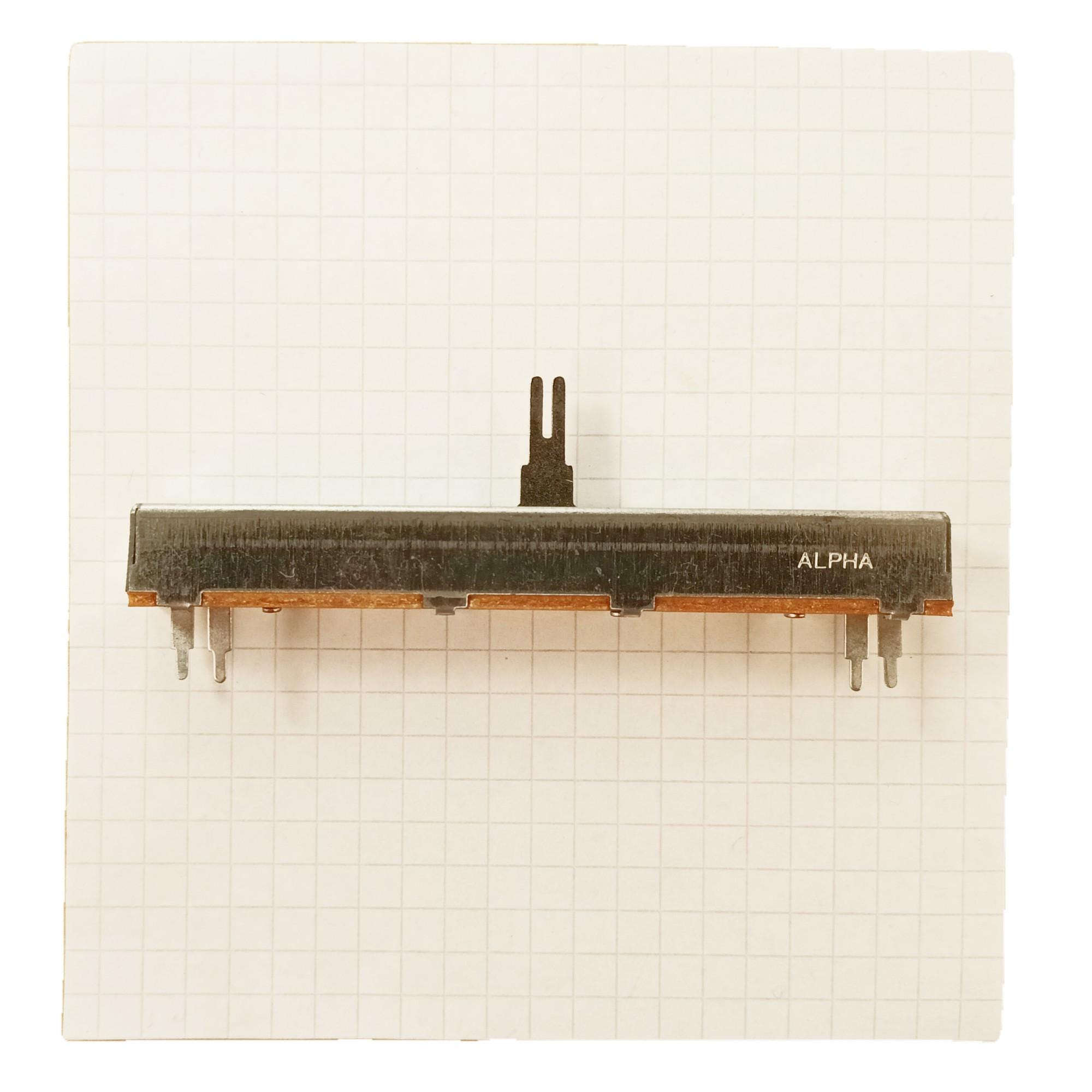

This is one item of new, single gang slider potentiometer available in the Log, Linear and Anti-log varieties shown in the drop-down selection box. All types are intended to fit into a 4mm rectangular slot on slider caps conforming to that standard. Some of the track values have a solid 4mm lever, some are the split type shown in the pictures. The solid types are a slightly tighter fit, but they are all fundamentally compatible in this respect. The solid lever types are A5K, A100K, A50K, C5K, and C100K.

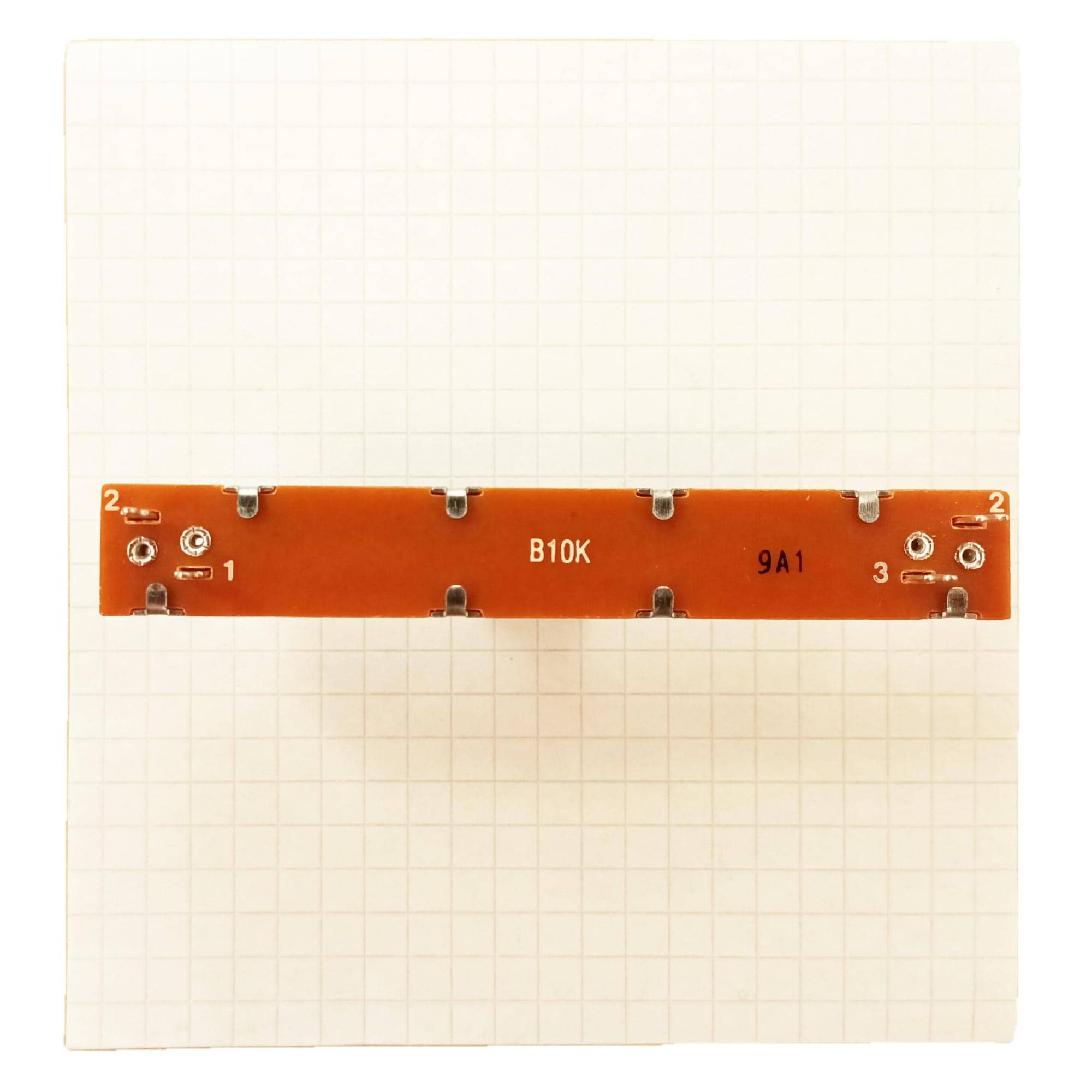

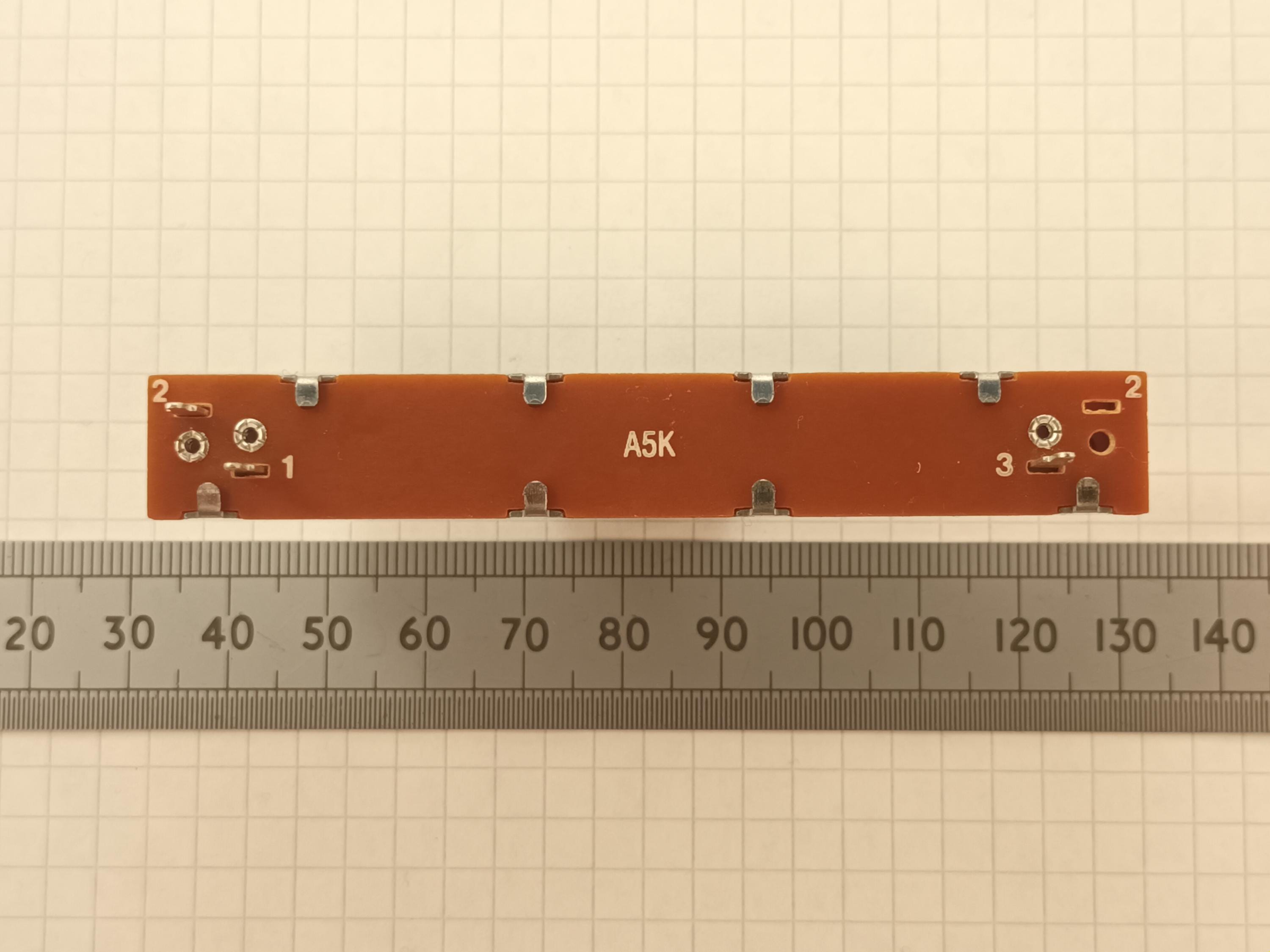

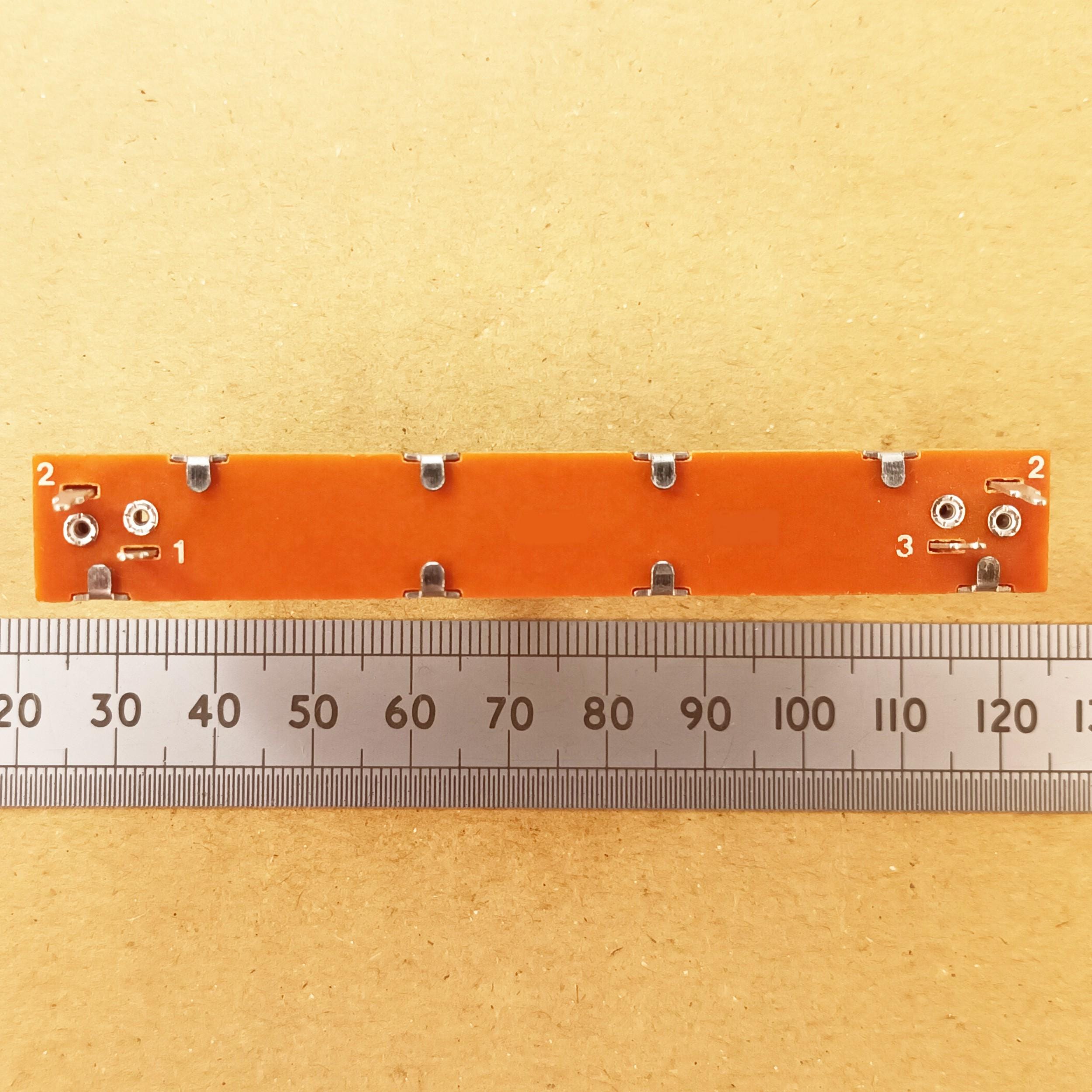

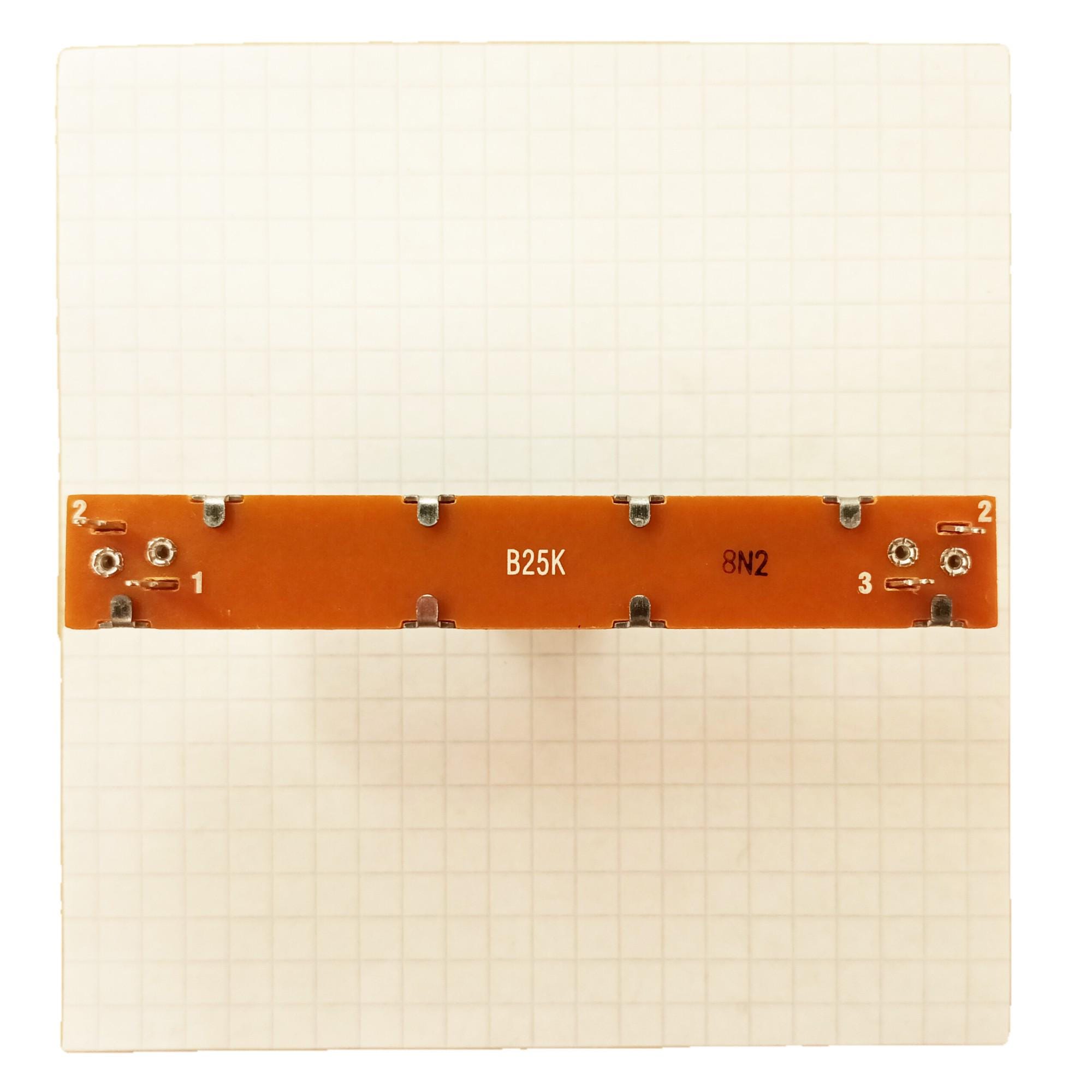

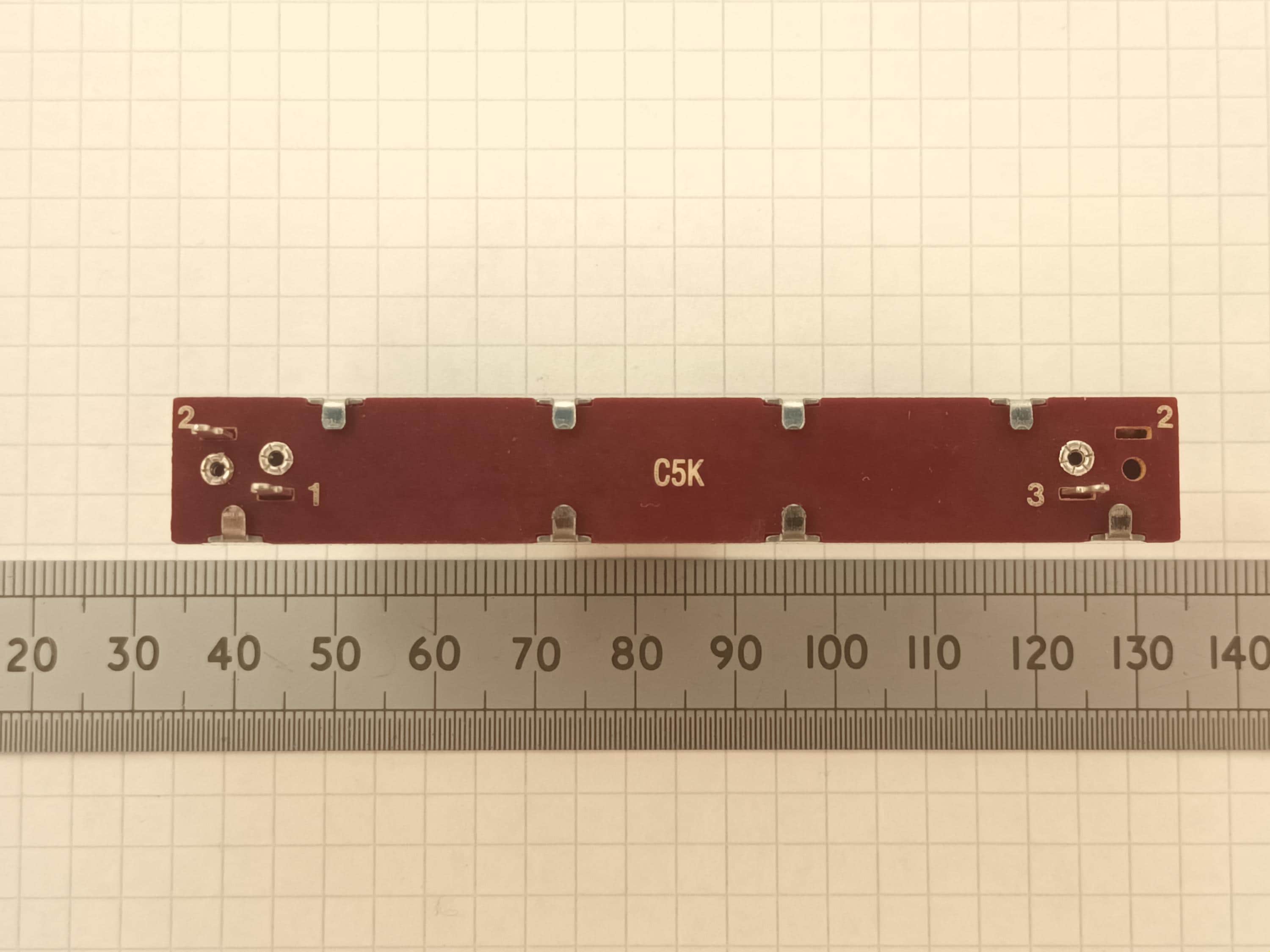

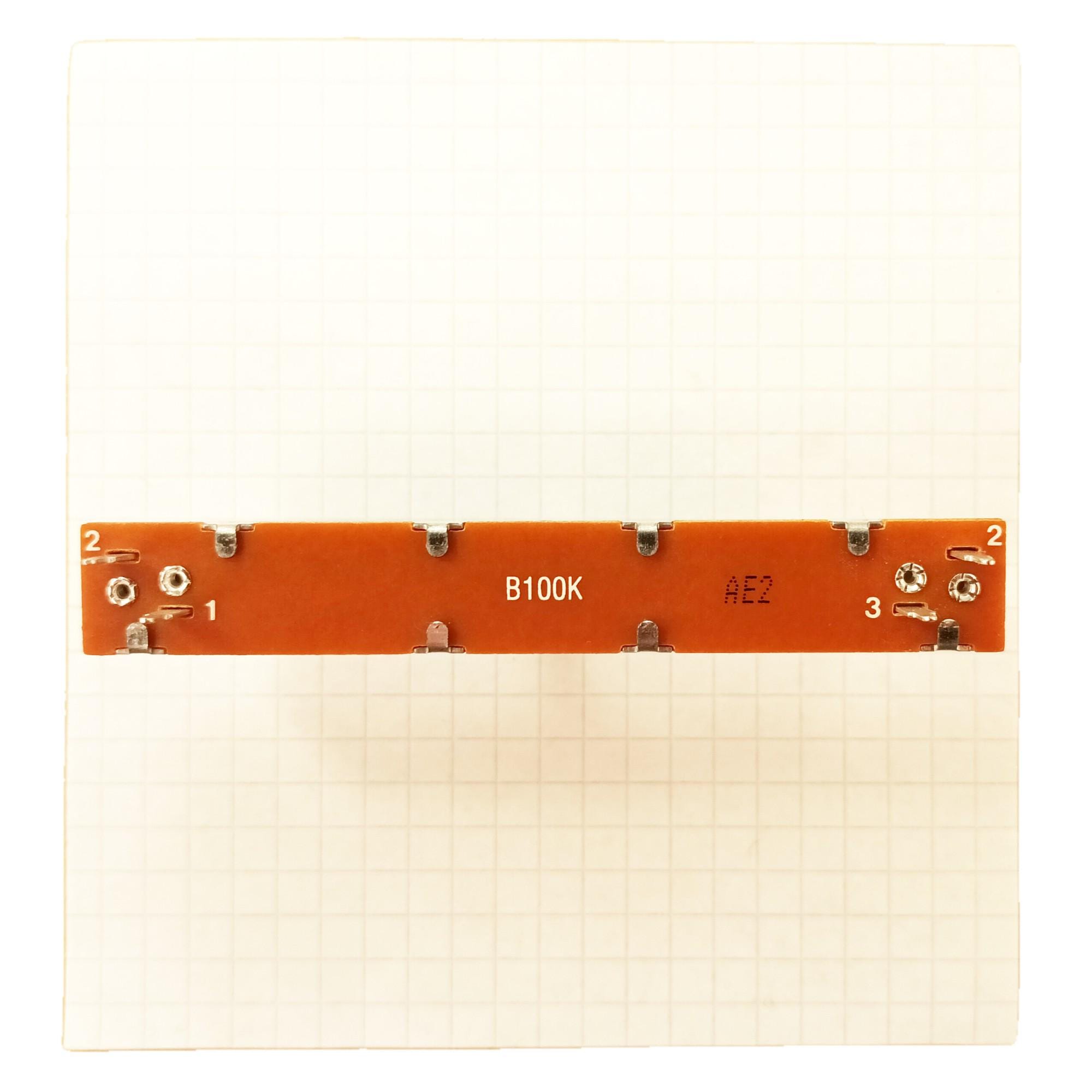

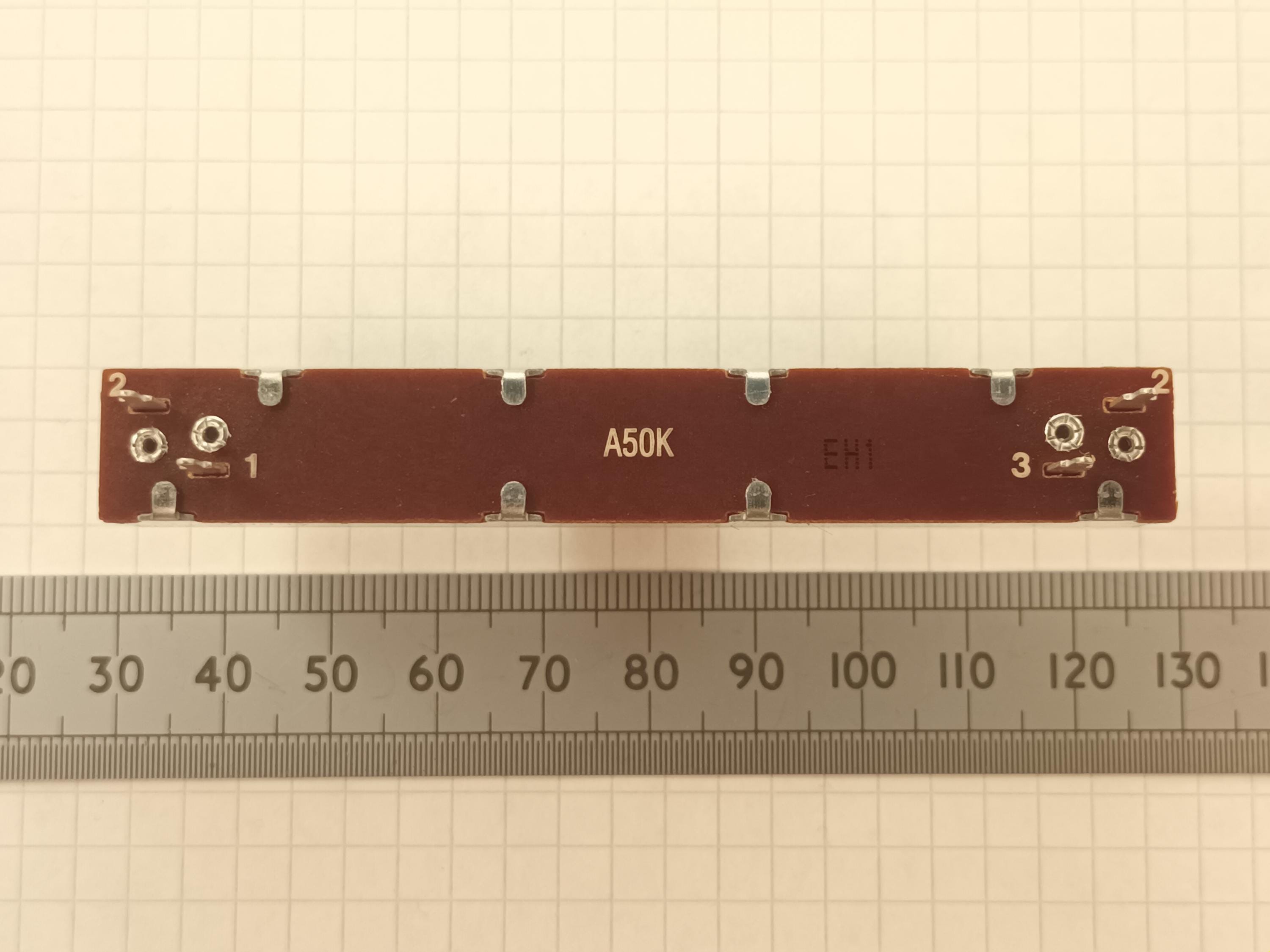

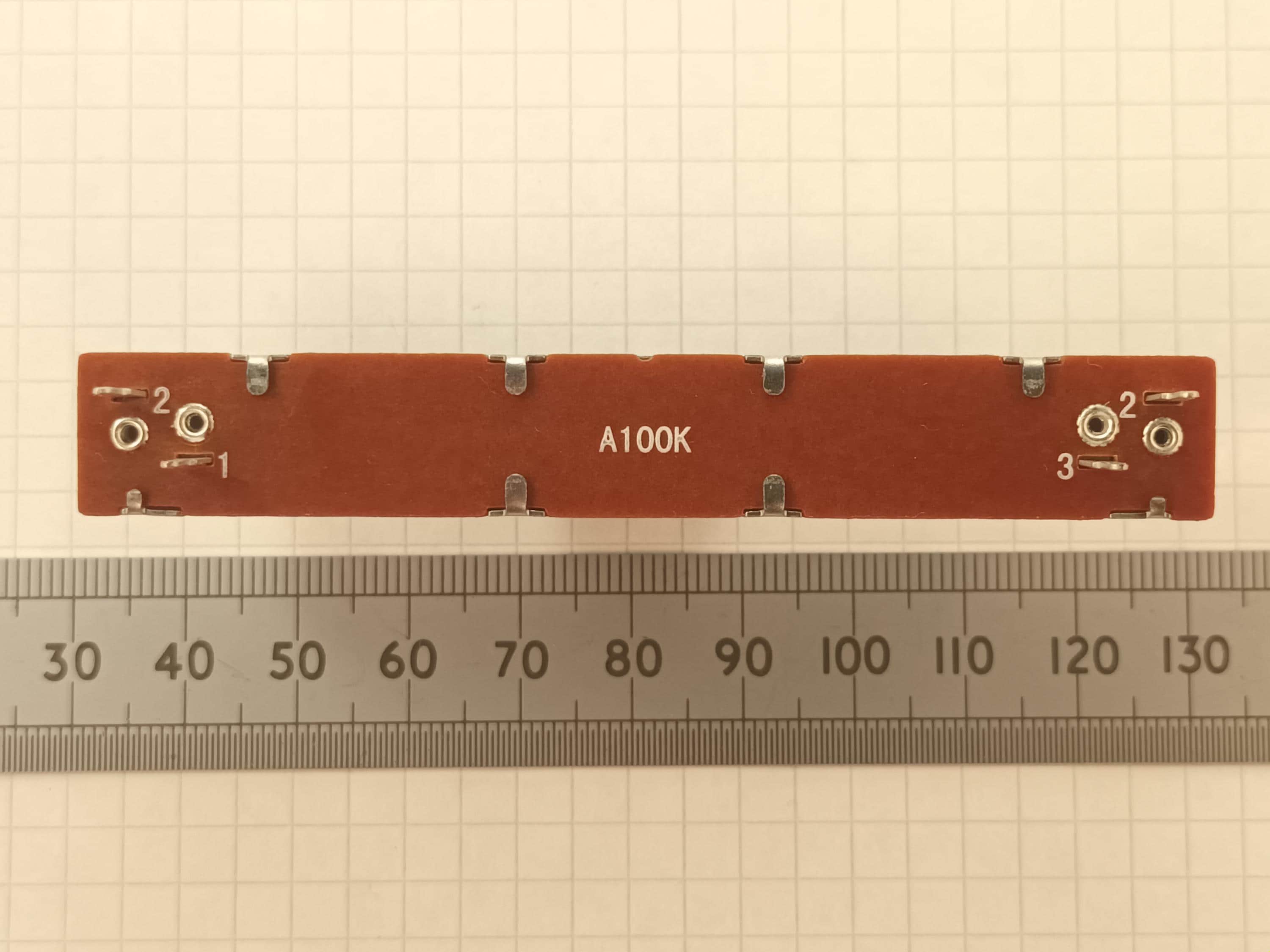

Most values have a total of four PCB pins, where the fourth pin is an internally connected-together duplicate of pin 2. It is marked as such on the bottom. A5K, C5K, and C100K do not have this pin, in the top right when viewed from below, with the text the right way up.

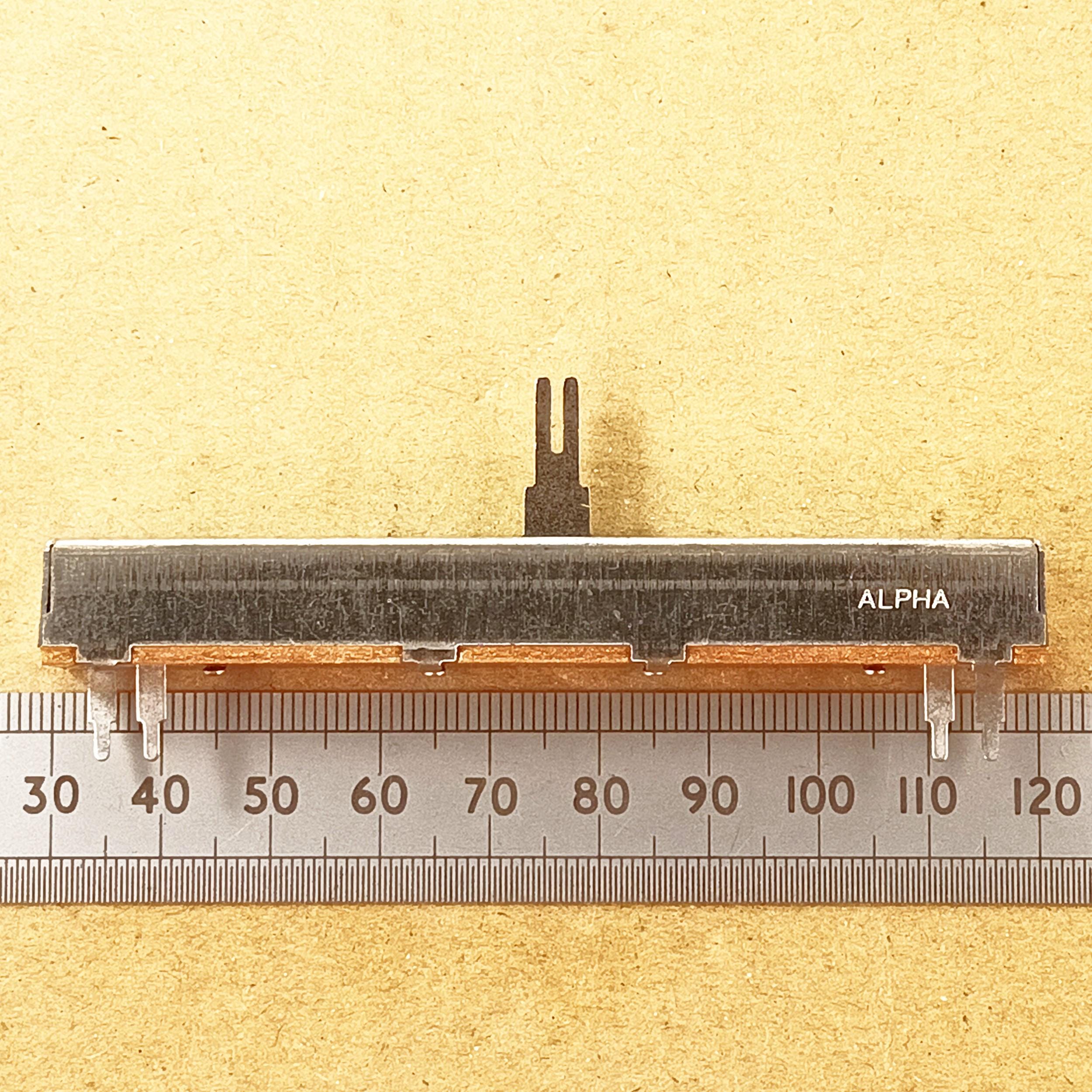

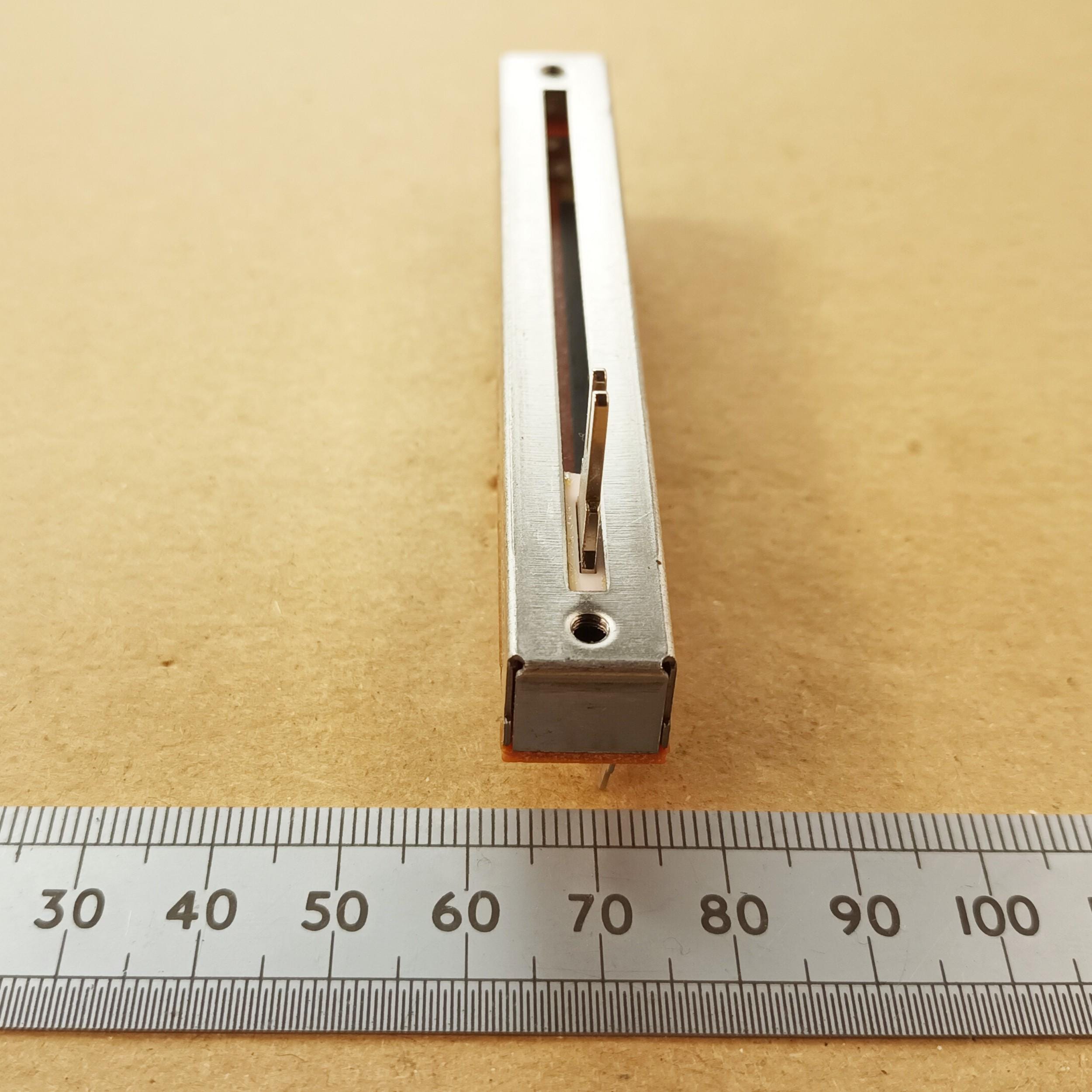

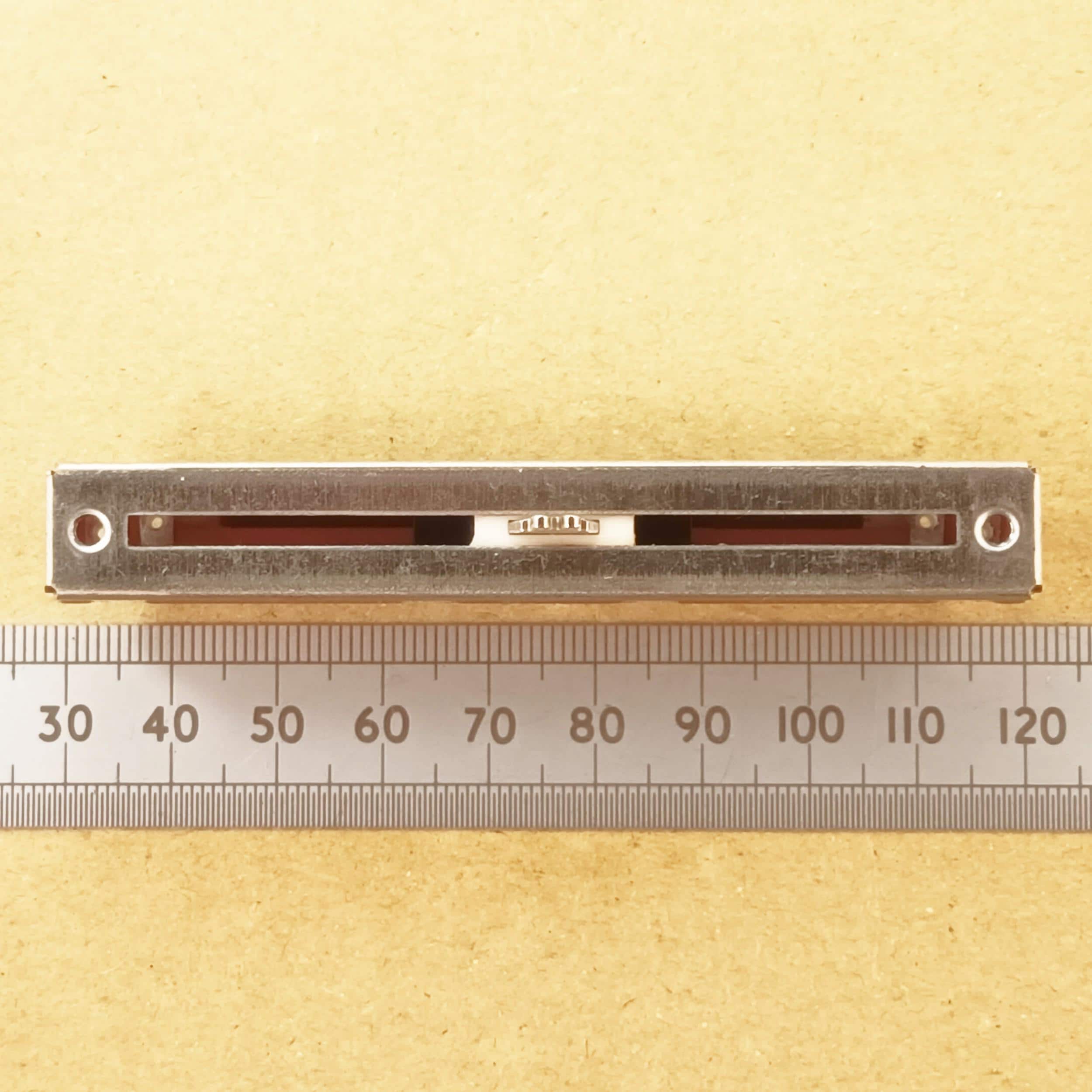

The total length is 88mm with a 60mm travel for the slider. The body width is 12.8mm and the height is 11mm. The fixing holes are M3 size separated by 80mm. The lever length is 15mm. The top part of the lever is 4mm across the tangs and the metal is 1.2mm thick. The maximum power rating is 0.5W on the linear B variations. The maximum track power rating is 0.25W on the logarithmic and anti-logarithmic variations. The track tolerance is ±20%. These are common in mixers and controllers. I have suitable S773 black fader caps on another listing in the shop, and also some multi-colored ones. The fader cap is shown for demonstration purposes in one of the secondary pictures and is not included. The manufacturer is Alpha Taiwan.

Available Types:

A5K Audio Logarithmic 5K
A10K Audio Logarithmic 10K
A100K Audio Logarithmic 100K
B10K Linear 10K
B25K Linear 25K
B100K Linear 100K
C5K Reverse Logarithmic frequency equaliser 5K
C100K Reverse Logarithmic frequency equalizer 100K
