Flatted D Reverse Logarithmic Potentiometer Anti Log C Conductive Plastic Track Pot BD
$5.44

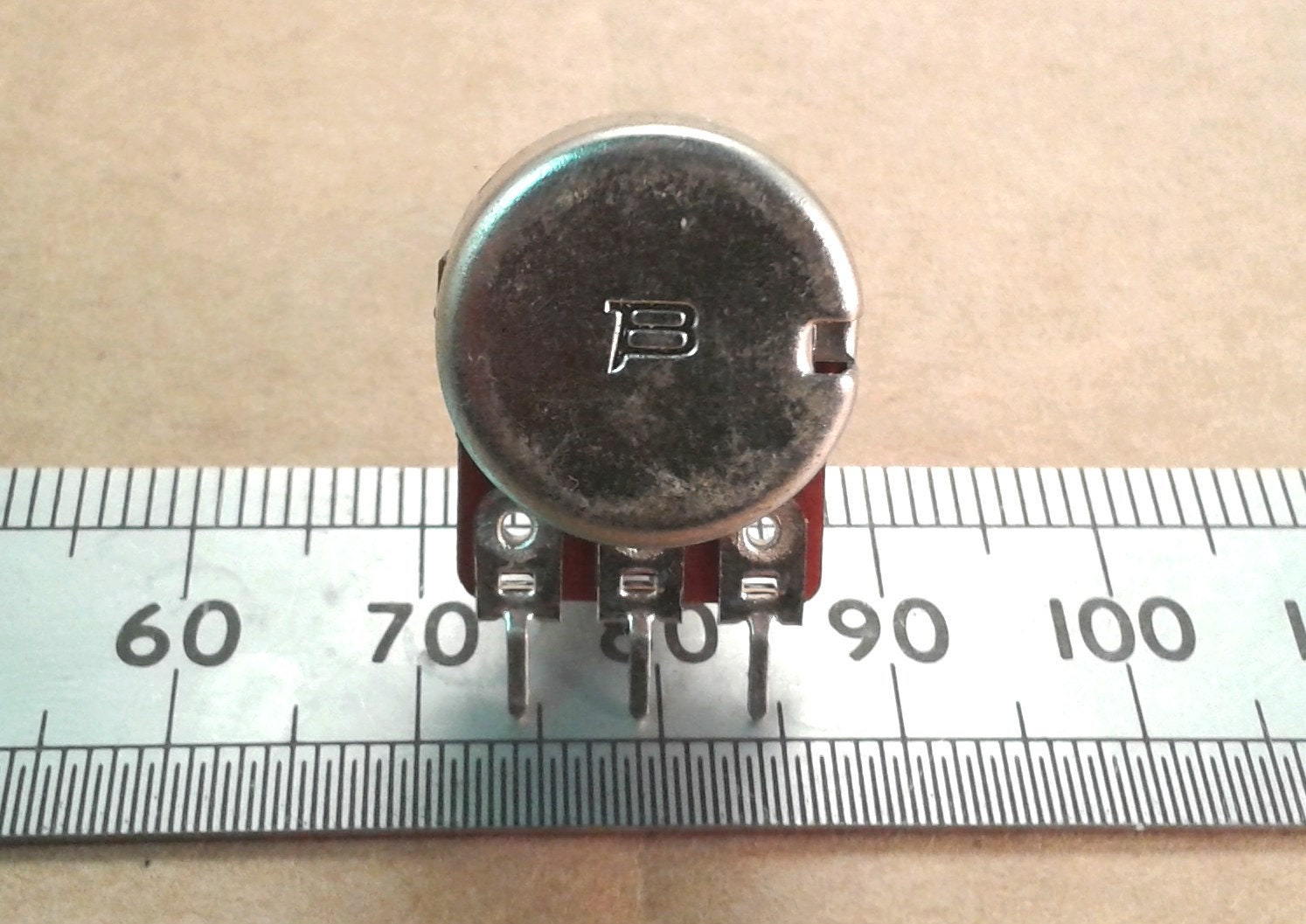

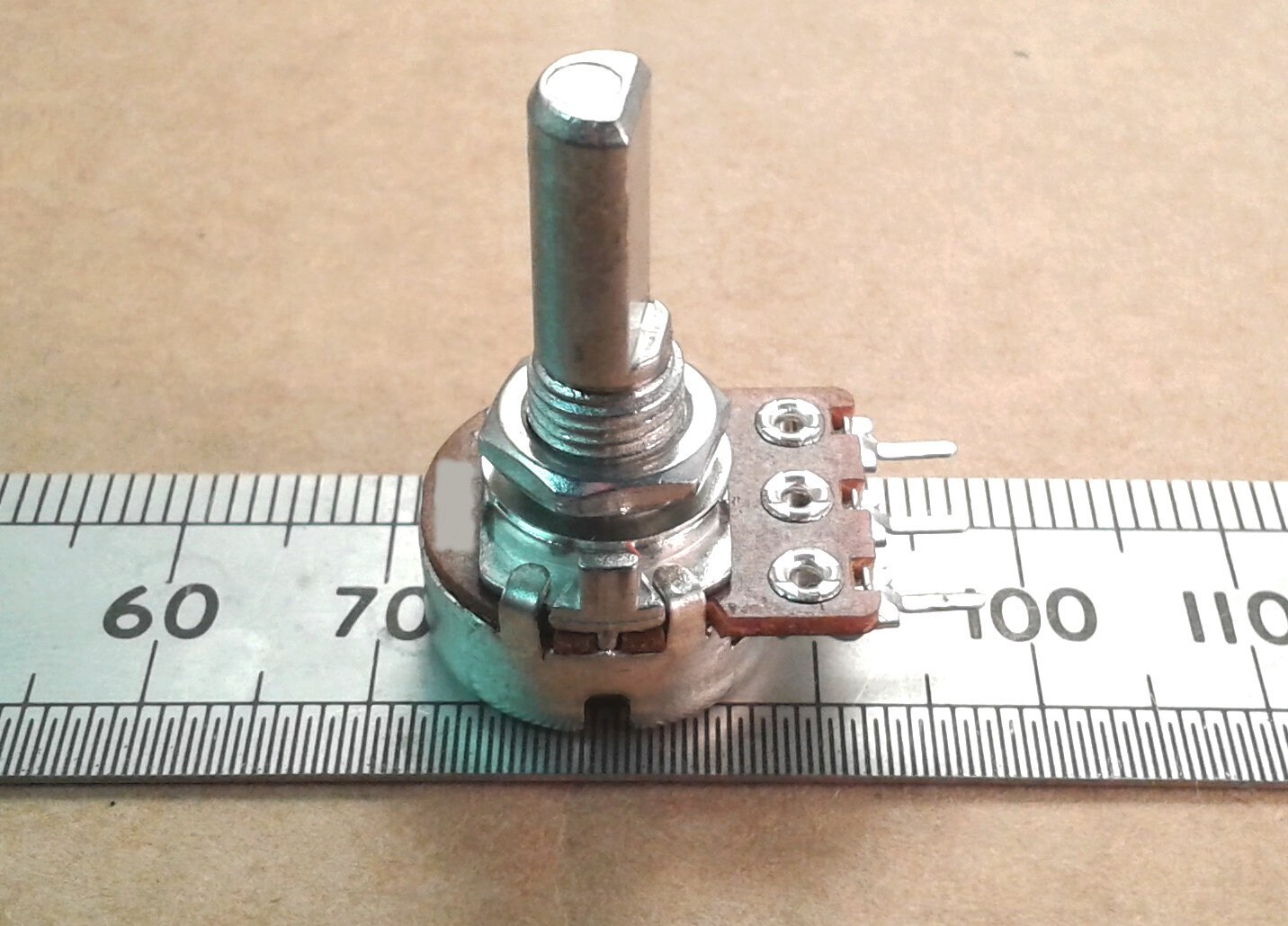

This is one item of new, single gang, reverse logarithmic taper track potentiometer which has a standard 6mm D-shaped flatted shaft manufactured by Bourns. The body diameter is 17mm. The turning shaft length is 14mm and the threaded section of the pot is 6mm. A nut and a washer are included for mounting on a front panel.
The mounting hole required is 7mm diameter. The connection pins will allow either PCB mounting or soldered wire connections. The "C" prefix before the track resistance value denotes an anti-log track taper. The max power rating is 0.1W. The track tolerance is +/-20%.
The pin spacing is 5mm
The shaft diameter is the standard 6mm metric size
The width across the flat is a little over 5mm, standard size.
The 'diameter' across the curve to the flat is 4.5mm.

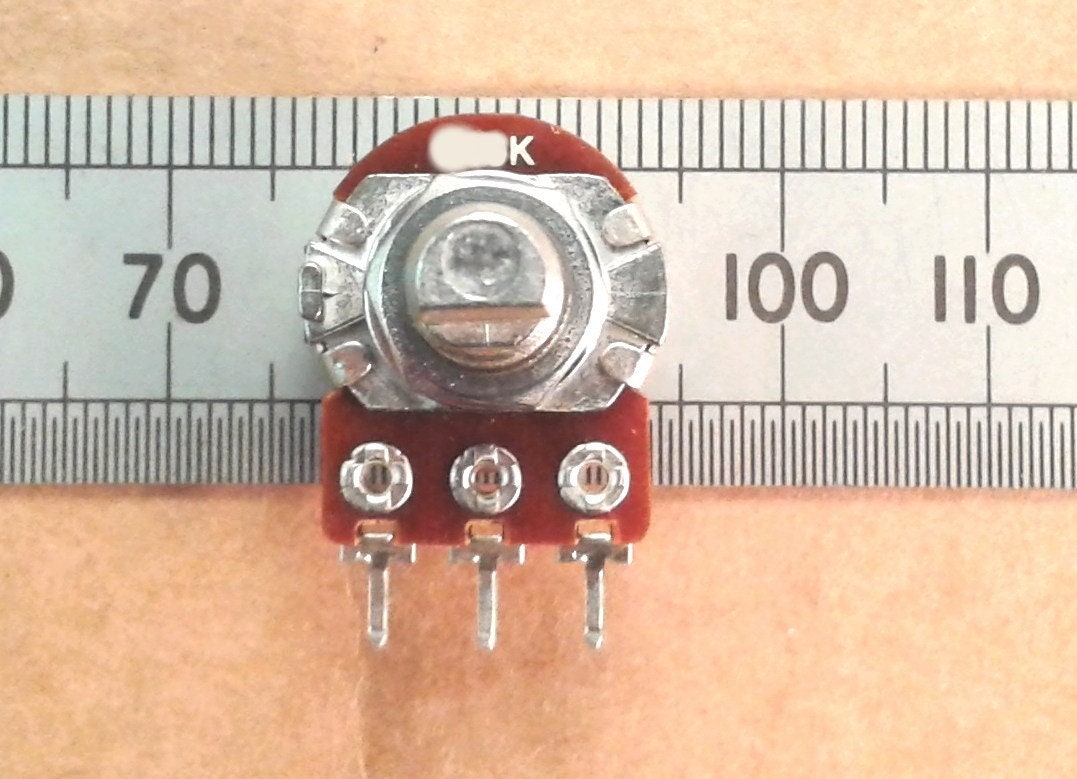

The flat points downwards towards the centre pin when the pot is at the mid-point.
The rotation angle is 300 degrees.

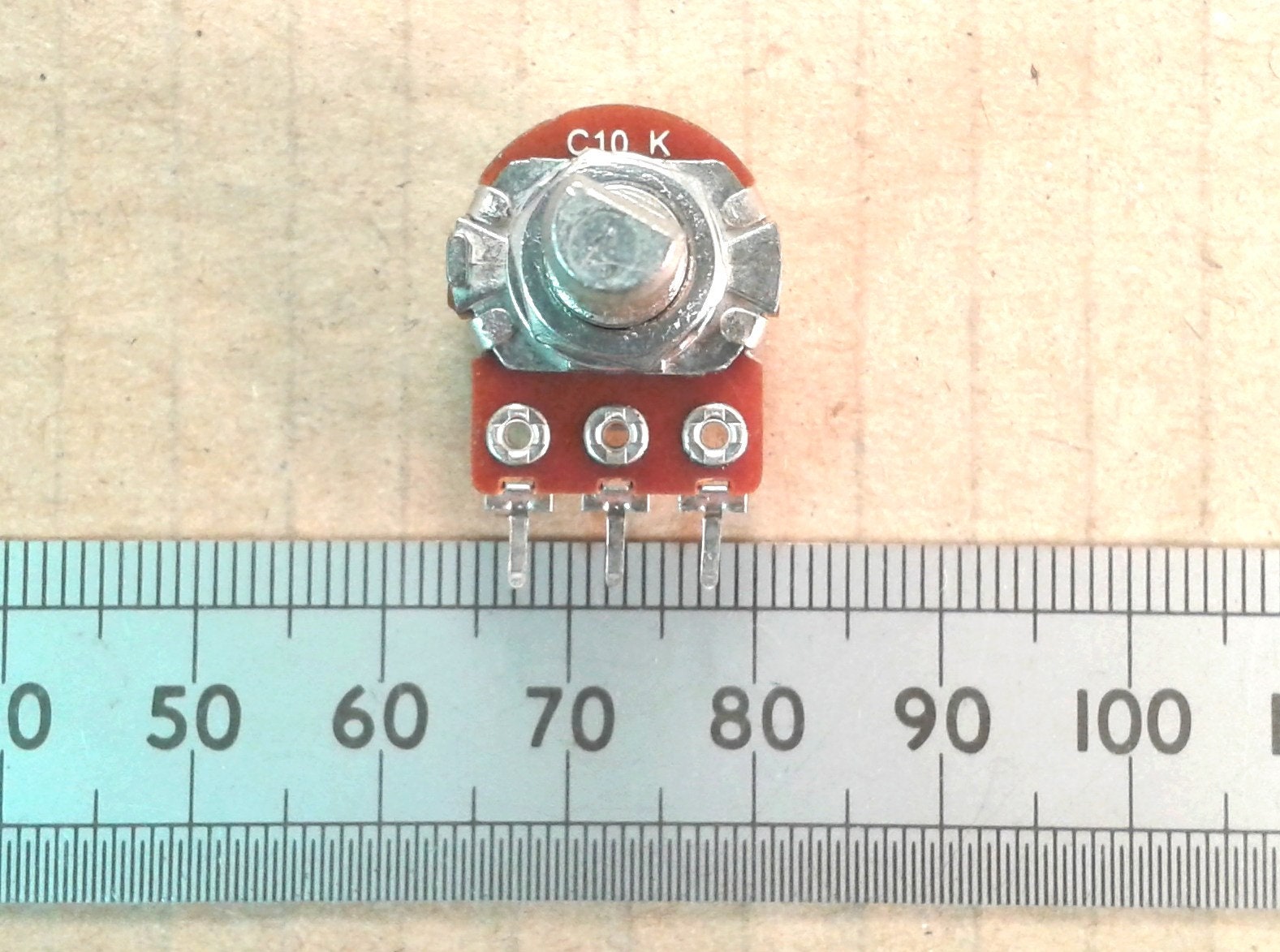

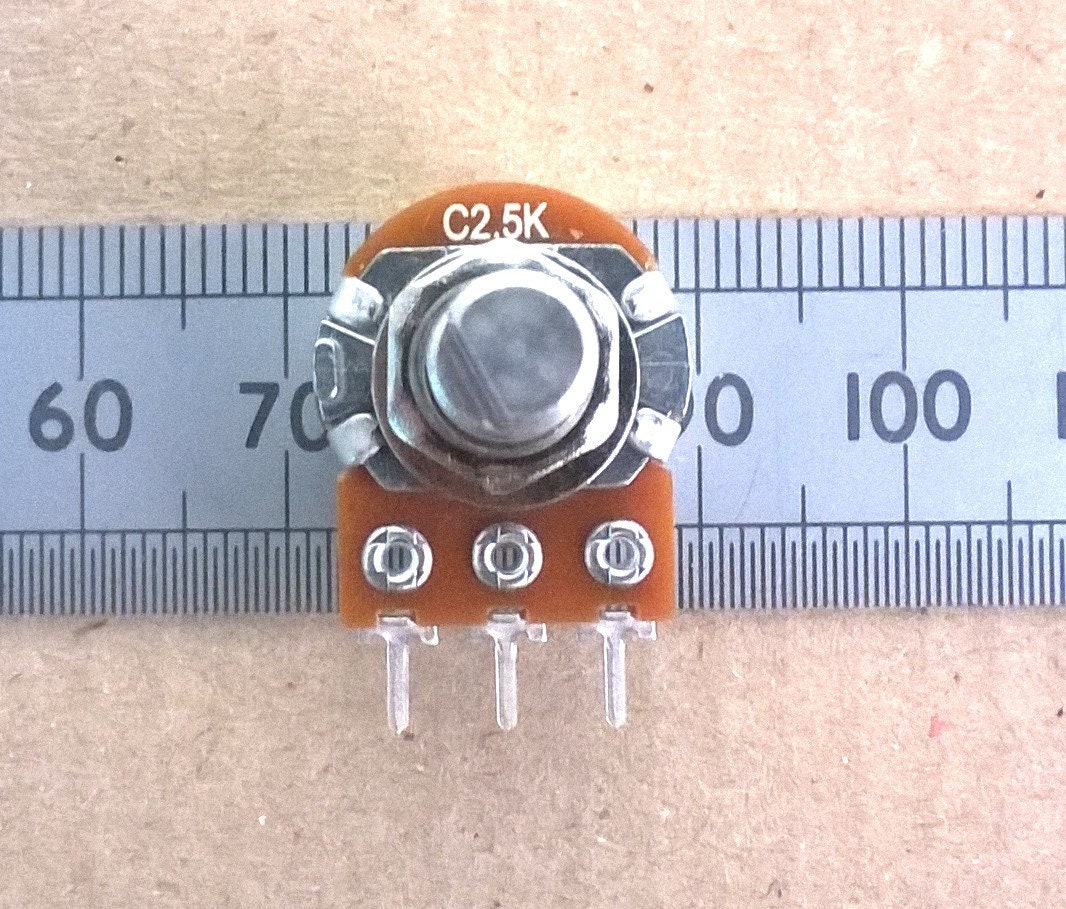

If you have a pot with a track label of C103, this is a C10K where 3 is the number of zeros after 10 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the C as a suffix i.e. 10KC.
Different pack sizes of one to four pots are available. If you would like to mix the available track resistances shown in one pack, please use the MIX options and send me a site message with your requirements.
