Conductive Plastic Track Potentiometer 16mm Flatted 6.0mm D Shaft Logarithmic Audio Log A Pot by Bournes
$5.44
This is one item of new, single gang, logarithmic taper track potentiometer which has a standard 6mm D-shaped flatted shaft manufactured by Bourns. The high pack quantity options are cheaper per item. If you would like to mix the available track values in a pack, please select the MIX option and send me a list of your requirements in a site message, or add a note to the order.

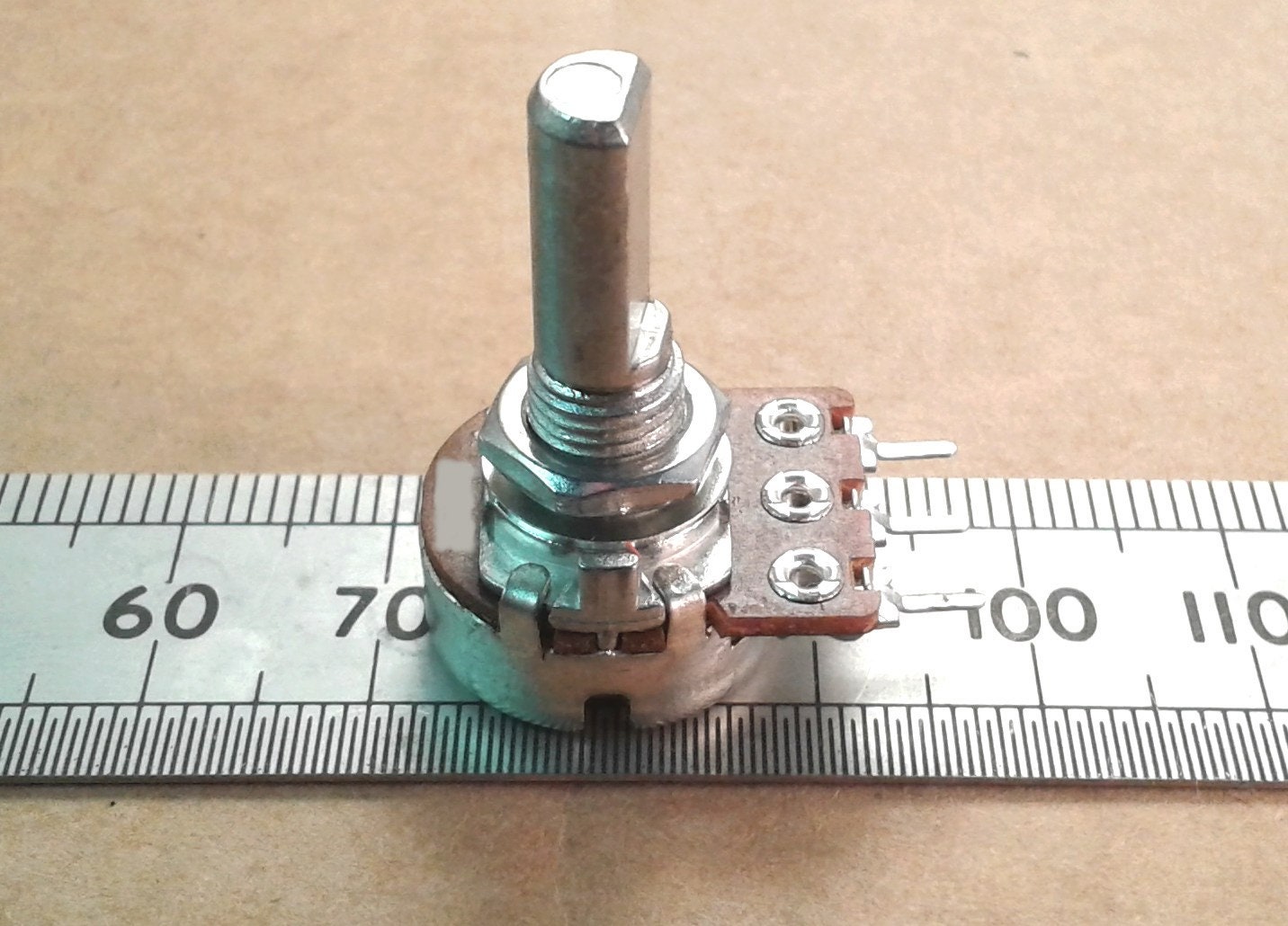

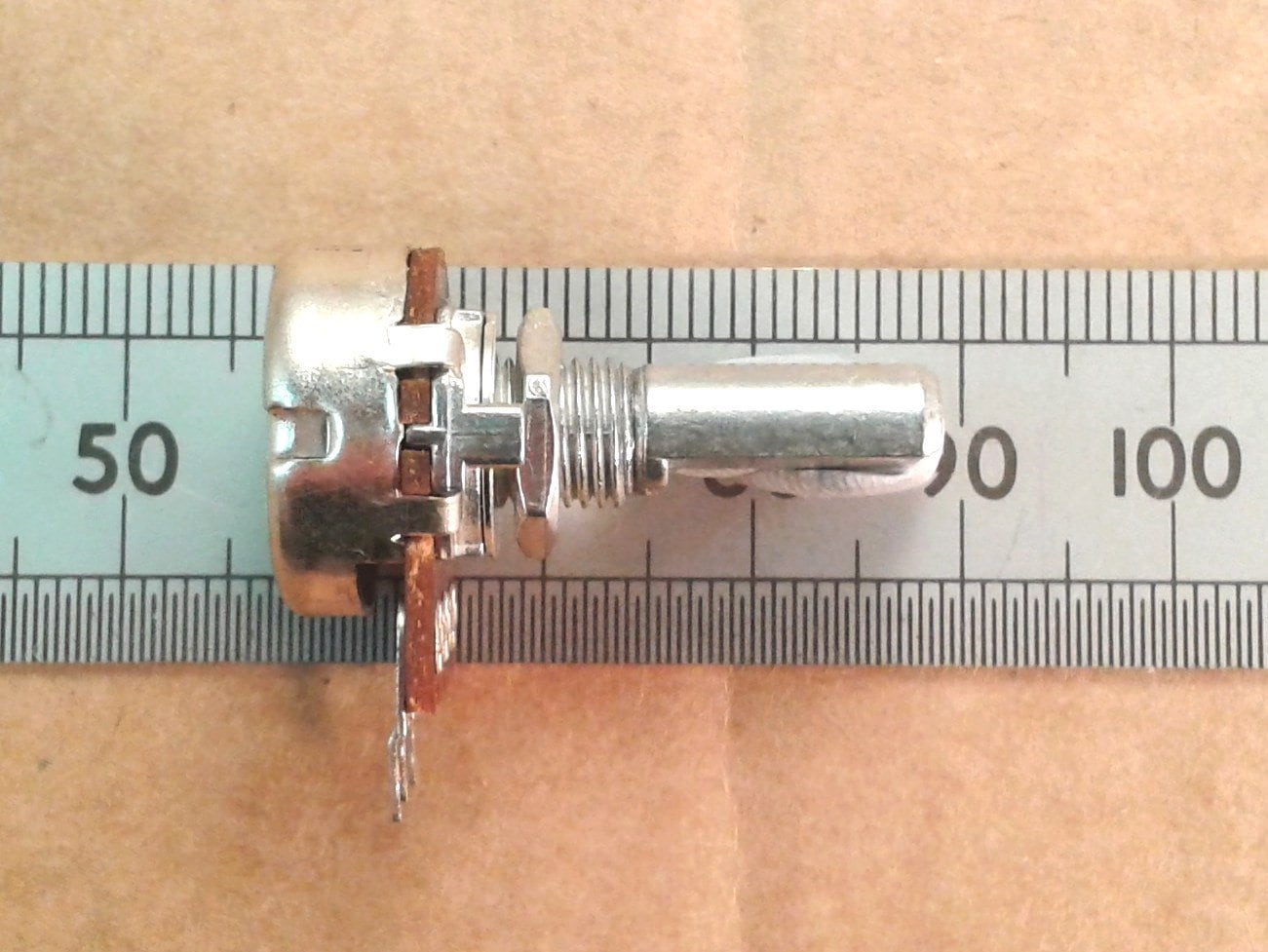

The turning shaft length is 14mm and the threaded section of the pot is 6mm. A nut and a washer are included for mounting on a front panel. The mounting hole required is 7mm diameter.
The connection pins will allow either PCB mounting or soldered wire connections. The "A" prefix before the track resistance value denotes an audio track taper. The max power rating is 0.1W. The track tolerance is +/-20%. The tracks are nice low noise conductive plastic types.
The pin spacing is 5mm
The shaft diameter is the standard 6mm metric size
The width across the flat is a little over 5mm, standard size.
The 'diameter' across the curve to the flat is 4.5mm.

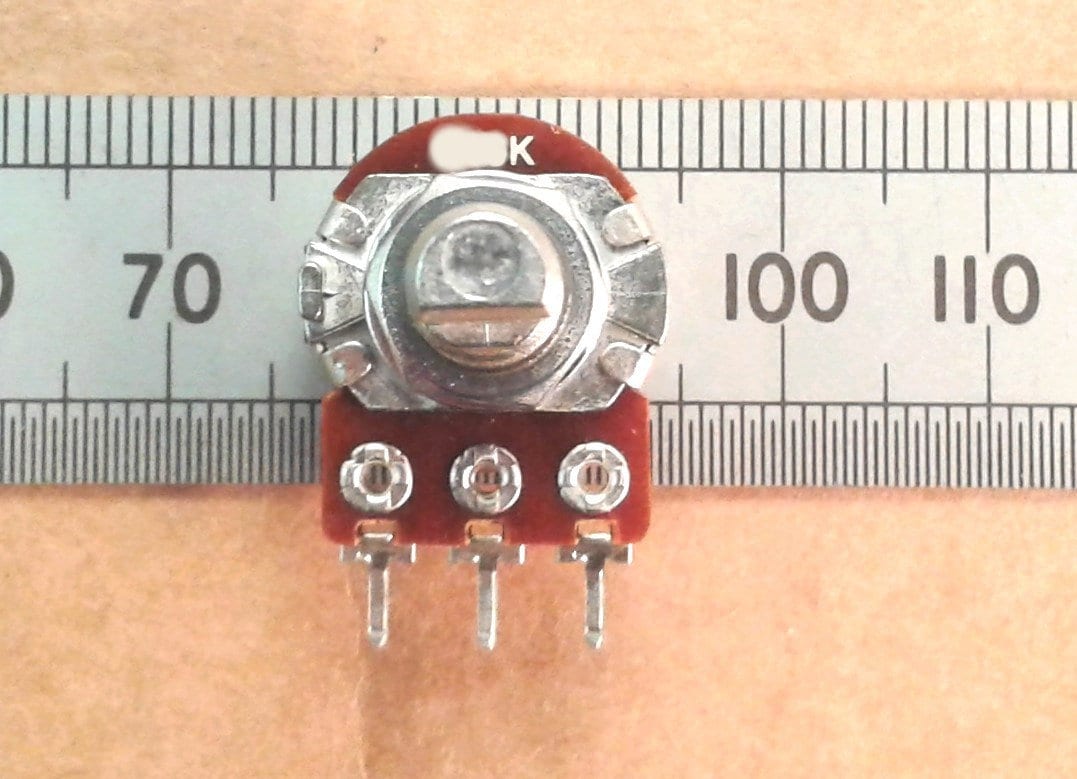

The flat points downwards towards the centre pin when the pot is at the mid-point.
The rotation angle is 300 degrees.

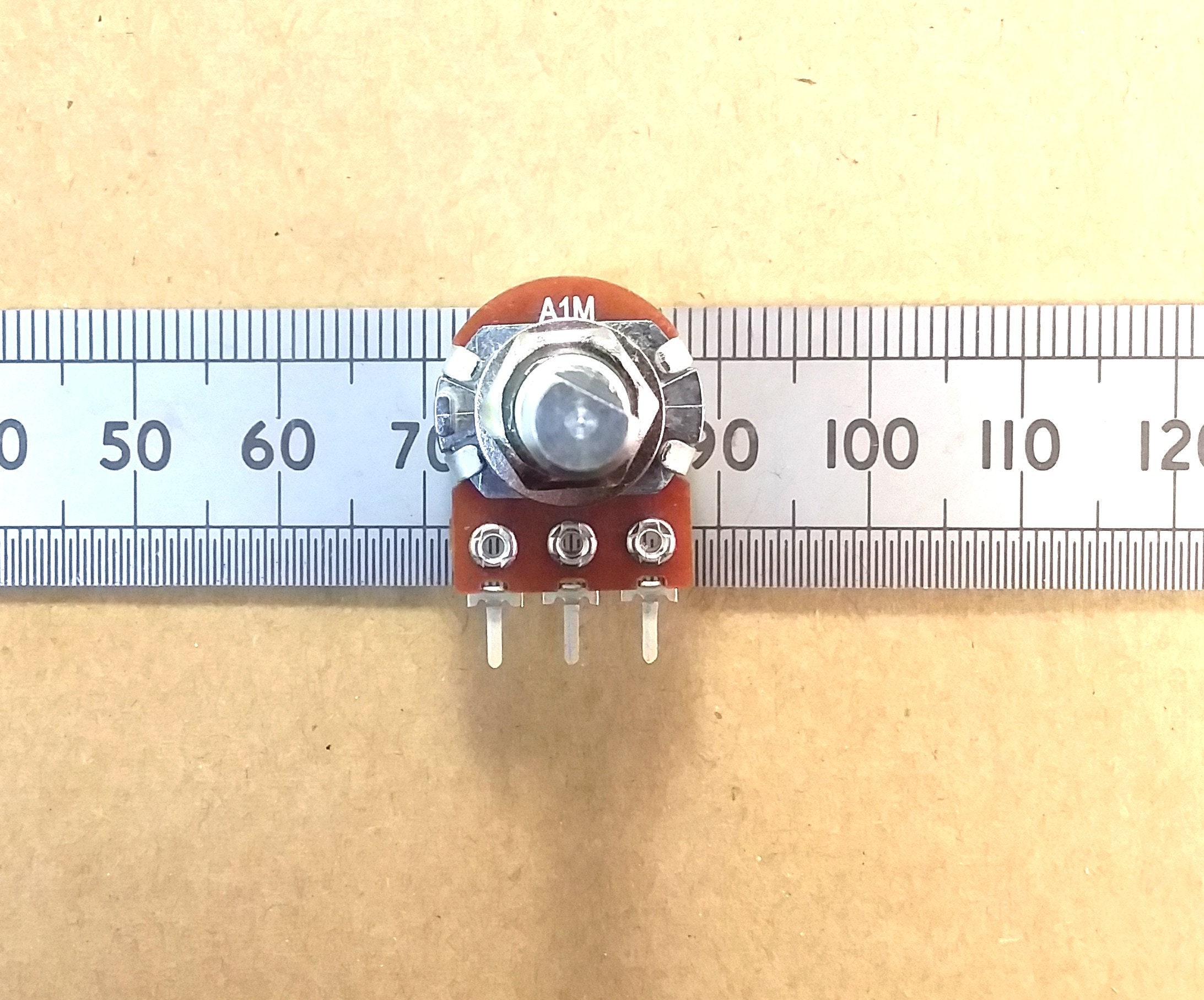

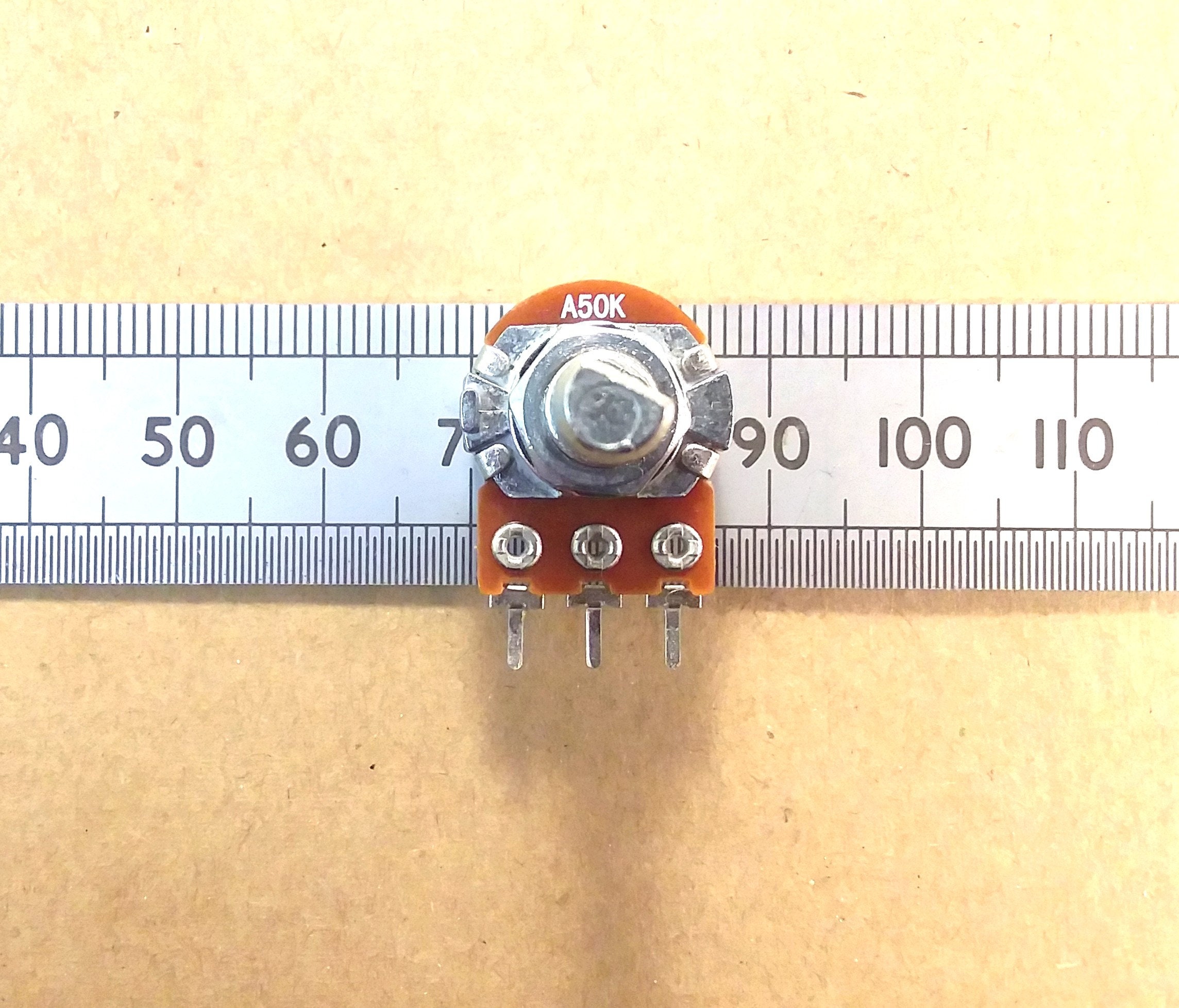

If you have a pot with a track label of A503, this is a A50K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the A as a suffix i.e. 50KA.
