Anti-Logarithmic Potentiometer 6.3mm 0.25 Inch Round Shaft Solder Lug Antilog Reverse Inverse C Track RSL63

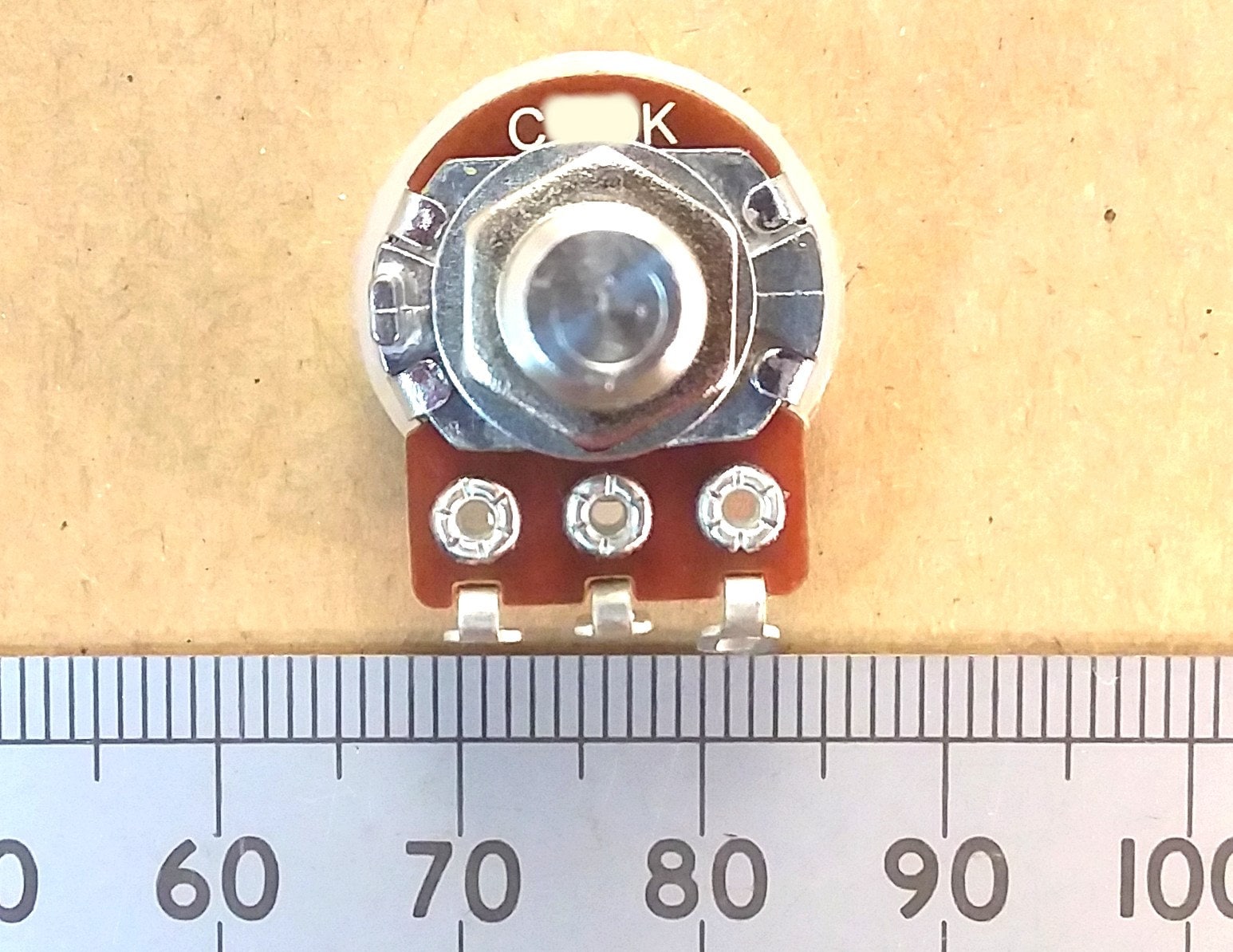

This is one item of 16mm body, reverse logarithmic carbon track potentiometer made by Alpha Taiwan.

The higher quantity options are cheaper per item. If you would like to mix the available track resistances in a pack, please select the MIX option and send me a list of requirements in a site message, or add a note to the order.

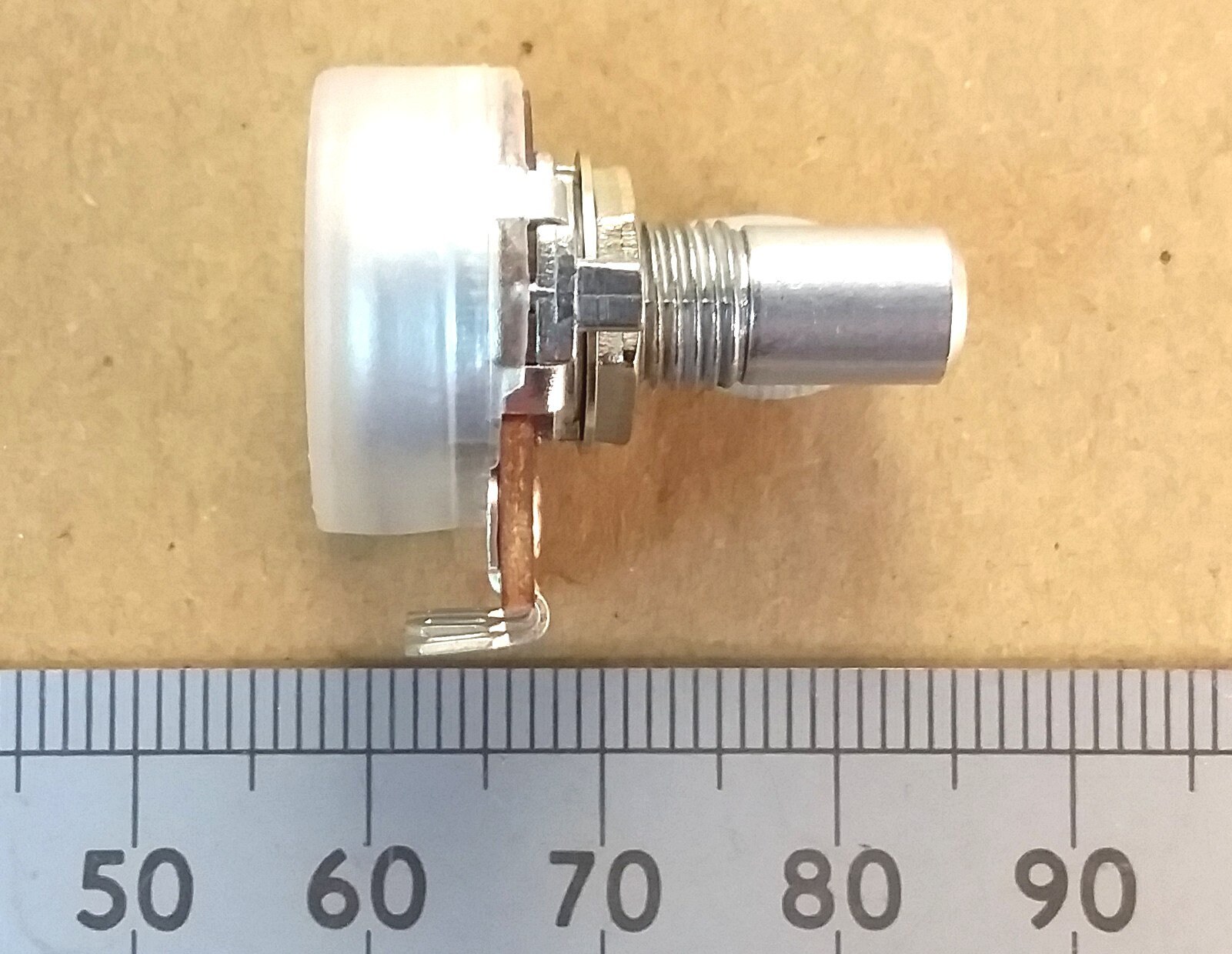

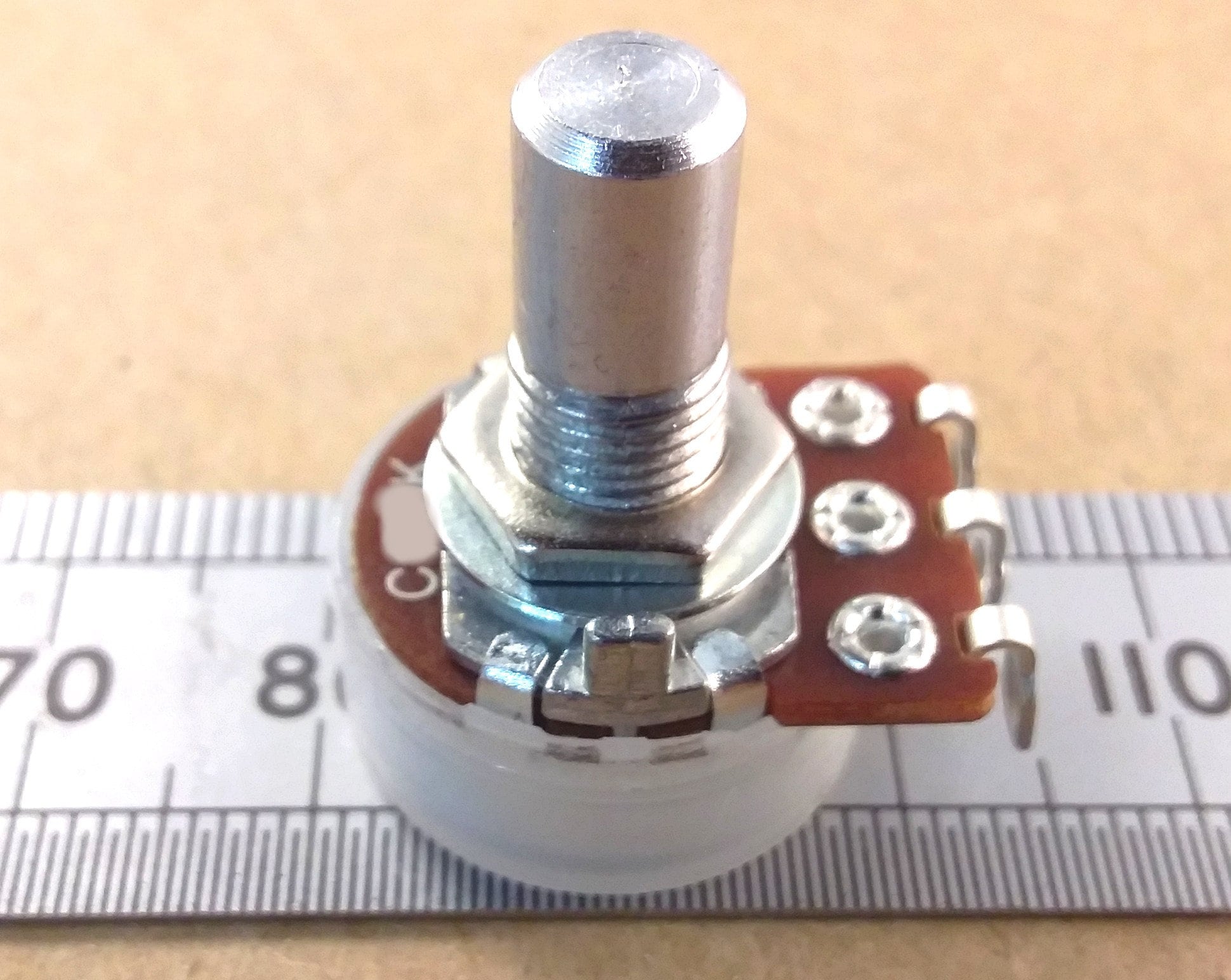

They have solder lug connections. There are various track values available on the different variations. The total shaft length is 15mm, of which the threaded part is 6mm long and the circular turning part is 9mm long and 6.35mm one quarter inch diameter.

The mounting hole required is 7mm diameter. The nut and washer are provided. The reverse log C taper pot is often used for analogue audio level controls when mounted backwards for some reason, or for active filter equalizer frequency controls.

There are more styles of 16mm body pots on other listings in the shop.

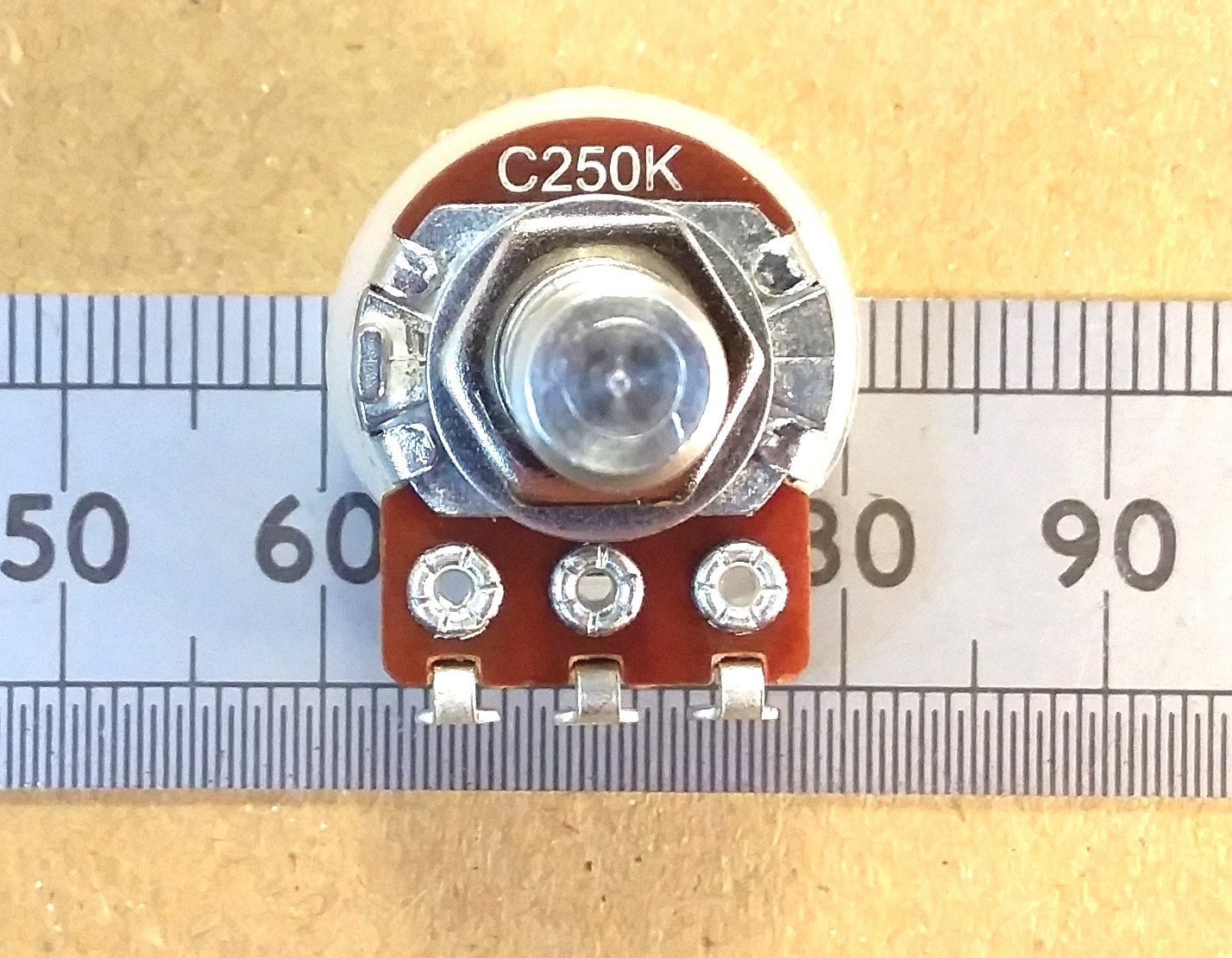

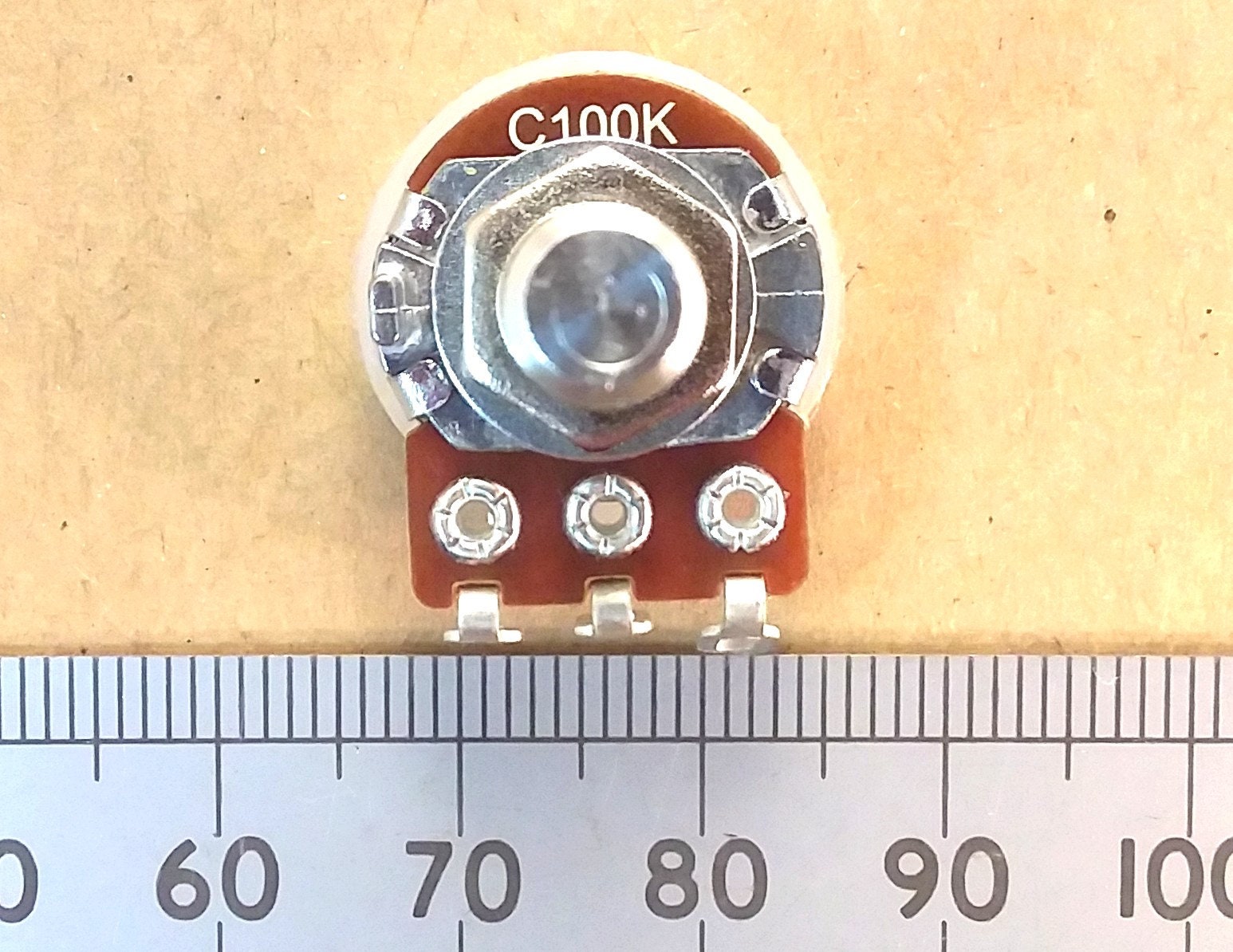

The "C" prefix before the track resistance value denotes a anti-log audio track taper. The max power rating is 0.1W. If you have a pot with a track label of C253, this is a C25K where 3 is the number of zeros after the 25 in Ohms. A 252 would be 2.5K, a 472 would be 4.7K etc. Sometimes pots may also be labelled with the A as a suffix i.e. 25KC.
