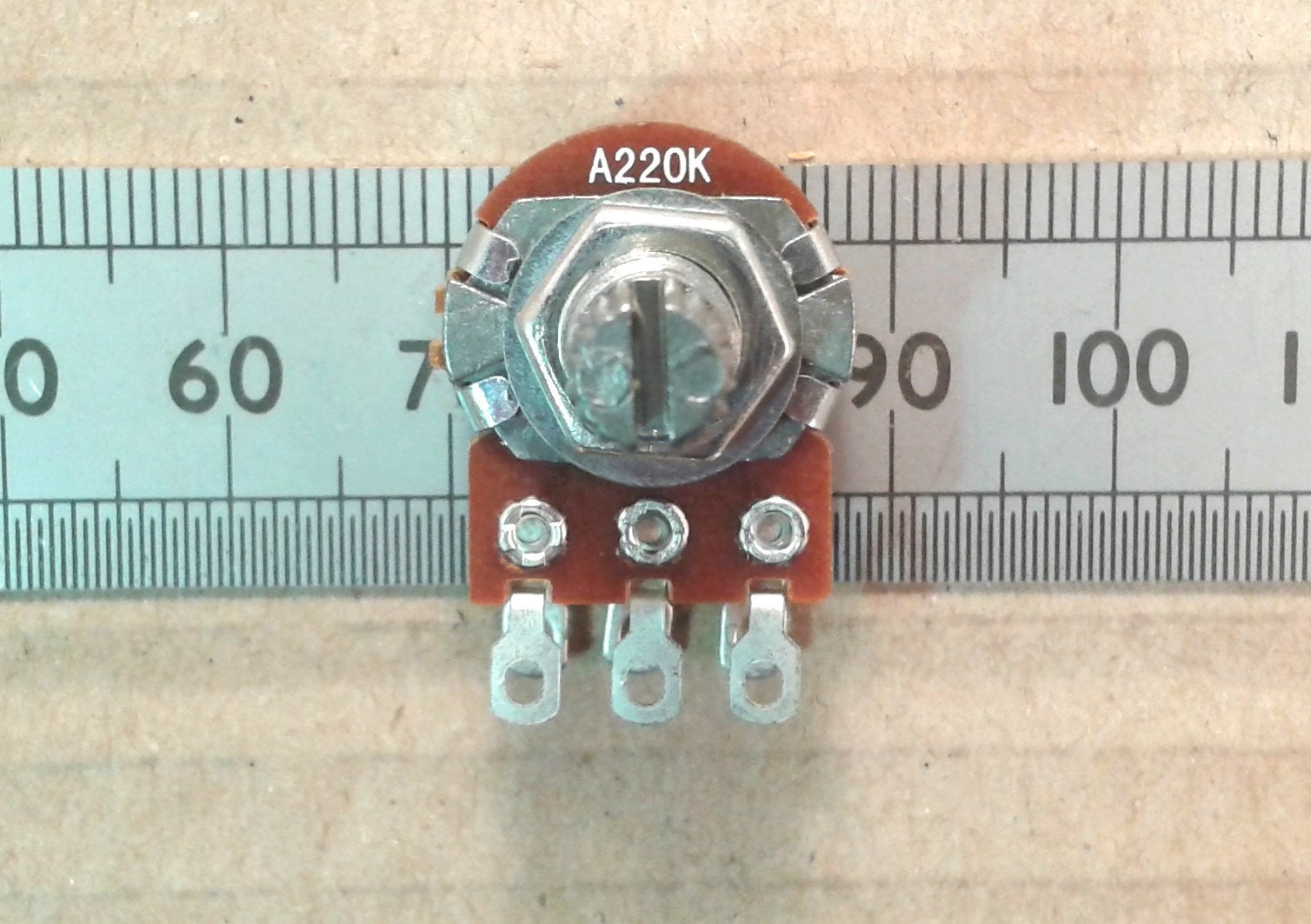

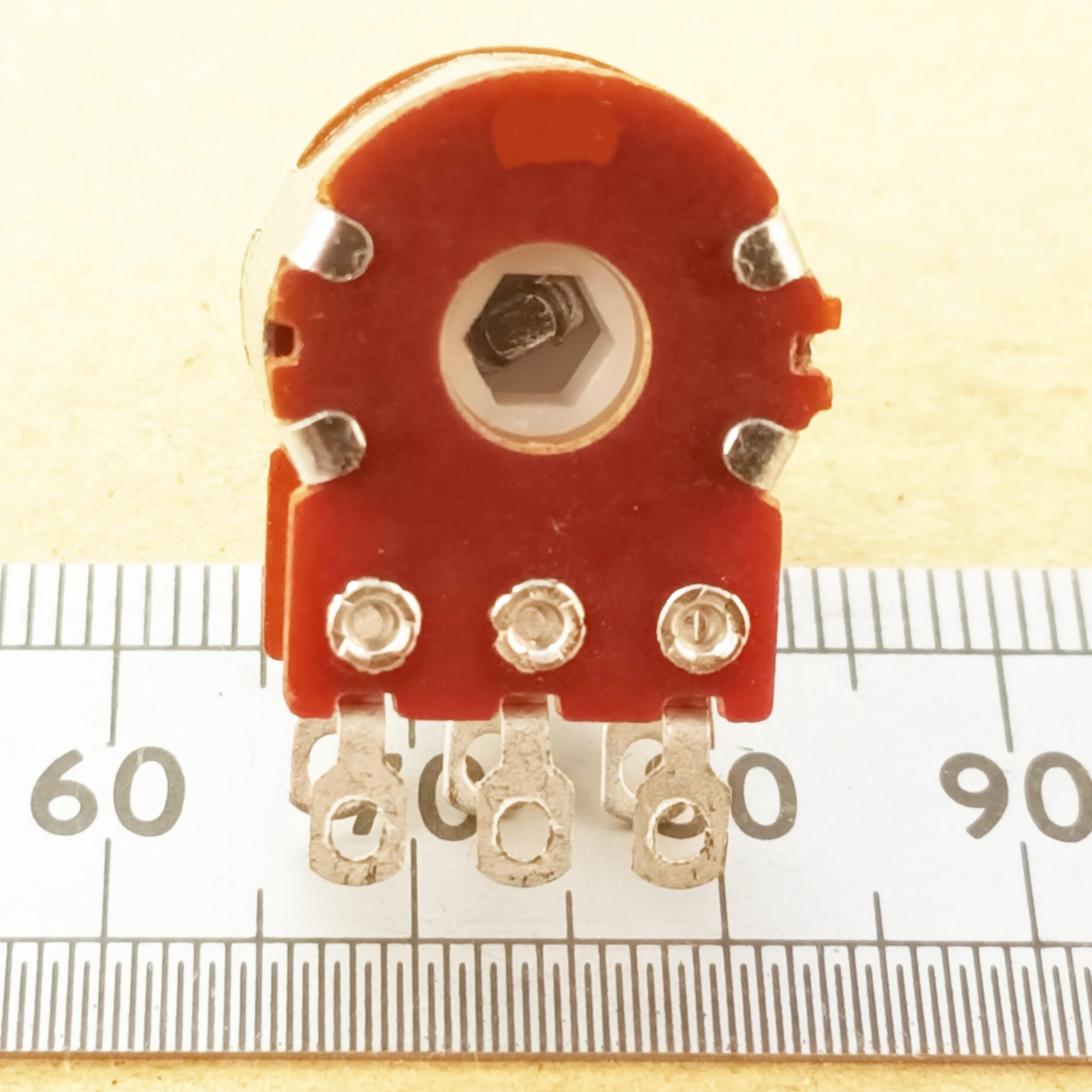

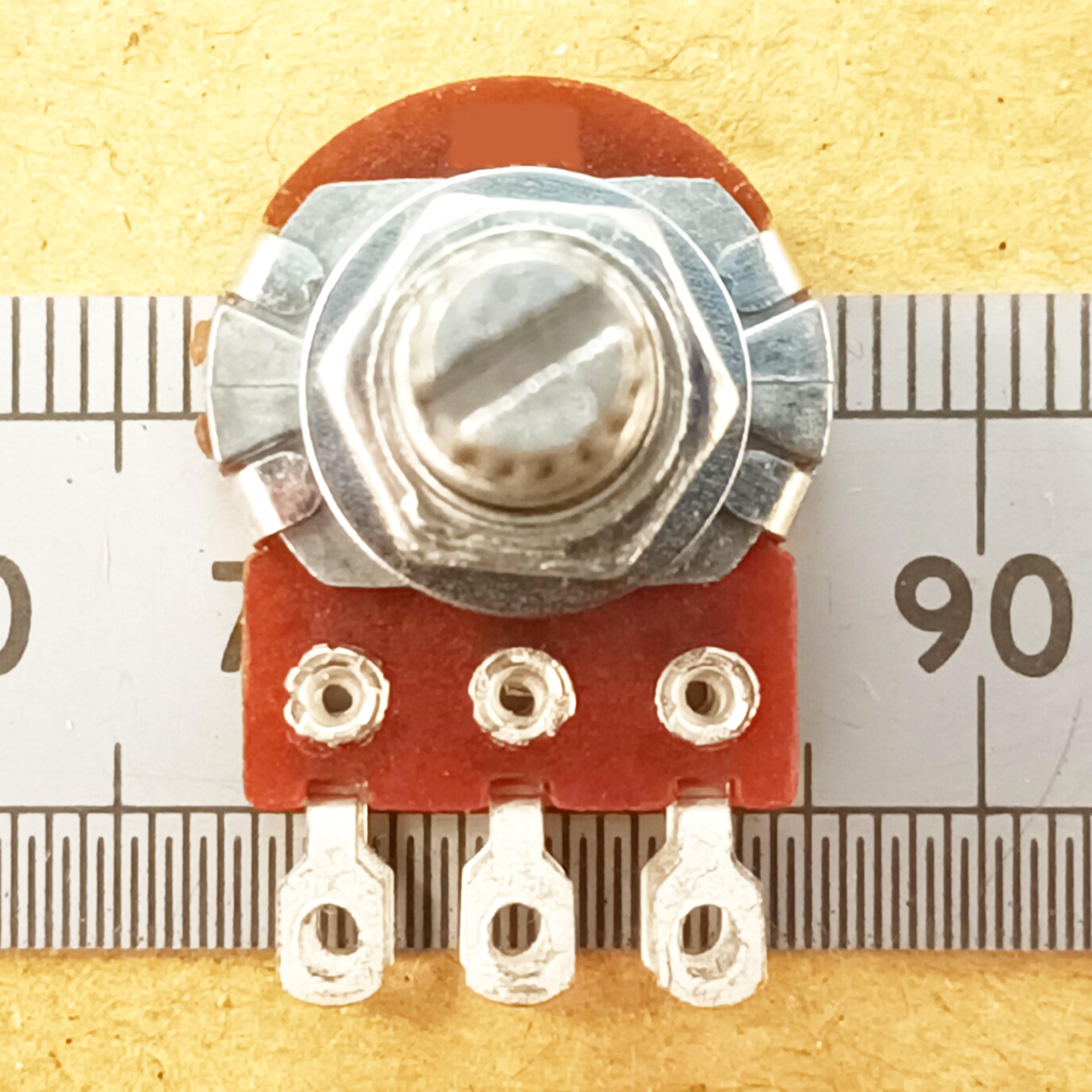

Stereo 16mm Logarithmic Potentiometer Solder Lug Splined T18 Shaft Dual Log A Track Pot SLST

This is one item of new, stereo, logarithmic carbon track potentiometer with solder lug connections in various track resistances.

The high pack quantity options are cheaper per item. If you would like to mix the available track values in a pack, please select the MIX option and send me a list of your requirements in a site message, or add a note to the order.

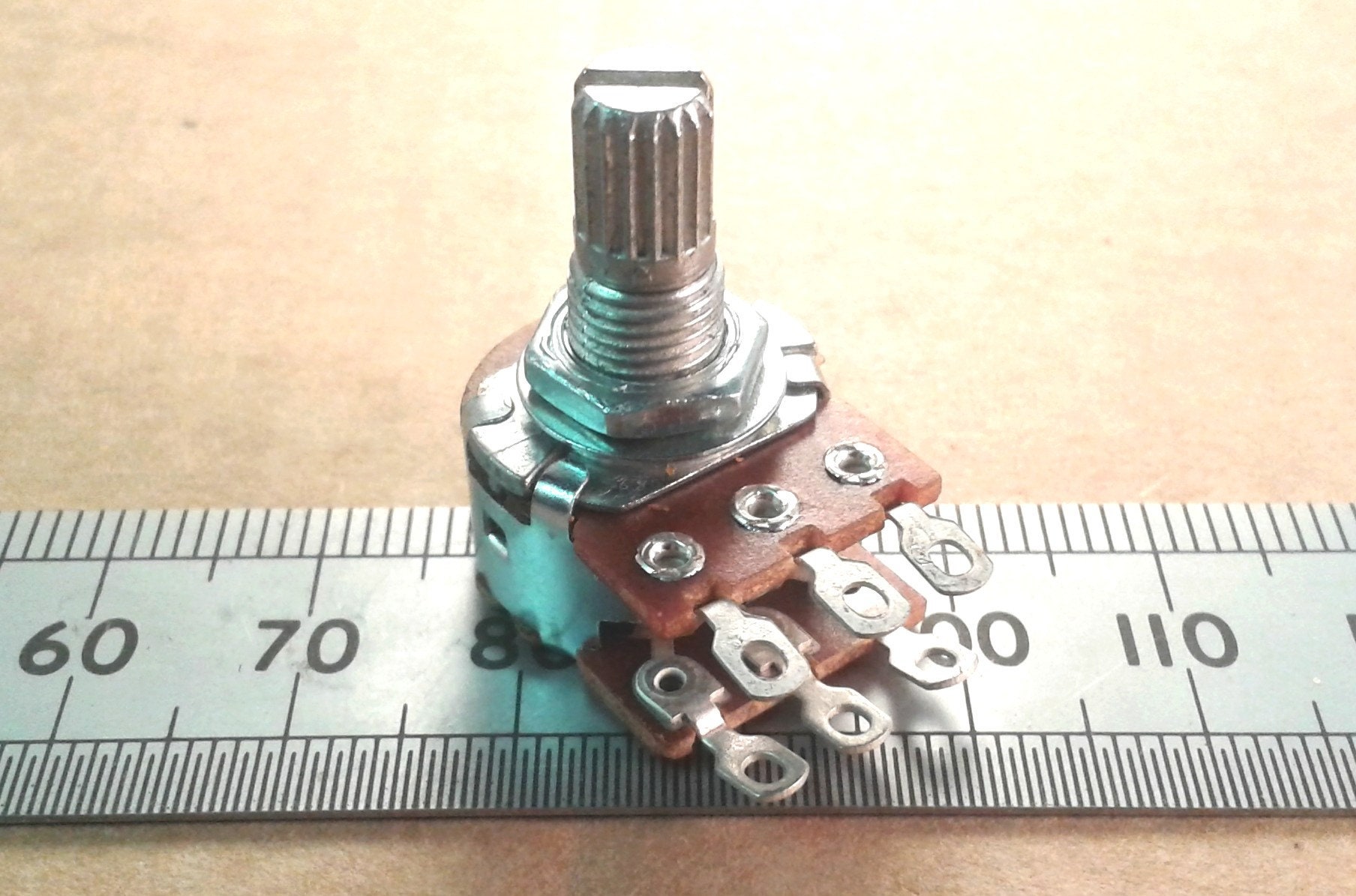

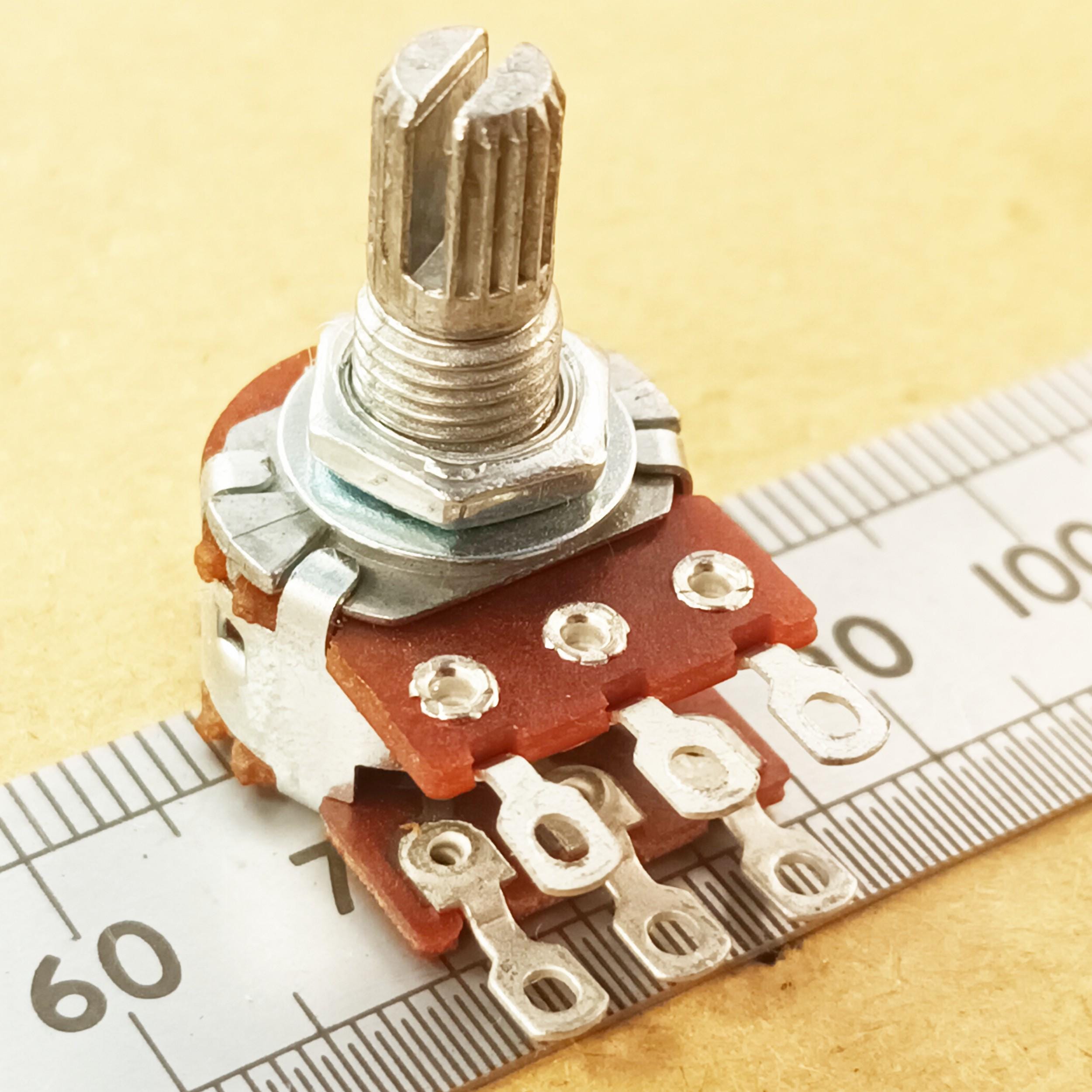

These are new items and come with a nut and a washer for mounting on a front panel. The splined T18 shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins are solder lugs. The "A" prefix before the track resistance value denotes an audio log track taper suitable for analogue volume controls.

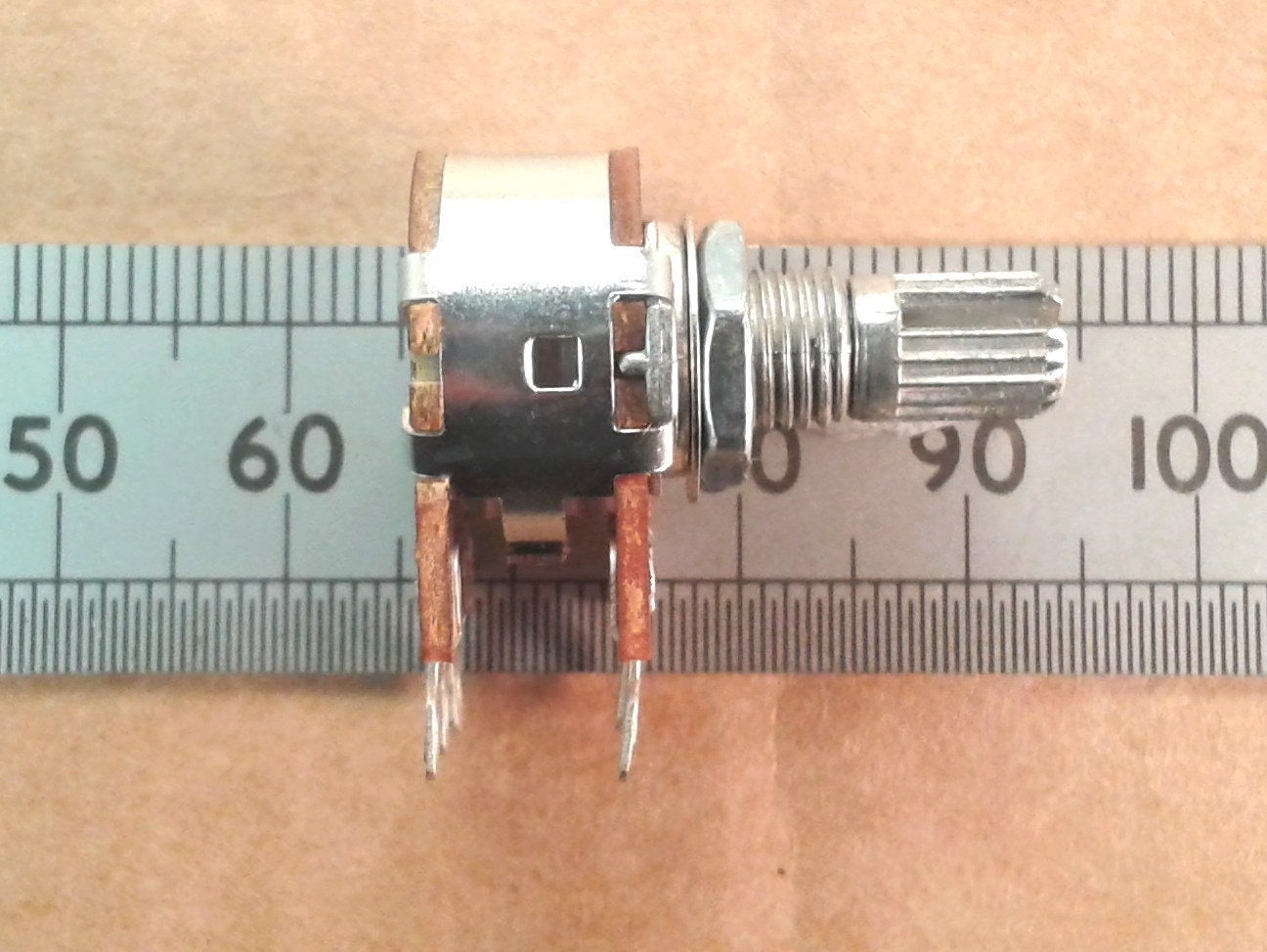

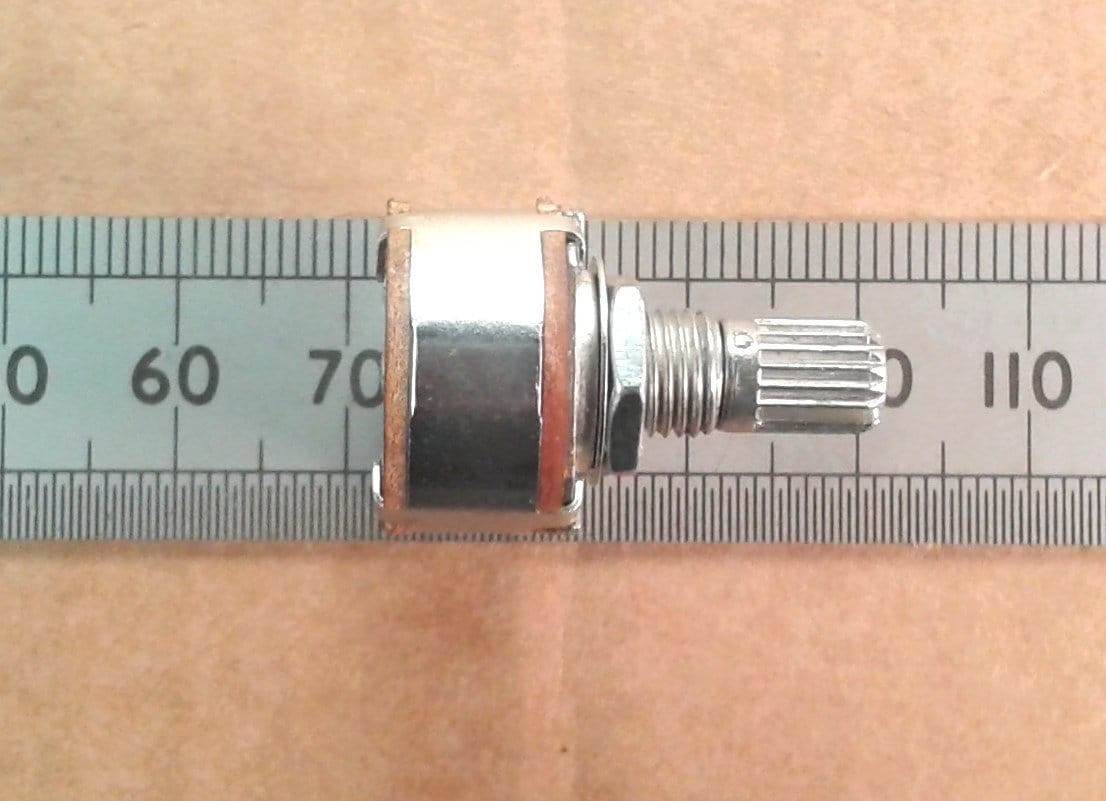

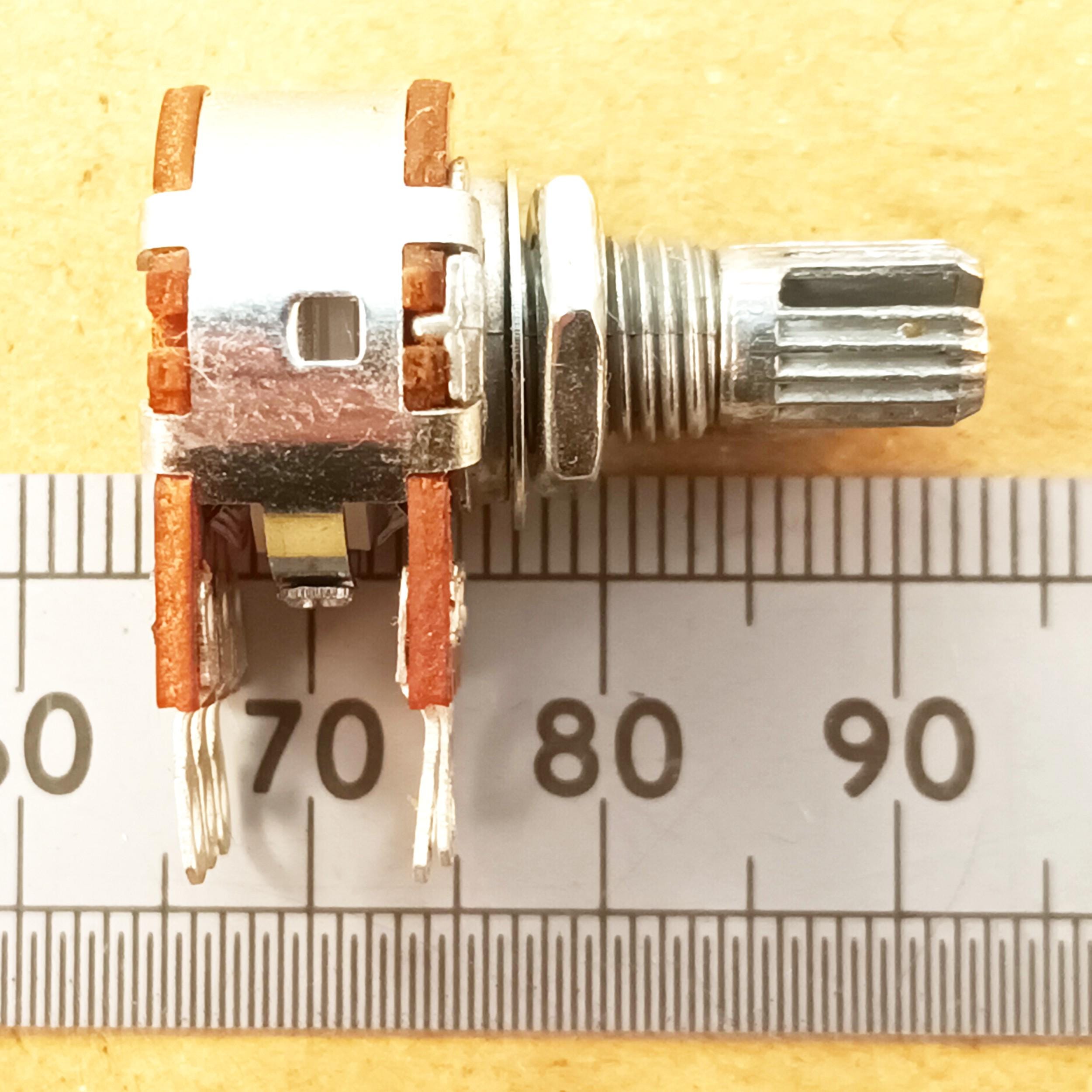

The maximim power rating is 0.063W per section. The total shaft length is 15mm. 6mm of this is the threaded part and 9mm of this is the turning part. The connections are 5mm apart. The main body diameter measures 17mm.

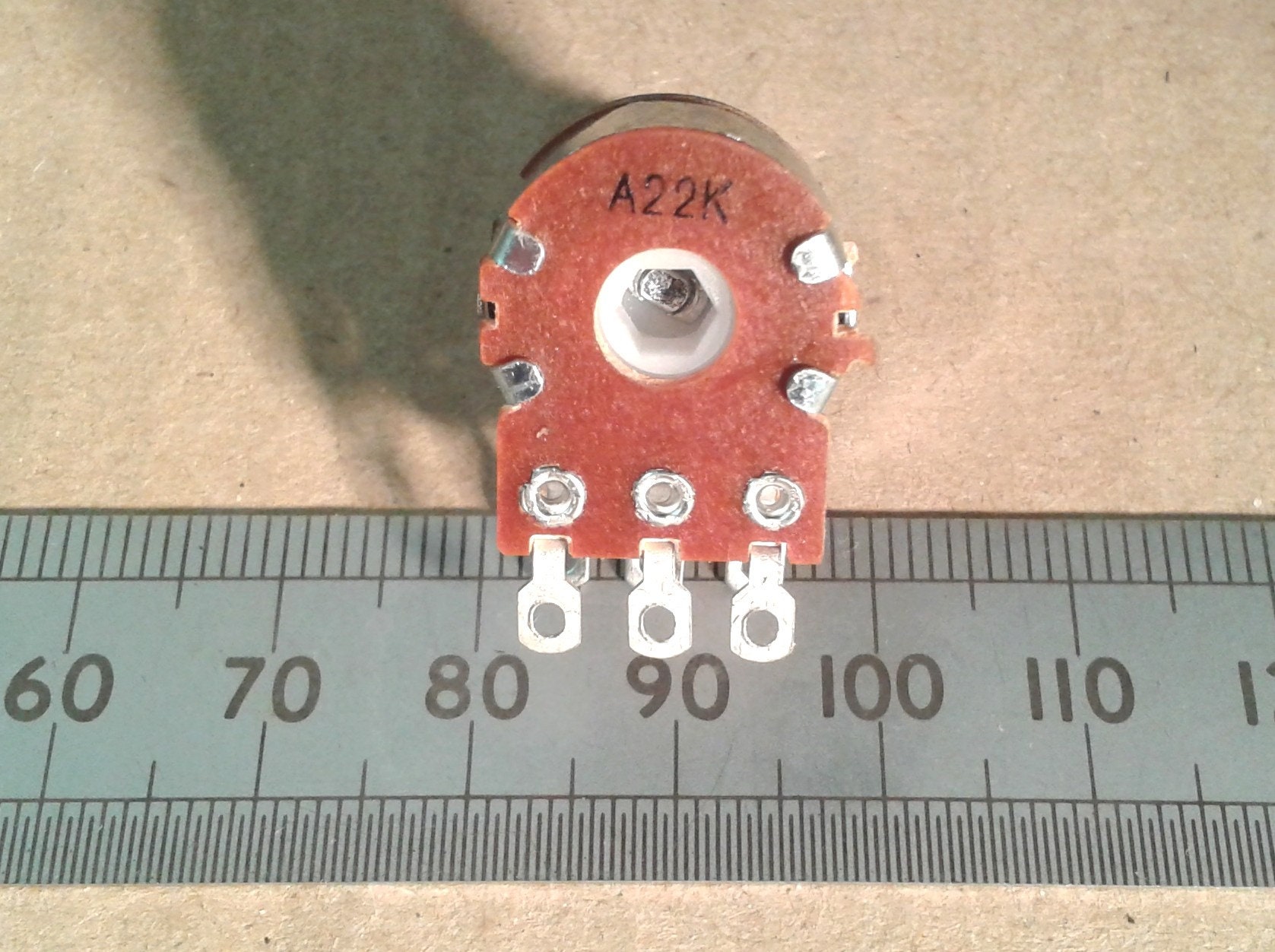

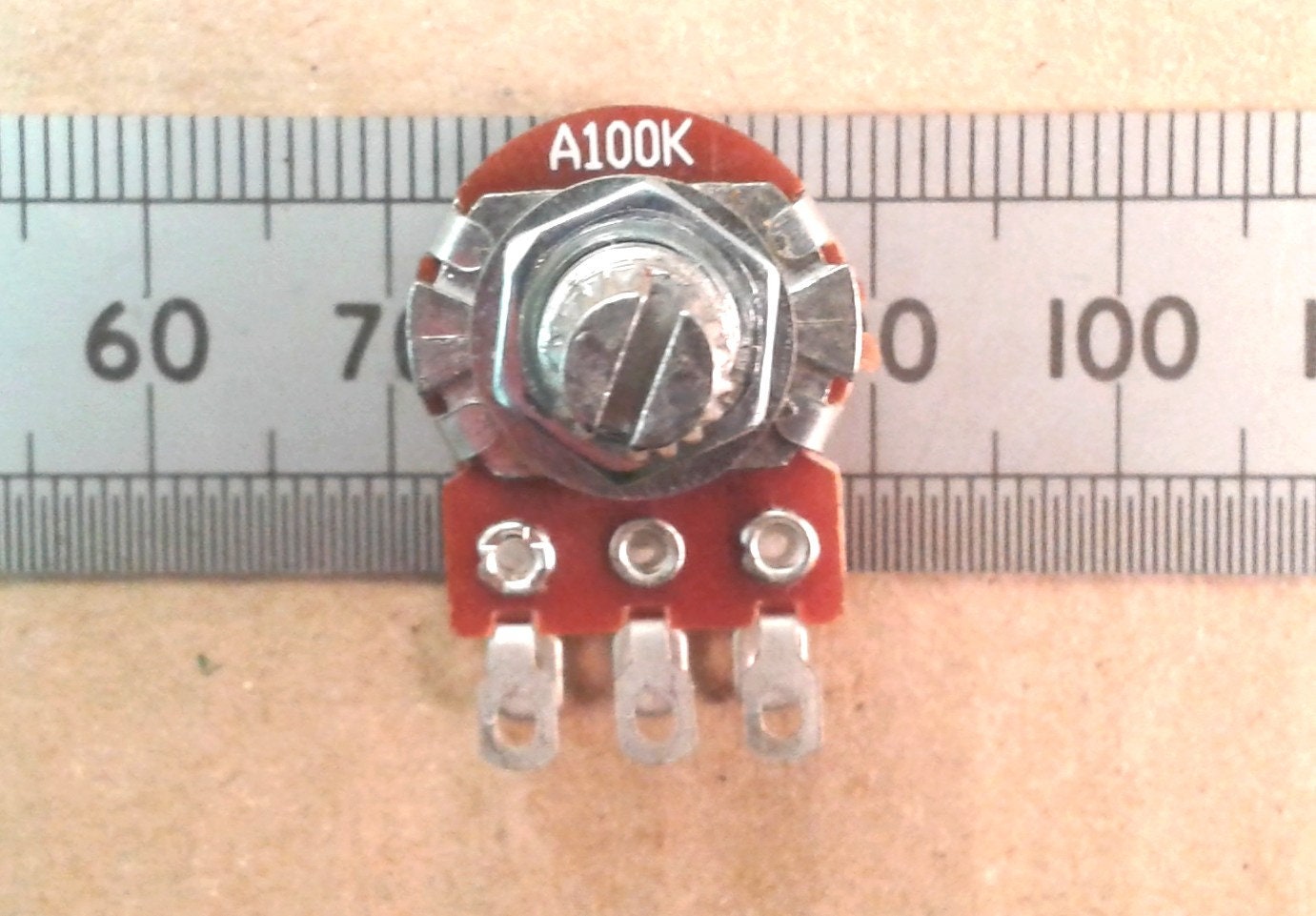

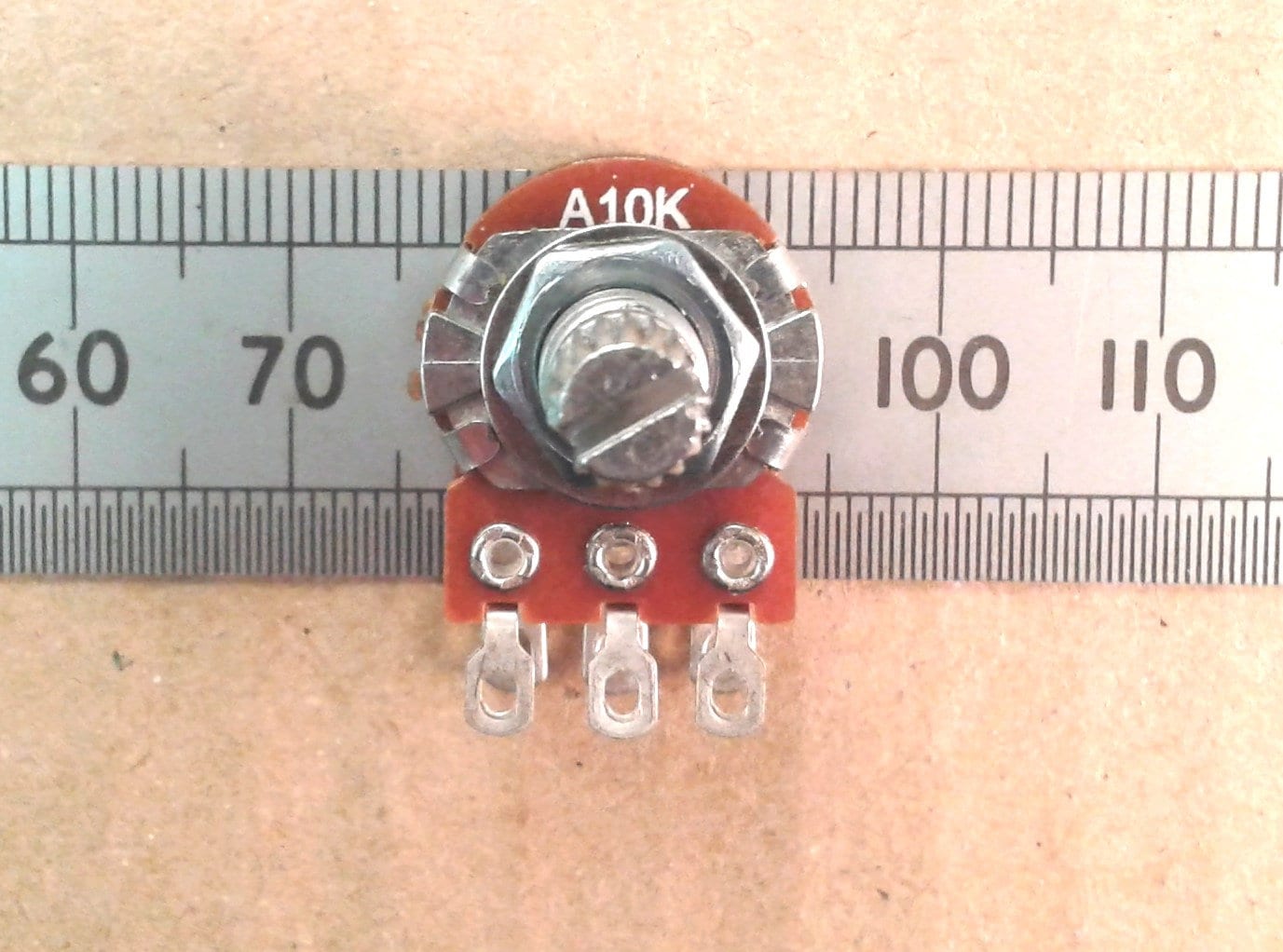

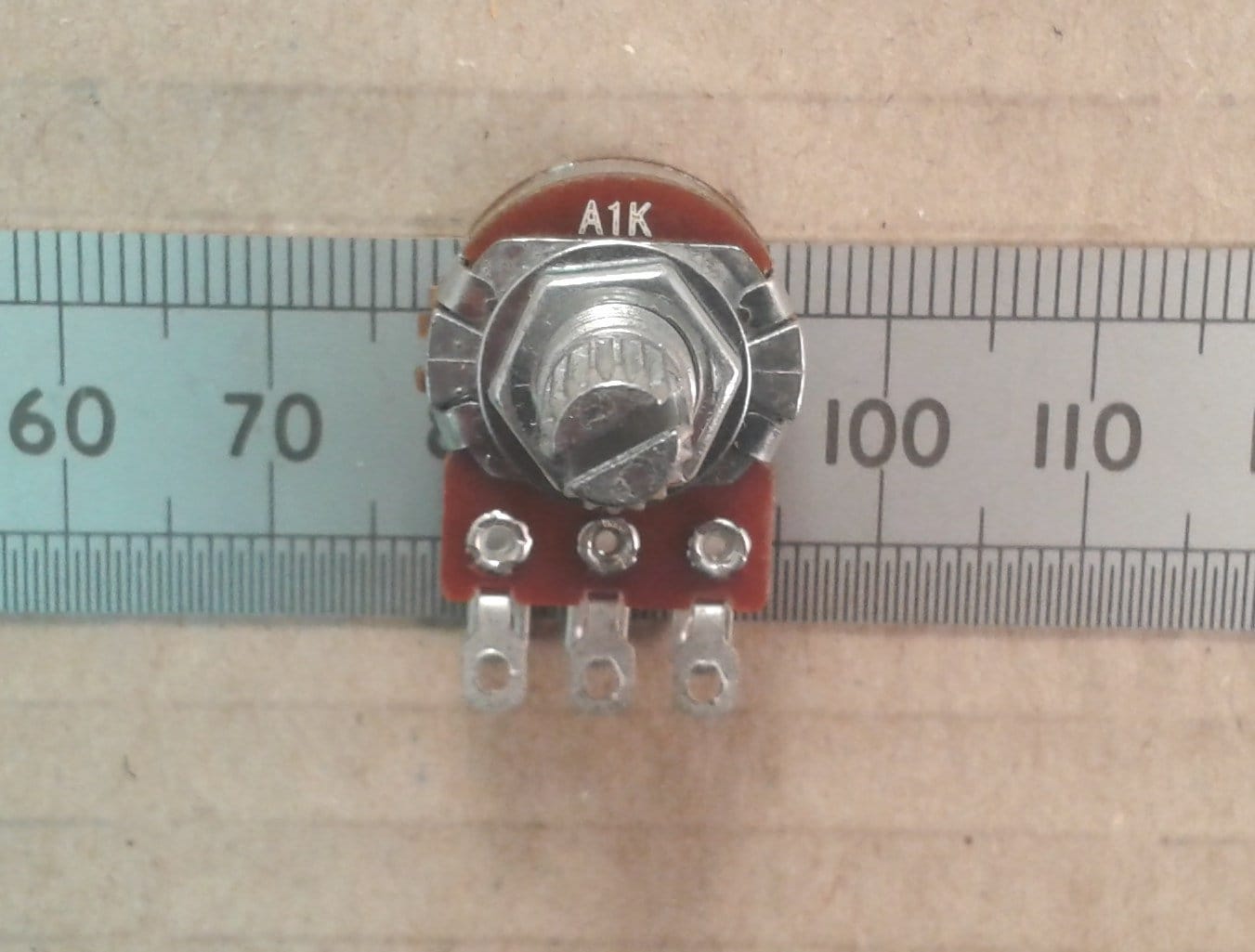

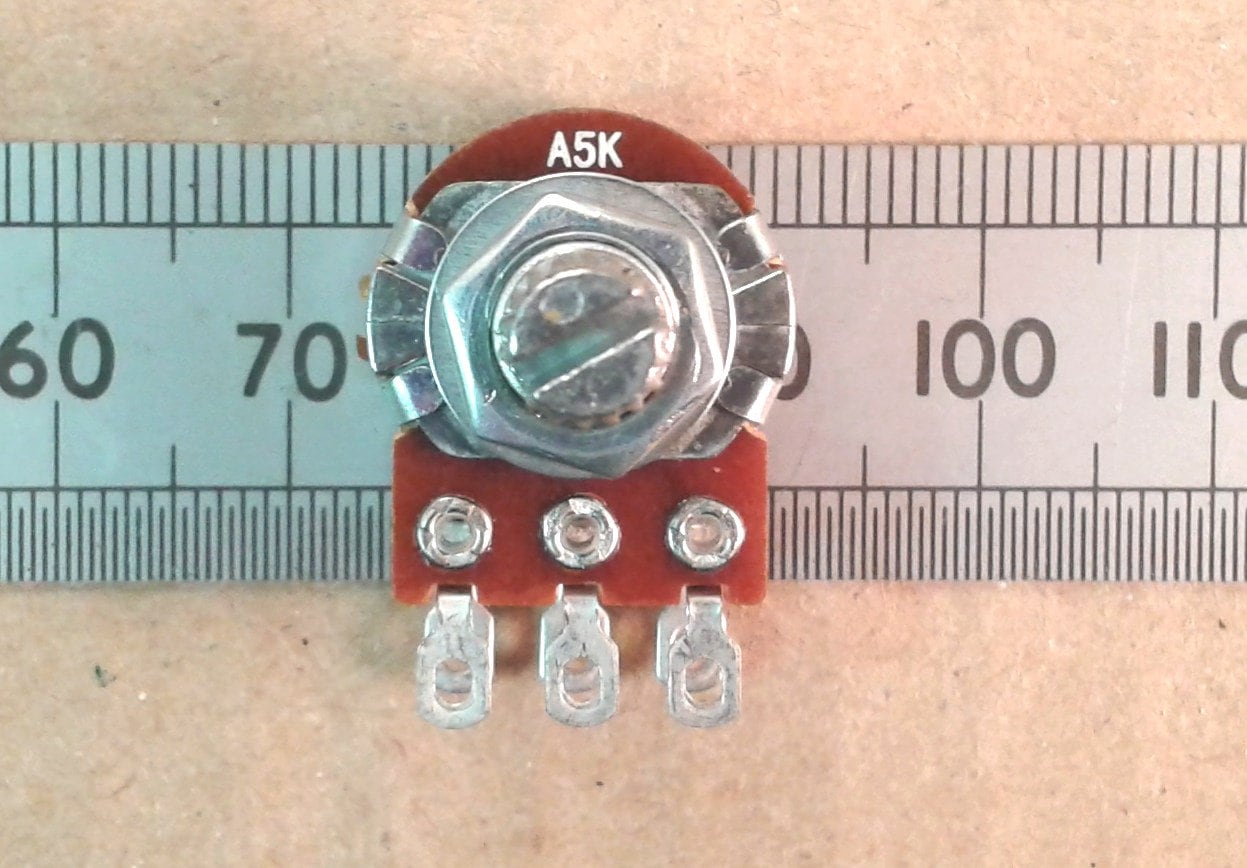

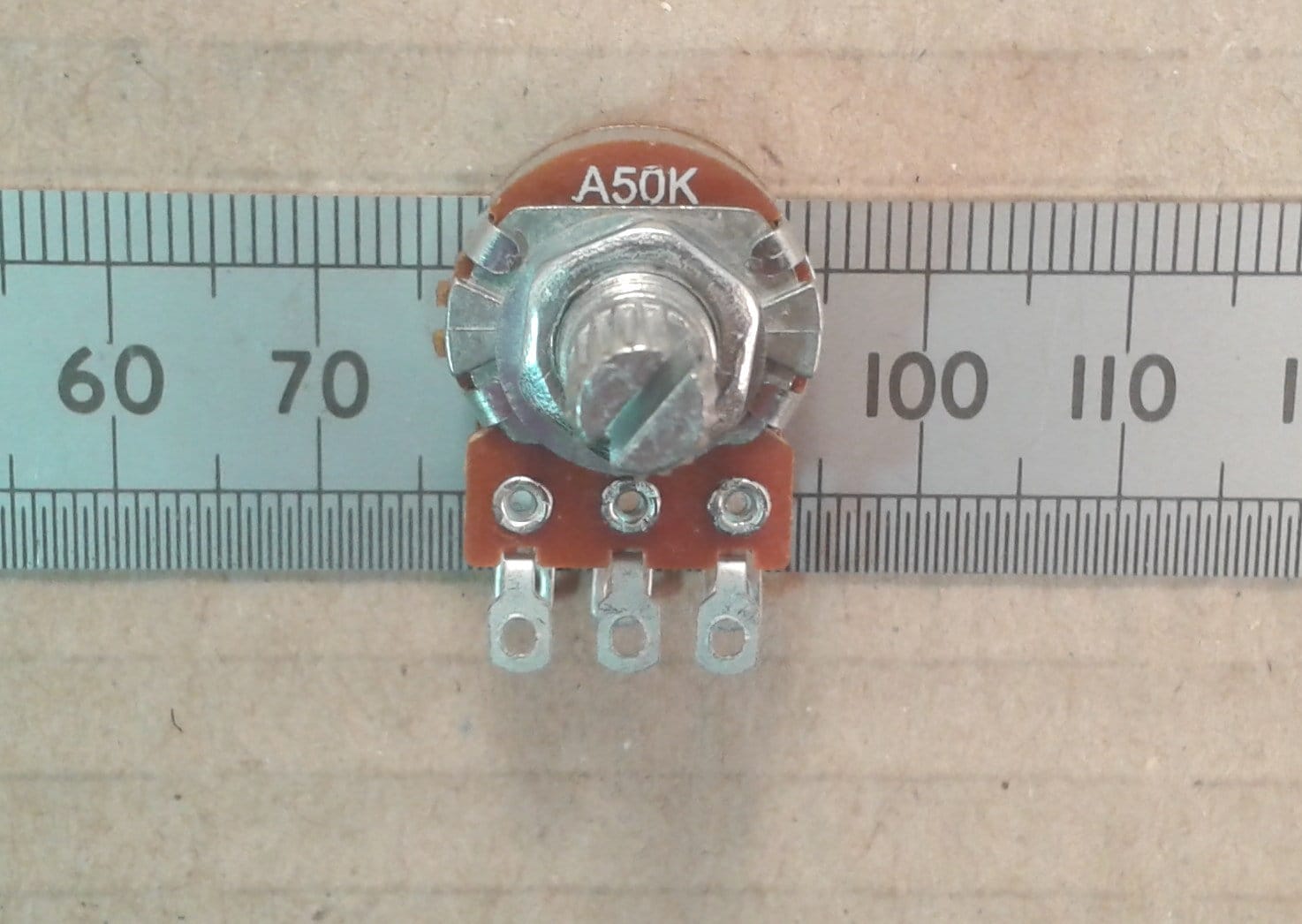

If you have a pot with a track label of A503, this is an A50K where 3 is the number of zeros after 50 in Ohms. A '502' would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the A as a suffix i.e. 50KA.
