Potentiometer Anti Log C Track Vertical PCB Mount 6.0mm Round Shaft Inverse Log Pot VR60
$5.40
This is one item of single gang, reverse logarithmic taper, carbon track potentiometer. The high pack quantity options are cheaper per item. If you would like to mix the available track values in a pack, please select the MIX option and send me a list of your requirements in a site message, or add a note to the order.

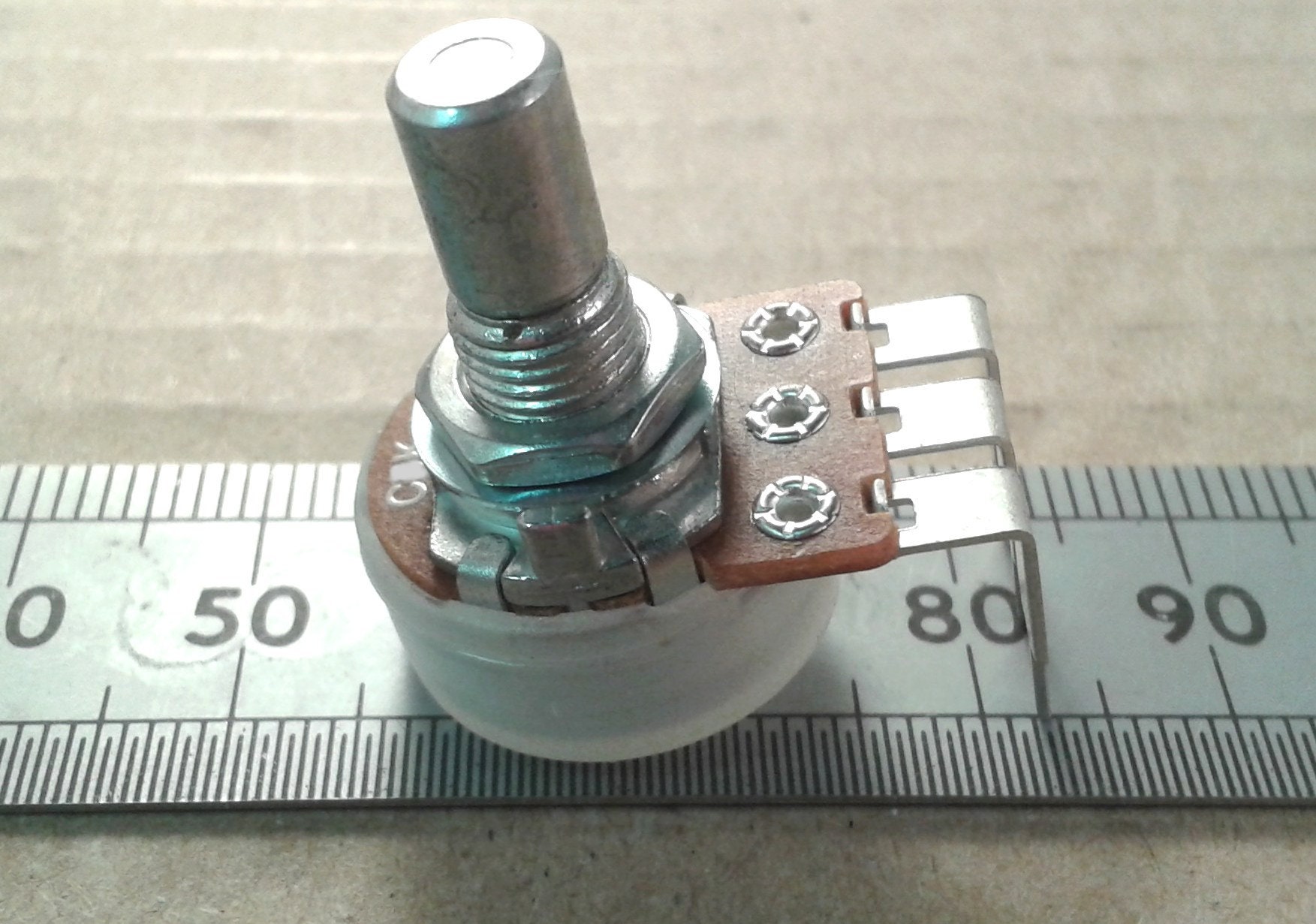

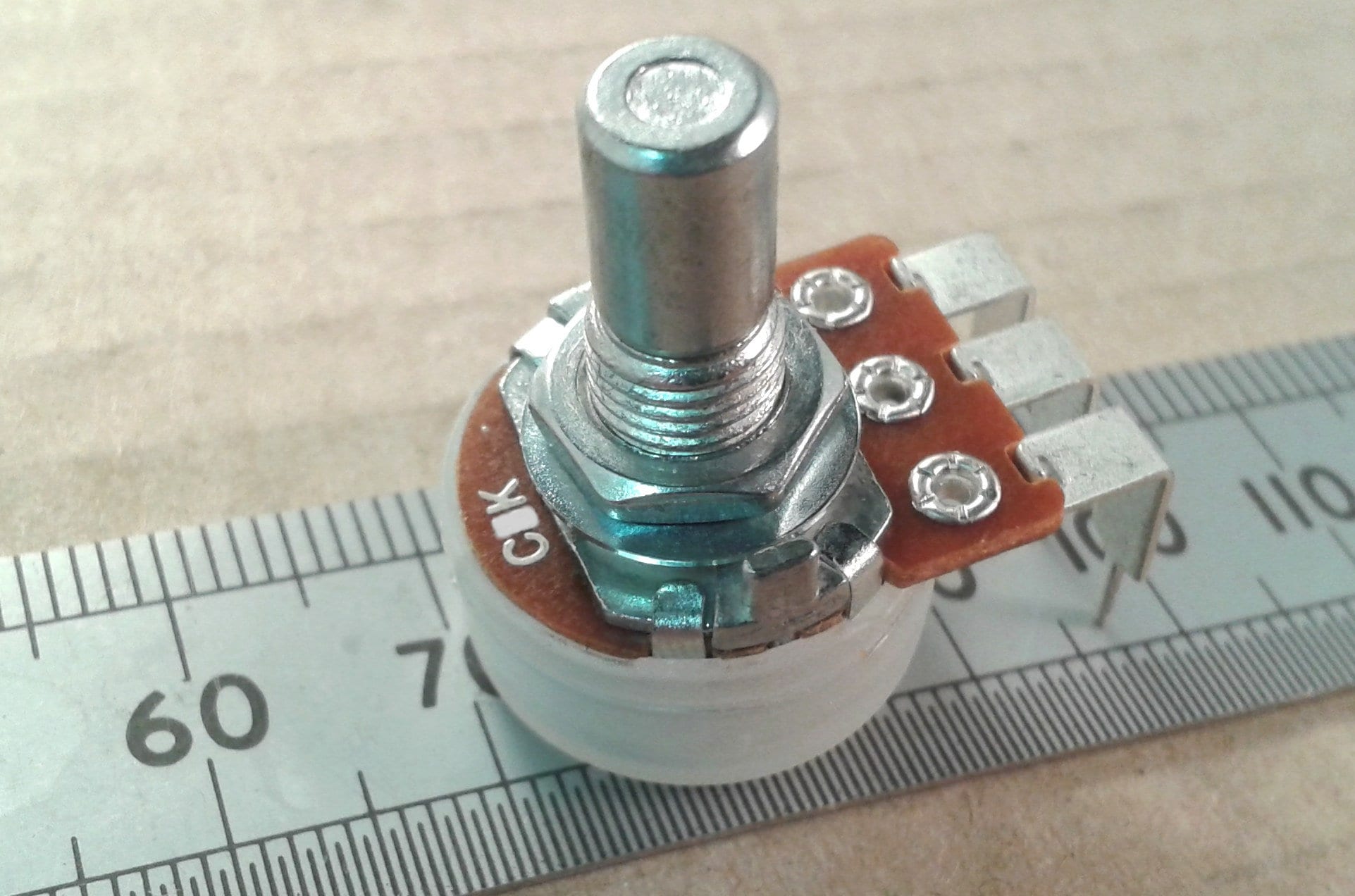

These are new items and come with a nut and a washer for mounting on a front panel. The round shaft is 6.0mm diameter. The mounting hole required is 7mm diameter. The total shaft length is 15mm where 9mm of this is the turning part and 6mm is the threaded part. The connection pins are intended for PCB mounting with the pot standing vertically up from the board. The "C" prefix before the track resistance value denotes a reverse logarithmic audio track taper intended for use in such things as audio equaliser controls and analogue filters. The track resistance tolerance is 20%. The overall body diameter is 18mm which includes a removable plastic dust cap.

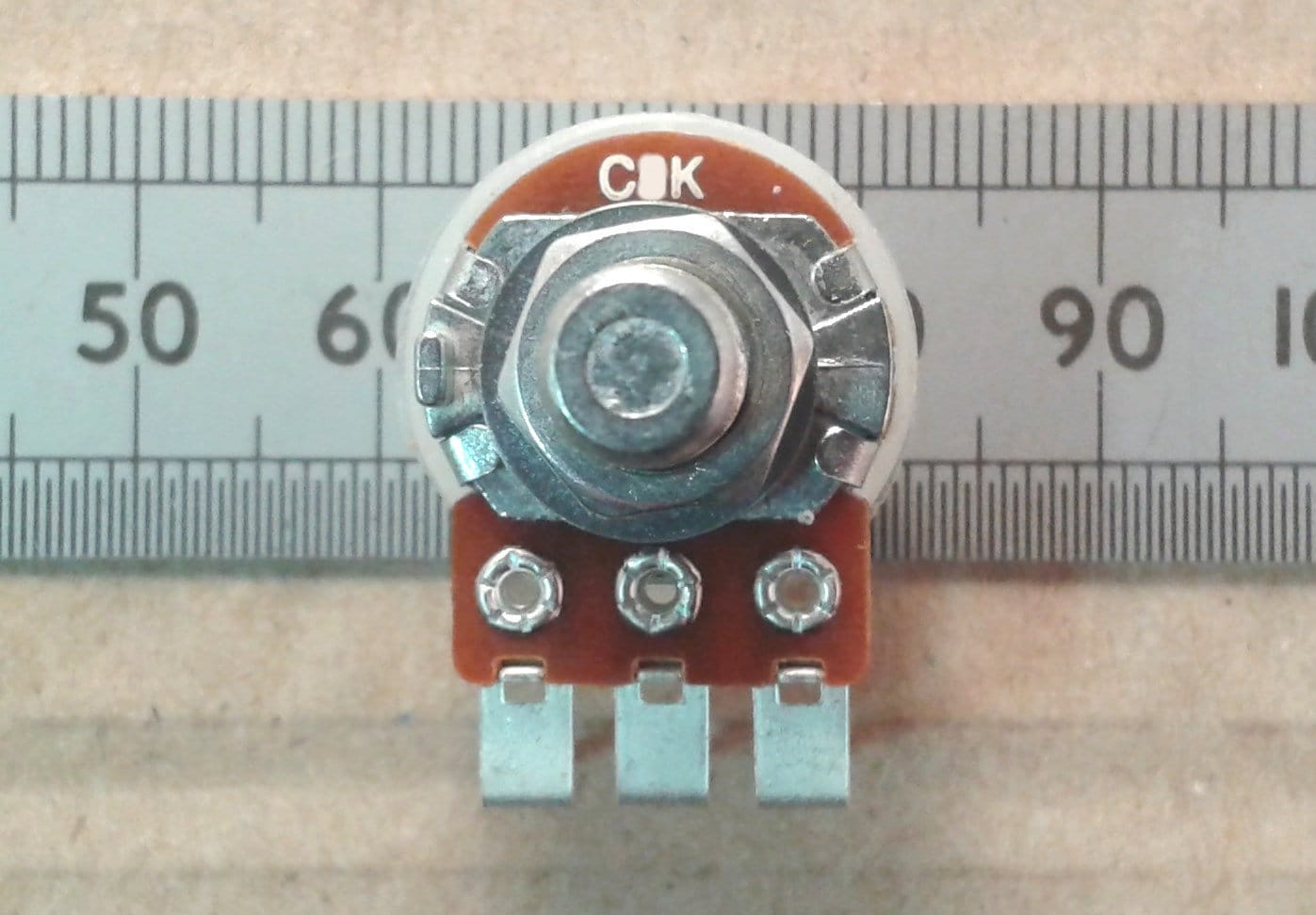

If you have a pot with a track label of C502, this is an C5K where 2 is the number of zeros after 50 in Ohms. A 102 would be 1K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the C as a suffix e.g. 5KC.
