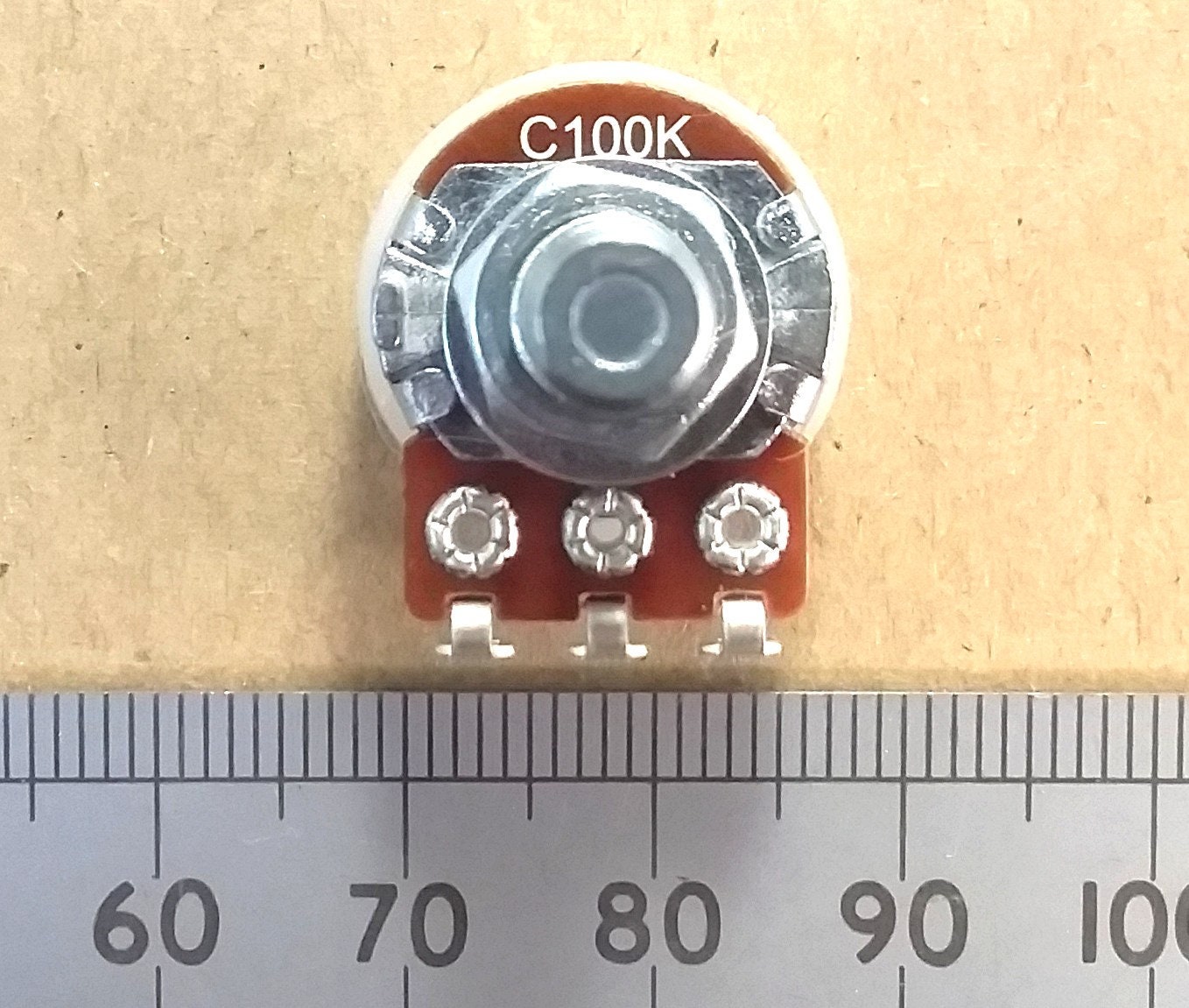

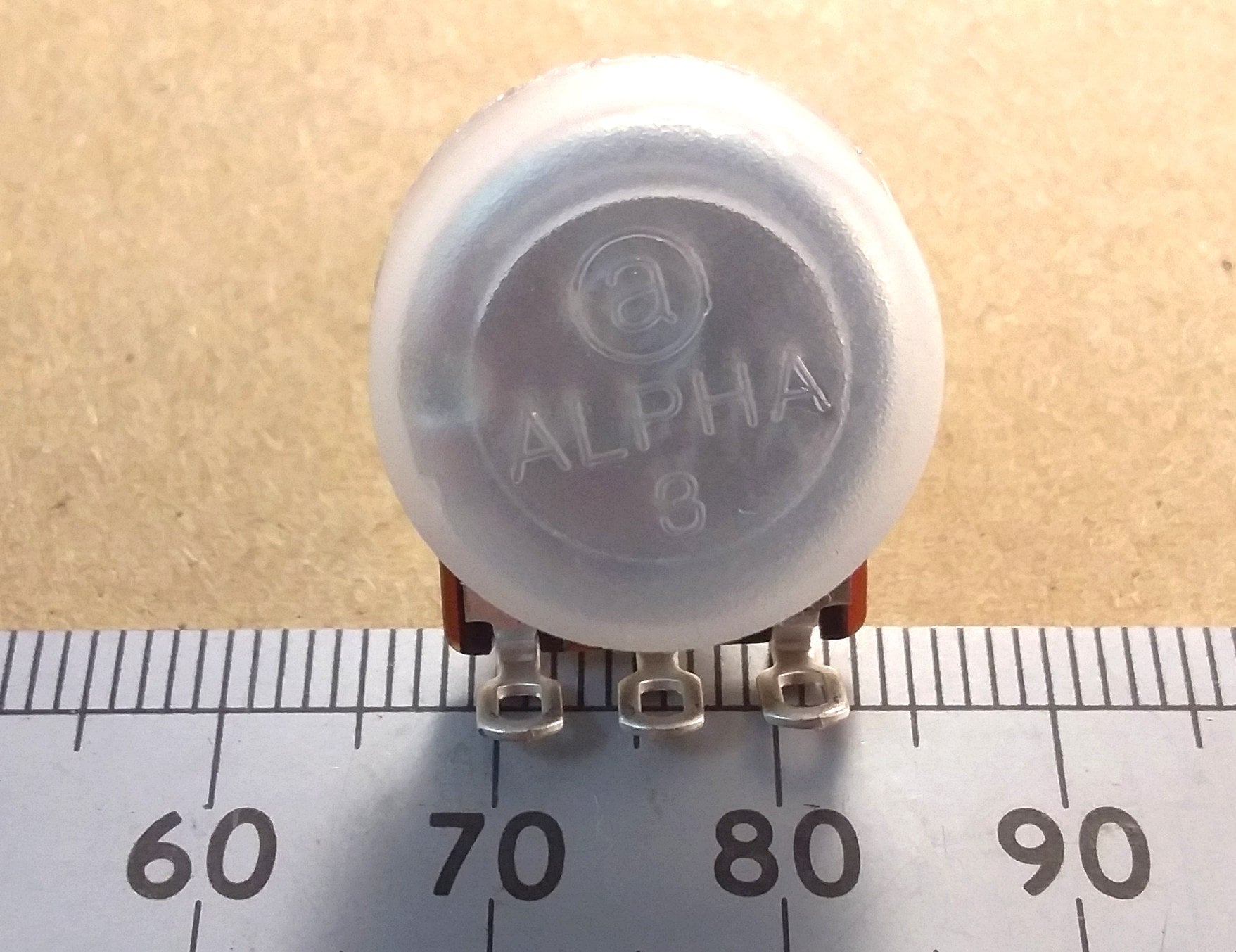

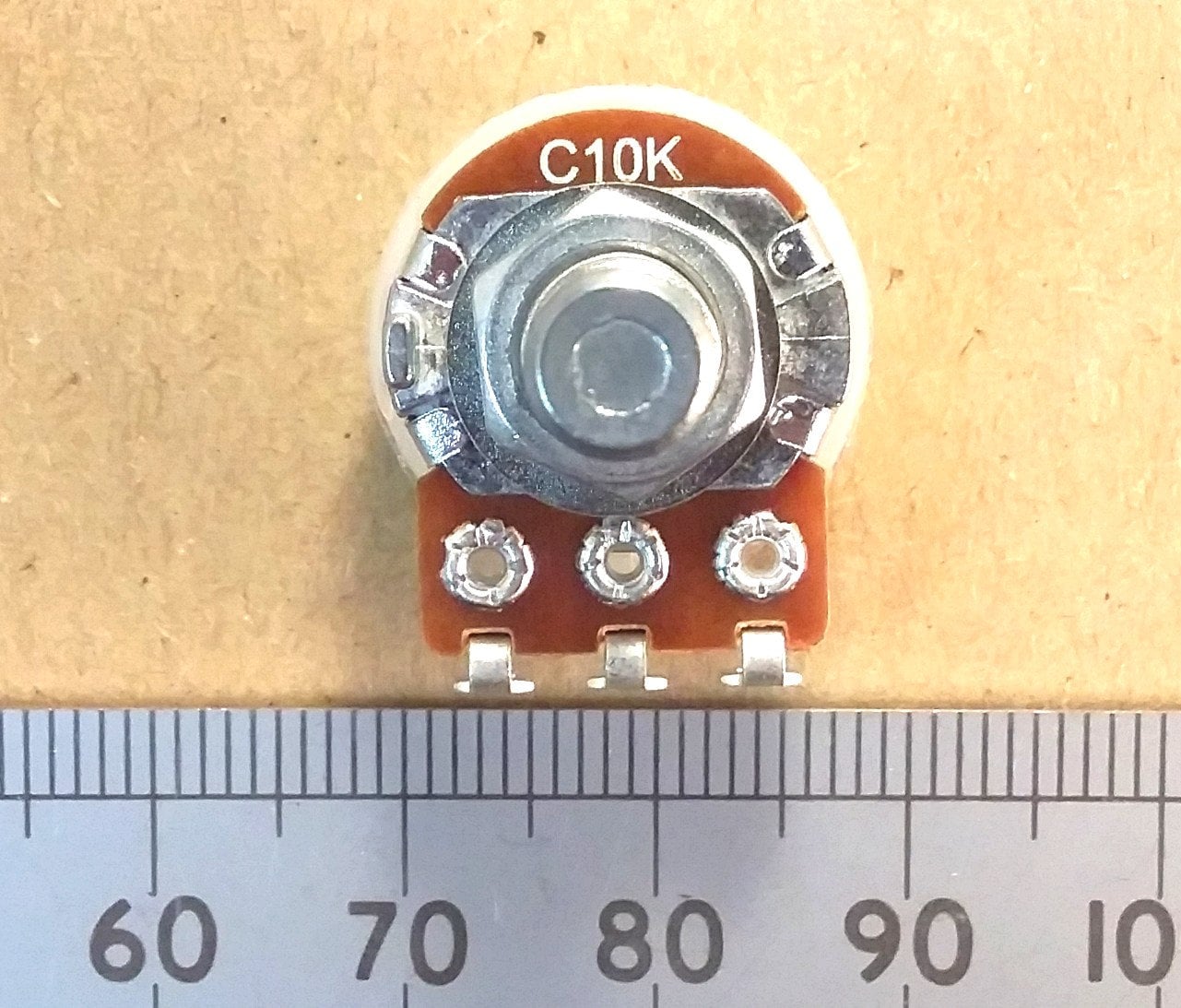

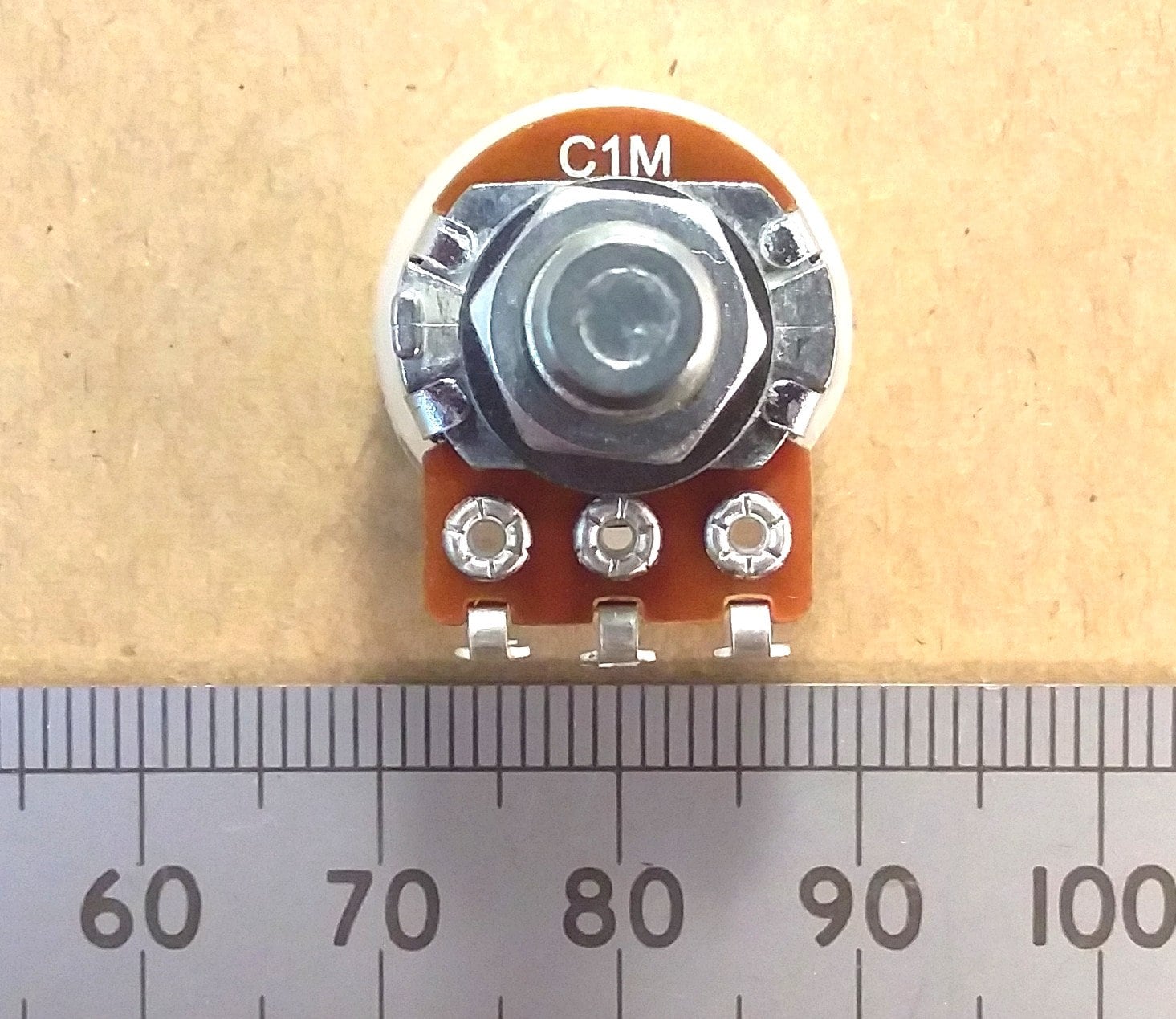

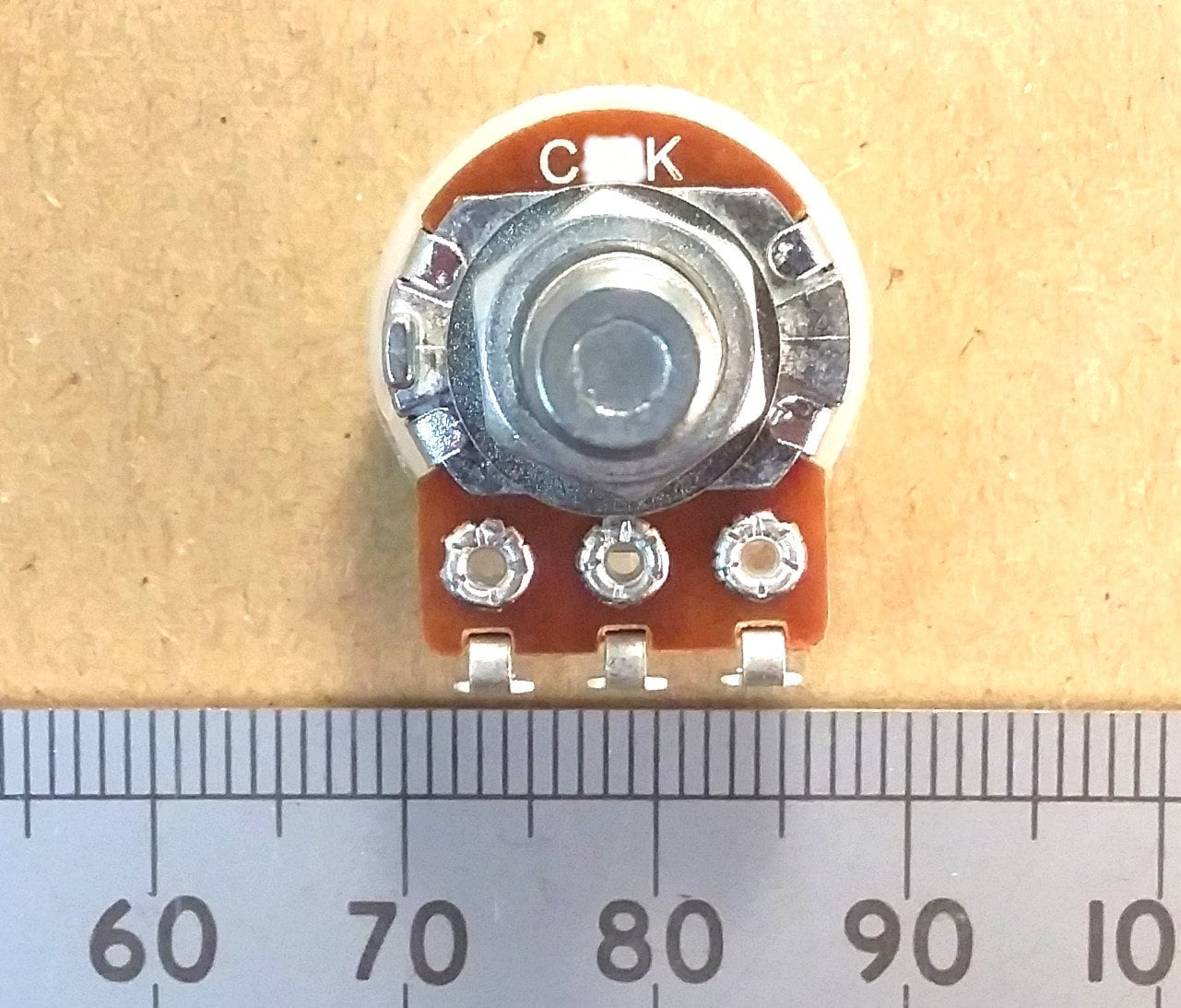

Potentiometer 6.0mm Round Shaft Anti-Logarithmic 16mm Body Reverse Inverse Log Track Solder Lug Pot C RSL60

This is one item of 16mm body, reverse logarithmic carbon track potentiometer made by Alpha Taiwan. The higher pack quantity options are cheaper per item. If you would like to mix the available track resistances in a pack, please select the MIX option and send me a site message with a list of your requirements, or attach a note to the order.

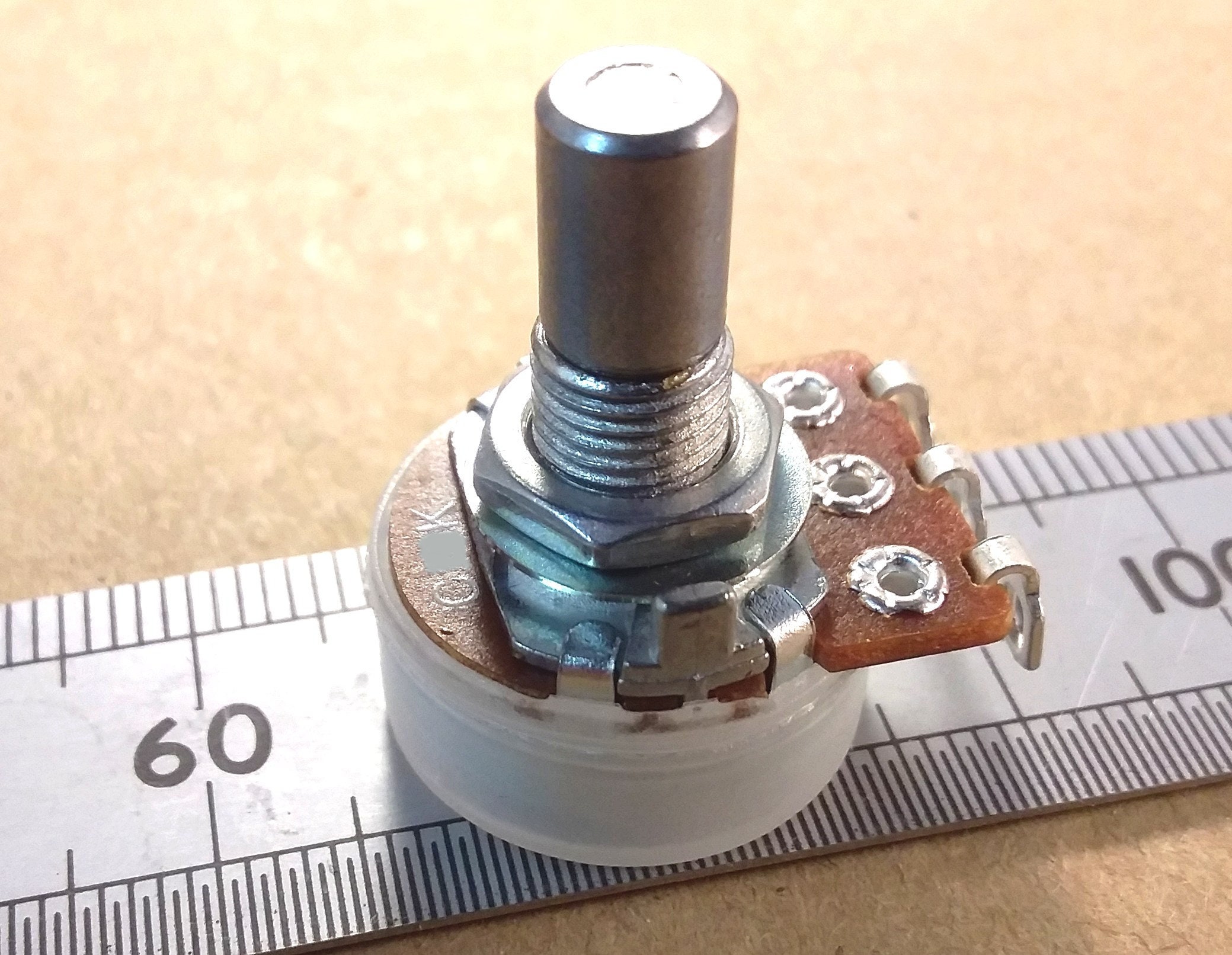

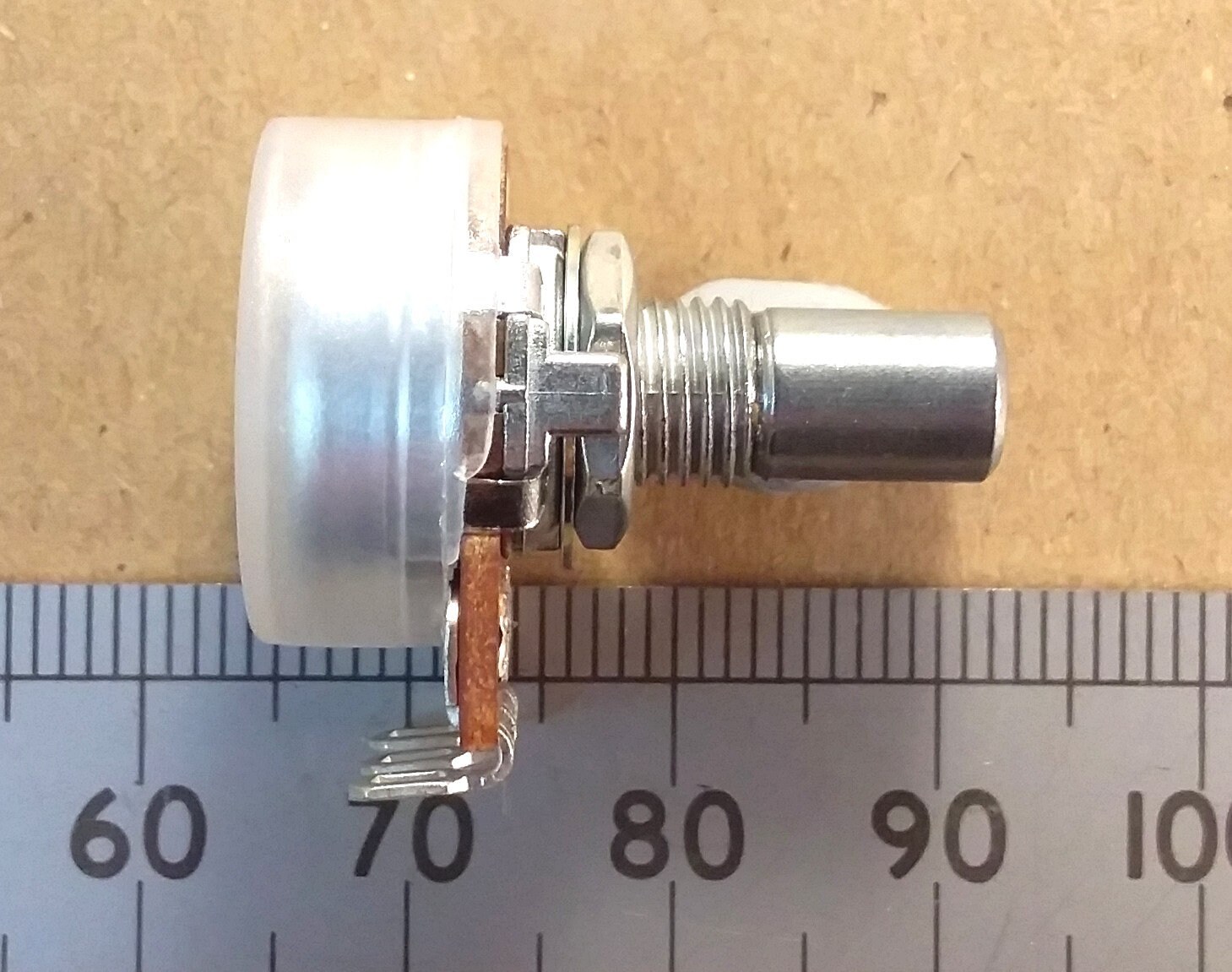

They have solder lug connections. There are various track values available on the different variations. The total shaft length is 15mm, of which the threaded part is 6mm long and the circular turning part is 9mm long and 6.0mm metric diameter. The mounting hole required is 7mm diameter. The nut and washer are provided.

There are many more styles of 16mm body pots on other listings in the shop. Getting the right pot can drive you crazy, right?

The "C" prefix before the track resistance value denotes a reverse log track taper intended for sound level volume controls mounted backwards or frequency equaliser controls. The max power rating is 0.1W. If you have a pot with a track label of C253, this is a C25K where 3 is the number of zeros after the 25 in Ohms. A 252 would be 2.5K, a 472 would be 4.7K etc. Sometimes pots may also be labelled with the C as a suffix i.e. 25KC.
