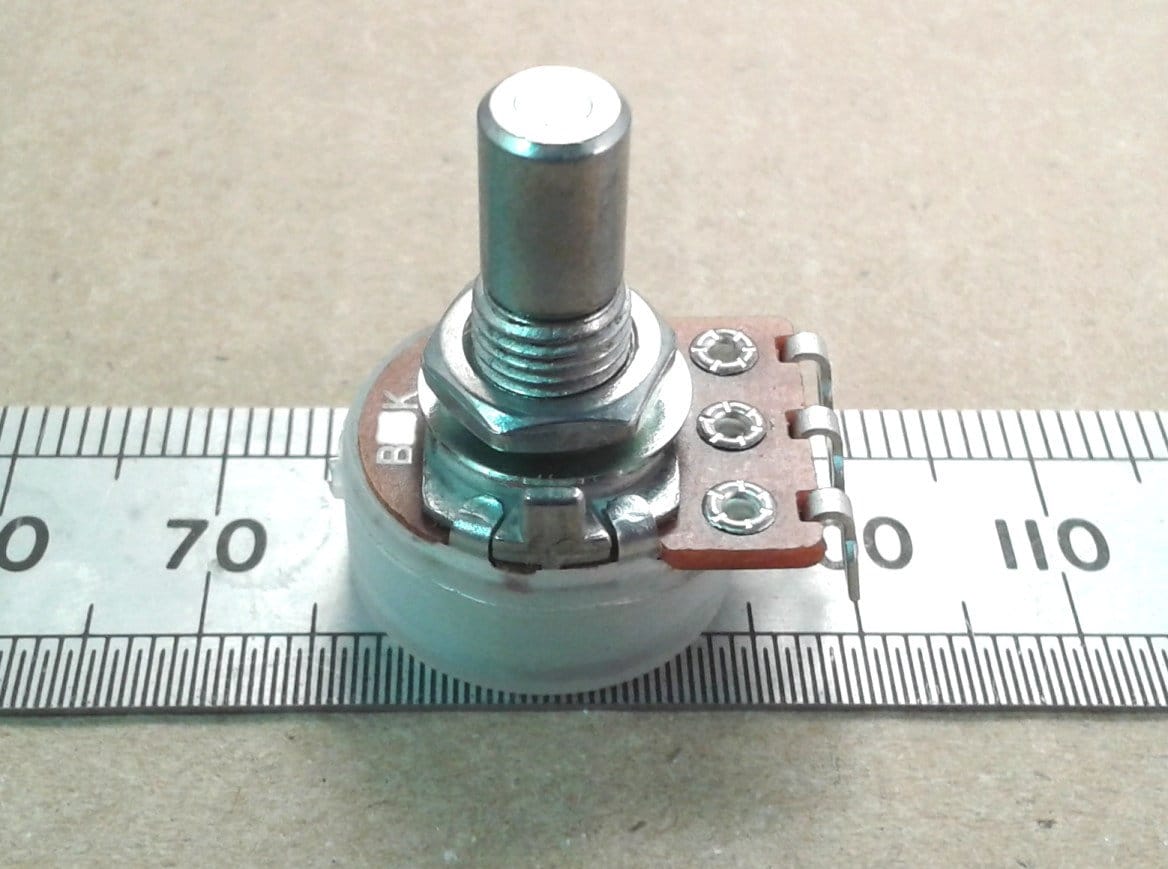

Linear Potentiometer 6.0mm Round Shaft Solder Lug 16mm, Mono B Track Lin Pot RSL60

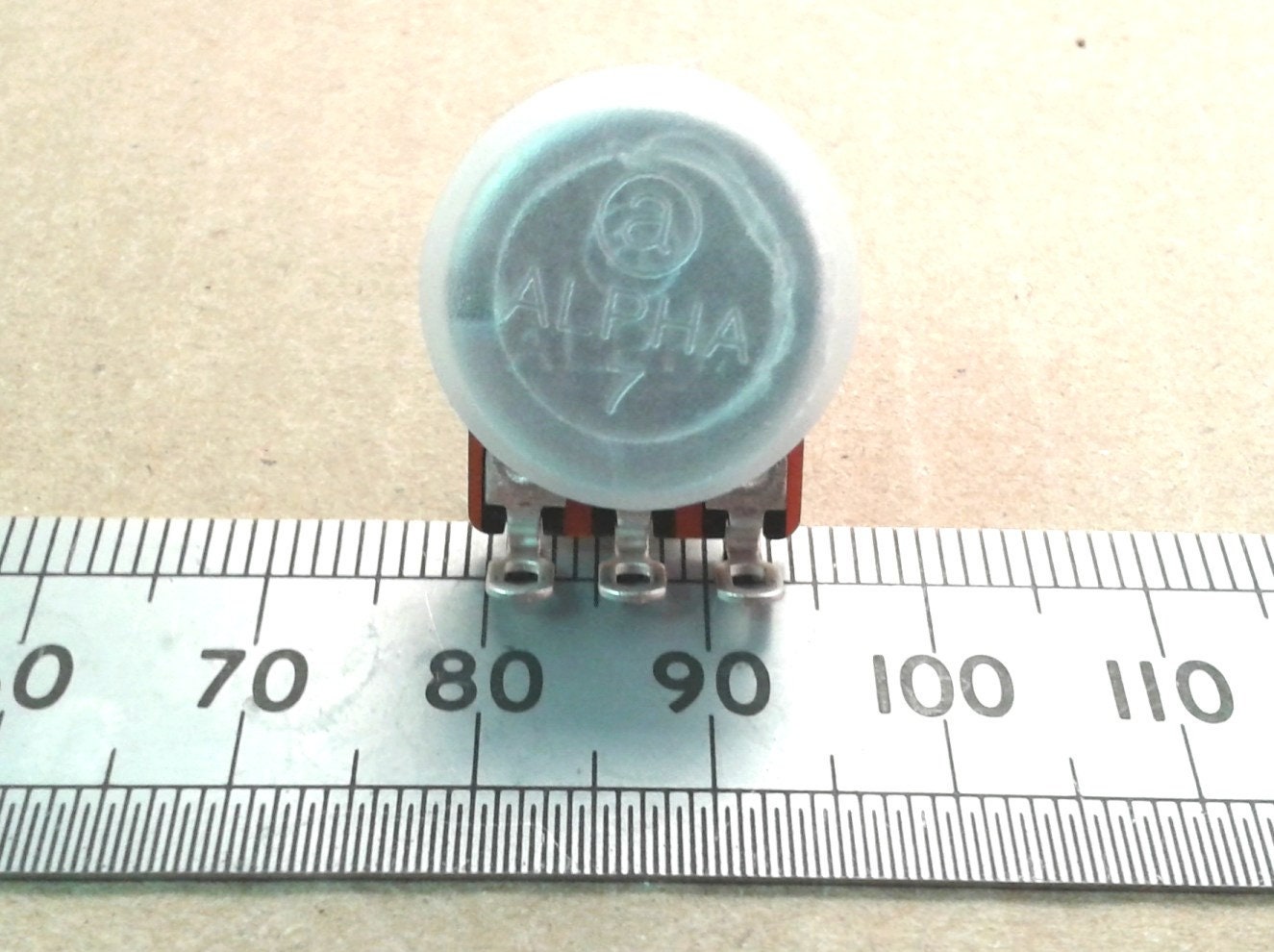

This is one item of 16mm body, linear carbon track potentiometer made by Alpha Taiwan. The higher pack quantity options are cheaper per item. If you would like to mix the available track resistances in a pack, please select the MIX option and send me a list of your requirements in a site message, or attach a note to the purchase.

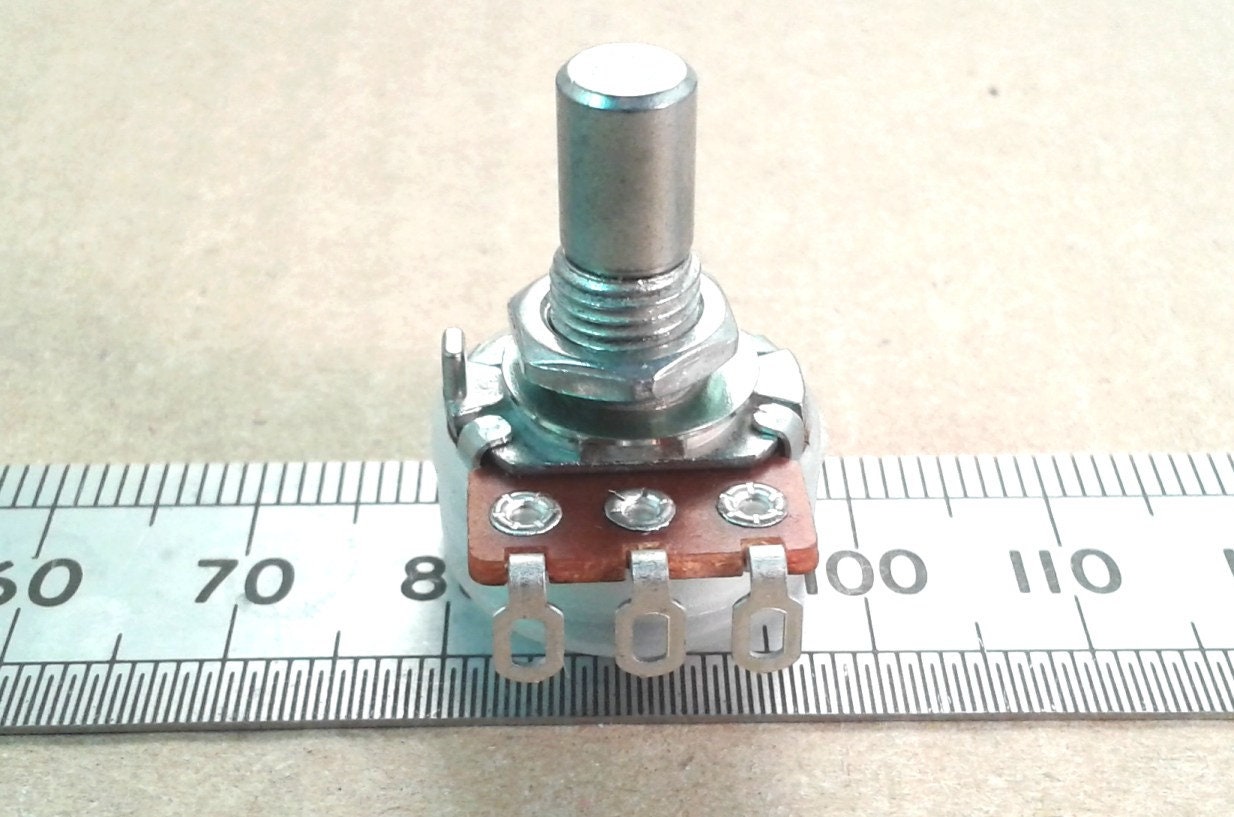

They have solder lug connections. There are various track values available on the different variations. The total shaft length is 15mm, of which the threaded part is 6mm long and the circular turning part is 9mm long and 6.0mm metric diameter. The mounting hole required is 7mm diameter. The nut and washer are provided.

There are more styles of 16mm body pots on other listings in the shop.

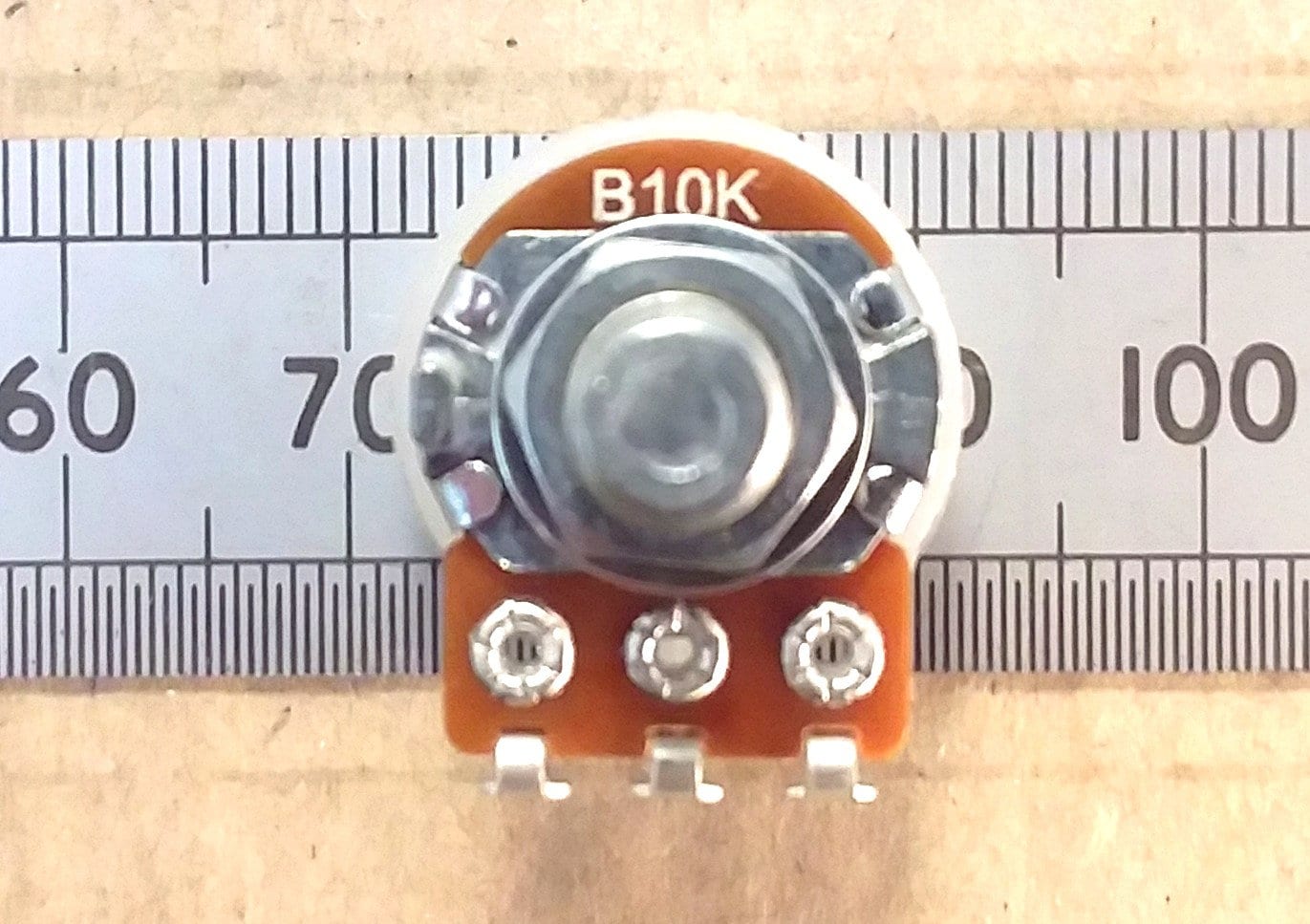

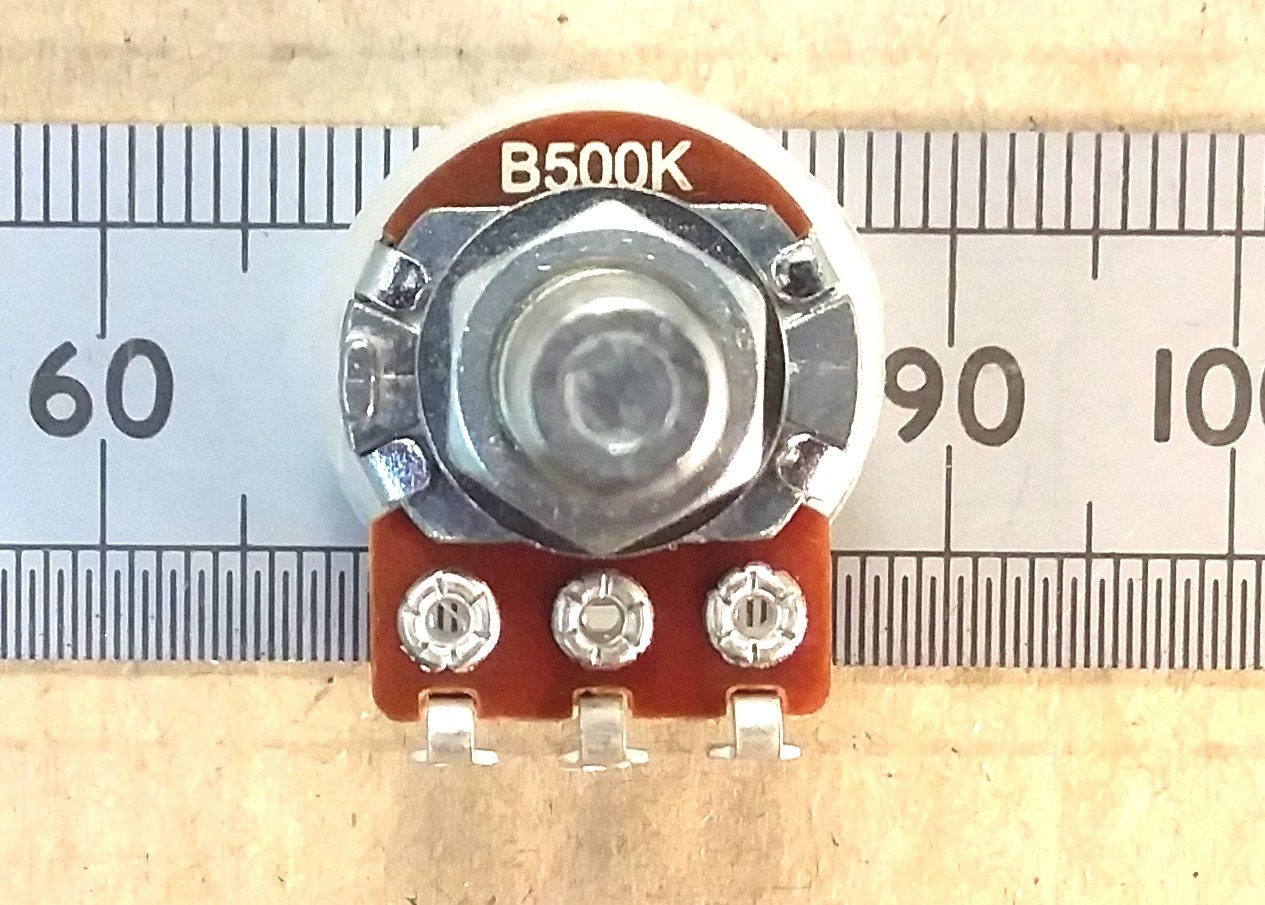

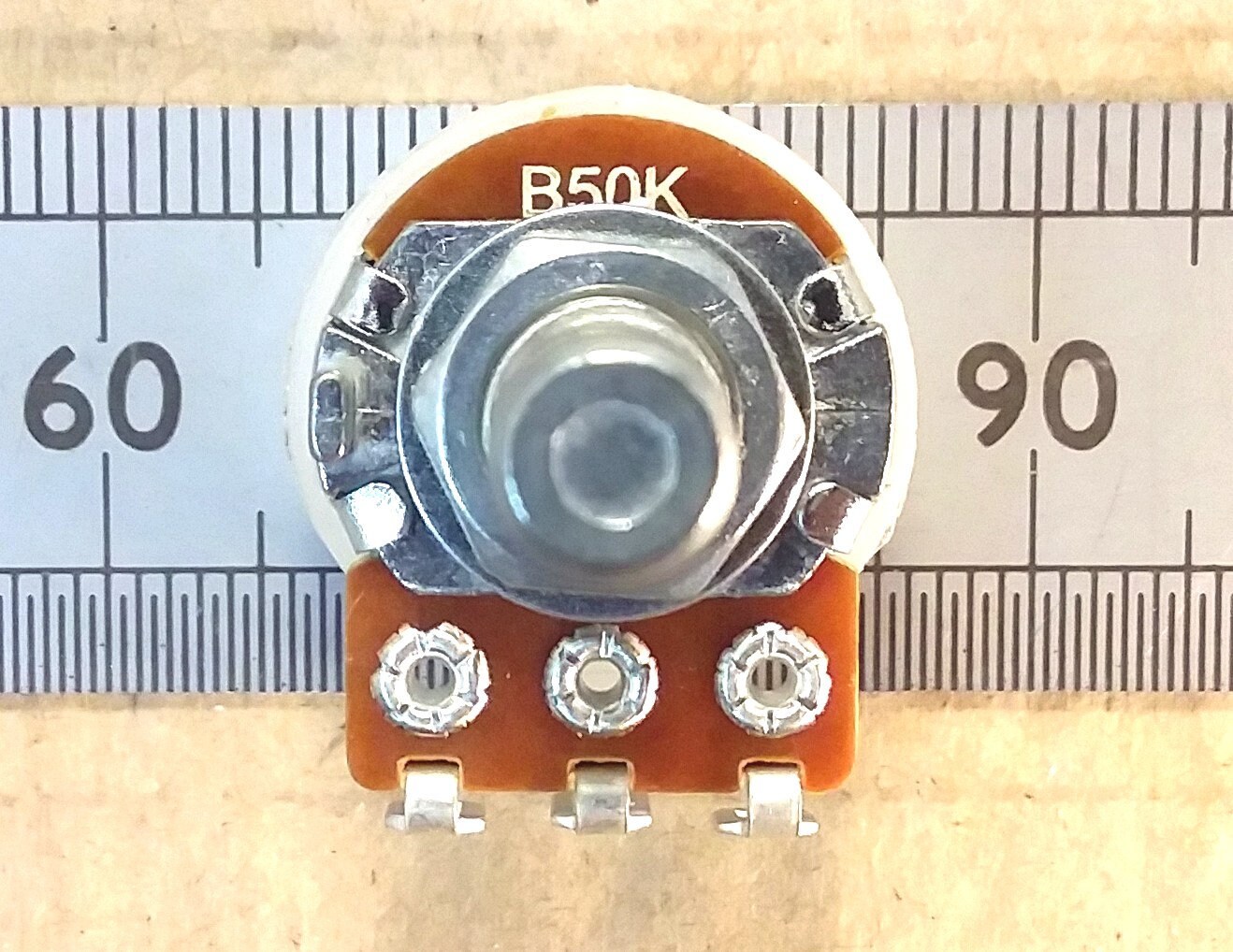

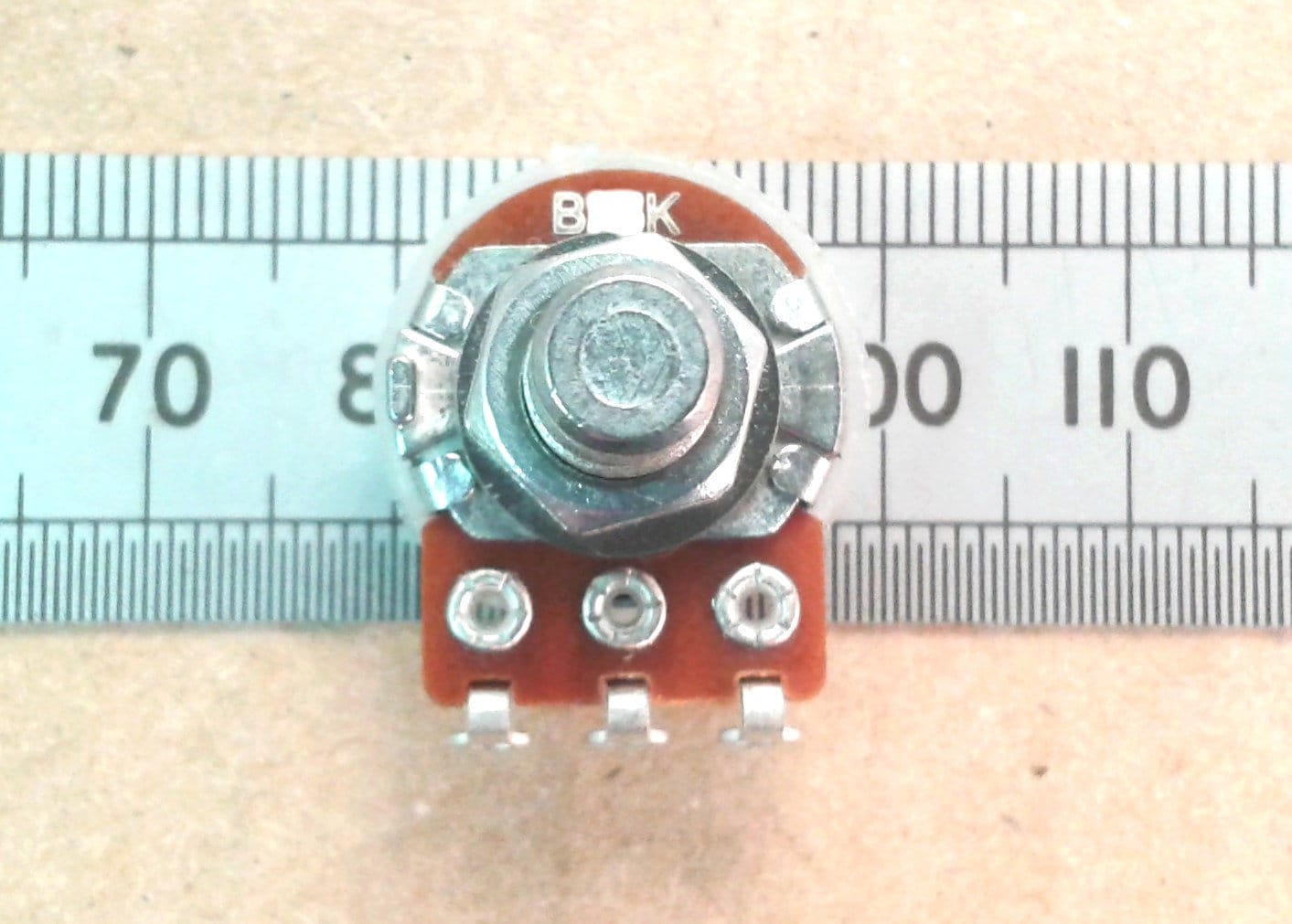

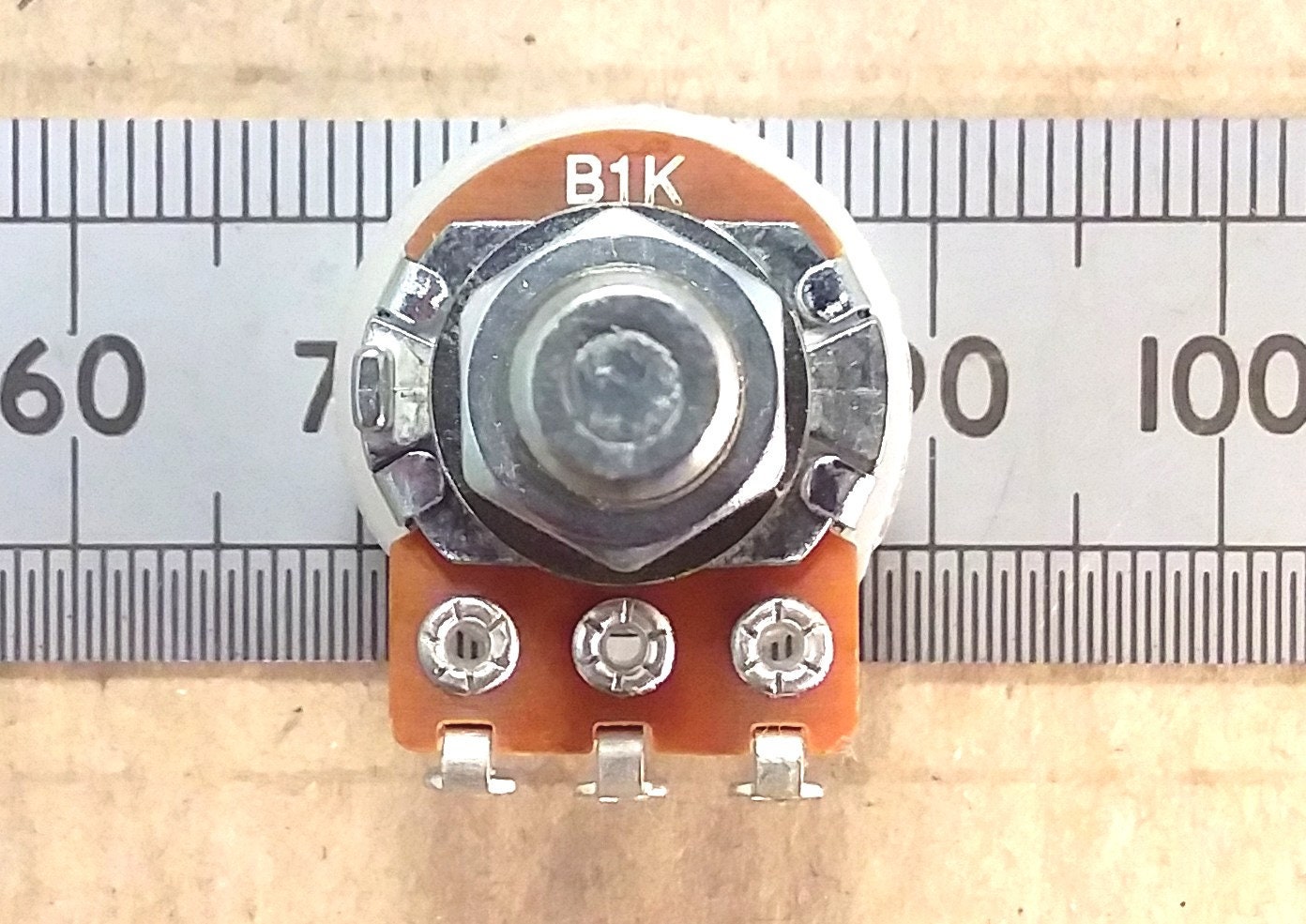

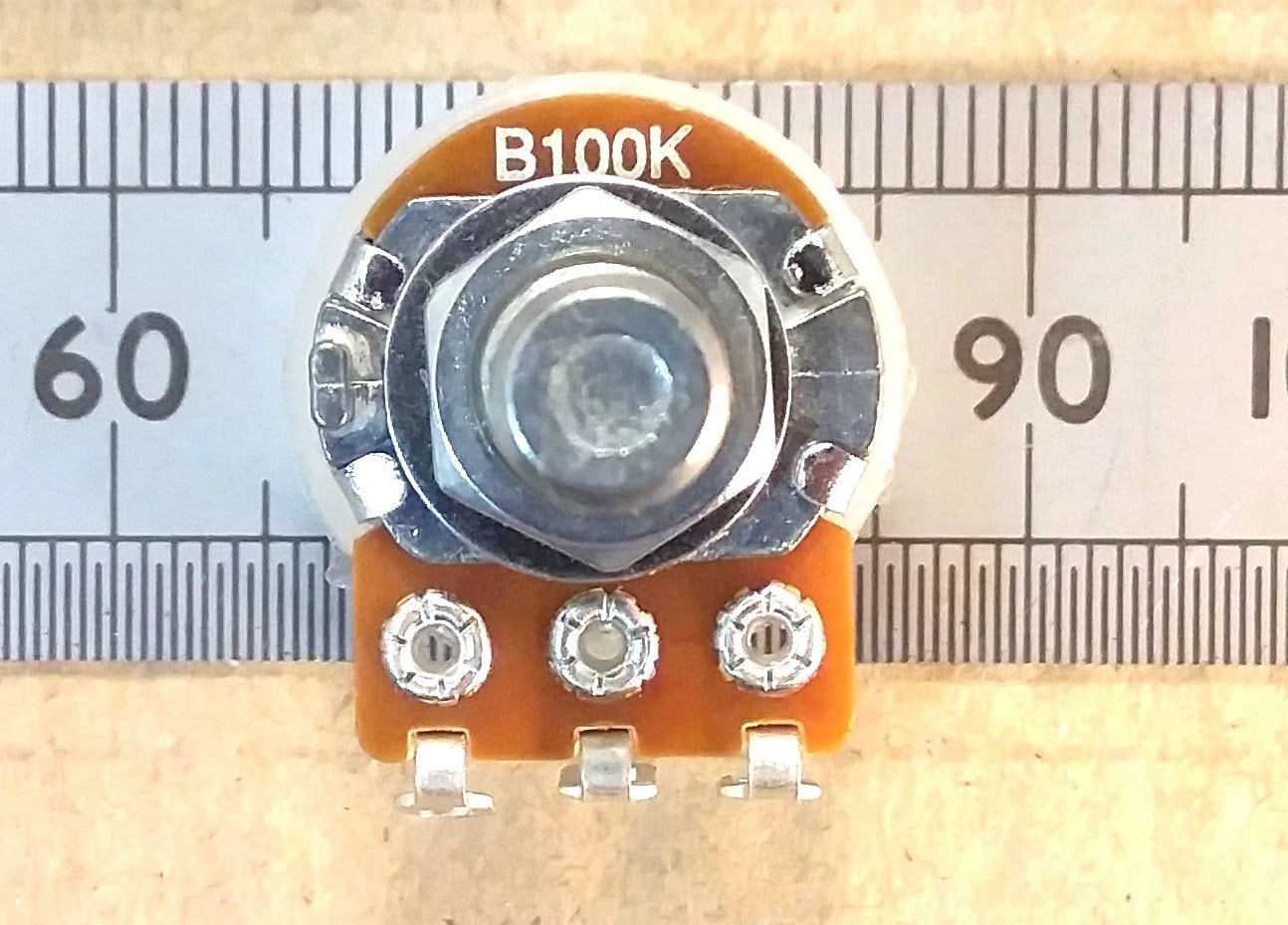

The "B" prefix before the track resistance value denotes a linear track taper. The max power rating is 0.2W. If you have a pot with a track label of B253, this is a B25K where 3 is the number of zeros after the 25 in Ohms. A 252 would be 2.5K, a 472 would be 4.7K etc. Sometimes pots may also be labelled with the B as a suffix i.e. 25KB.
