Audio Potentiometer PCB Vertical Mount 6.0mm Round Shaft Pot 16mm Log A Track Pot VR60
$5.41
This is one item of new, single gang, log audio, carbon track potentiometer in various resistance values.
The high pack quantity options are cheaper per item. If you would like to mix the available track values in a pack, please select the MIX option and send me a list of your requirements in a site message, or add a note to the order.

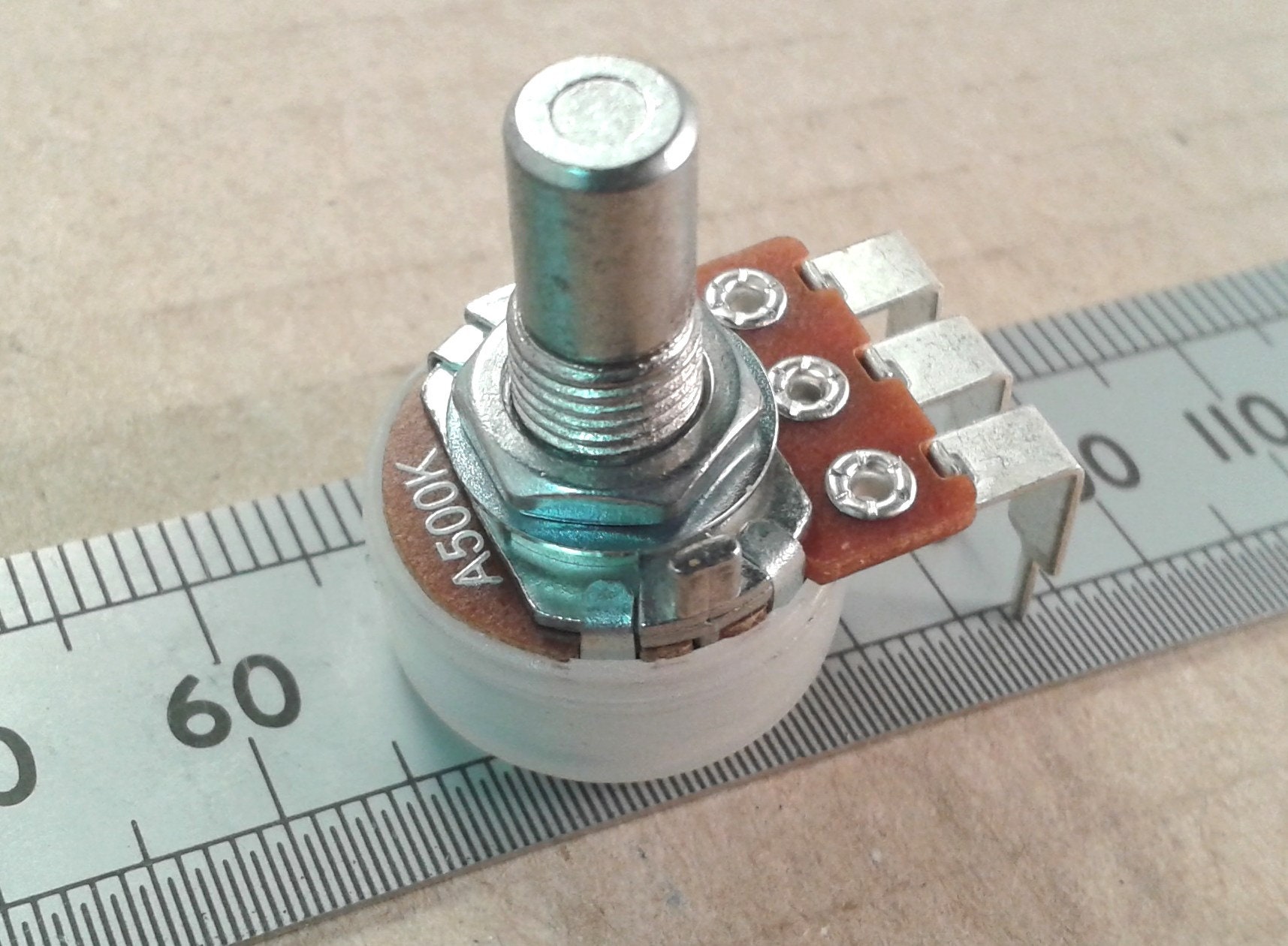

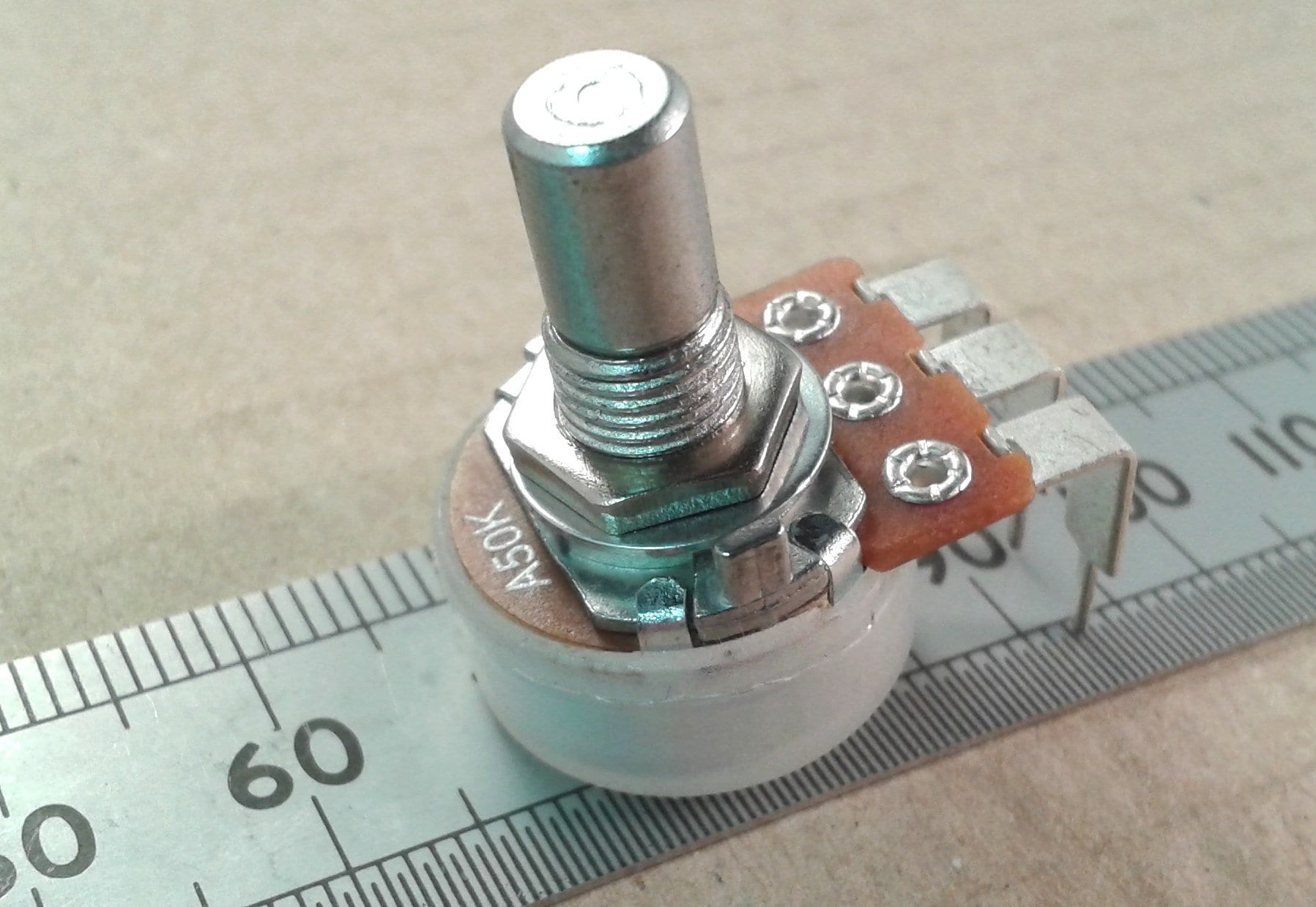

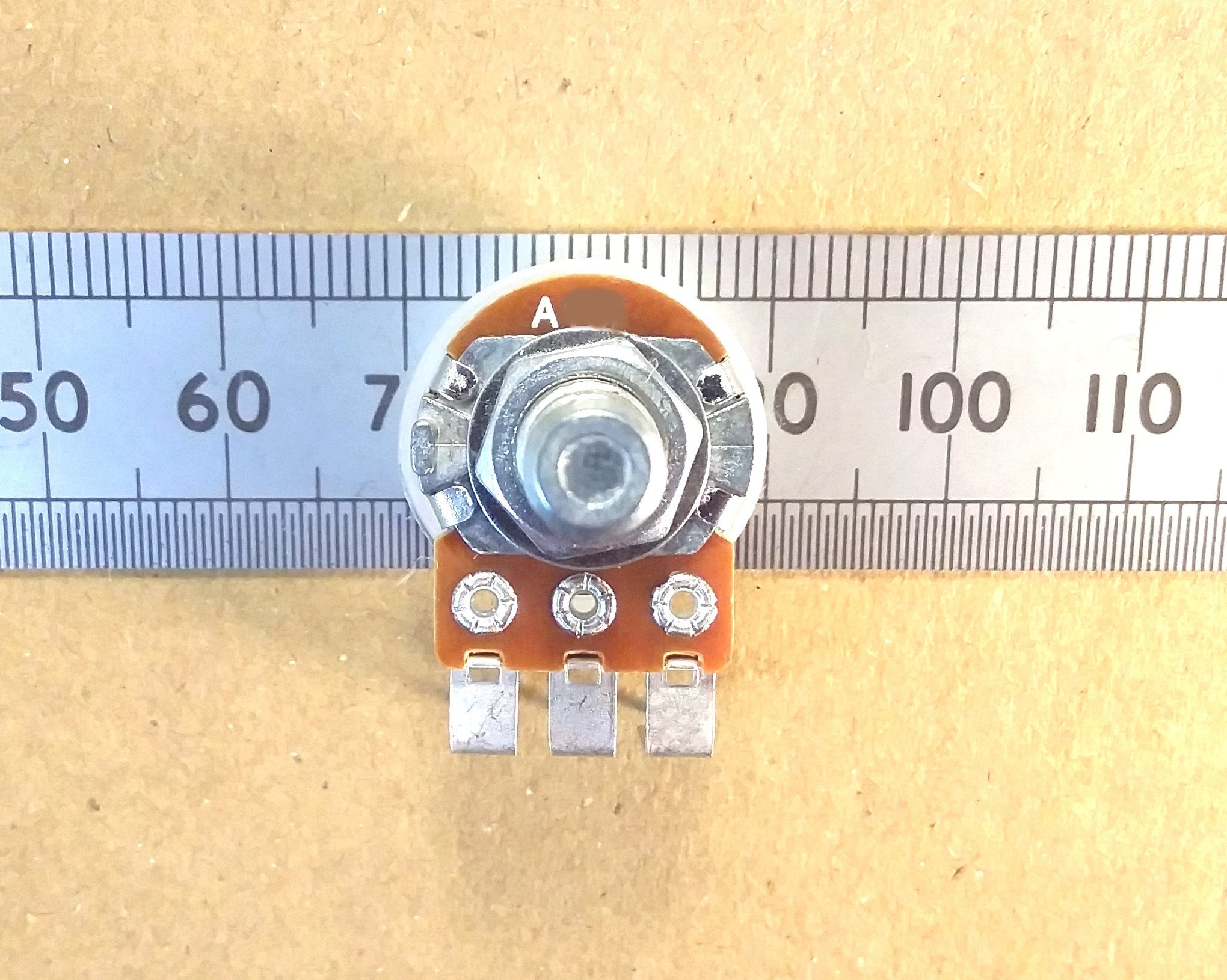

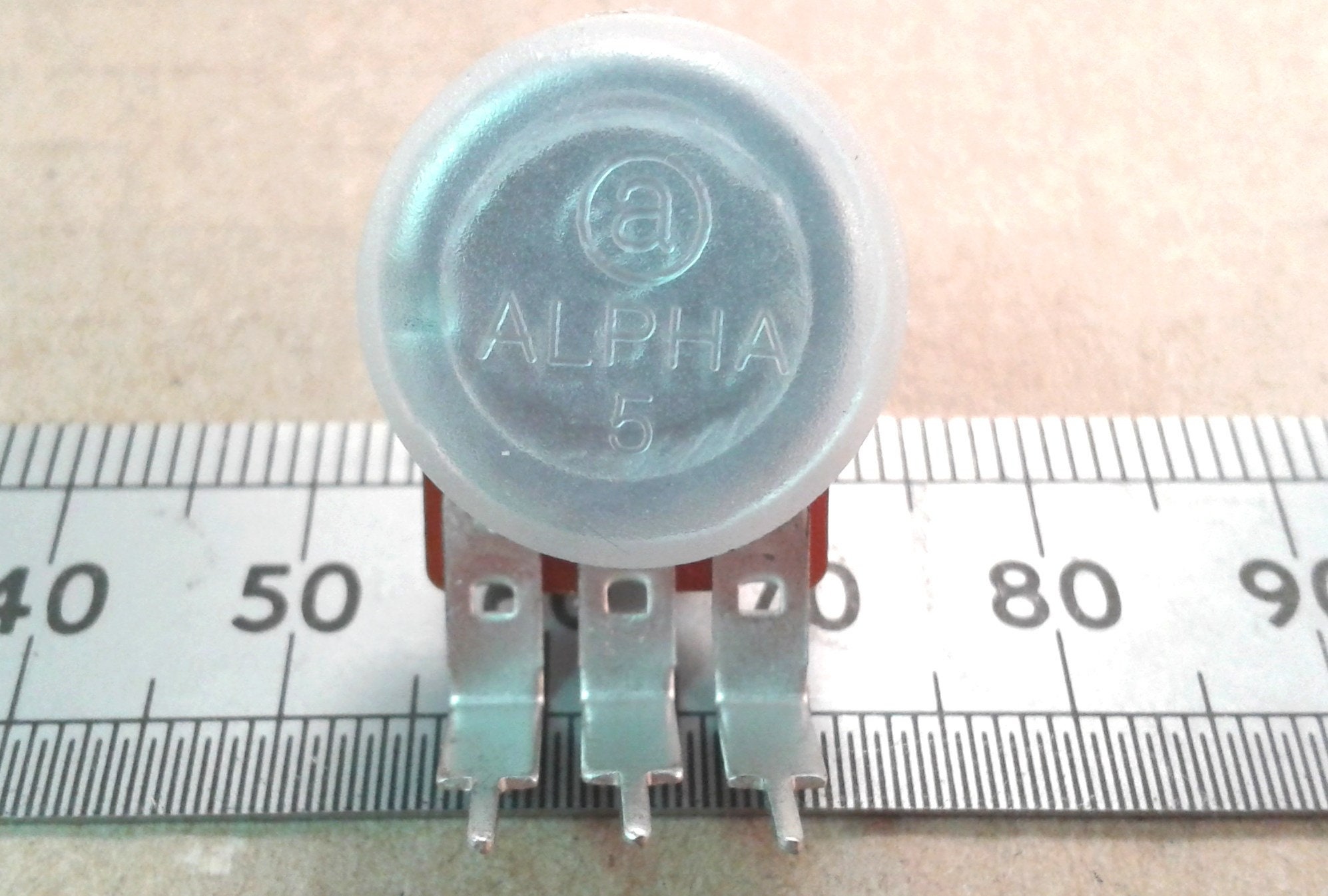

These are new items and come with a nut and a washer for mounting to a front panel. The round shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins have a ninety degree bend in them for PCB mounting with the base of the pot sitting flat on the board and the shaft pointing upwards. The pins protrude 7.5mm downwards from the base of the pot. The 90 degree bend in the pins is 16mm from the shaft centre. The "A" prefix before the track resistance value denotes a log audio track taper. The max power rating is 0.1W. The manufacturer is Alpha Taiwan.

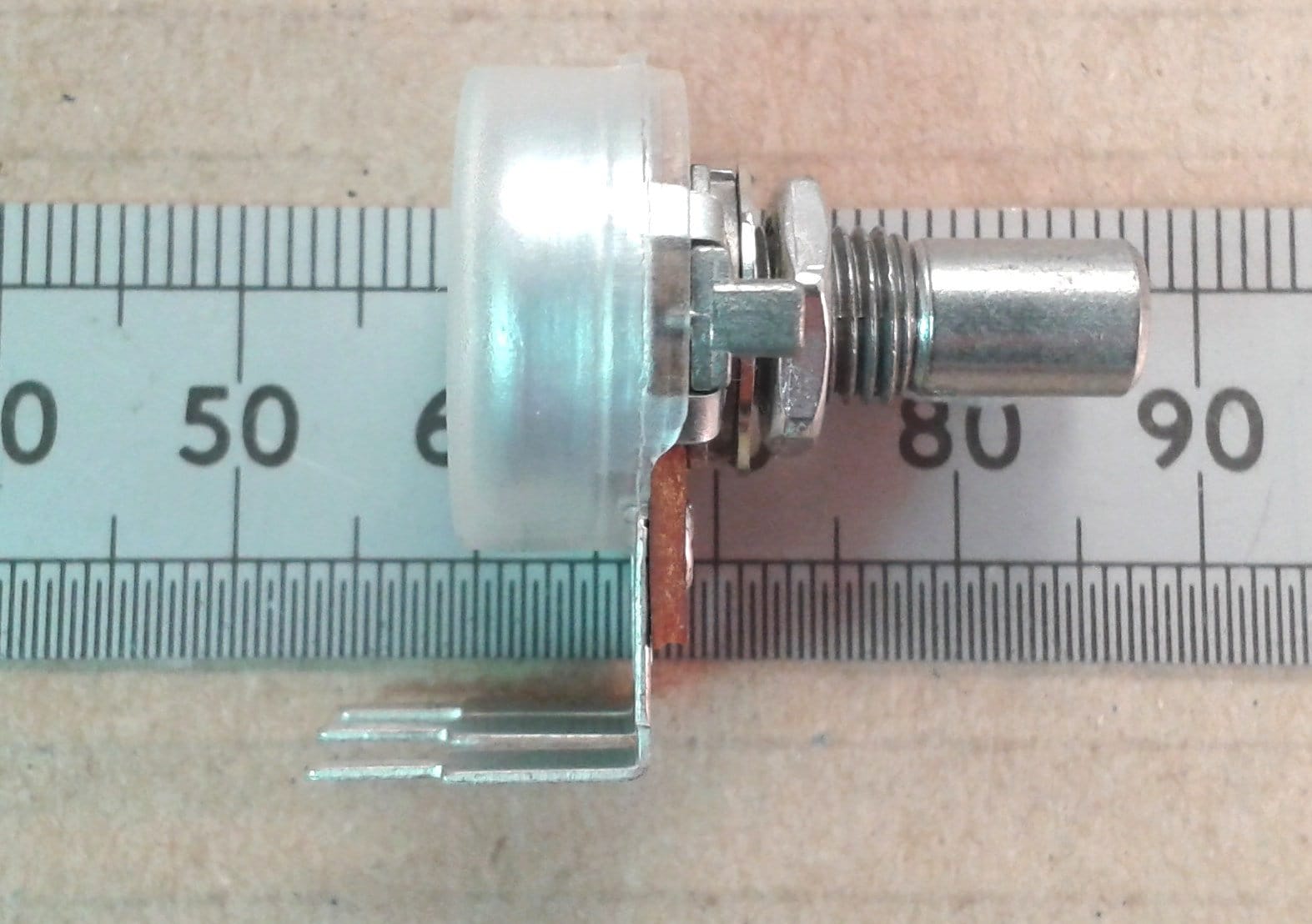

The shaft length on all resistance values of these pots is a total of 15mm, where the threaded part is 6mm long and the turning part is 9mm.
If you have a pot with a track label of A253, this is an A25K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the A as a suffix i.e. 25KA.
