Mono Potentiometer 16mm Linear Taper T18 Splined Shaft Single Gang Lin B Control Pot
$5.40

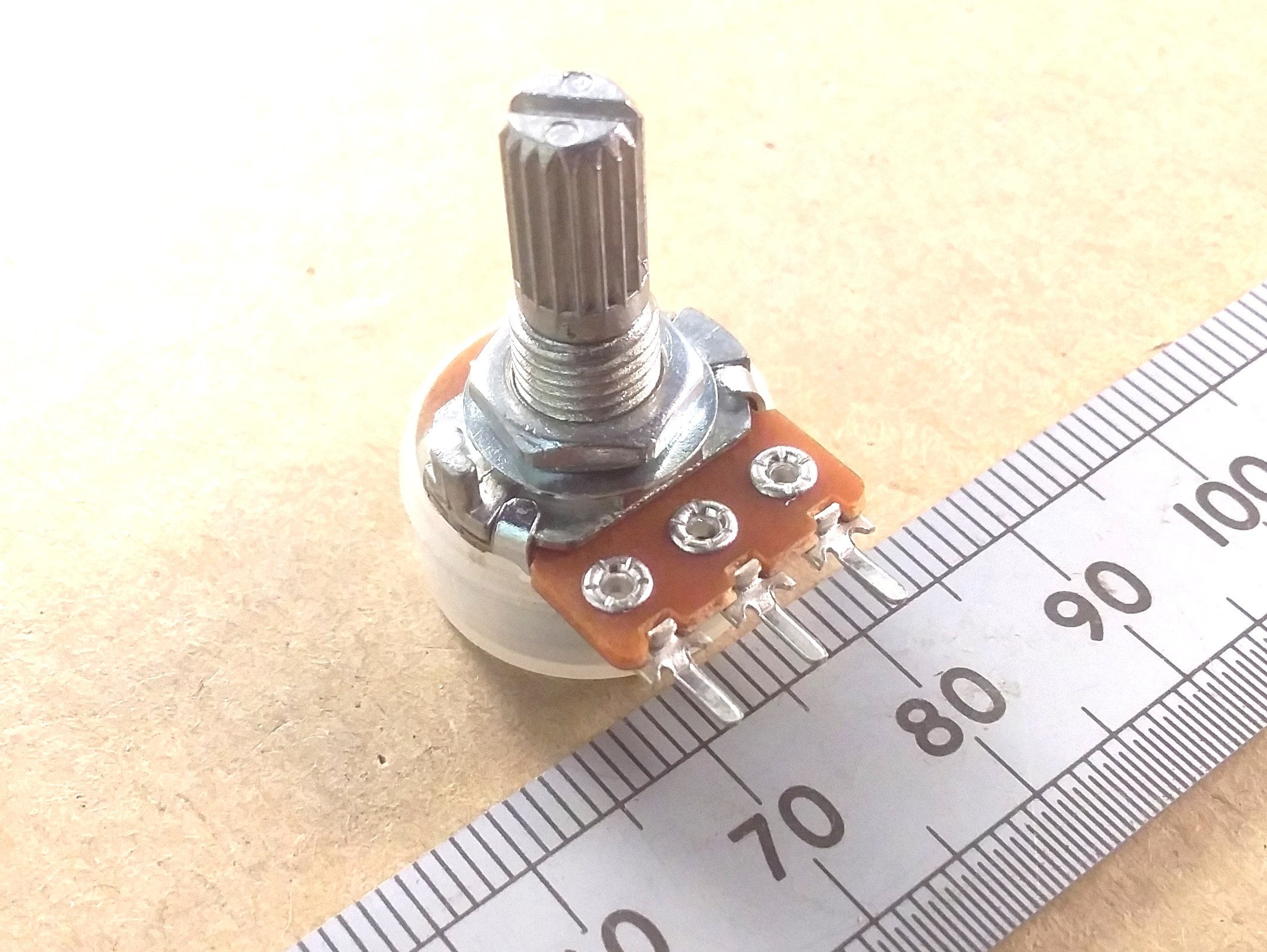

This is one item of single gang, linear taper, carbon track potentiometer.
The higher pack quantity options are cheaper per item. If you would like to mix the available track values in a pack, please select the MIX option and send me a list of your requirements in a site message, or add a note to the order.

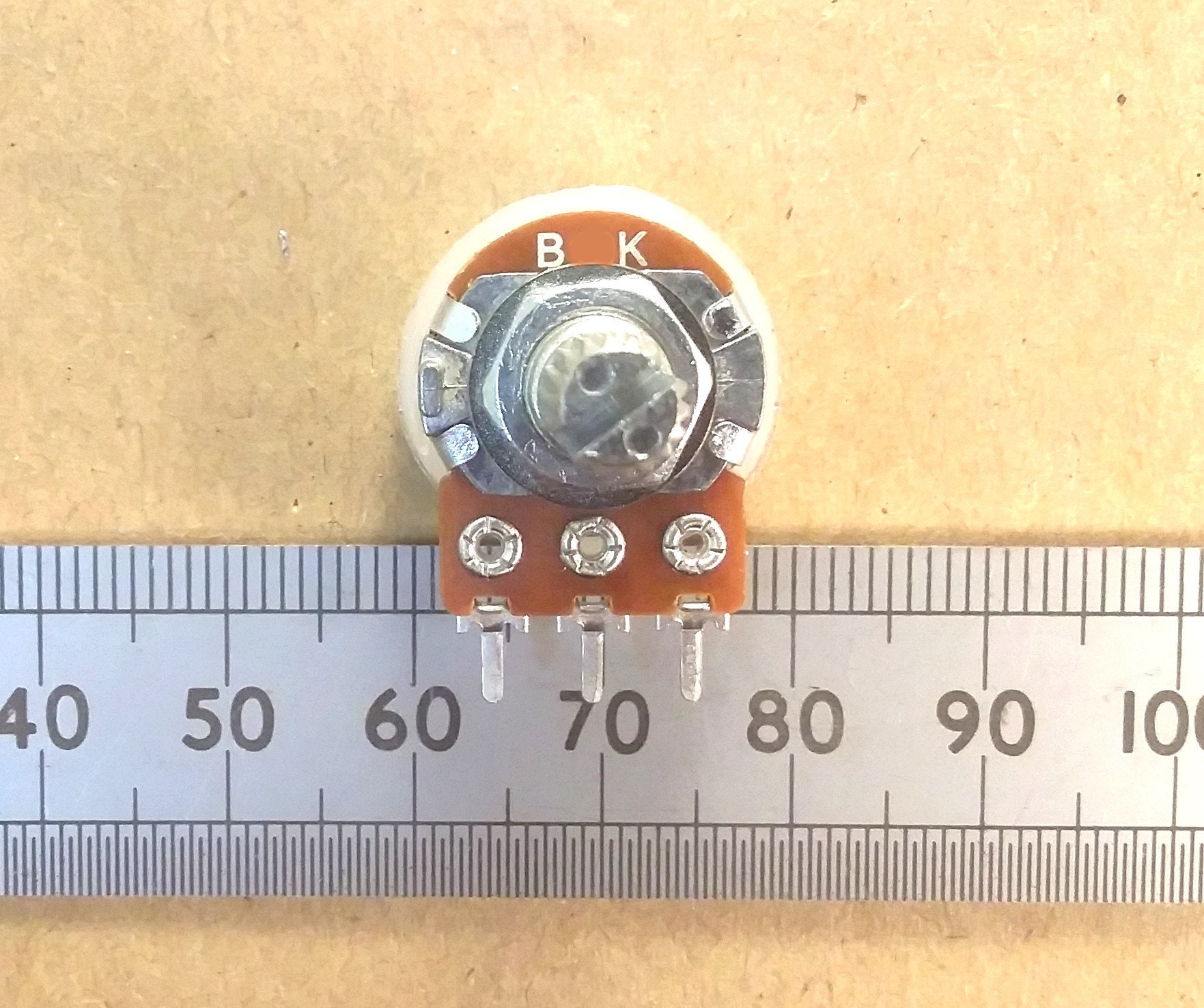

These are new items and come with a nut and a washer for mounting on a front panel. The T18 splined shaft is 6mm diameter. The mounting hole required is 7mm diameter. The connection pins will allow either PCB mounting or soldered wire connections. The "B" prefix before the track resistance value denotes a linear track taper. The max power rating is 0.1W.

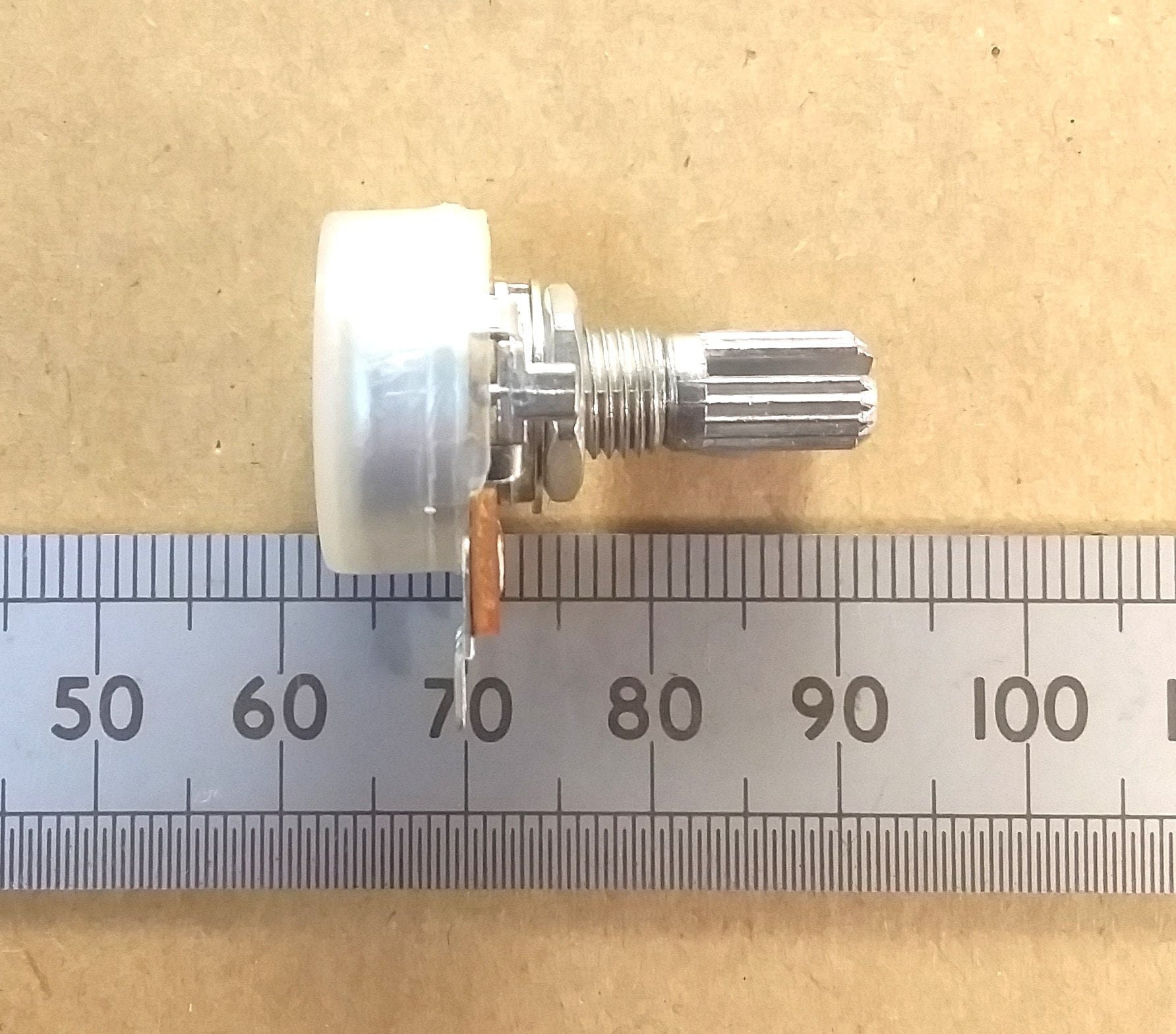

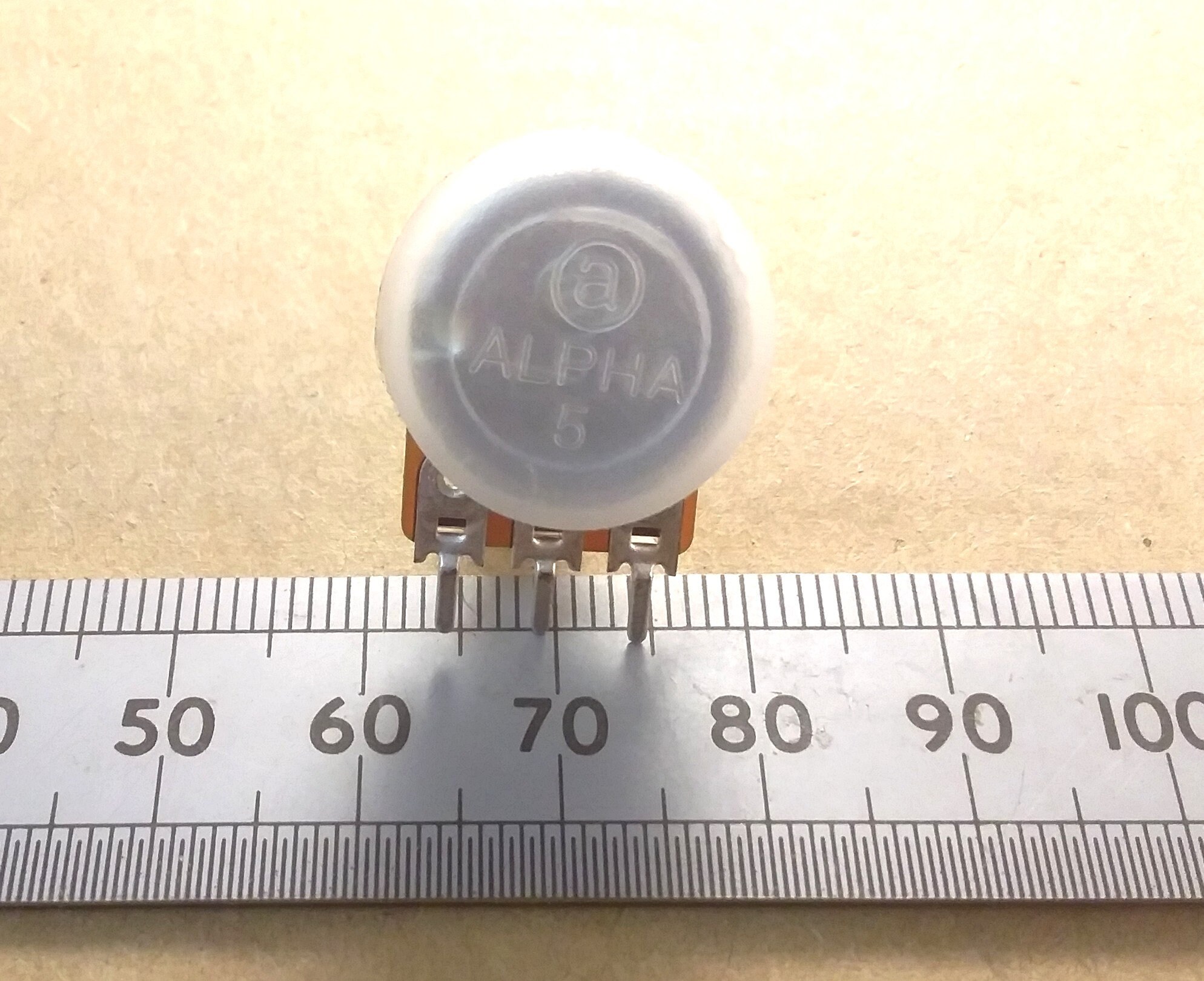

The length of the turning part of the shaft varies somewhat between 8 and 12mm depending on the particular track resistance. Not all of the types have the plastic rear cover. The threaded part of the shaft is 6mm long.
If you have a pot with a track label of B503, this is a B50K where 3 is the number of zeros after 50 in Ohms. A 502 would be 5K, a 472 would be 4K7 etc. Sometimes pots may also be labelled with the B as a suffix e.g. 50KB.
