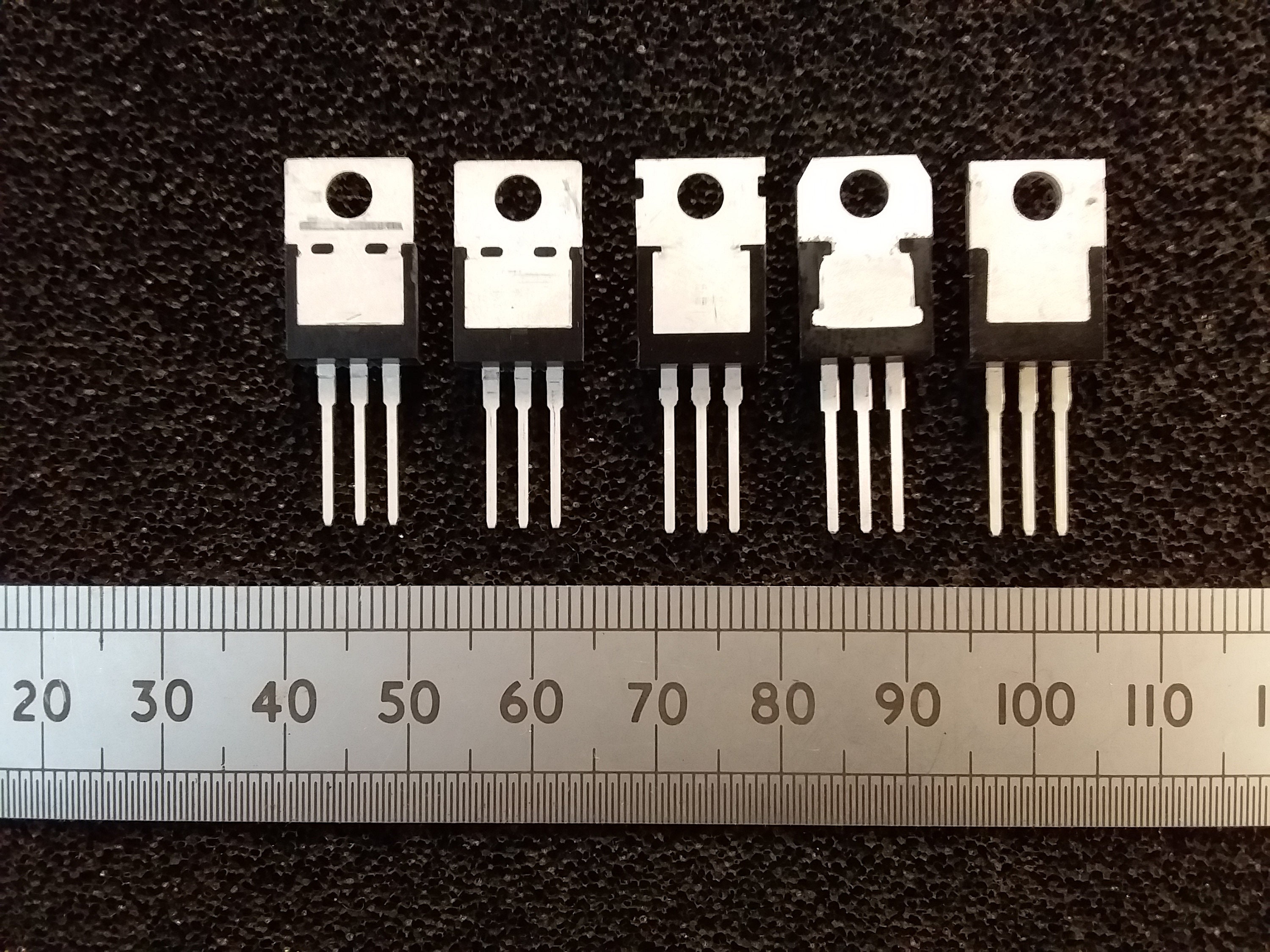

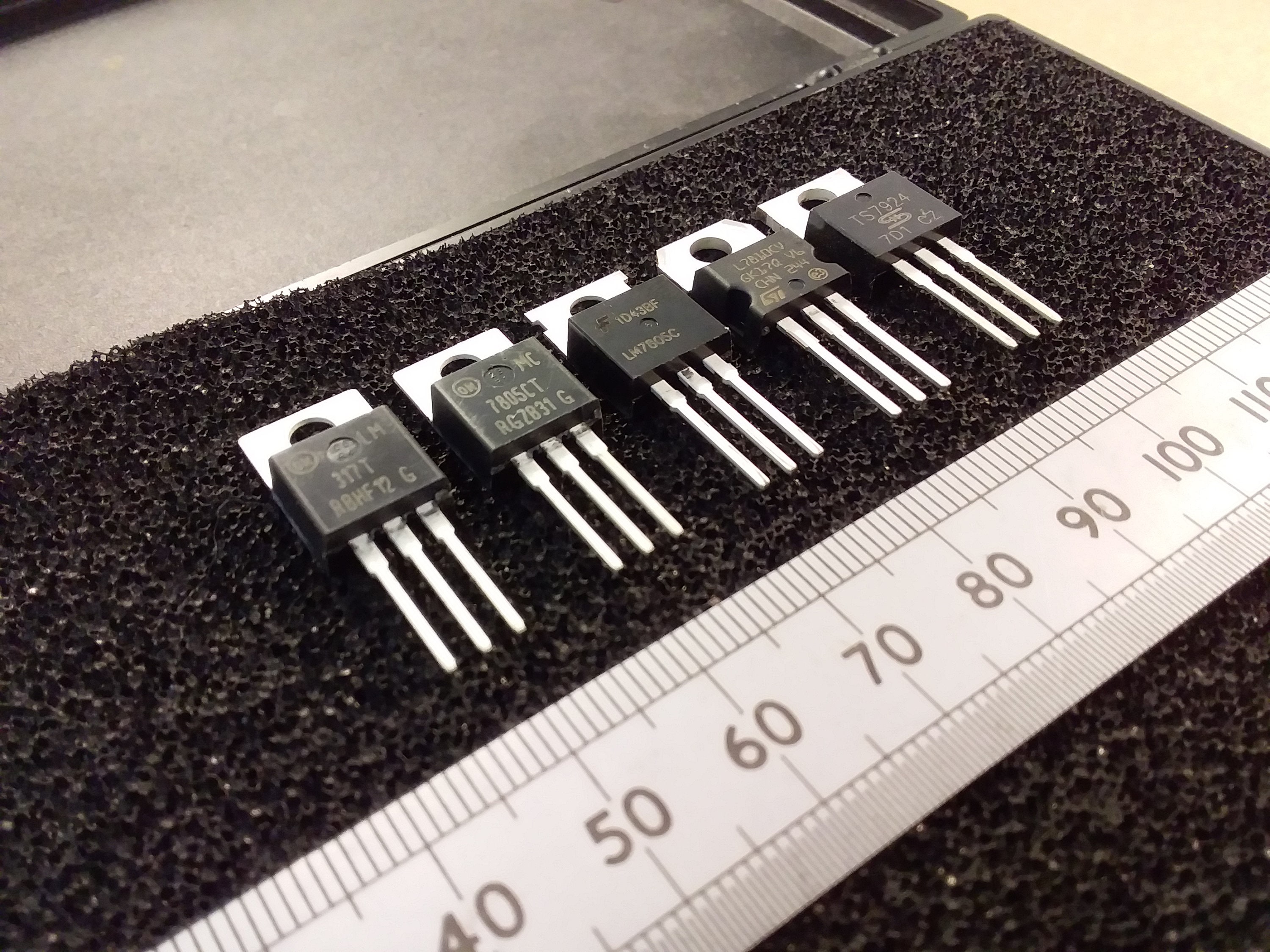

Linear Voltage Regulator IC Three Terminal TO-220 Negative And Positive

This is one item of new, 1A fixed voltage regulator in various voltages as shown. The higher pack quantity options are cheaper per item. If you would like to mix the available types in a pack, please use the MIX option and send me a list of your requirements in a site message, or attach a note to the purchase. Some of the items are rated for 1.5 Amps.

7805 = 5V output
7812 = 12V
7910 = -10V output etc

If you are replacing a part there may be various suffixes like 78L12AC for the voltage tolerance and temperature range. These are not generally of paramount importance in most consumer equipment. A "G" suffix on On semi parts shows RoHs compliance.

There are also various prefixes from various manufacturers like "MC" for On Semiconductor, "LM" for National Semiconductor, "L" for ST etc which are generally unimportant. On Semiconductor is the company that took over the Motorola portfolio. All of the fixed voltages available can be found on this listing.

Also available are the LM317 positive adjustable regulator and the LM337 negative voltage regulator. On these items the output voltage is set by a pair of resistors. There is an LM7805C made by Fairchild, as people do seem to like this specific type for some reason.

The +10V types are sometimes found in older automotive electronics sitting somewhere behind the dashboard to stabilise the supply voltages on the instruments. My old Mini 1275GT had one. In these cases the regulator here will do the job electrically but the pin-out is likely to be different, so some pin-bending adaptation will be required. The +8V version is often seen powering the RF receiver sections in CB radios. Again, these parts will do the job electrically but the pin-out will be different. The metal tabs are internally connected to pin 2, so the tab may require isolation with a mica shim and insulating washer if bolted to a chassis for heat dissipation.

Some high voltage input AVHT and low dropout types are available on another listing in my Etsy shop.

Available Items:

Type Number Output Voltage Manufacturer

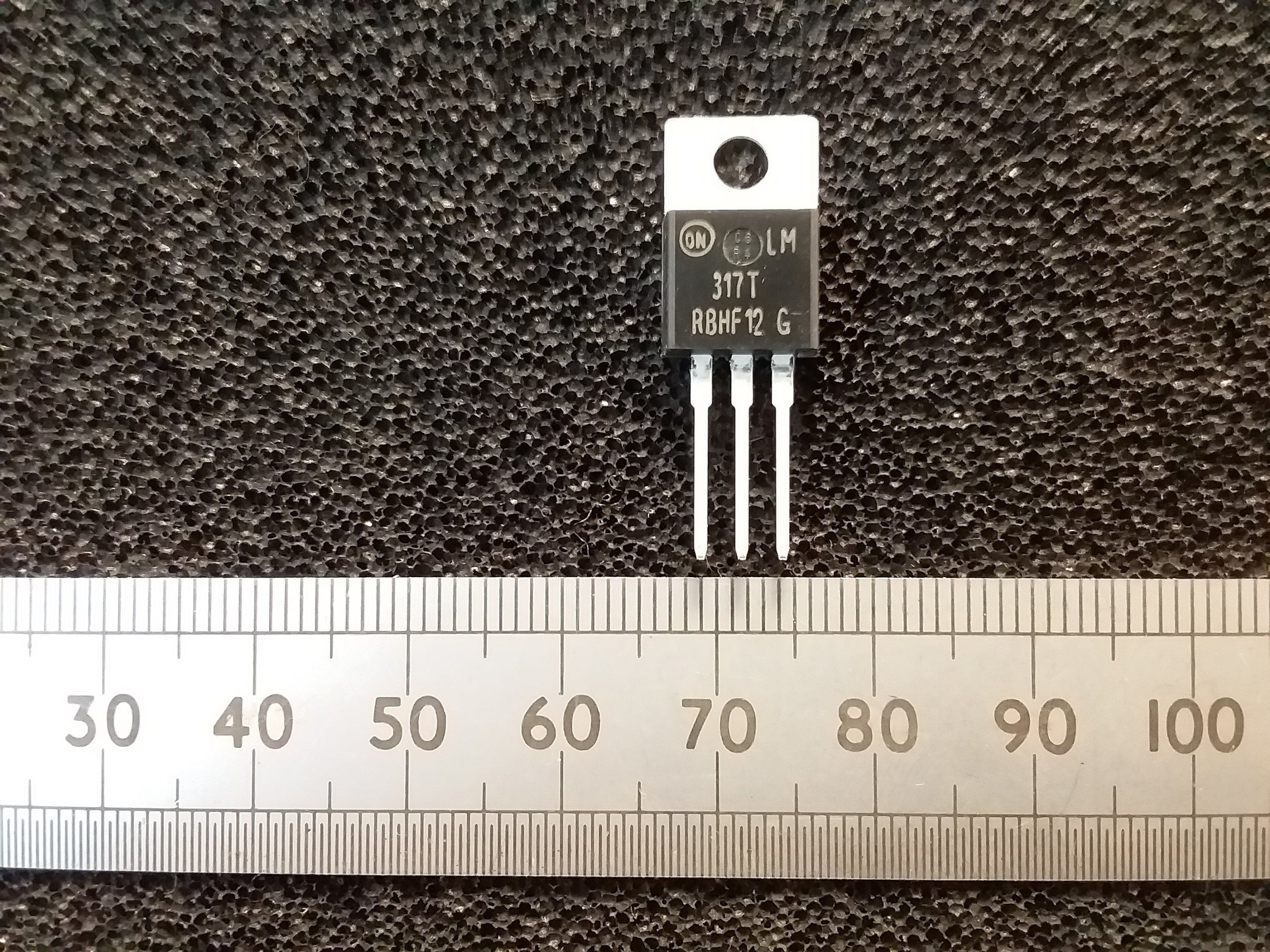

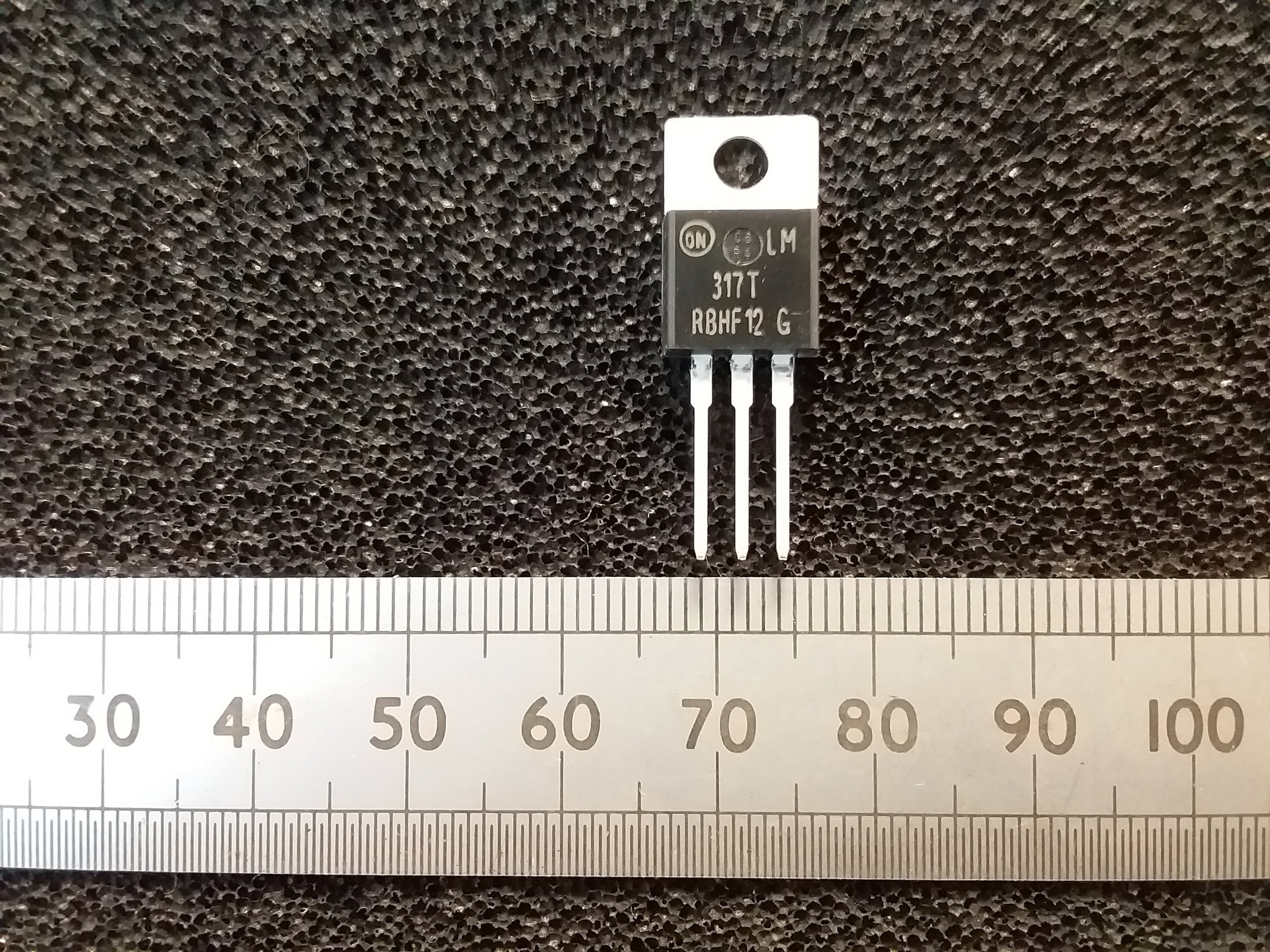

LM317T Positive Adjustable On Semi
MC7824CT +24V On Semi
MC7818CT +18V On Semi
MC7815CT +15V On Semi
MC7812CT +12V On Semi

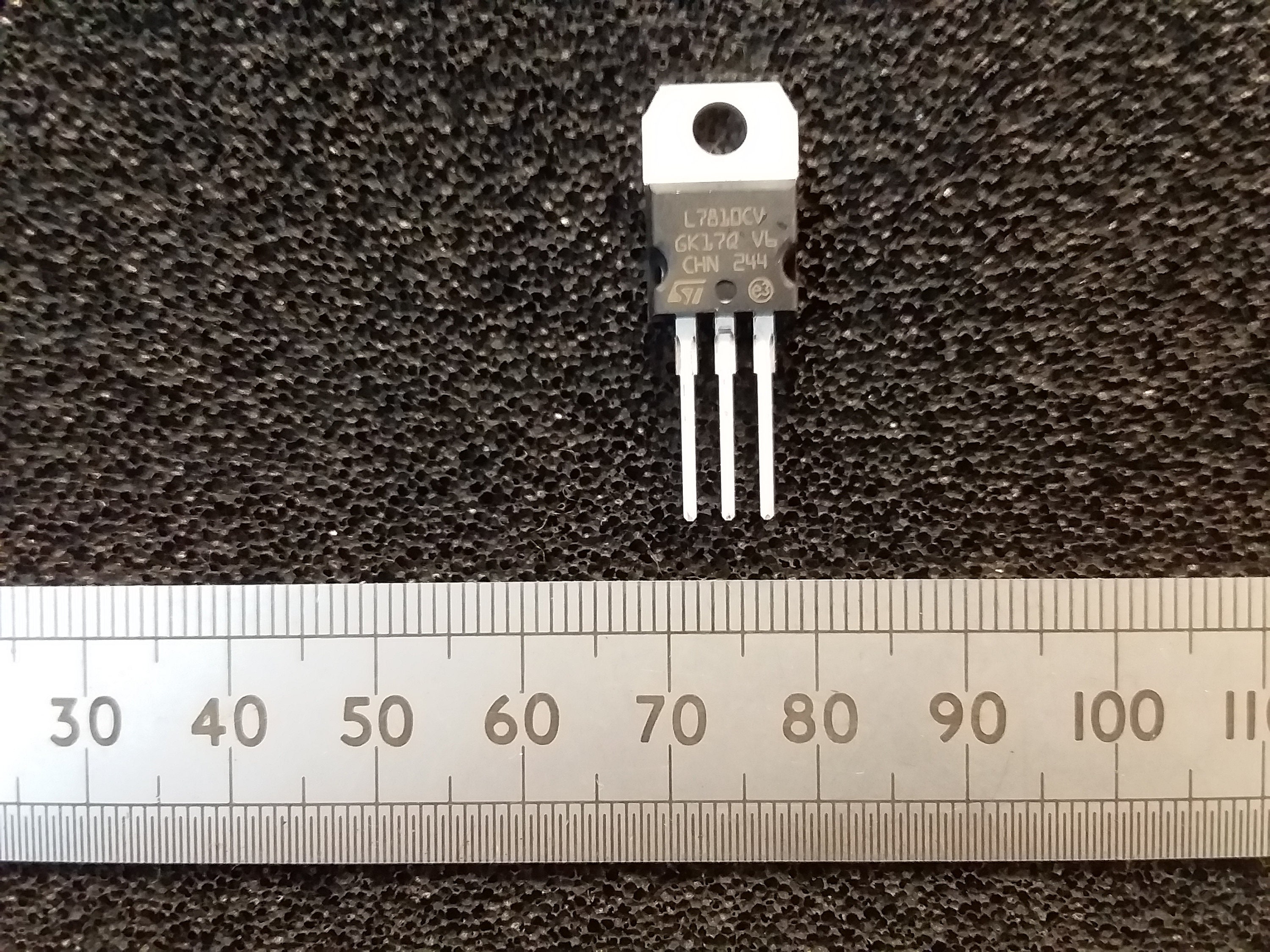

L7810CV +10V ST
MC7809CT +9V On Semi
MC7808CT +8V On Semi
MC7806CT +6V On Semi

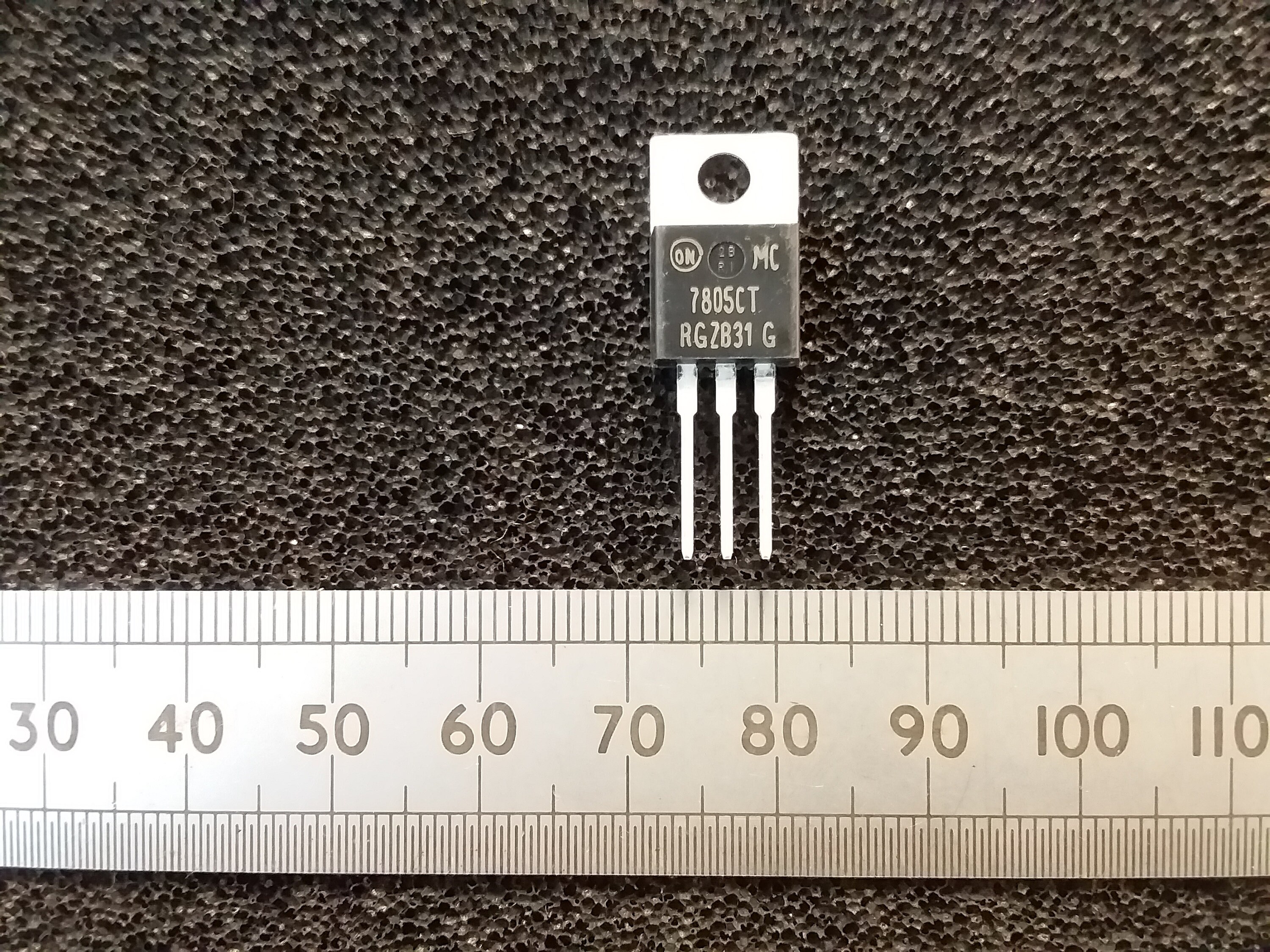

MC7805CT +5V On Semi

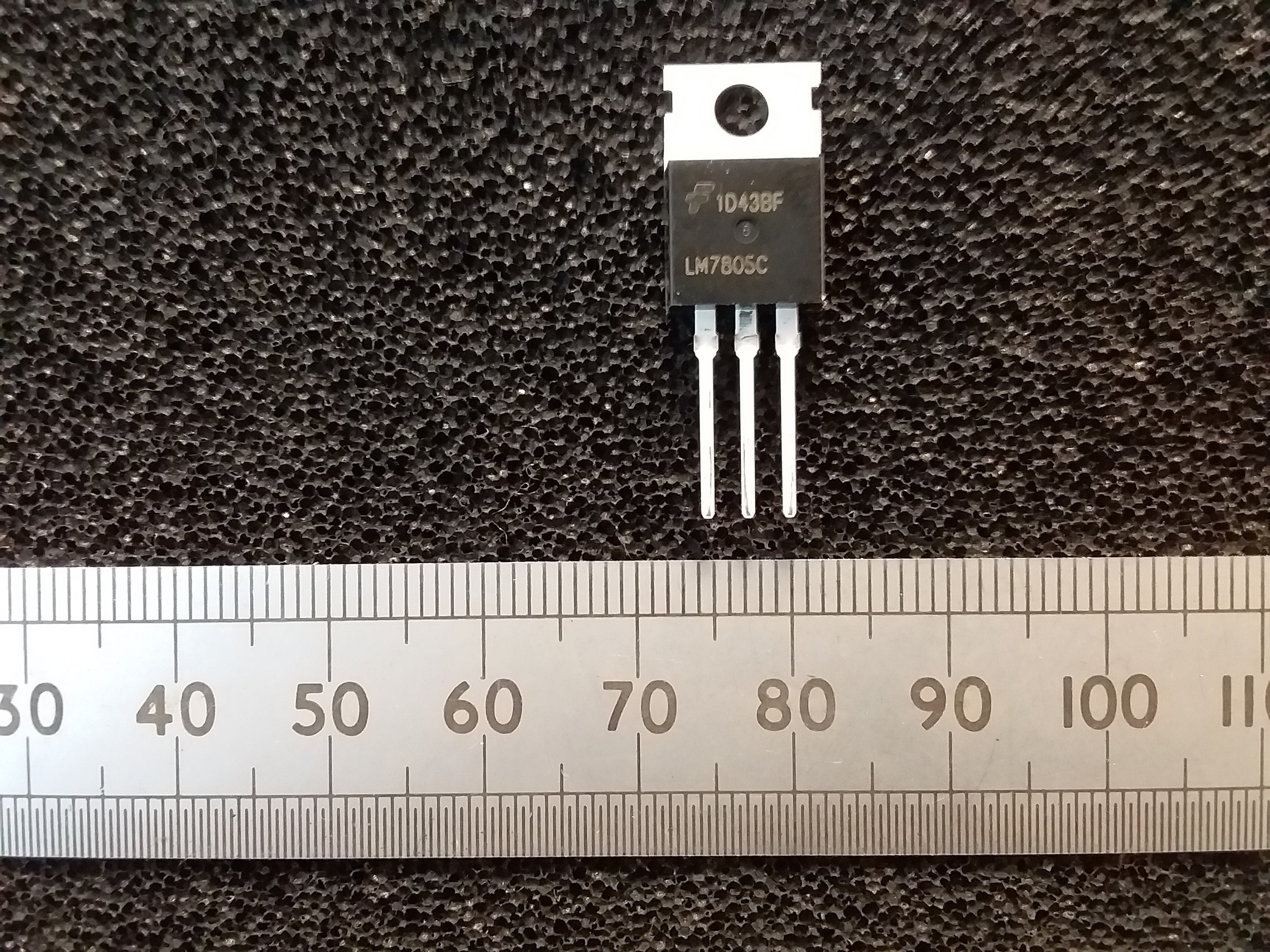

LM7805C +5V Fairchild
MC7905ACT -5V On Semi
MC7906CT -6V On Semi
L7908CV -8V ST
LM7909C -9V Fairchild
LM7910C -10V Fairchild
MC7912CT -12V On Semi
MC7915ACT -15V On Semi
MC7918CT -18V On Semi

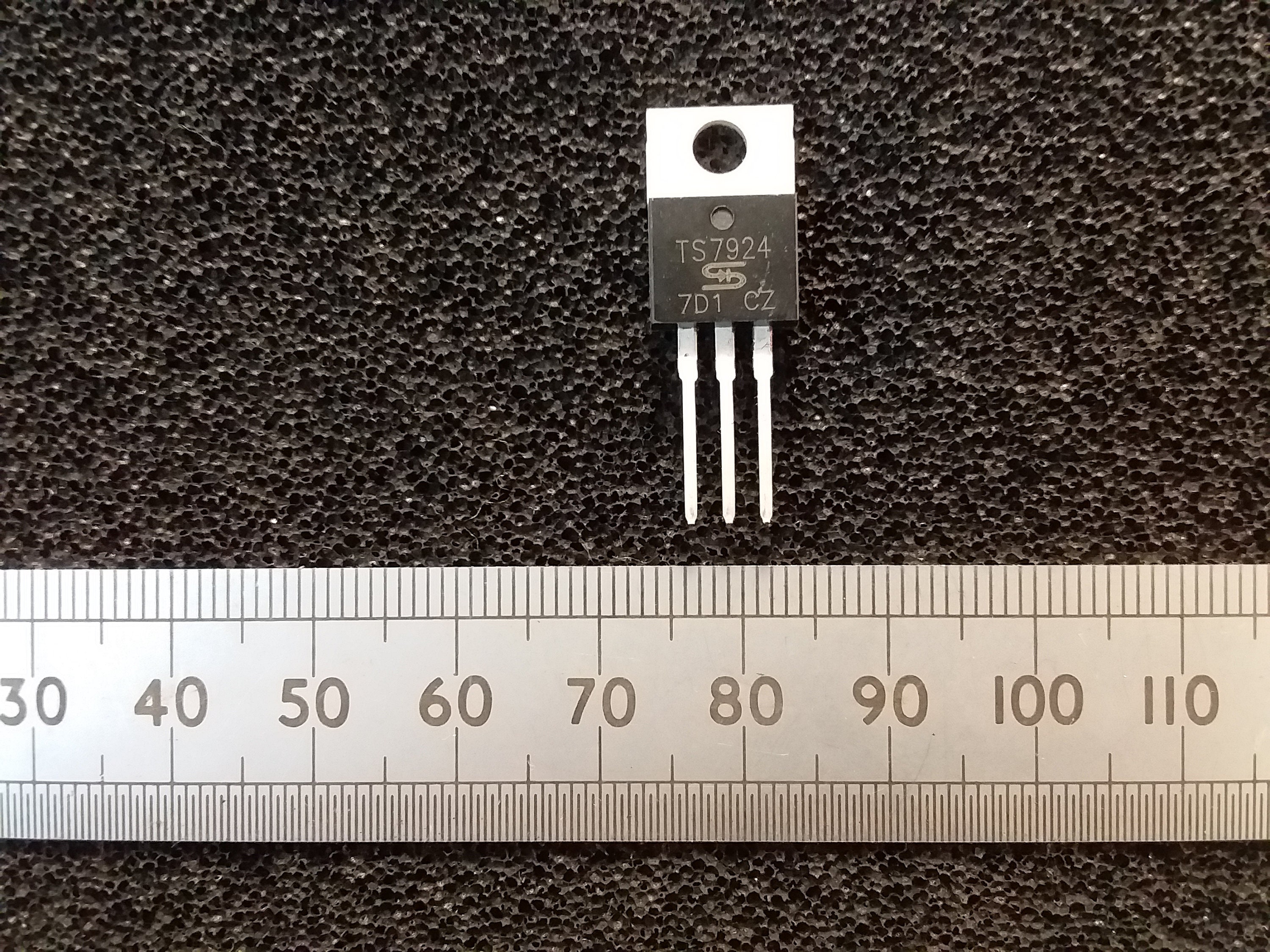

TS7924 -24V Taiwan Semiconductor
LM337T Negative Adjustable On Semi
