Ferrite Bead EMI EMC Suppression 3.55 by 1.65 by 5.95mm 43 Material Fair Rite
$2.75
Please read the details▼

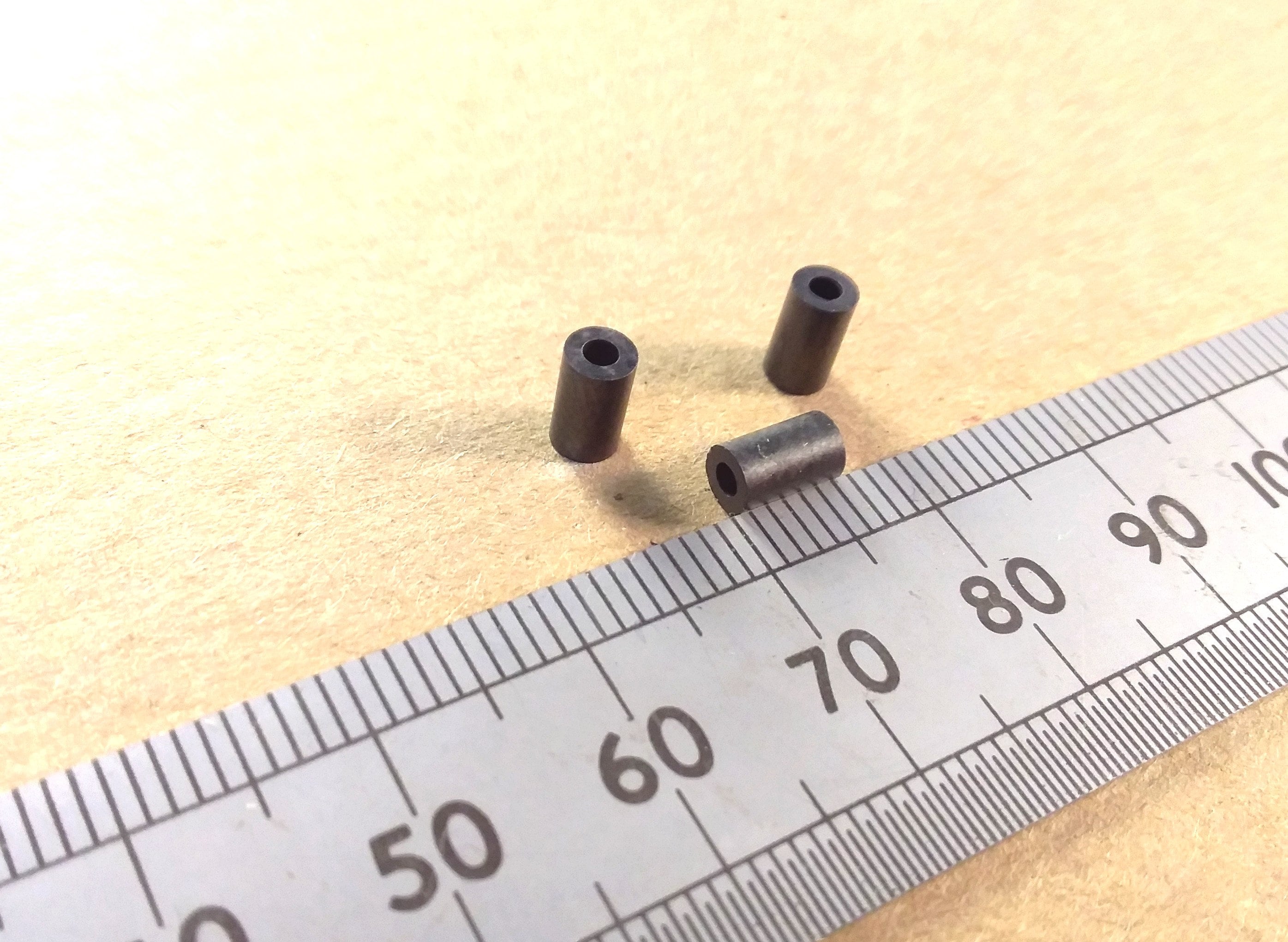

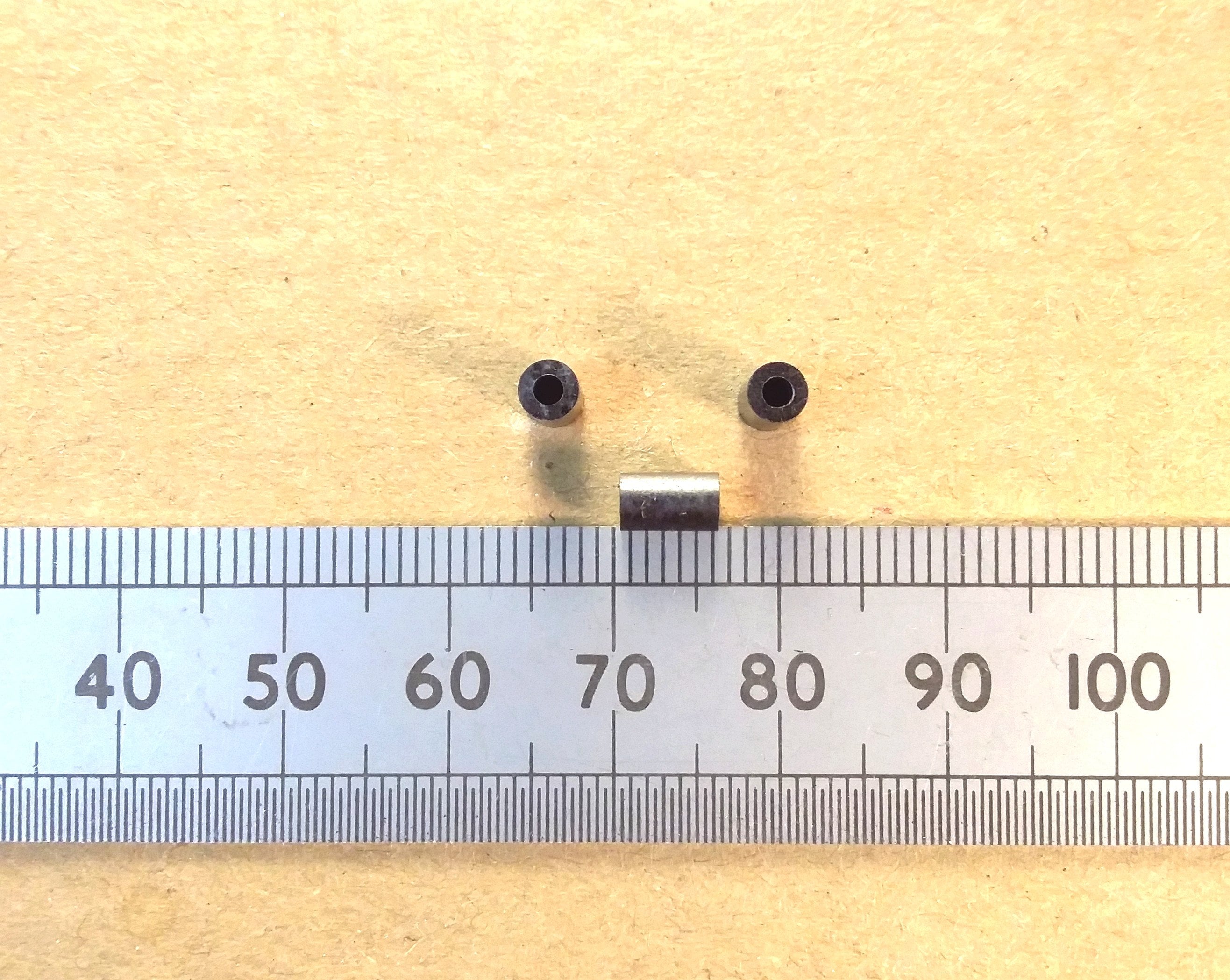

Fair-Rite Ferrite EMI EMC Suppression Beads, 3.55 x 1.65 x 5.95mm, # 43 Material.
This is one item of ferrite bead from Fair-Rite for adding low Q impedance to transistor legs and wires, for high frequency resonance damping and emc suppression. The impedance (Z) figures are given for a single turn, i.e. the wire going through the bead once. The following table summarizes the properties:
Fair-Rite Part: 2643001301
Outer Diameter: 3.55mm ±0.15
Inner Diameter: 1.65mm ±0.25
Length: 5.95mm ±0.25
Weight: 0.18g
H figure: 1.6Oe
Z @ 25MHz: 31Ω
Z @ 100MHz: 48Ω
The impedance added increases approximately with the square of the number of turns. So, passing the same wire through the bead twice would add four times 31 Ohms at 25 MHz, and this would appear to be mostly resistive when tested on a complex impedance analyser. Using moderately fine enameled copper wire, you can fit seven or more turns on, making them useful down at lower frequencies too. They really are incredibly helpful in both receivers and transmitter PA strips.

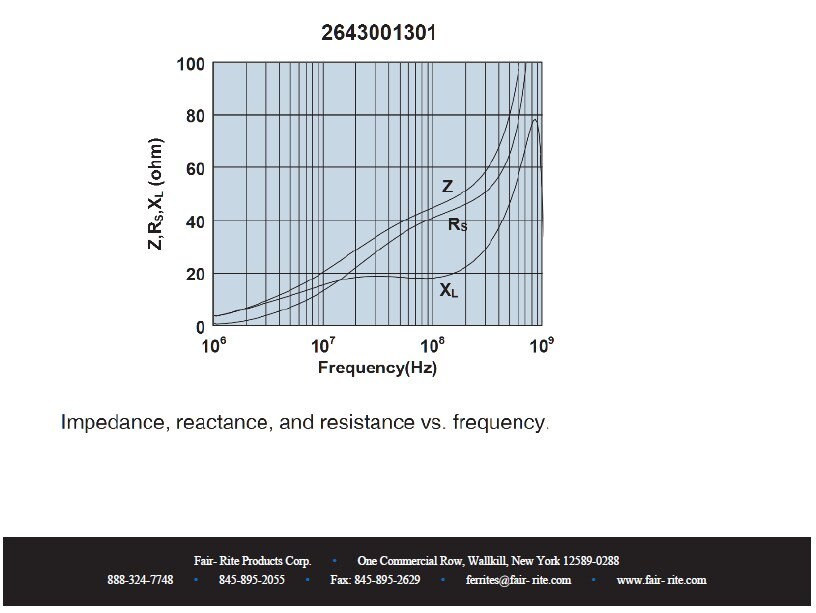

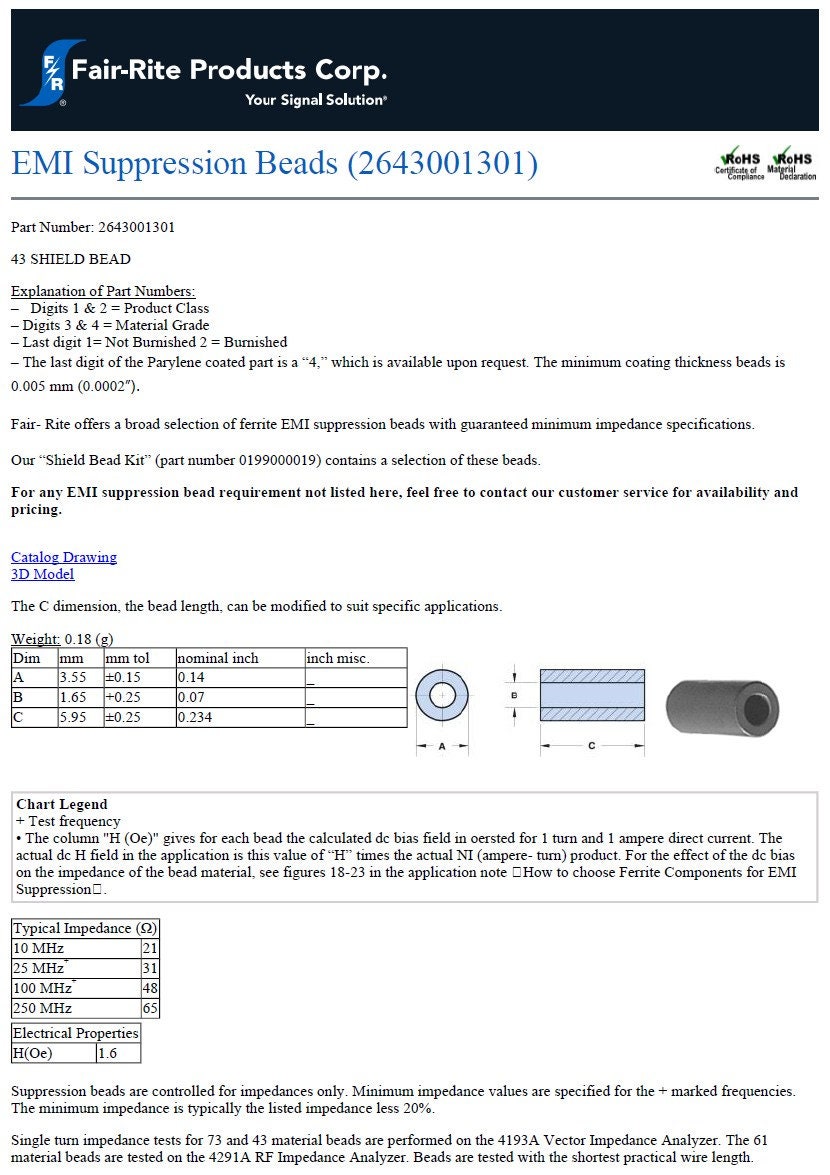

The data sheet is shown in the auxiliary photographs. Different pack sizes are available in the variations.
The vast majority of small items will not usually attract any more postage charges. Please use the shopping cart and checkout everything altogether with any available promotion codes for the best deal.
If you would like to buy *any* additional item from my store, the standard promotion codes are as follows:
10% off when you buy 2 items use checkout code SAVE10
15% off when you buy 3 items use checkout code SAVE15
20% off when you buy 4 items use checkout code SAVE20
25% off when you buy 5 items use checkout code SAVE25
