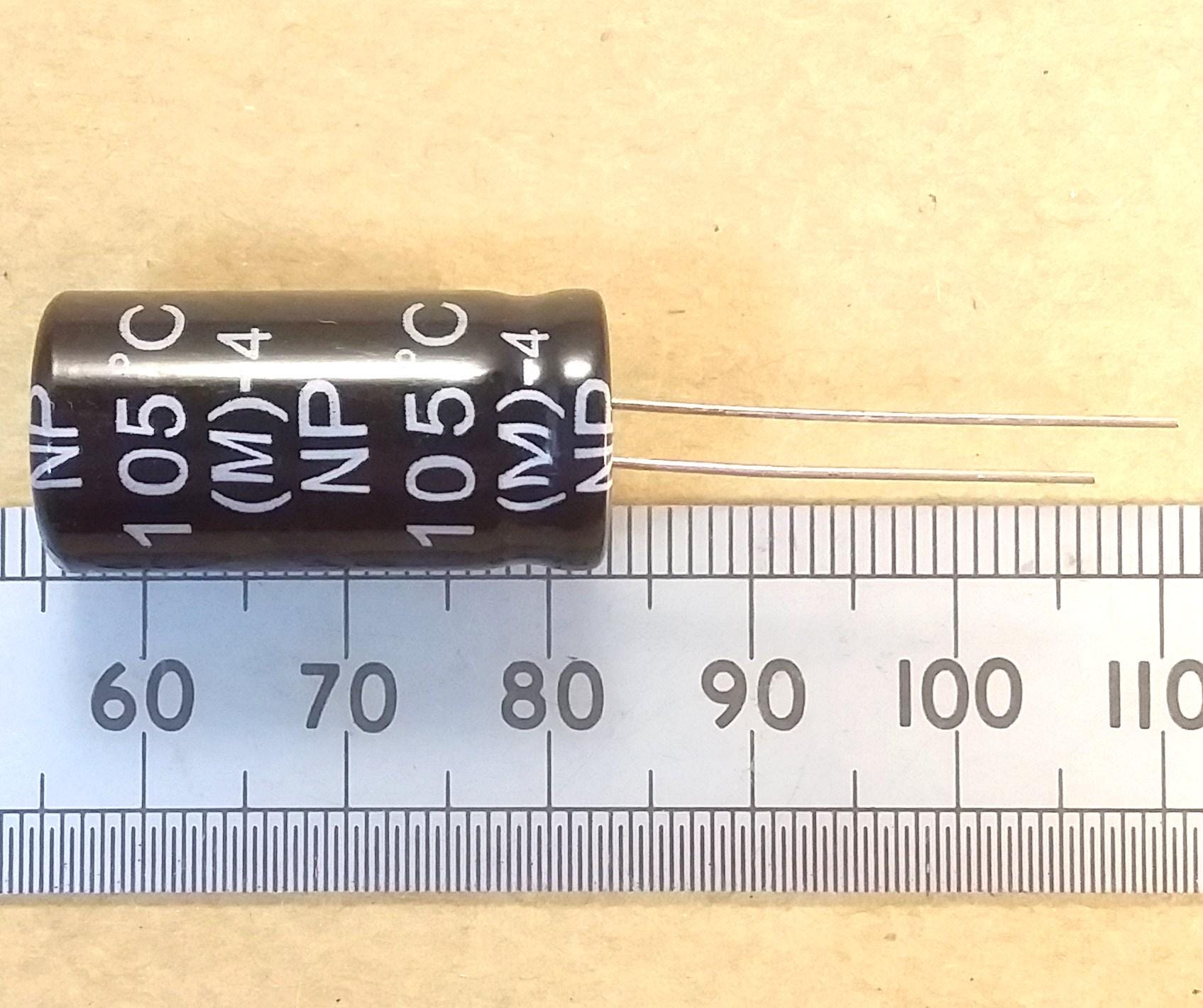

Bipolar Non Polar Electrolytic Capacitors Reversible NP Cap Various Values

This is one item of non-polar electrolytic capacitor. They are used in situations where the polarity of the applied voltage may be reversed briefly or for a long time. This happens in loudspeaker crossover networks and sometimes in low frequency audio coupling, filtering and d.c. blocking situations, especially in +/- dual rail designs.

The higher quantity options are cheaper per item. If you want a mixture of values please select the MIX variation and send me a list of your requirements via a site message, or attach a note to the purchase.

The voltage ratings are maximums. If you need to replace a capacitor with a lower voltage marked on it, then a higher voltage rated capacitor will do just fine.

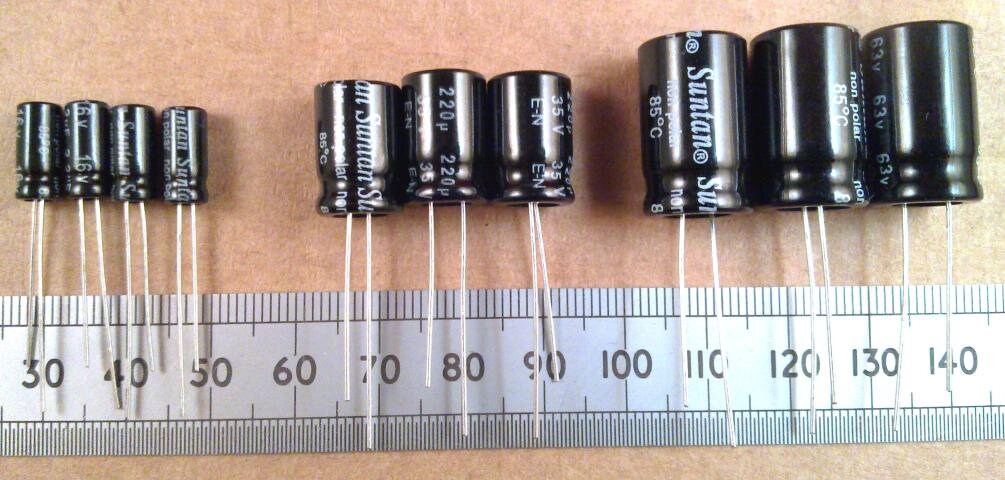

Operating temperature range -40°C to +85°C　- or as seen in the pictures
Leakage current 0.03CV or 3µA　 　
Load life 2000hr. @85°C
Shelf life 1000hr. @85°C

Cap Voltage Case DxL(mm) Manufacturer

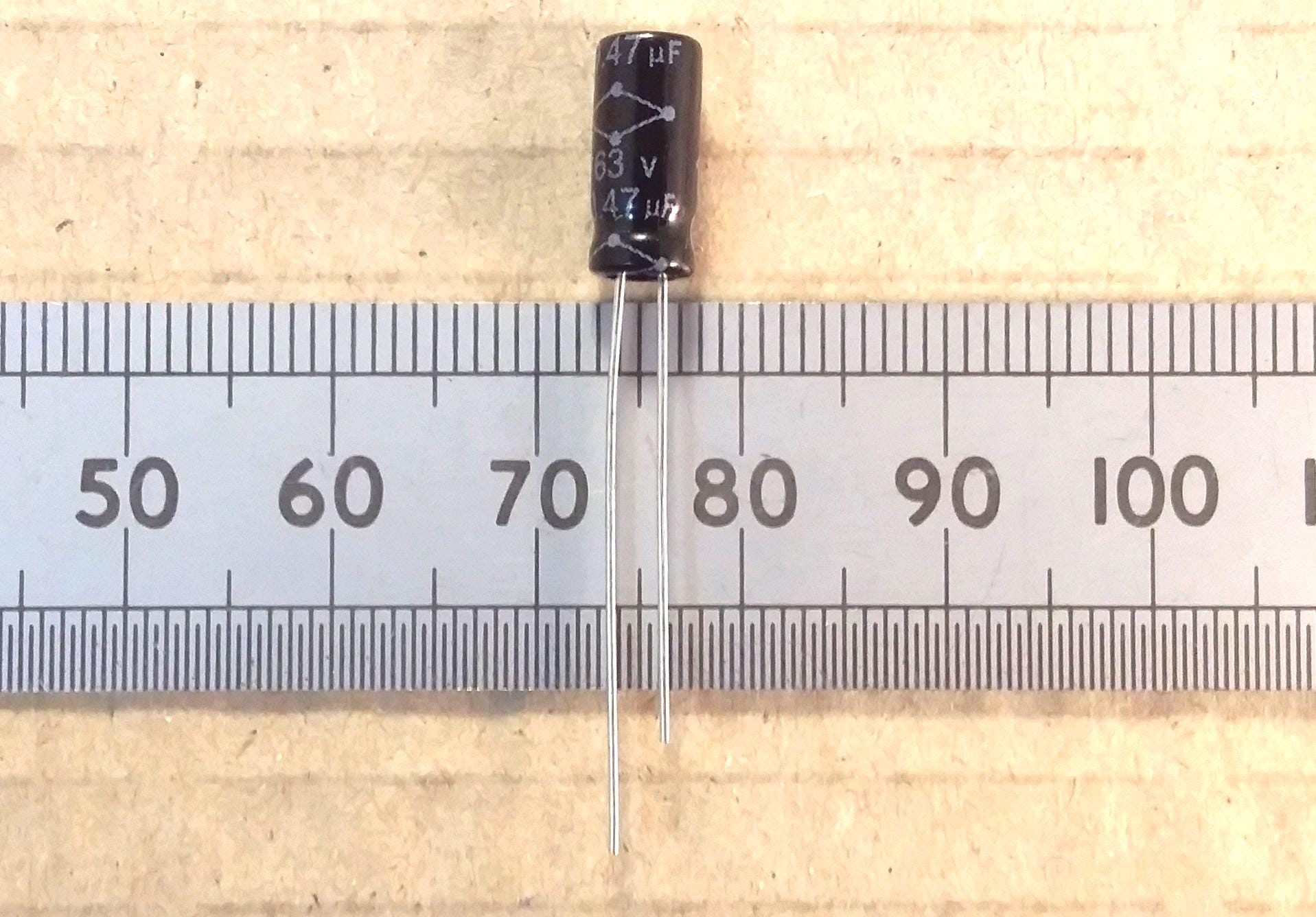

0.47uF 63V 5 x 11 Multicomp

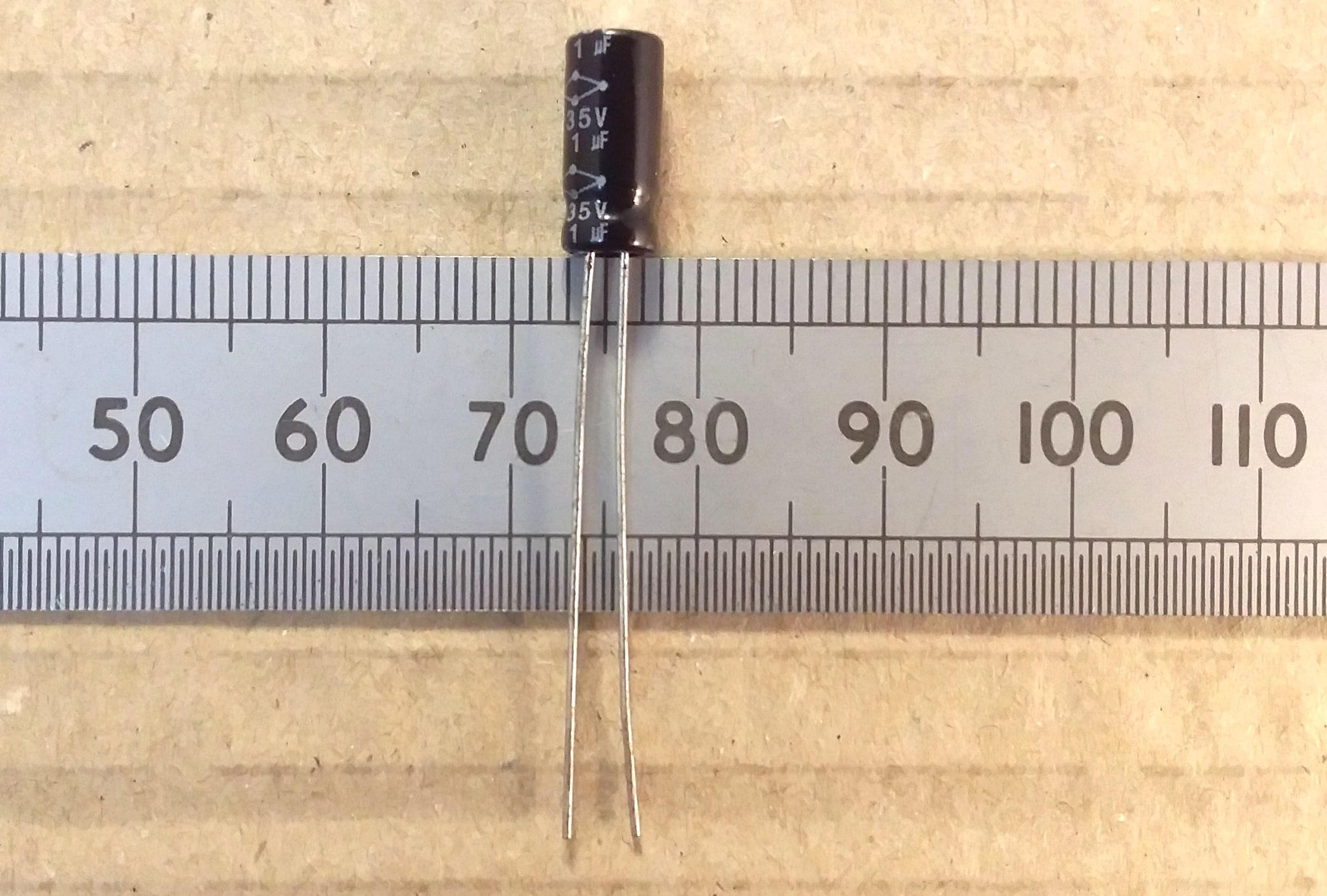

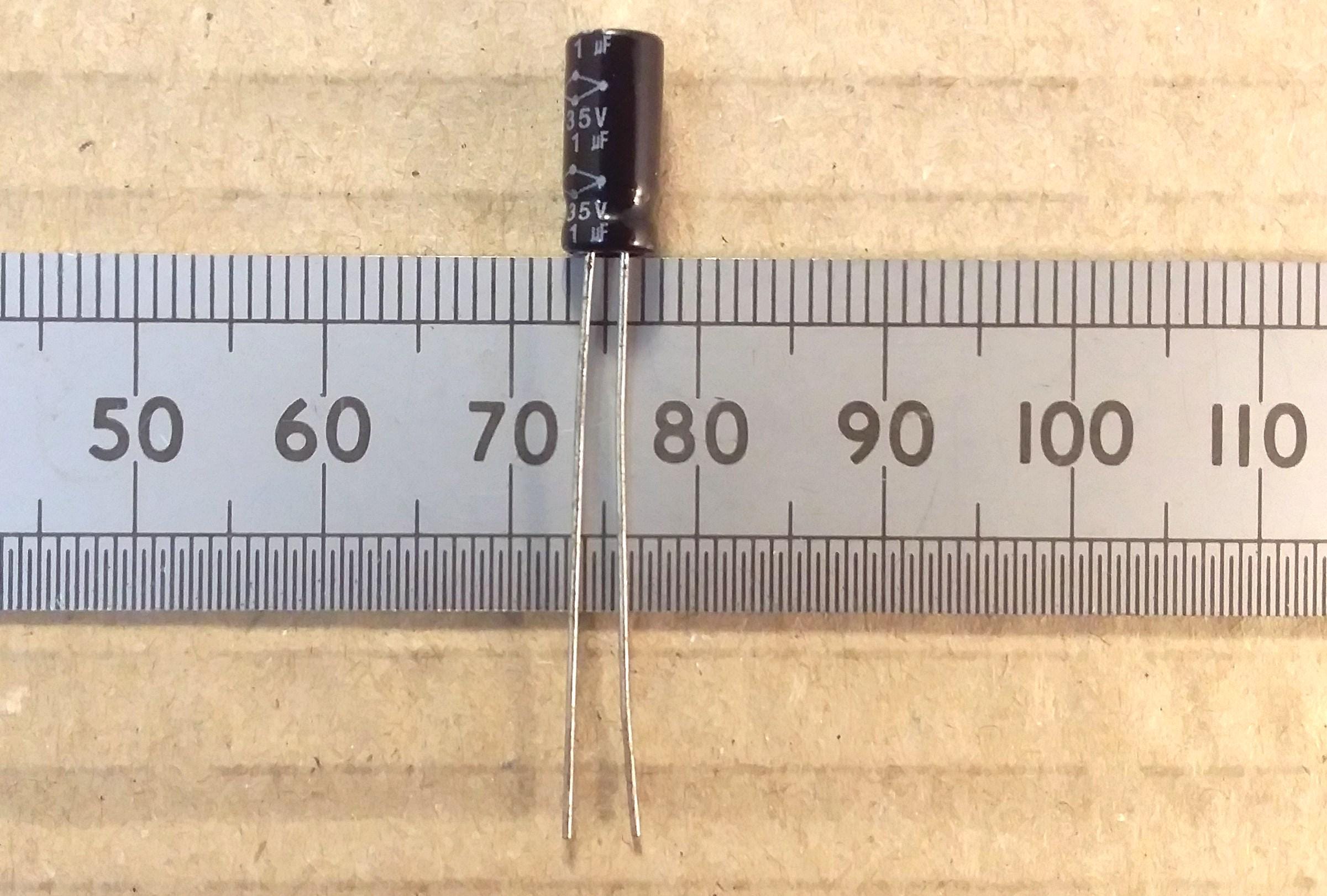

1.0uF 35V 5 x 11 Multicomp
1.0uF 63V 5 x 11 Multicomp
2.2uF 35V 5 x 11 Multicomp
2.2uF 100V 6.5 x 11 Multicomp
3.3uF 100V 6.5 x 11 Multicomp
4.7uF 16V 5 x 11 Multicomp

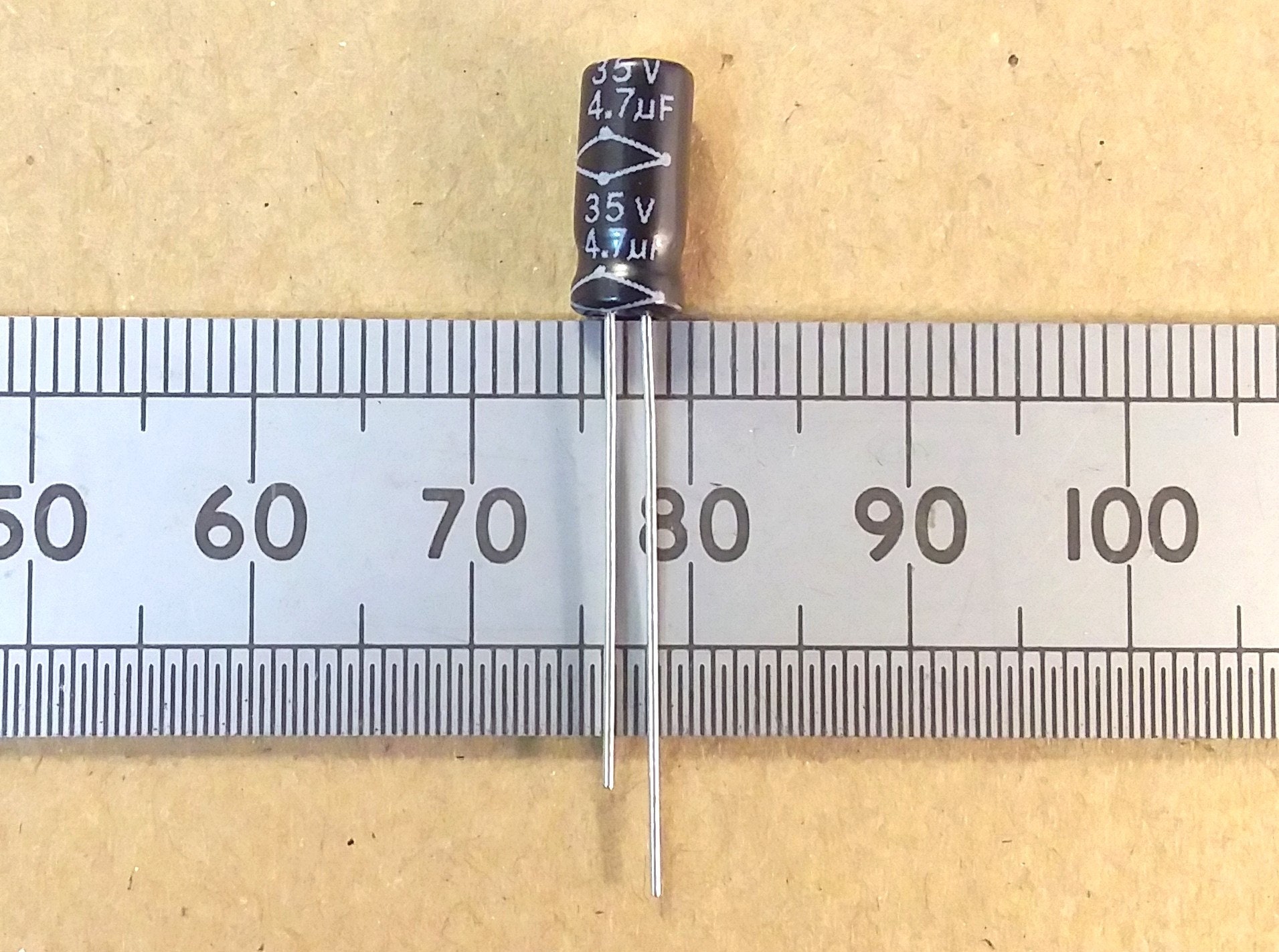

4.7uF 35V 5 x 11 Multicomp
4.7uF 100V 6 x 11 Multicomp
10uF 35V 5 x 11 Multicomp

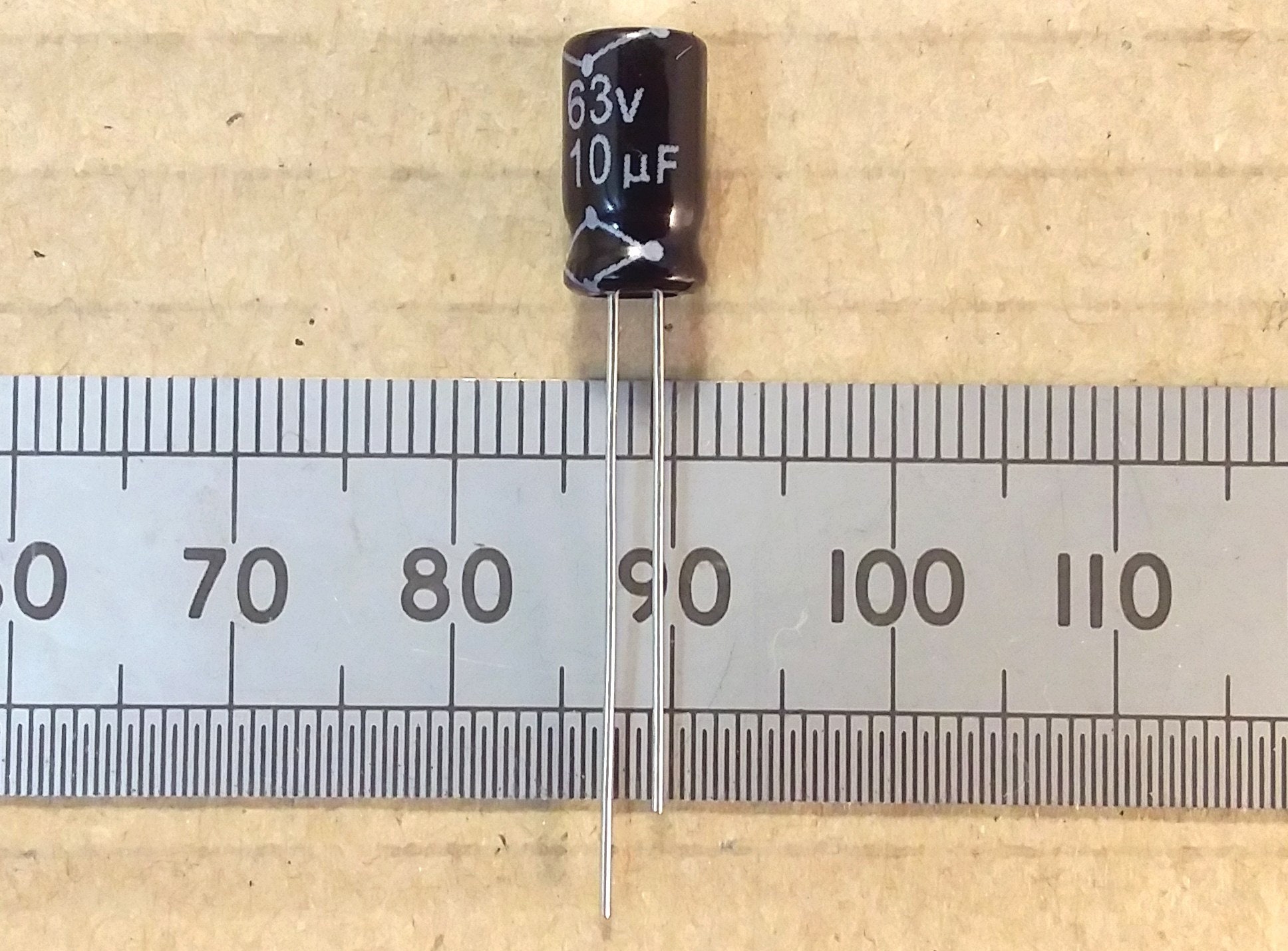

10uF 63V 6.5 x 11 Multicomp
22uF 63V 8 x 11 Multicomp
33uF 35V 8 x 12 Panasonic

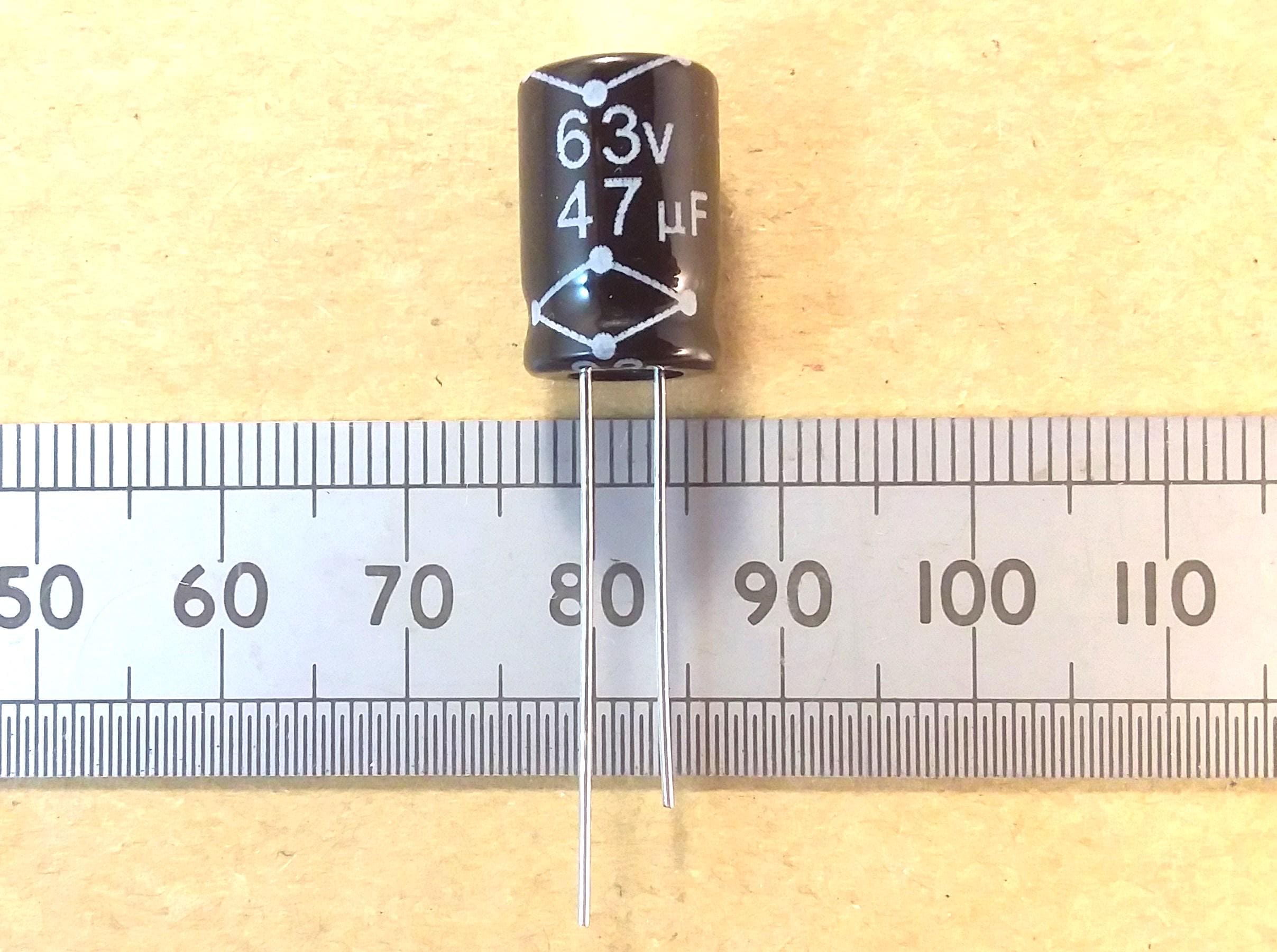

47uF 63V 10 x 15 Multicomp

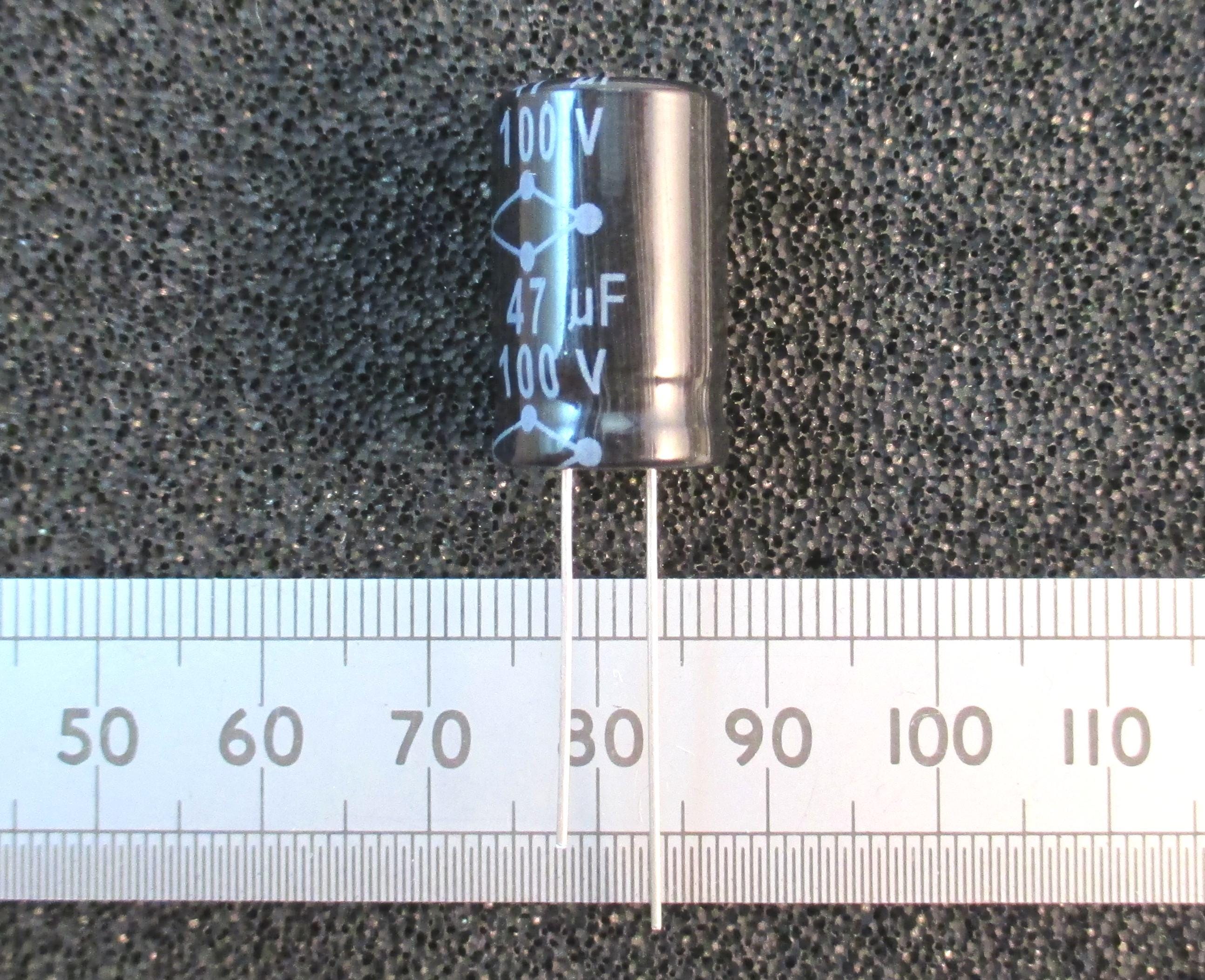

47uF 100V 13 x 21 Multicomp
100uF 63V 12 x 20 Multicomp
220uF 35V 10 x 16 Suntan

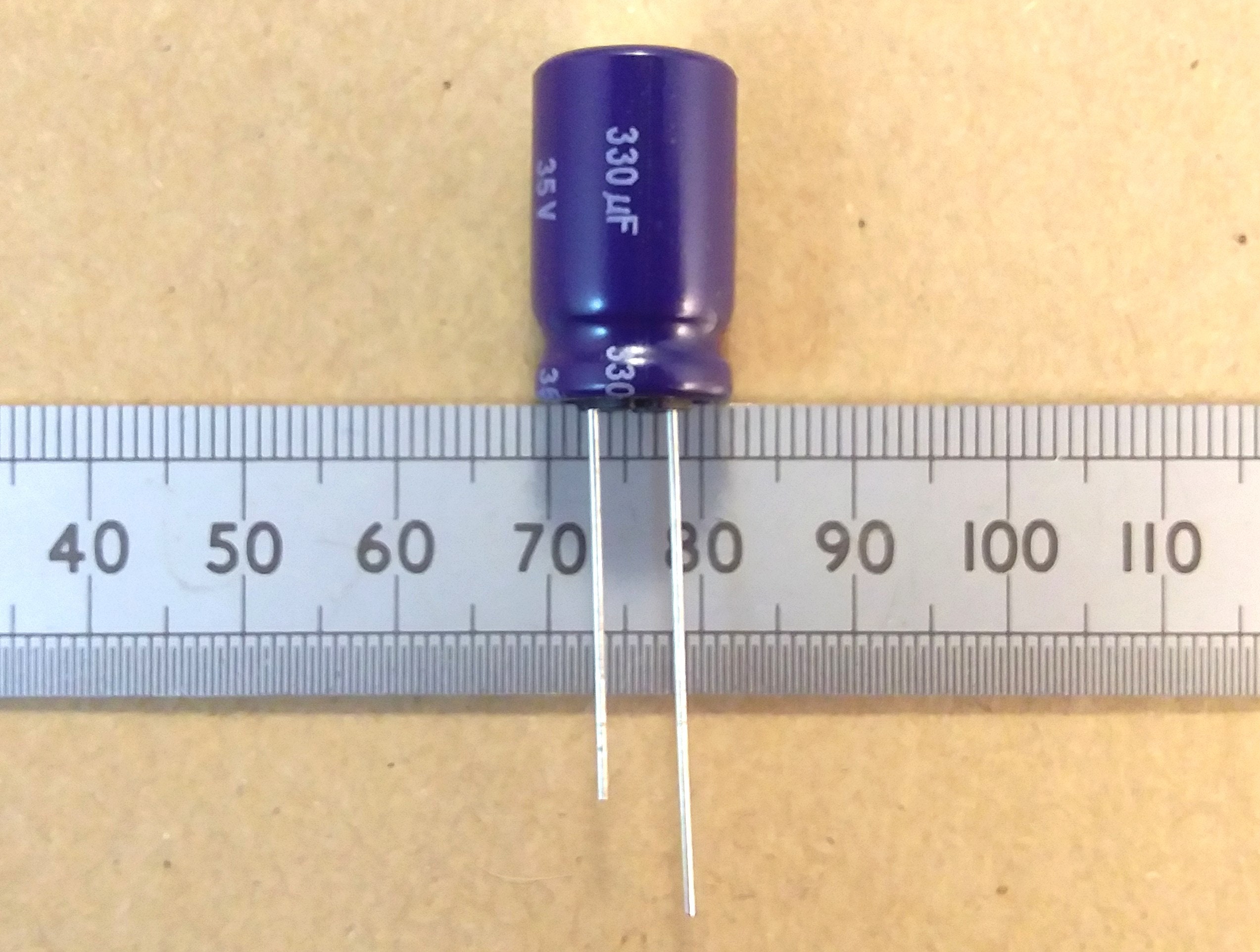

330uF 35V 13 x 21 Panasonic
470uF 16V 11 x 20 Multicomp
470uF 35V 13 x 25 Multicomp
1000uF 16V 13 x 26 Multicomp
